Programmable Read Only Memory (Prom): Removal

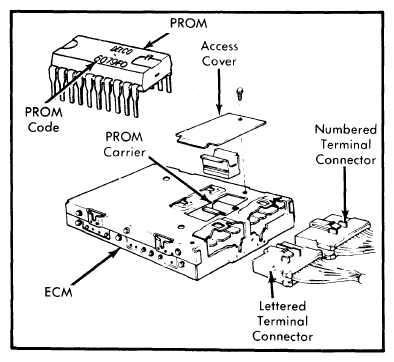

- Remove ECM as previously described. Remove sheet metal screw holding access cover closed and remove access cover. Using a small flat tip screwdriver, place blade at PROM carrier reference end between edge of opening in case and underside of protruding lip of carrier. Apply prying force and force side of carrier up as far as possible. Repeat procedure on other reference end lip.
- Using prying force explained in step 1, force opposite end of carrier up as far as possible. Grasp carrier with thumb and forefinger. Gently rock carrier from side to side while applying upward force and remove PROM.
Courtesy of GENERAL MOTORS COMPANY
