Home >> Cadillac >> 1982 >> Cimarron Automatic Trans >> Repair and Diagnosis >> Engine Performance >> Ignition System >> Ignition Secondary Quick Check Chart >> Ignition Primary Quick Check Chart

April 5, 2026: LEMON Manuals is launched! Read the announcement.

Ignition Primary Quick Check Chart

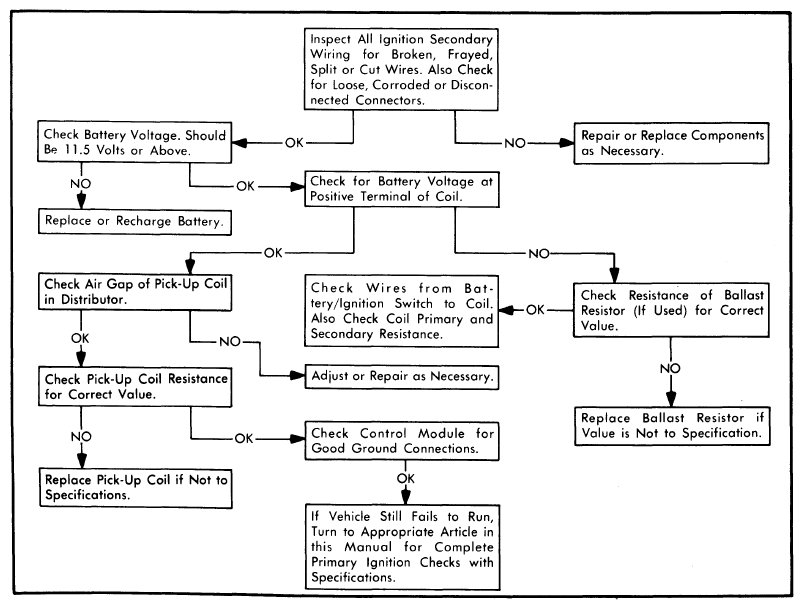

Fig 1: Ignition Primary Quick Check Chart

G09316103

Courtesy of CHRYSLER GROUP, LLC
