Height Sensor

Attach link to arm and loosen lock nut. See Fig 1.

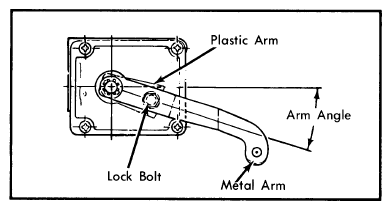

Fig 1: Height Sensor Adjustment
Courtesy of NOT AVAILABLE
To increase vehicle riding height, move plastic arm upward and tighten lock nut.
NOTE: If adjustment is used up, check riding height.
To lower riding height, loosen lock nut and move plastic arm down. Tighten lock nut.
If adjustment can not be made, check for incorrect sensor being installed.

HEIGHT SENSOR IDENTIFICATION

Application

Code

American Motors

⁽¹⁾

Buick

Century

⁽¹⁾

Electra, LeSabre

Estate Wagon

Riviera

Skylark

⁽¹⁾

Cadillac

Eldorado & Seville

Deville & Fleetwood

Oldsmobile

Cutlass Ciera

⁽¹⁾

88 Wagon (Custom Cruiser)

Toronado

⁽¹⁾	Not available from manufacturer.
