Height Sensor Operational Test
- Cycle system with ignition switch.
- Raise vehicle on hoist and support axle housing at riding height.
- Check all wiring for good connections.

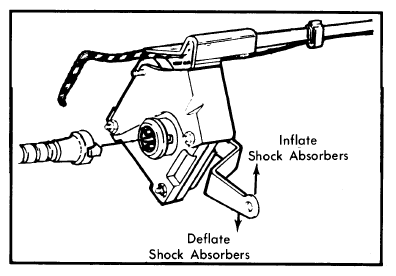

- Disconnect link from height sensor arm. See Fig 1.
Courtesy of NOT AVAILABLE
- Move metal sensor arm "UP".
- There should be a delay of 8-14 seconds before compressor turns "ON" and shock absorbers start to inflate.
- As soon as shock absorbers fill, stop compressor by moving metal sensor arm "DOWN".
- Move sensor arm below position where compressor stopped running.
- There should be a delay of 8-14 seconds before shock absorbers start to deflate and vehicle lowers.
- If height sensor does not function properly, replace it with correct model.
