System Diagnosis - Models Less D.E.F.I.

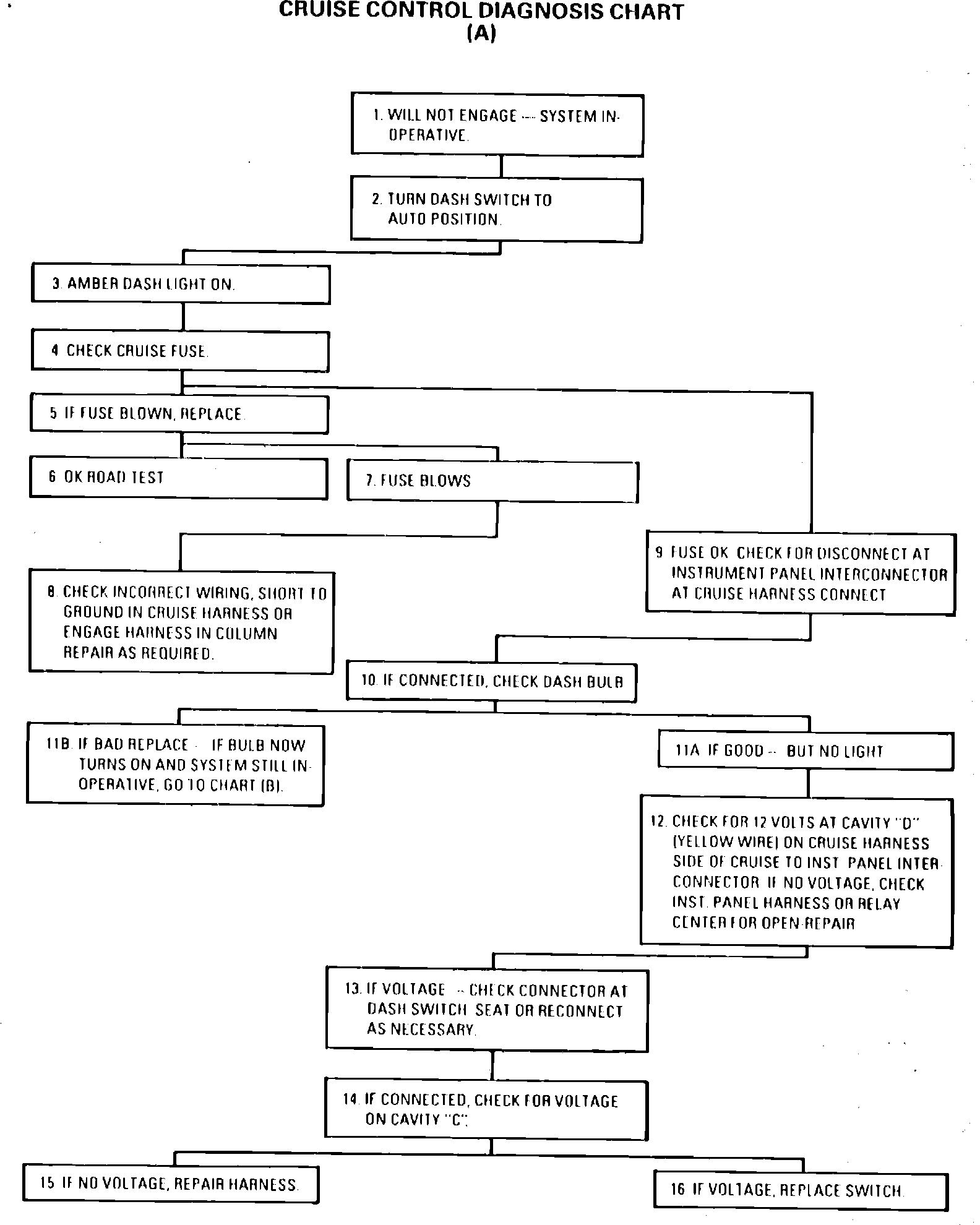

Fig. 3 Cruise control diagnosis chart (Part 1 of 3). Models less D.E.F.I.:

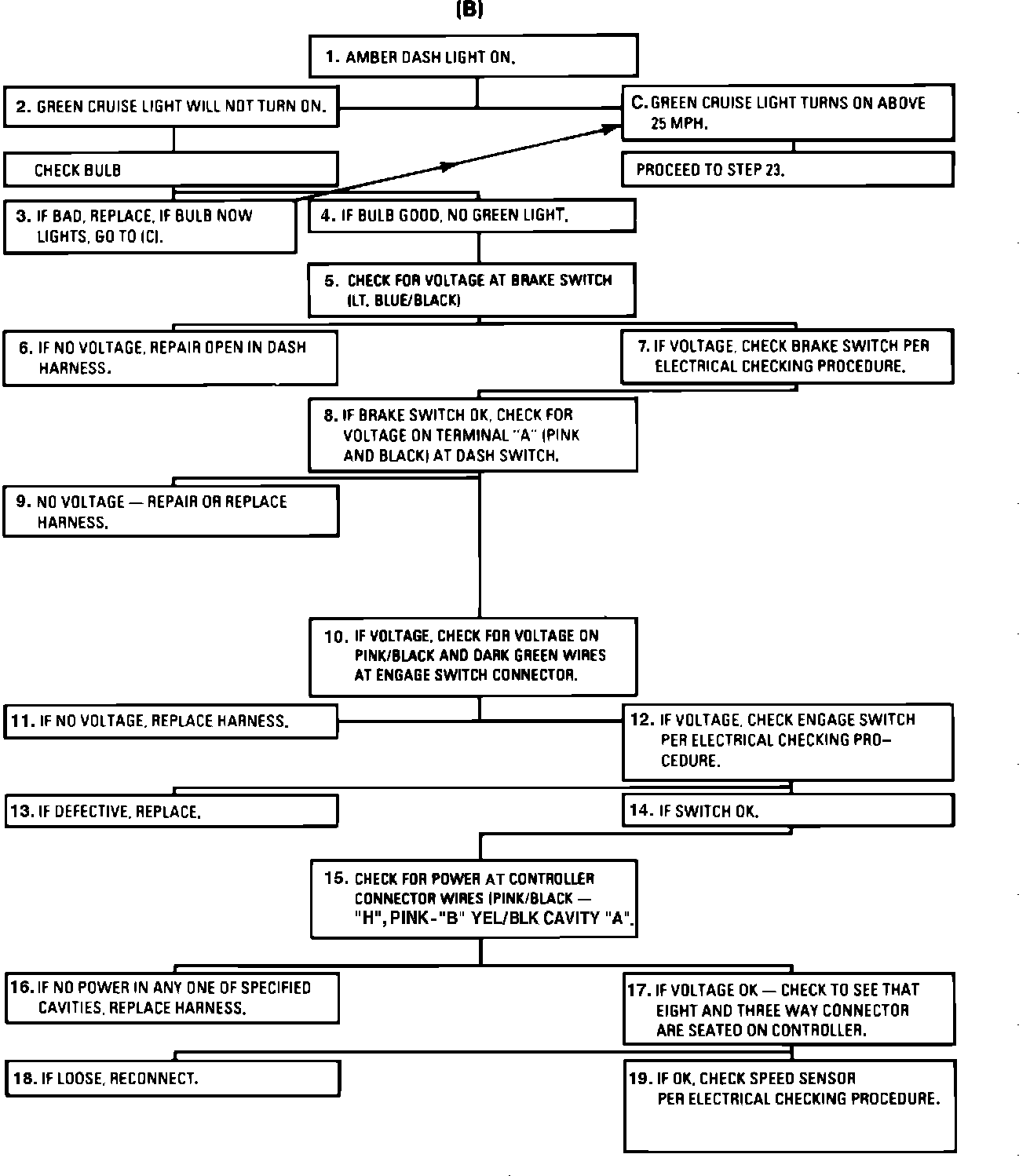

Fig. 3 Cruise control diagnosis chart (Part 2 of 3). Models less D.E.F.I.:

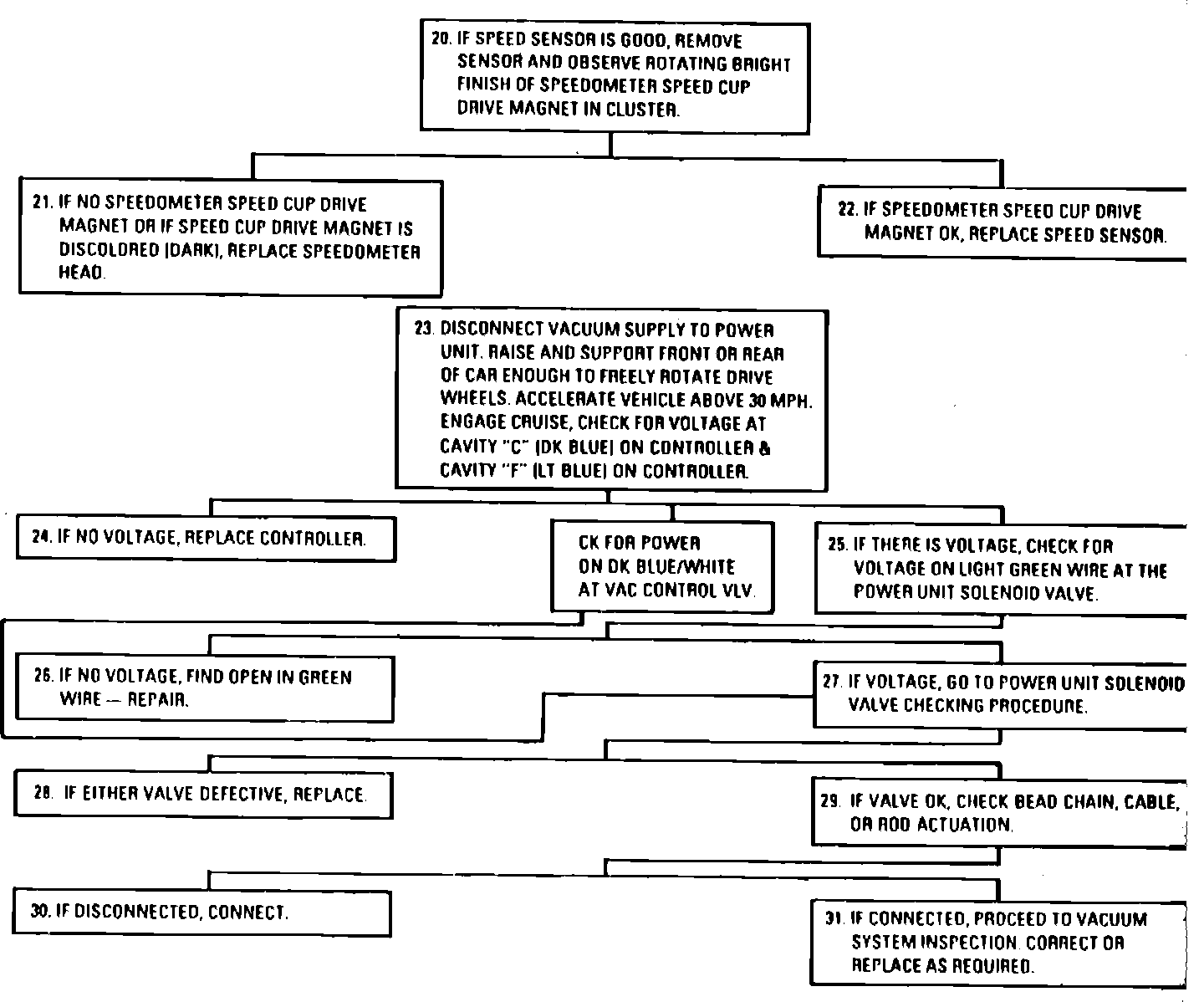

Fig. 3 Cruise control diagnosis chart (Part 3 of 3). Models less D.E.F.I.:

Refer to the Cruise Control Diagnosis Charts, Fig. 3.
