Throttle Position Sensor Test Point

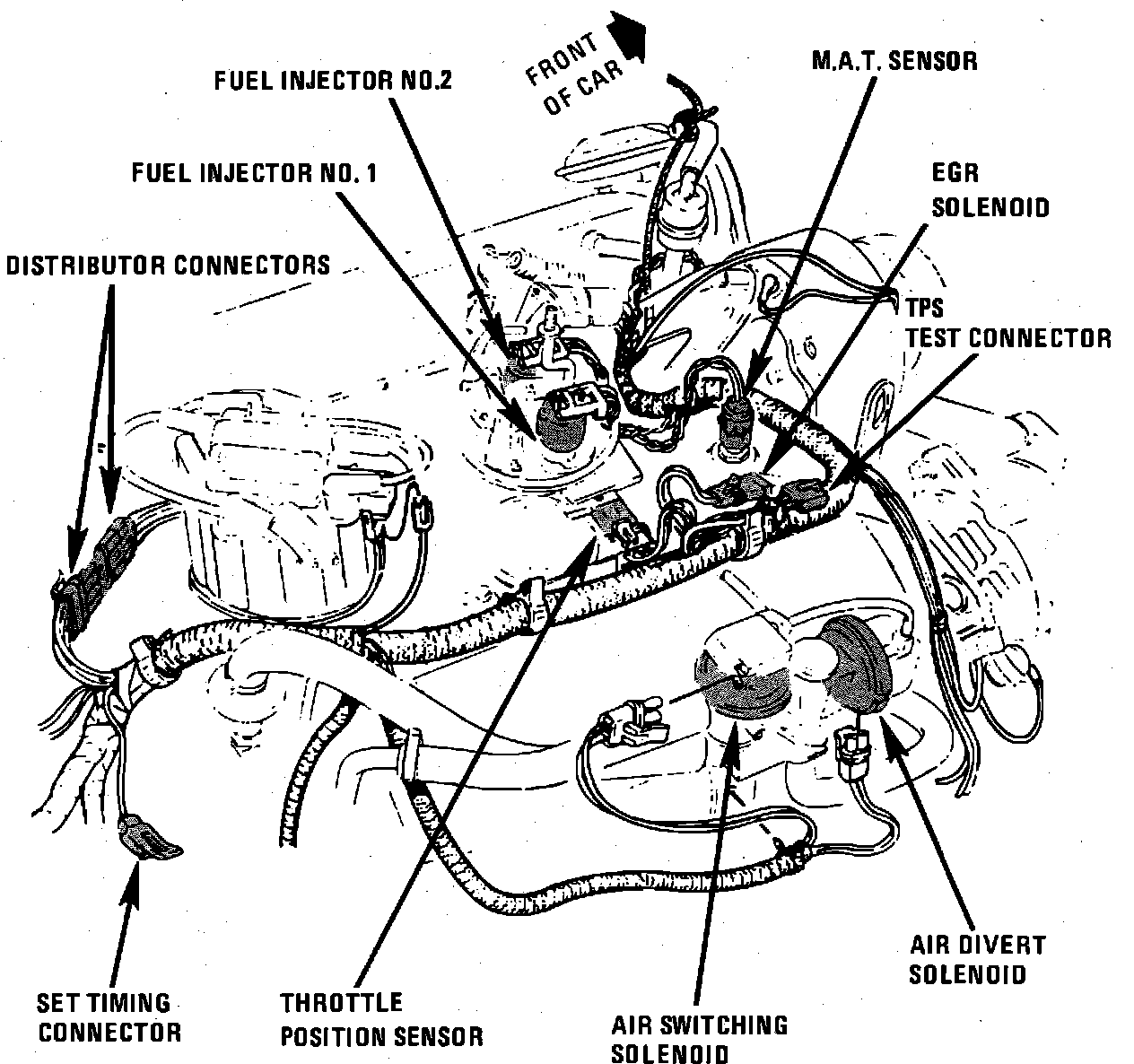

Top Of Gasoline Engine.:




Taped To Engine Harness, Right Of TPS

Applicable to: 1984-85 Eldorado & Seville
