Code 13: Open Oxygen (O2) Sensor Circuit

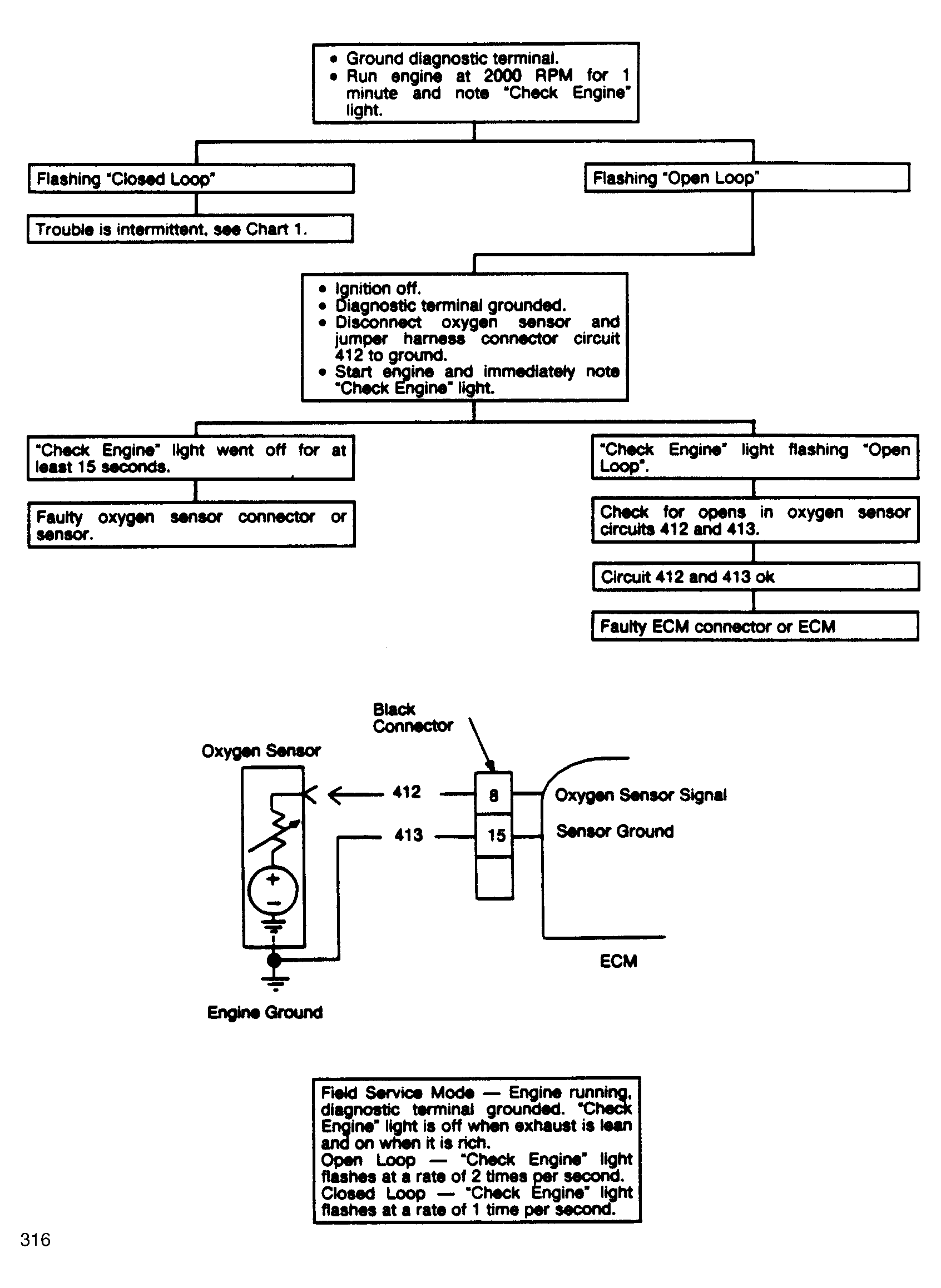

Fig 1: Code 13: Open Oxygen (O2) Sensor Circuit Flow Chart
G316

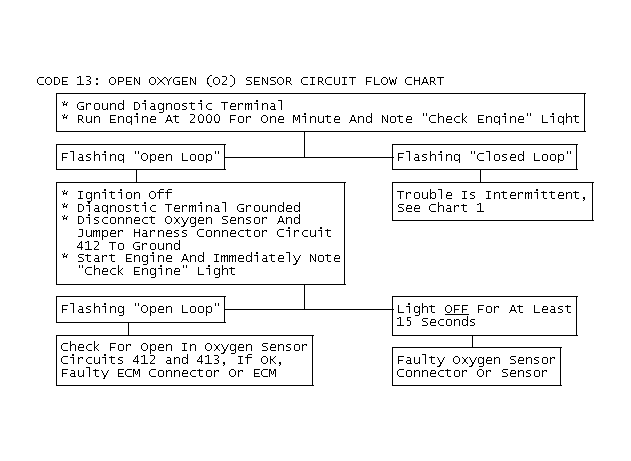

Fig 2: Code 13: Open Oxygen (O2) Sensor Circuit Flow Chart
GB0045663
