Chart 9A: Park/Neutral Switch

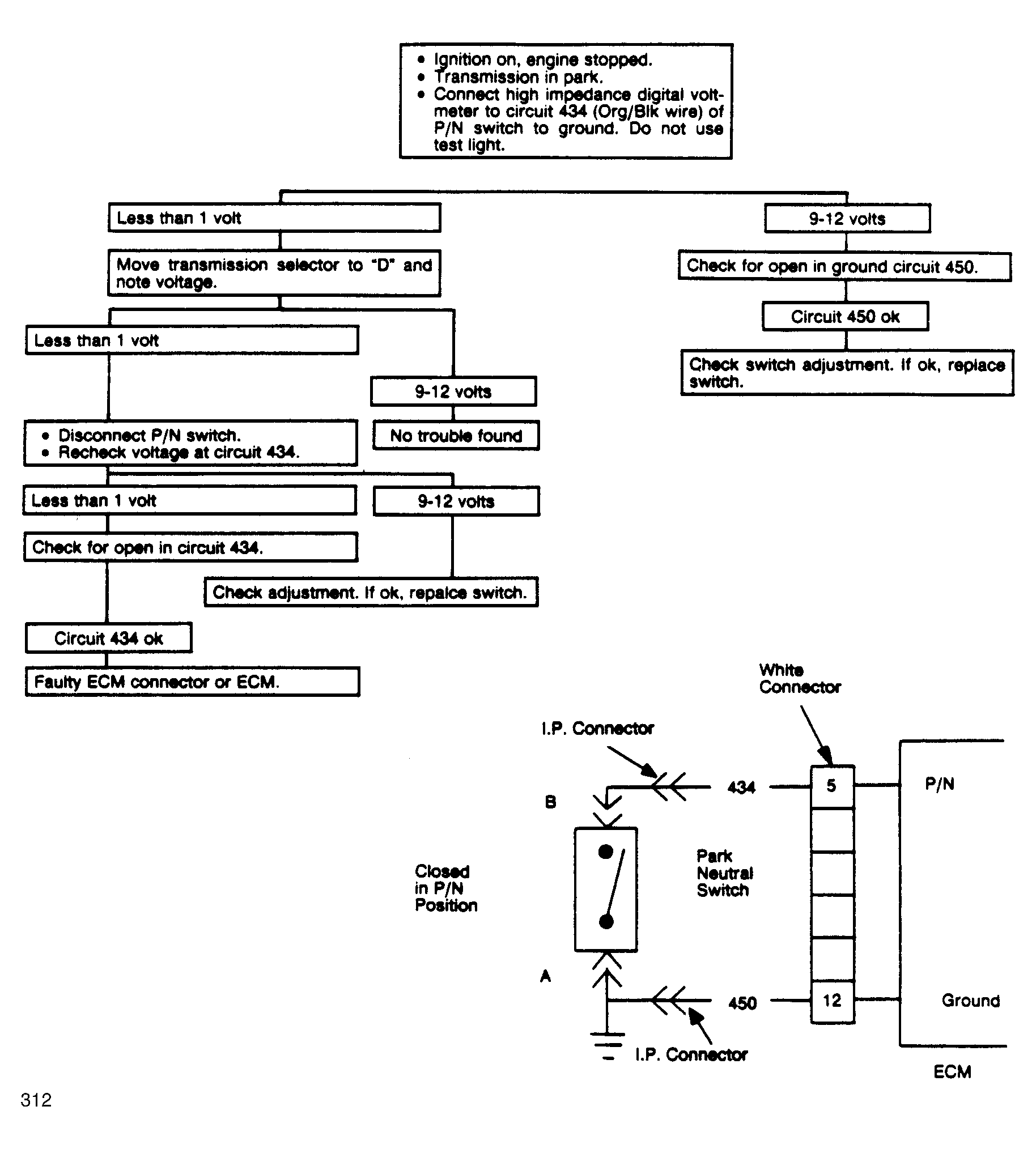

Fig 1: Chart 9A: Park/Neutral Switch Flow Chart
Fig 2: Chart 9A: Park/Neutral Switch Flow Chart
