Fuel Injector

With fuel meter cover gasket in place, use a screwdriver to carefully pry the injector from the fuel metering body. Carefully lift injector out with a twisting motion. See Fig 1 .
NOTE: Use care in removing injector to prevent damage to electrical connectors, fuel filter and nozzle. Injector is serviced as complete assembly only.

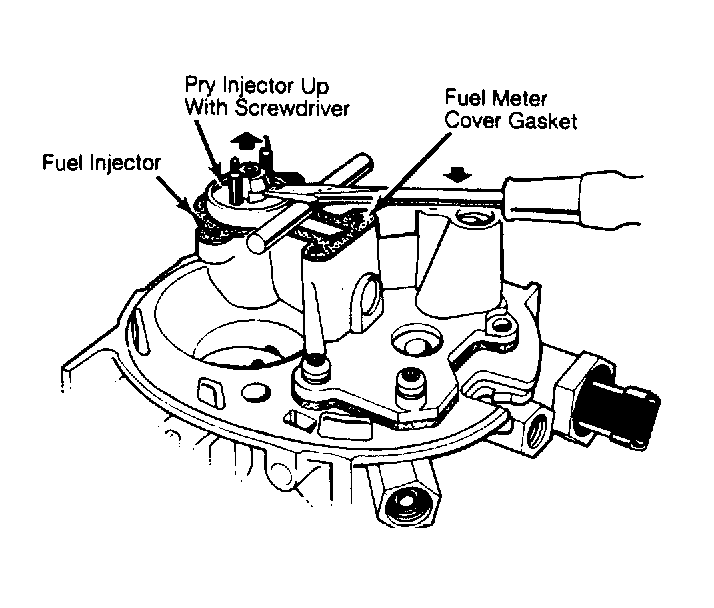

Fig 1: Fuel Injector Assembly Removal Keep fuel meter cover gasket in place until injector is removed to prevent damage to casting.
Carefully rotate injector filter back and forth to remove from base of injector. Remove large "O" ring and steel back-up washer at top of injector cavity in fuel meter body. Remove small "O" ring at bottom of injector cavity.
