Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| A/C Vacuum Solenoid Module | Behind center of instrument panel, on plenum. |
| Computer Controlled Coil Ign. Mod. | Below left exhaust manifold. |
| Cruise Control Module (Cavalier & Cavalier CS) | Behind right side of instrument panel, above glove box. |
| Cruise Control Module (All Others) | Under left side of instrument panel, below steering column. |
| Electronic Control Module (ECM) | Behind right side of dash, behind glove box. |
| Headlight Door Controller | On rear of left front shock tower. |
| Low Coolant Module | Behind instrument panel, to left of steering column. |

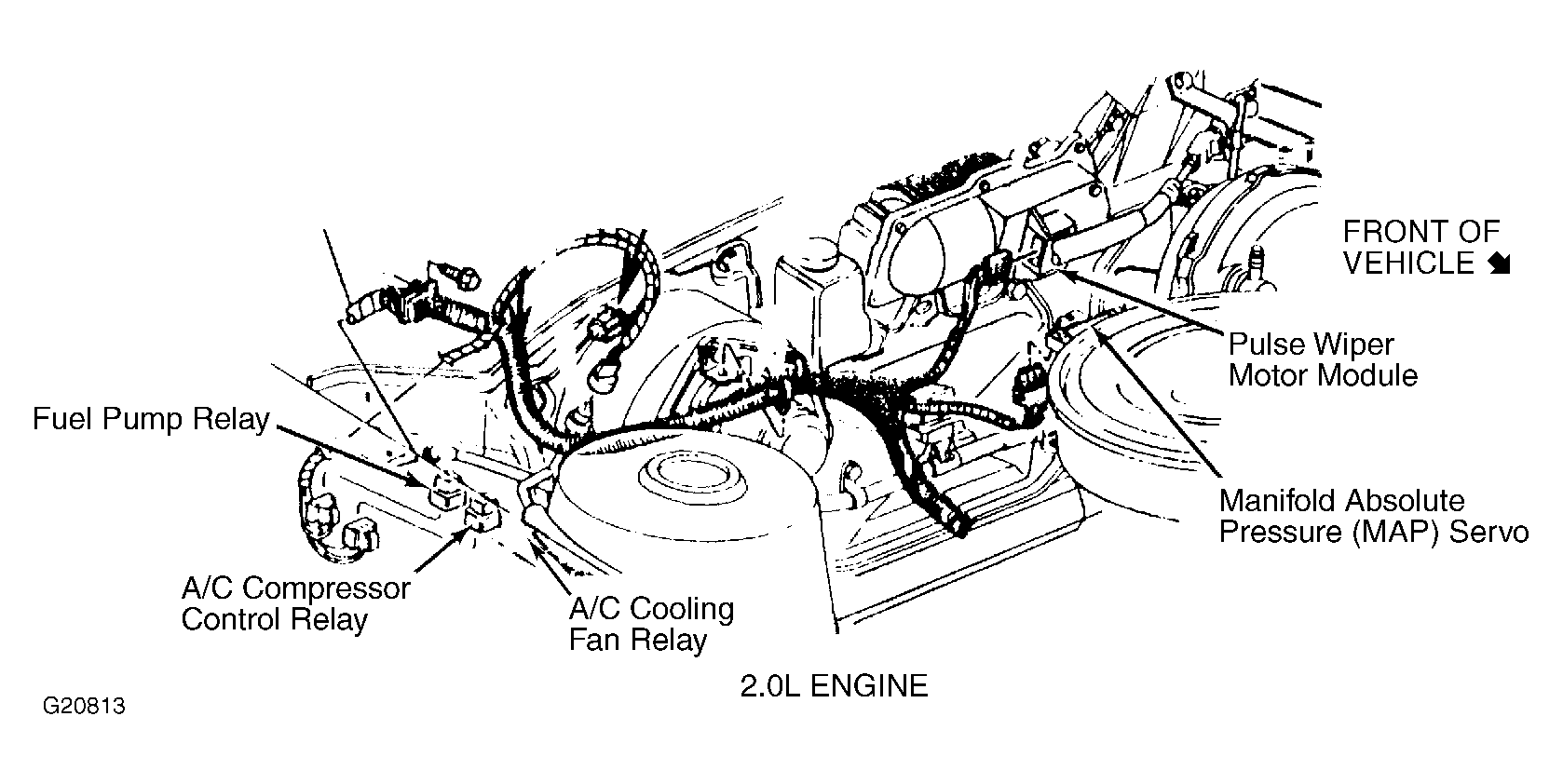

| Pulse Wiper Motor Module | On center of firewall. See Figure & 3. |
