Check At O2 Sensor

Remove O2 sensor. Install back pressure tester in place of O2 sensor as shown in illustration. After test is completed, ensure that O2 sensor threads are coated with anti-seize compound before installation.

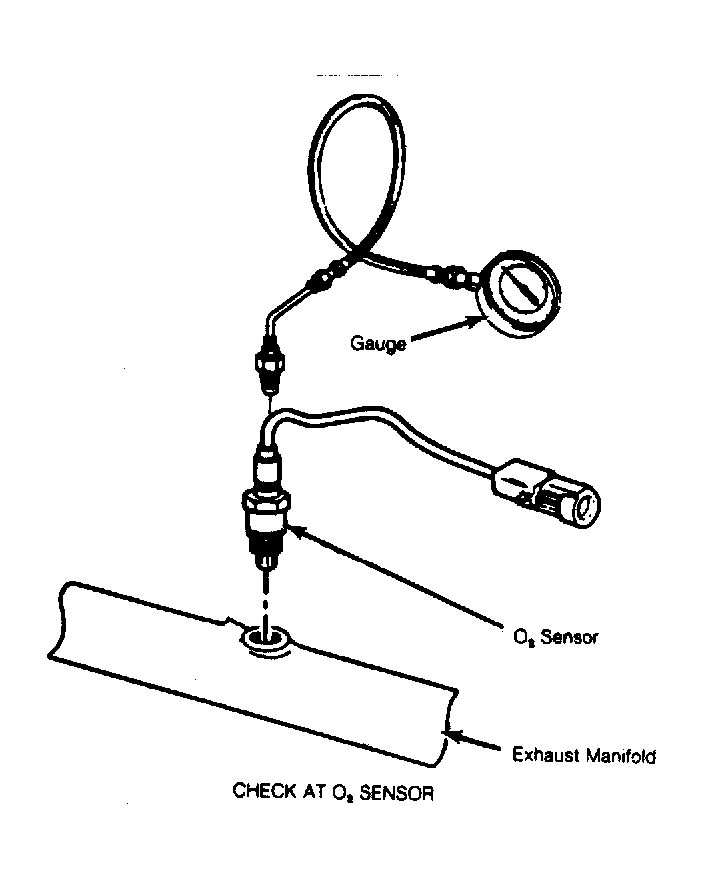

Fig 1: Restricted Exhaust System Check at O2 Sensor
G74027
