Wiring Diagrams

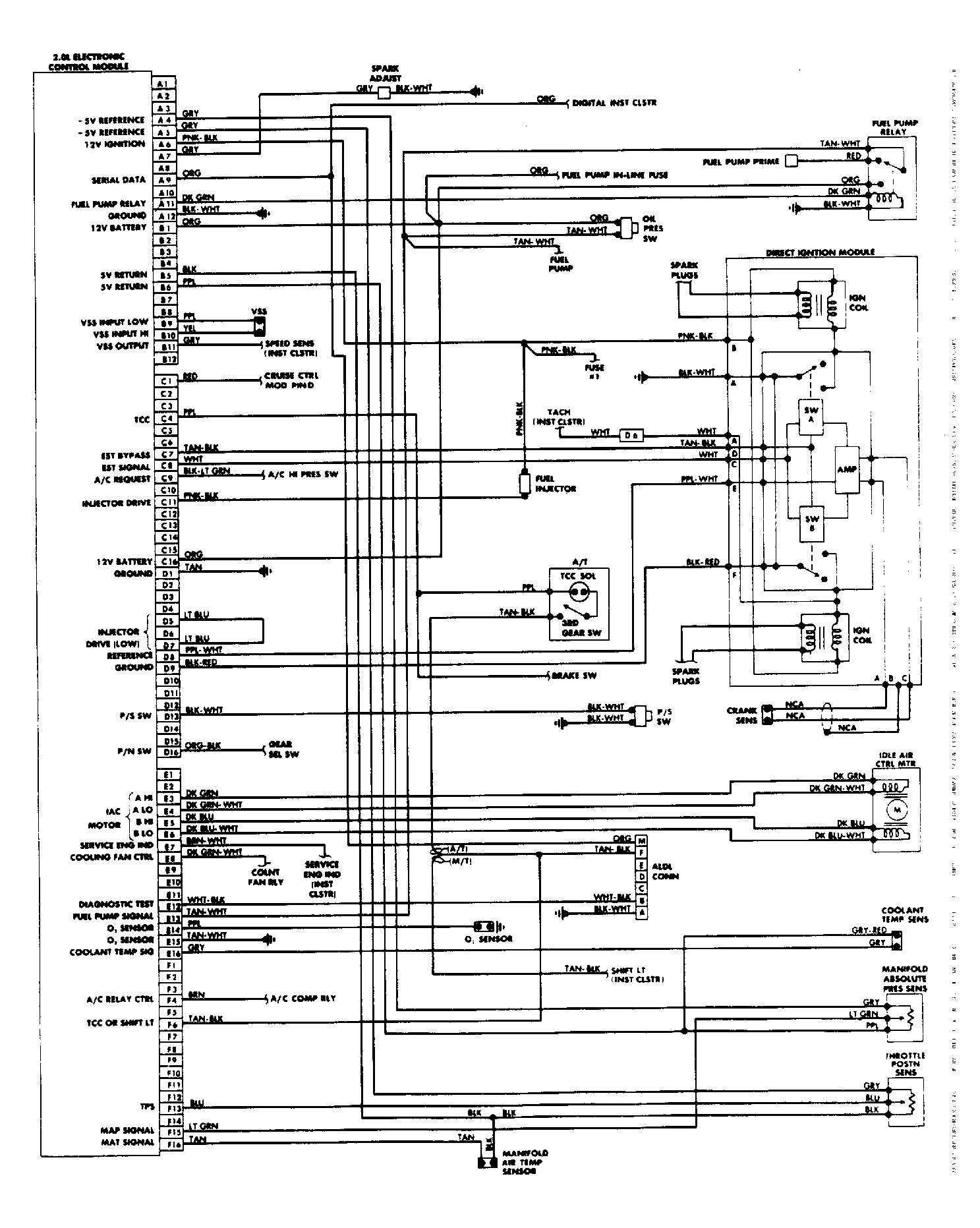

Fig 1: 2.0L OHC & 2.5L Throttle Body Fuel Injection Wiring Diagram

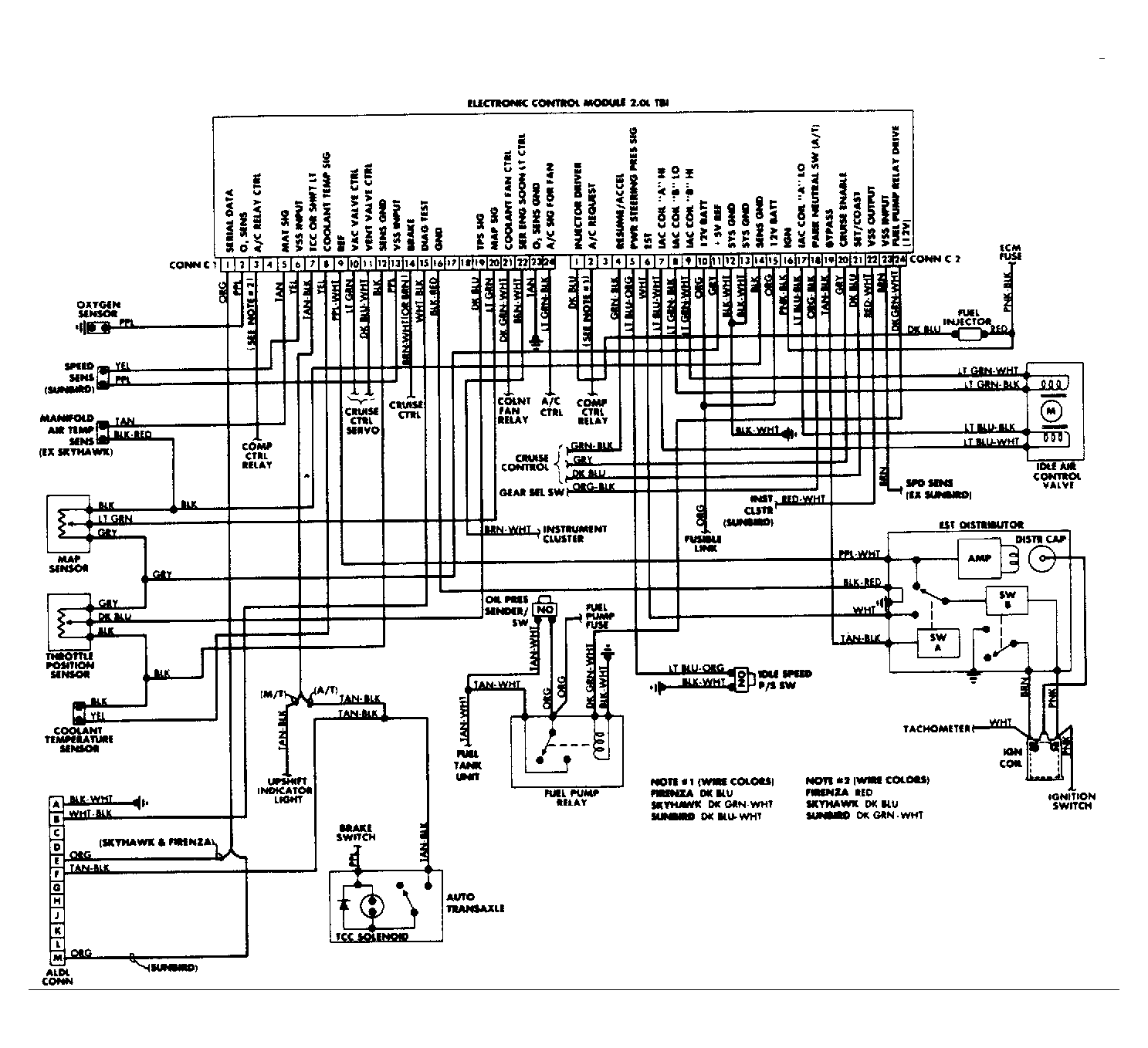

Fig 2: 2.0L OHV Throttle Body Fuel Injection Wiring Diagram

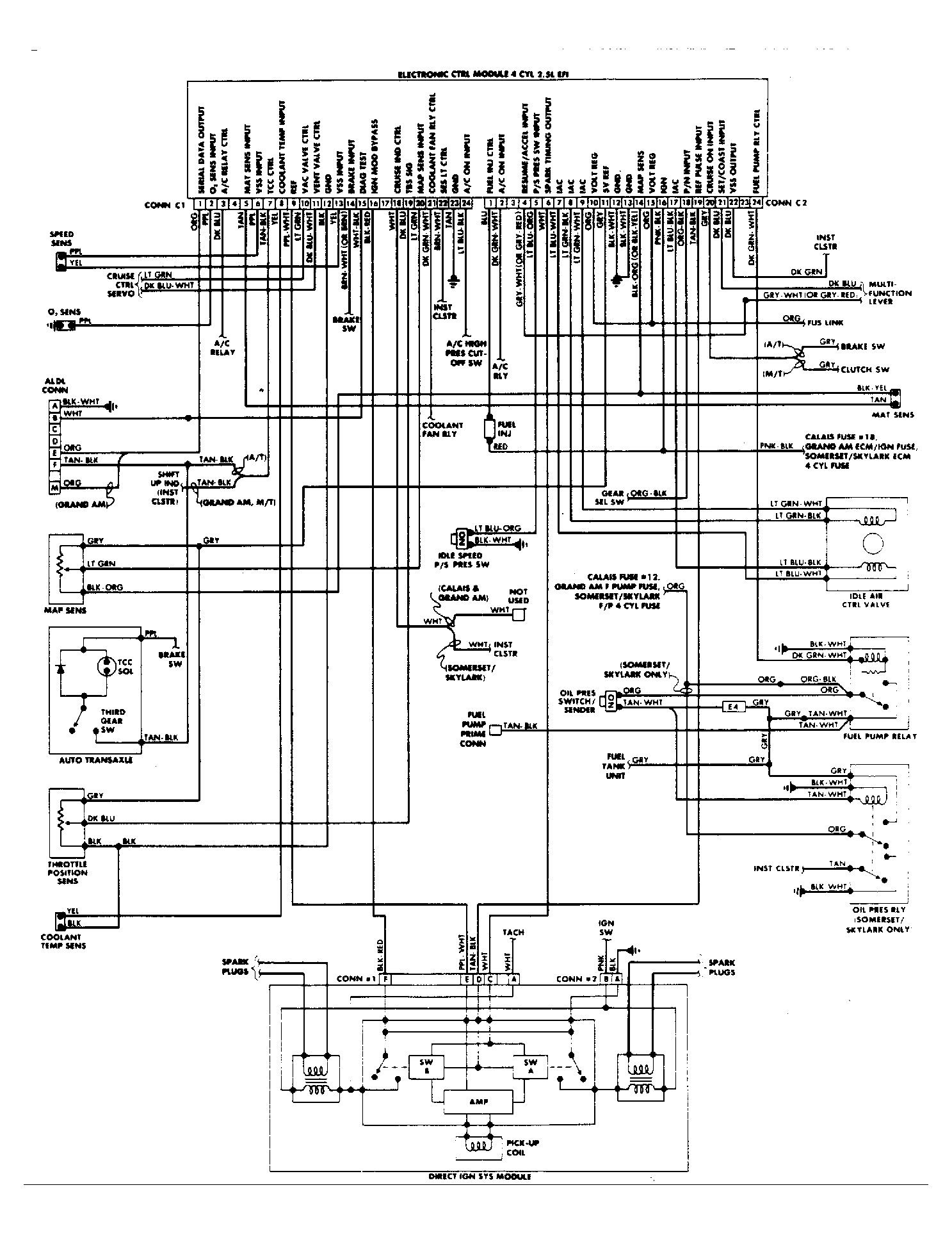

Fig 3: 4.3L Throttle Body Fuel Injection Wiring Diagram

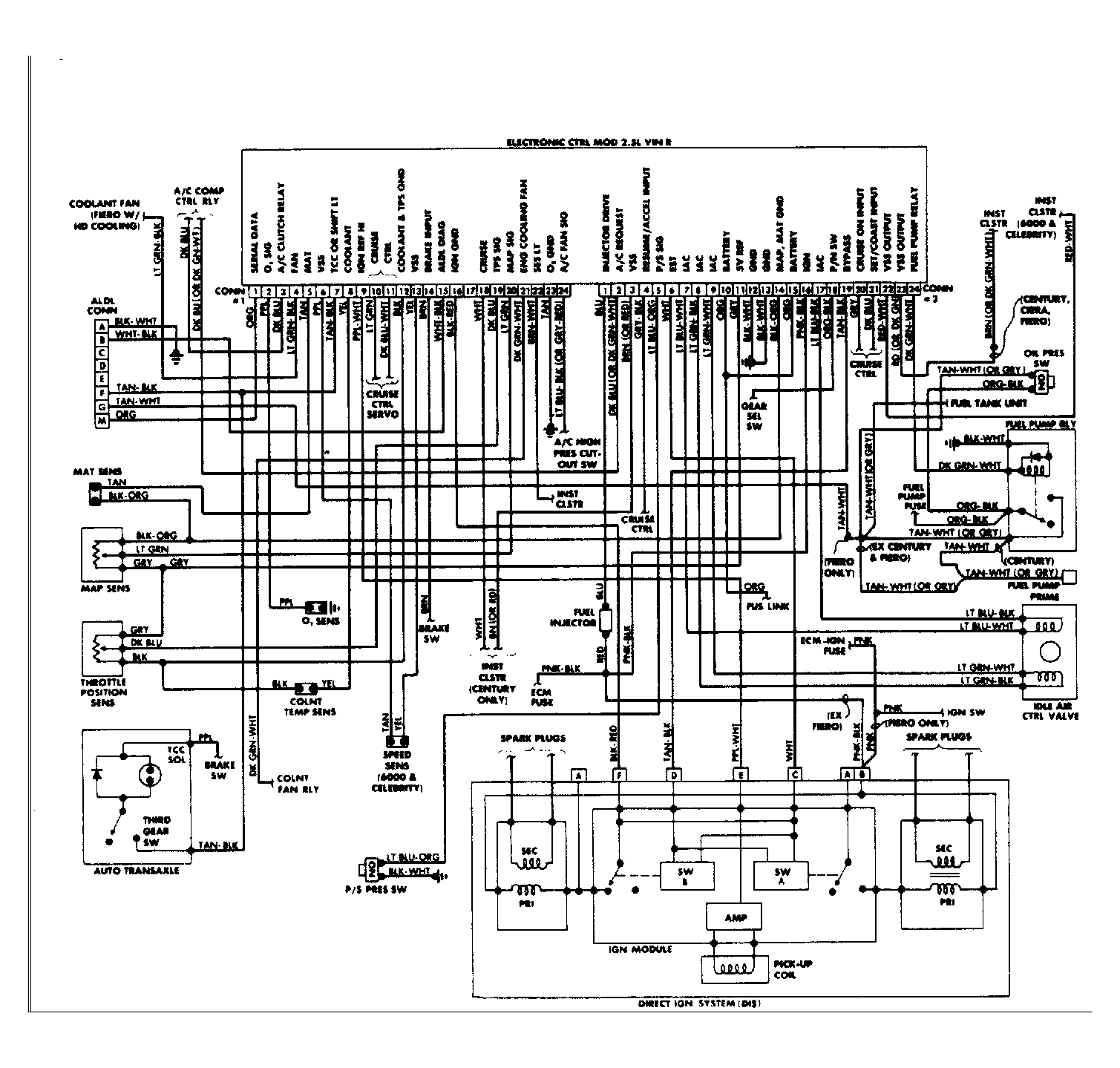

Fig 4: 2.5L Throttle Body Fuel Injection Wiring Diagram (Calais, Grand Am, Skylark & Somerset)

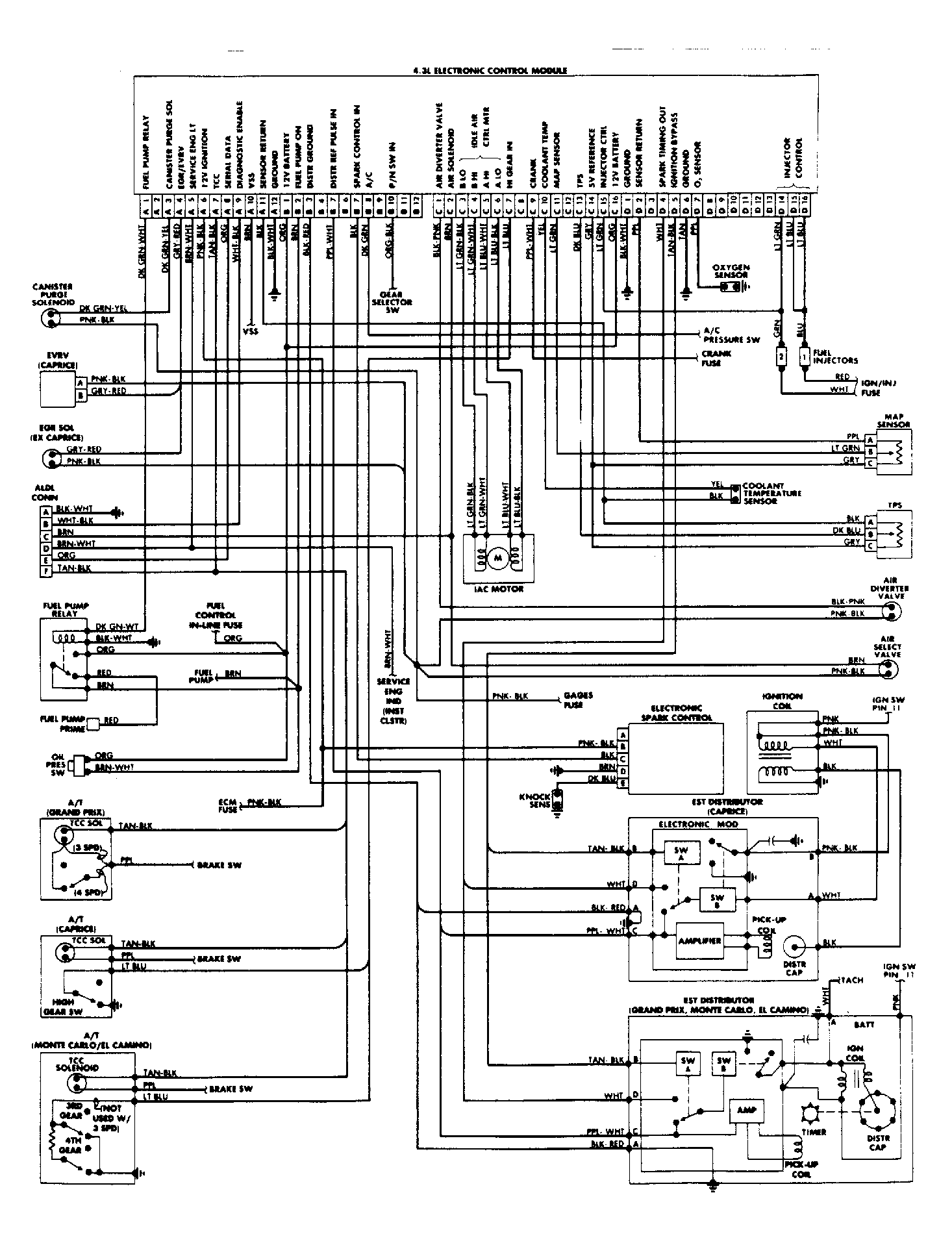

Fig 5: 2.5L Throttle Body Fuel Injection Wiring Diagram (Celebrity, Century, Ciera, Fiero & 6000)

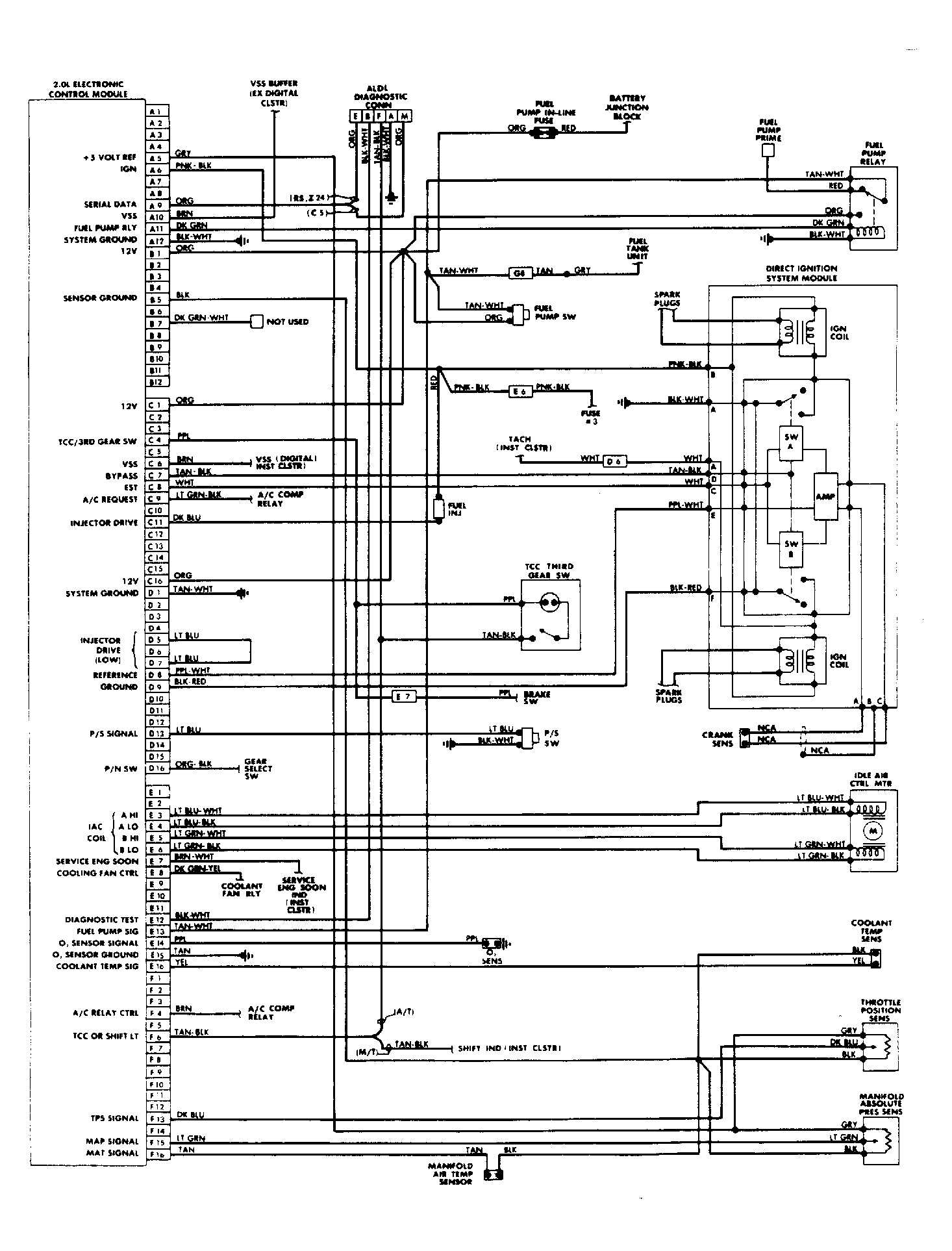

Fig 6: 4.3L Throttle Body Fuel Injection Wiring Diagram
