Component Locations

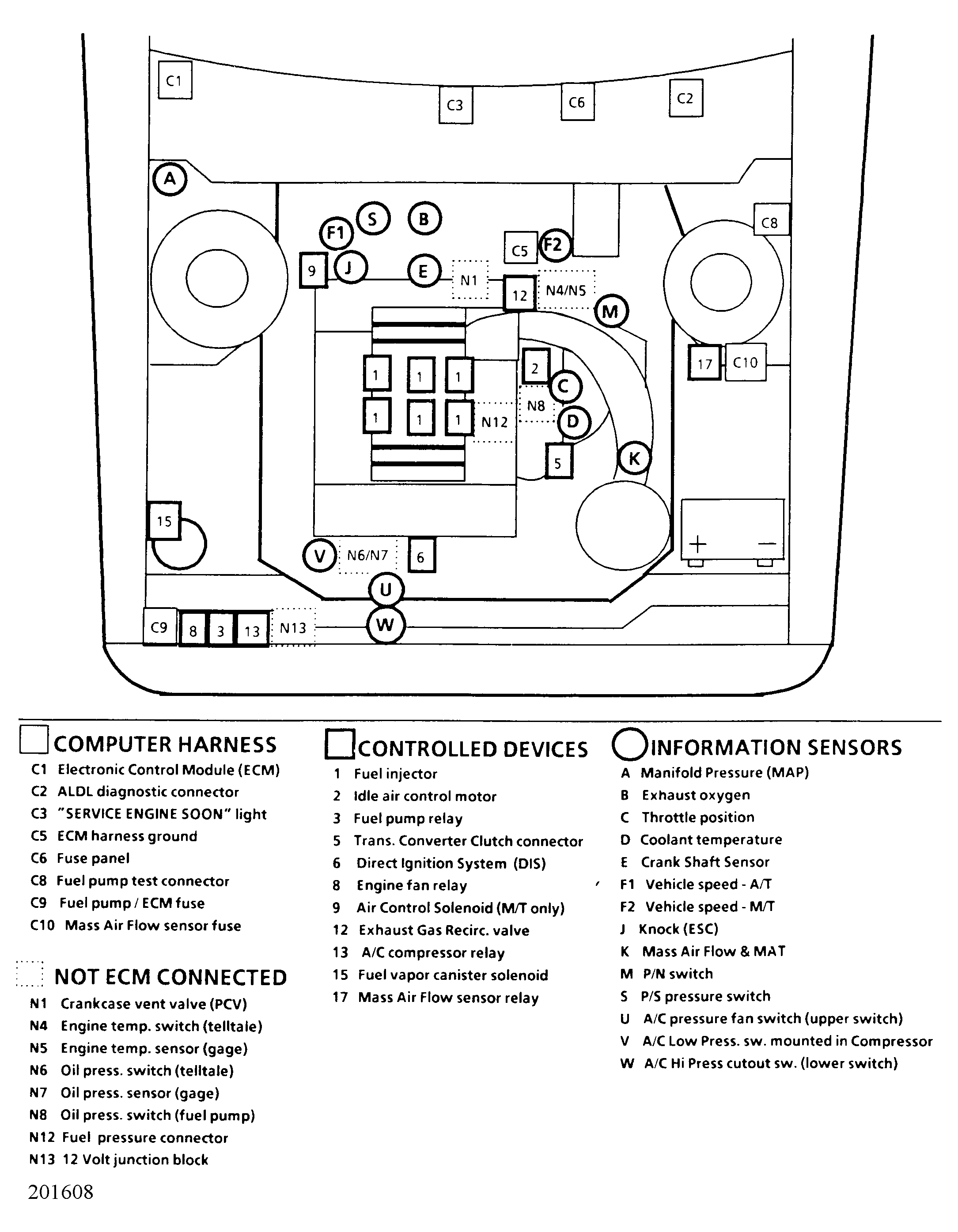

Fig 1: PFI Component Location (2.8L A Body)

G201608

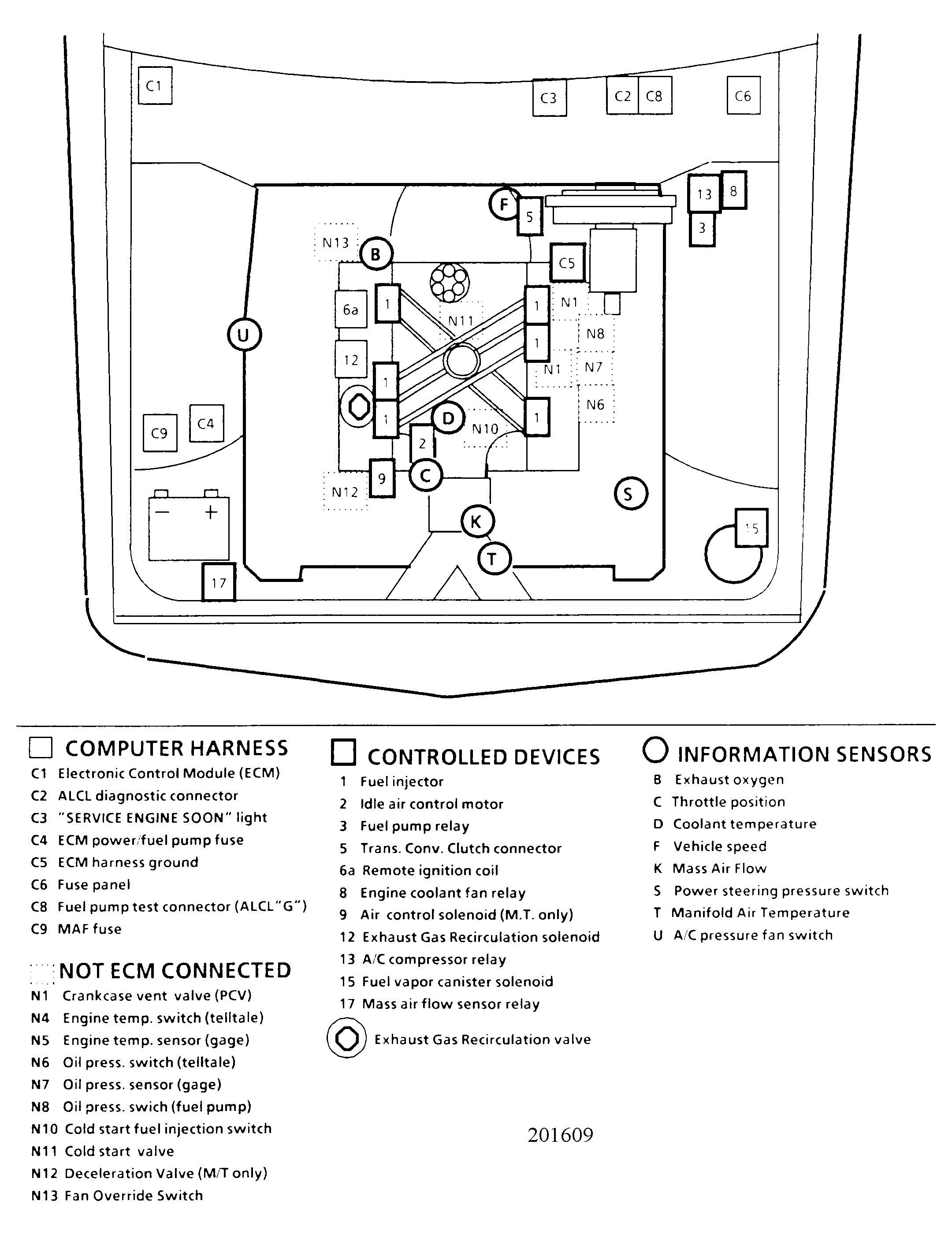

Fig 2: PFI Component Location (2.8L F Body)

G201609

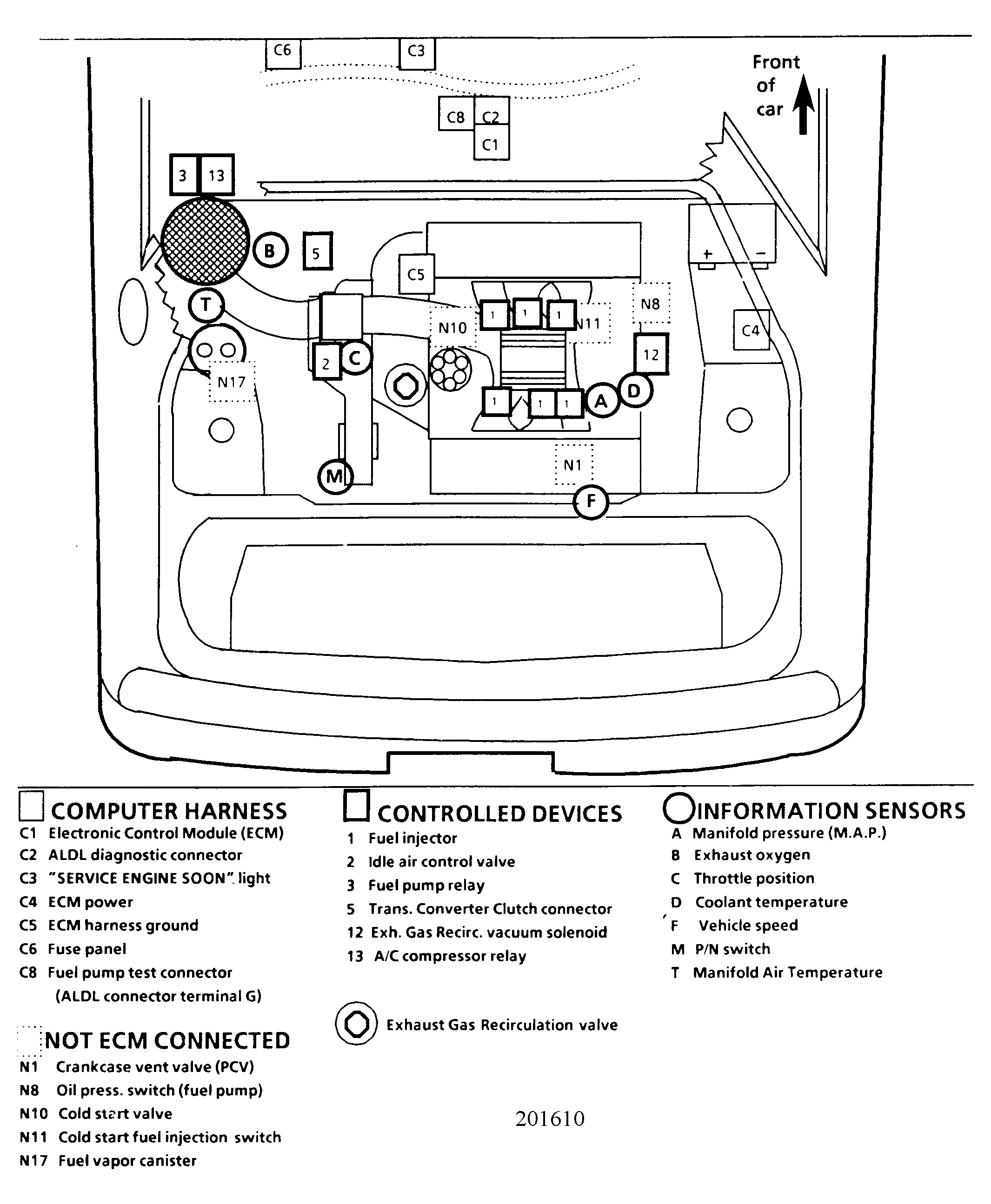

Fig 3: PFI Component Location (2.8L P Body)

G201610

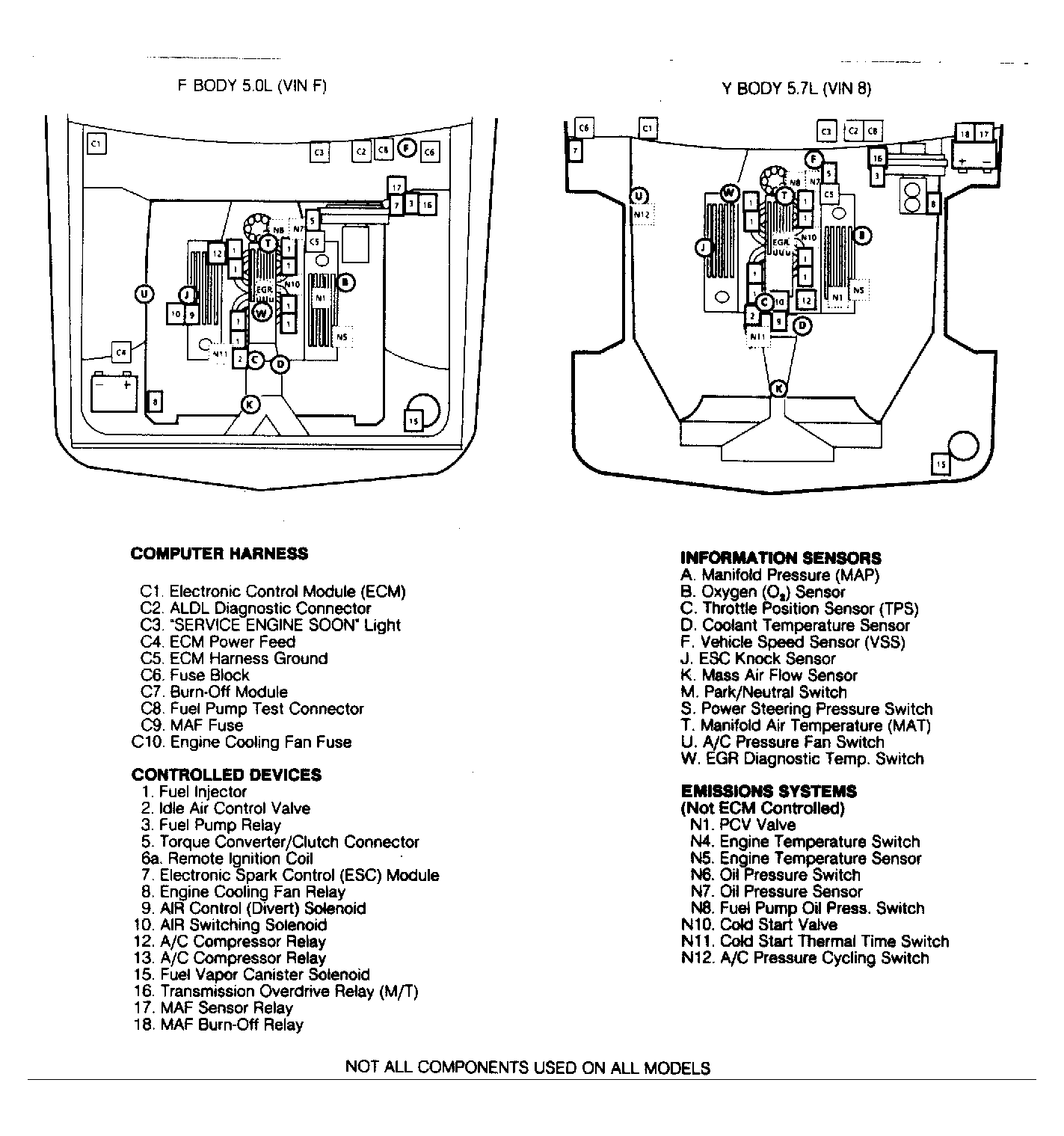

Fig 4: PFI Component Location (5.0L & 5.7L)

G4987
