ECM Terminal Identification

Fig 1: PFI ECM Terminal ID (2.8L Except Fiero)
G201655

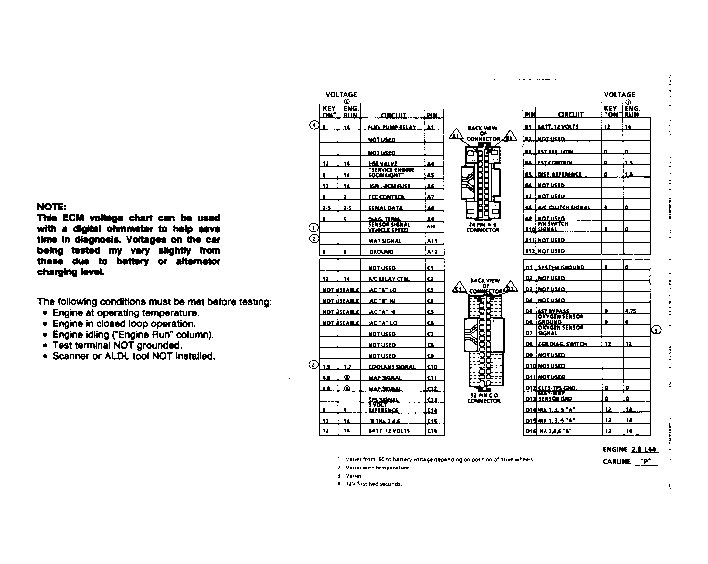

Fig 2: PFI ECM Terminal ID (2.8L Fiero)
G4989

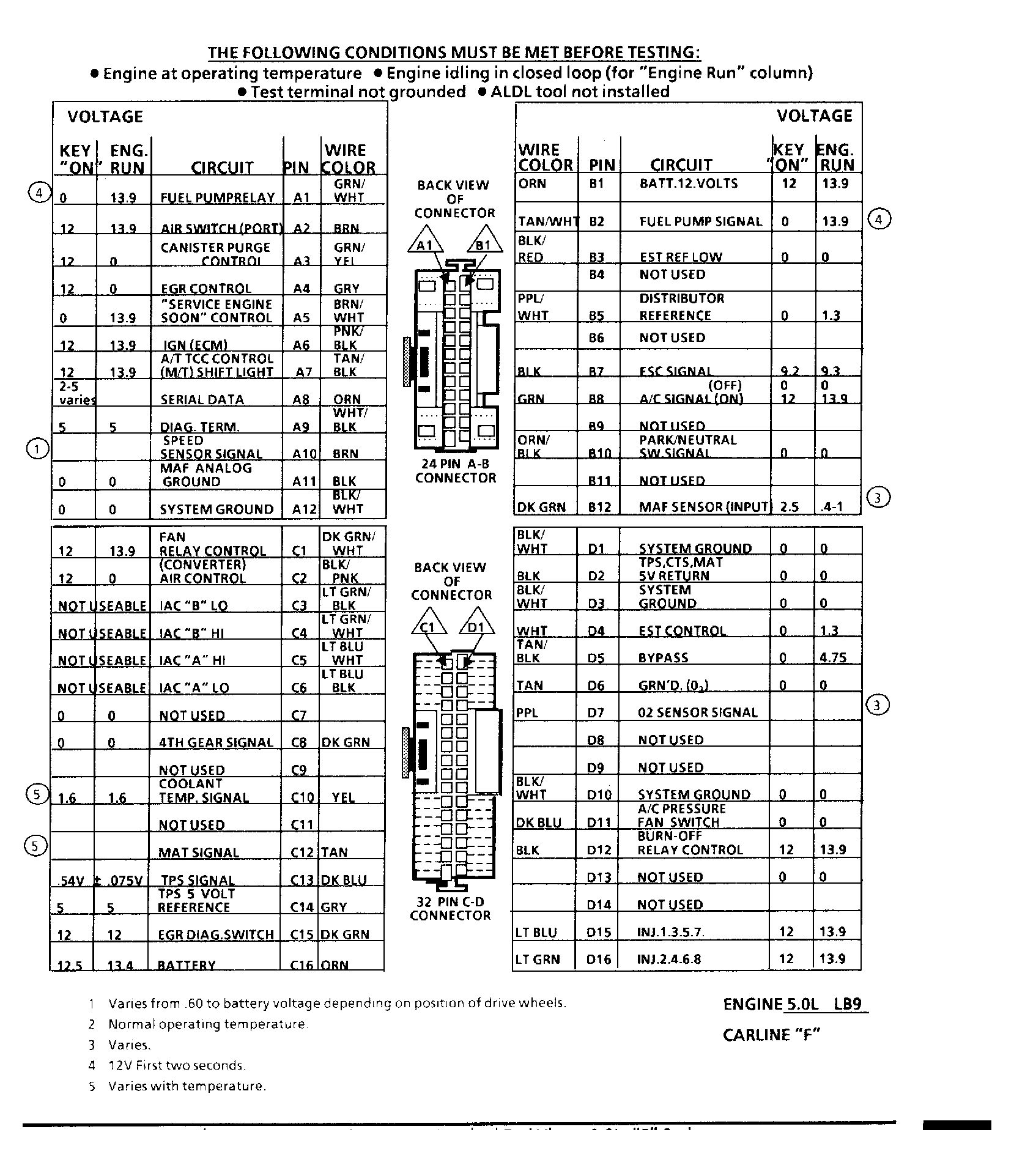

Fig 3: PFI ECM Terminal ID (5.0L & 5.7L)
G4990
