Wiring Diagrams

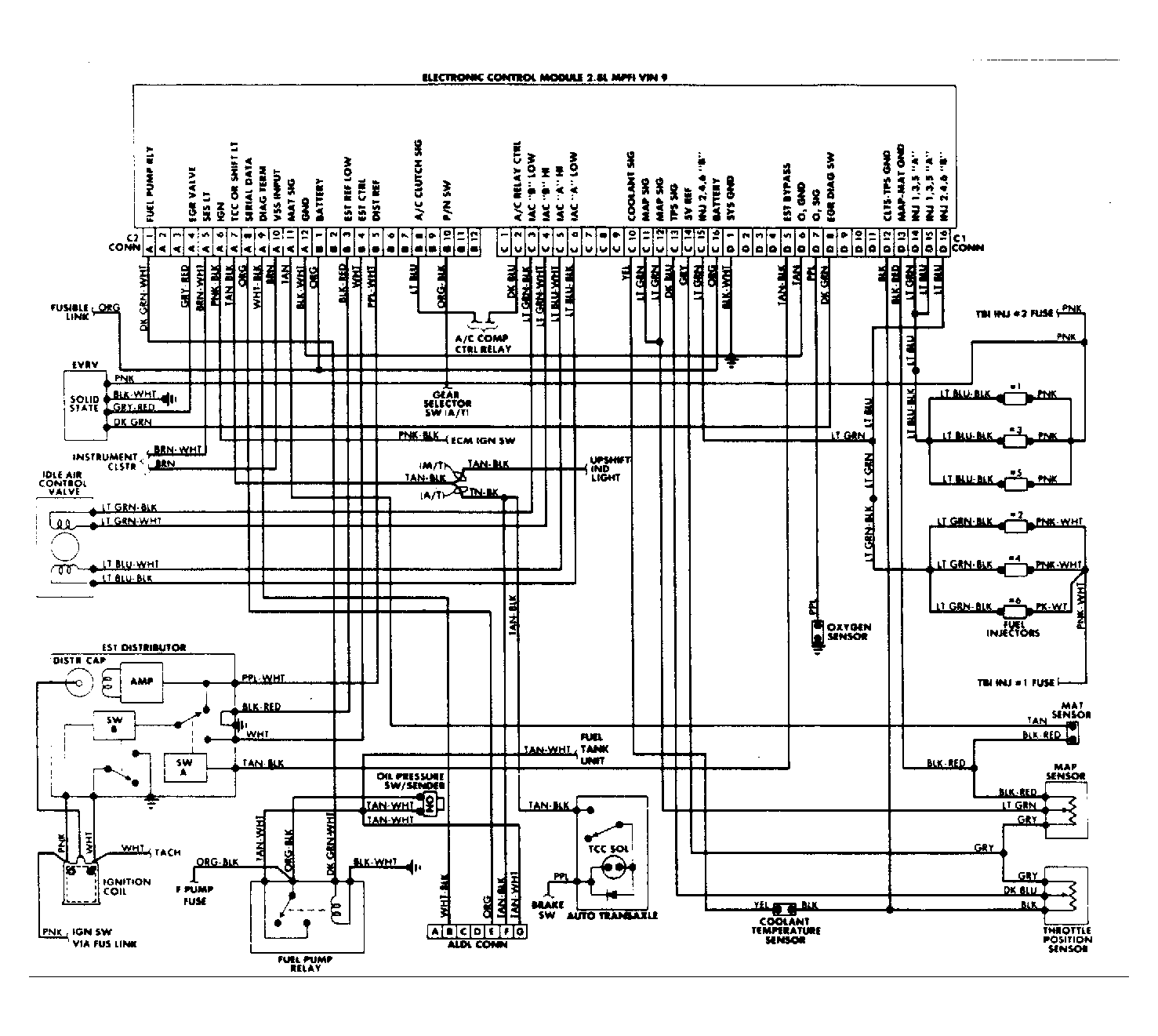

Fig 1: PFI Wiring Diagram (2.8L Beretta & Corisca 2.8L)

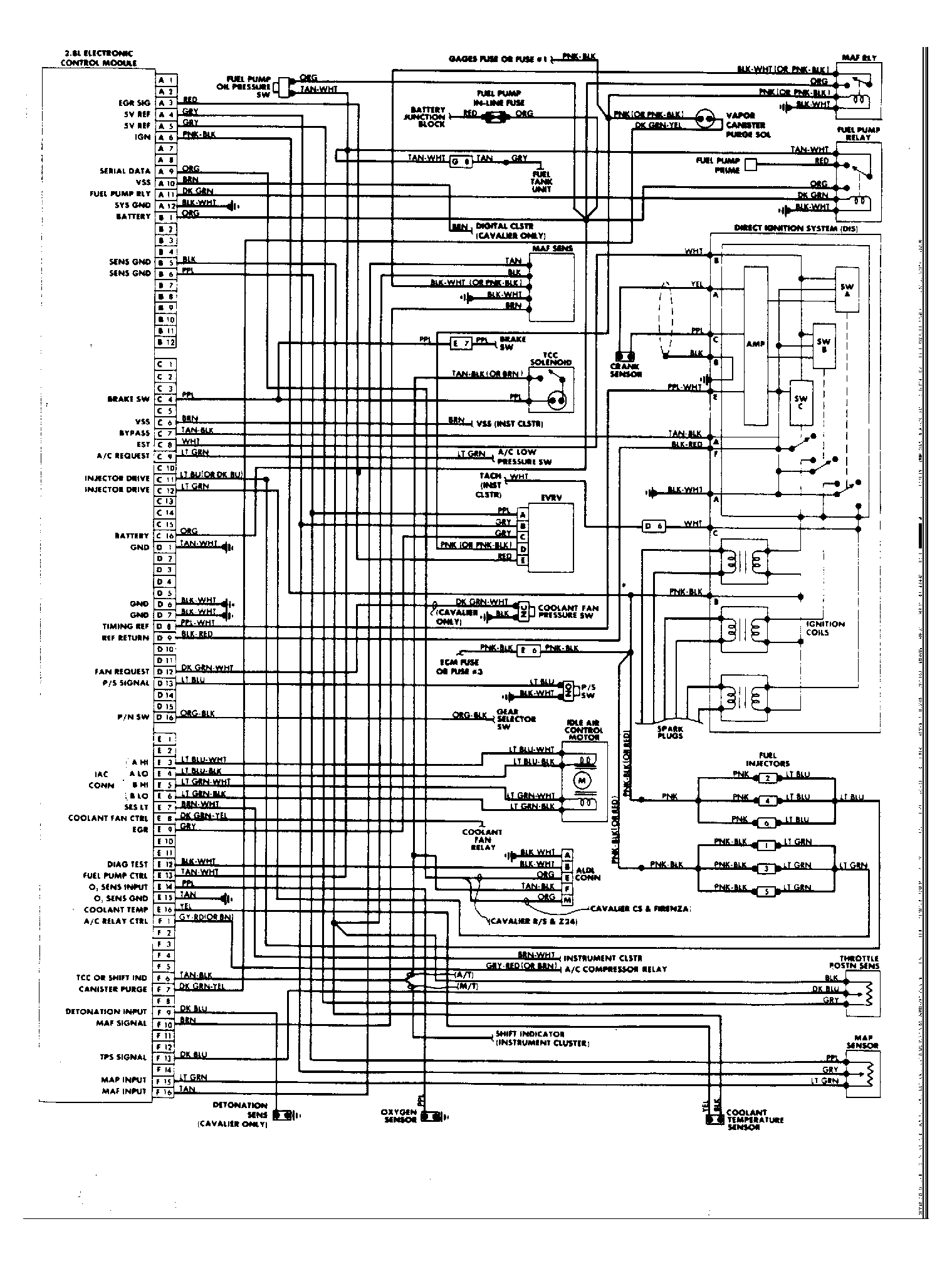

Fig 2: PFI Wiring Diagram (2.8L Camaro & Firebird)

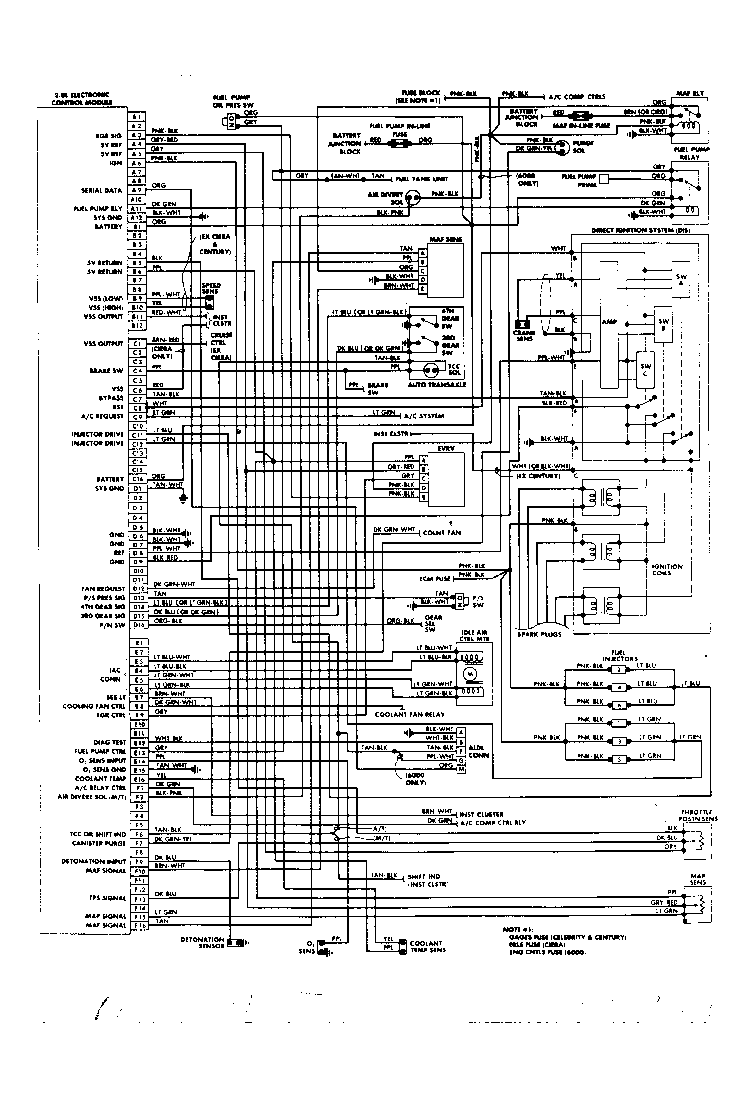

Fig 3: PFI Wiring Diagram (2.8L Cavalier & Firenza)

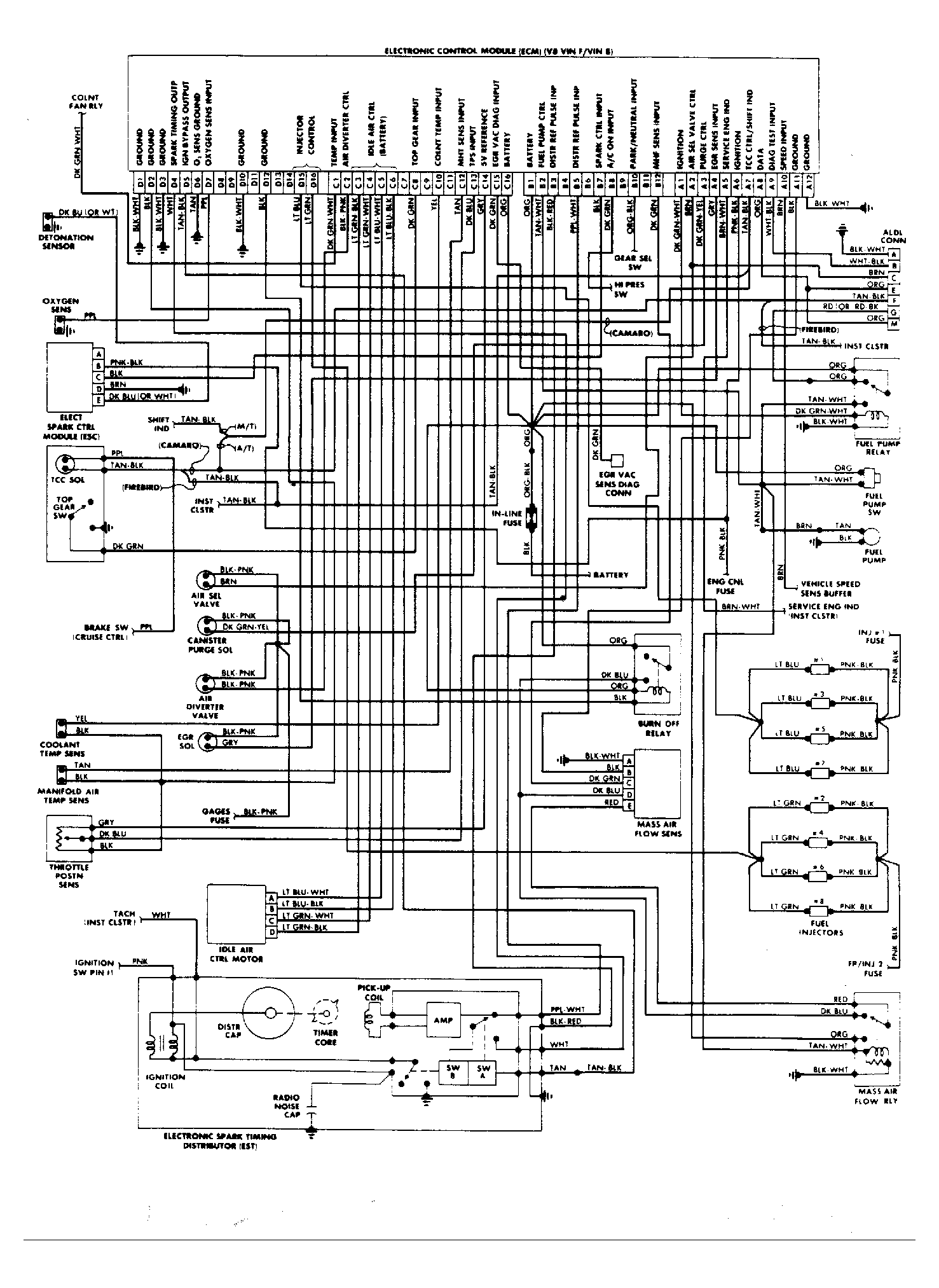

Fig 4: PFI Wiring Diagram (2.8L Century, Celebrity, Ciera & 6000)

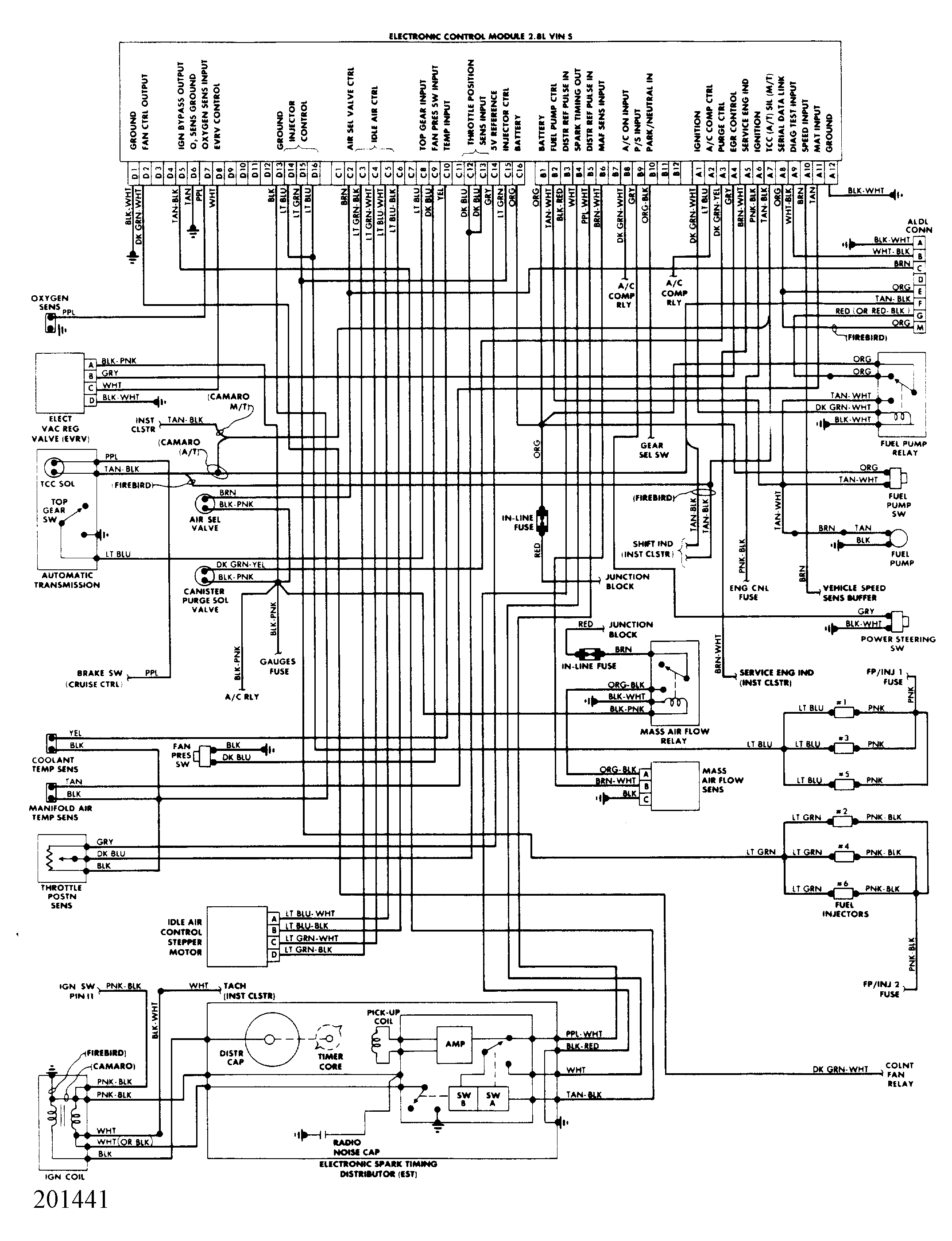

Fig 5: PFI Wiring Diagram (2.8L Fiero)

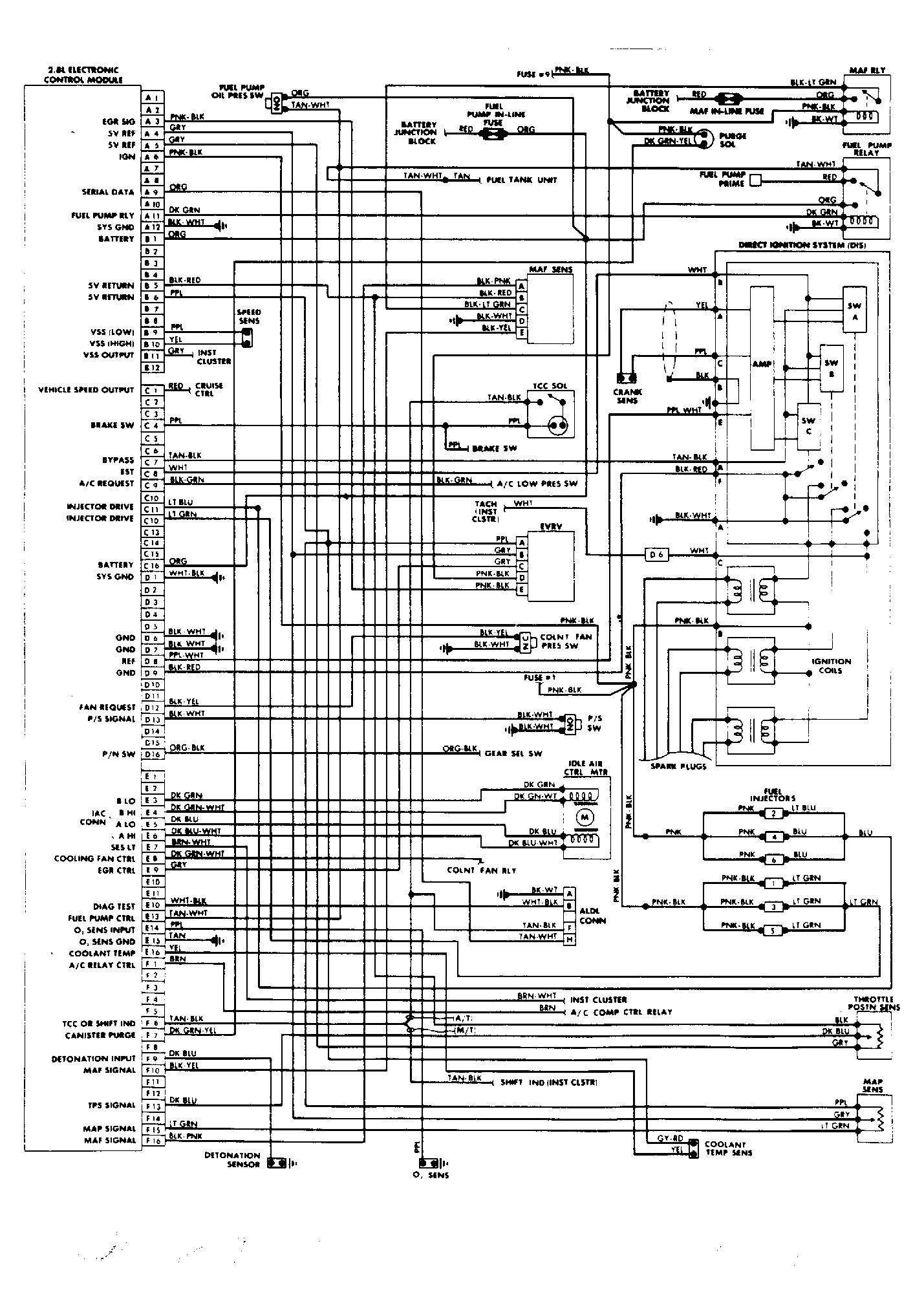

Fig 6: PFI Wiring Diagram (5.0L & 5.7L Camaro & Firebird)

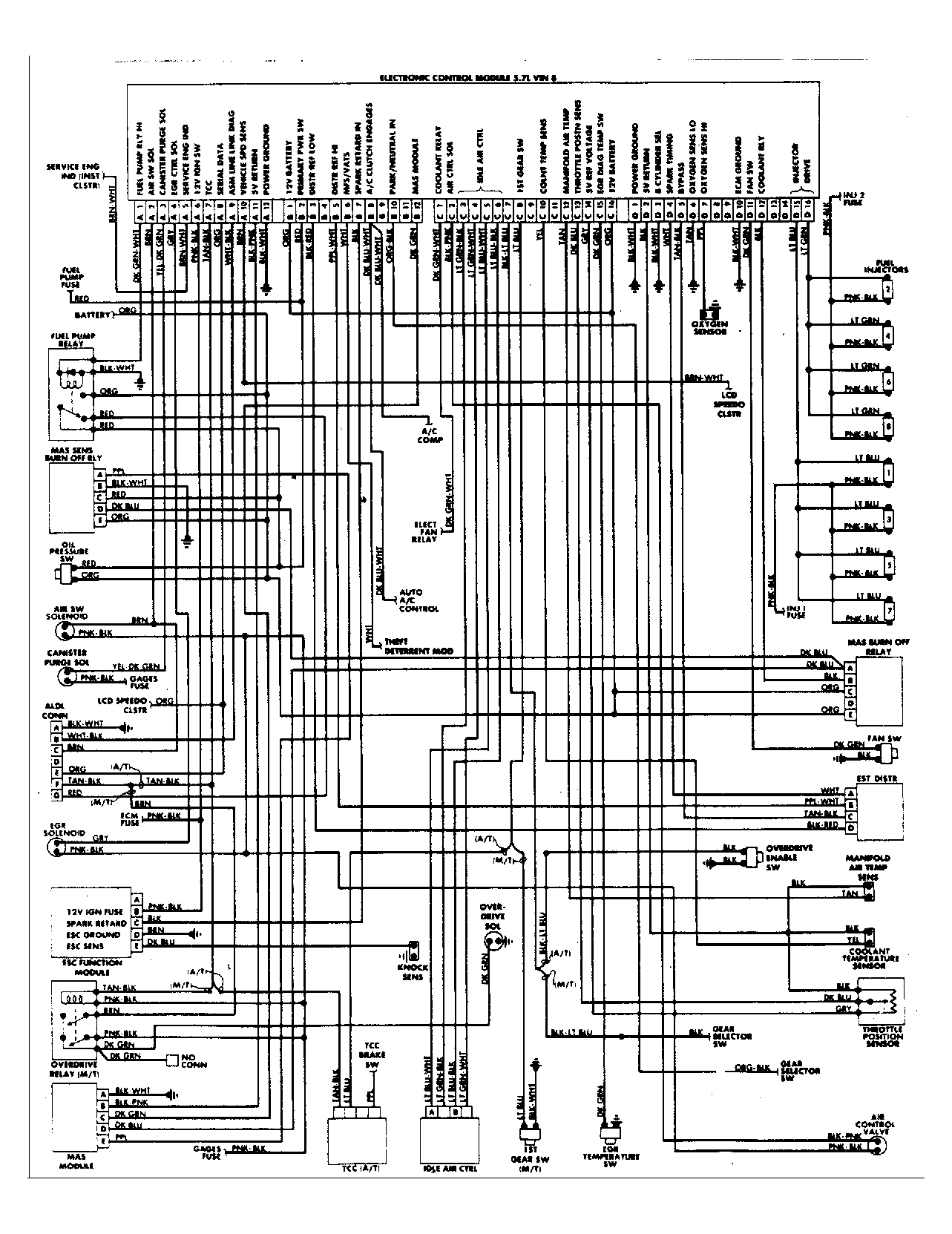

Fig 7: PFI Wiring Diagram (5.7L Corvette)
