Chart C4B - Ignition System Check (2.8L)

NOTE: Test numbers refer to test numbers on diagnostic chart.
  1. 1) This test checks 2 wires, to ensure that an open is not present in a spark plug wire.
  2. 1A) If spark occurs with EST connector disconnected, pick-up coil output is too low for EST operation.
  3. 2) A spark indicates the problem must be the distributor cap or rotor.
  4. 3) There should be battery voltage at terminal "C" and at "+" terminals. Low voltage would indicate an open or a high resistance circuit from the distributor to the coil or ignition switch. If terminal "C" voltage was low, but "+" terminal voltage is 10 volts or more, check circuit from terminal "C" to ignition coil for open or check ignition coil primary winding for open.
  5. 4) This test checks for a shorted module or grounded circuit from the ignition coil to the module. The distributor module should be turned off, so normal voltage should be about 12 volts. If the module is turned on, the voltage would be low, but should be above one volt. This could cause the ignition coil to fail from excessive heat. With an open ignition coil primary winding, a small amount of voltage will leak through the module from the battery to the tachometer terminal.
  6. 5) Applying 1.5-8 volts to module terminal "P" should turn the module on and the tachometer terminal voltage should drop about 7-9 volts. This test will determine whether the module or coil is faulty or if the pick-up coil is not generating the proper signal to turn the module on. This test can be performed by using a DC battery with a rating of 1.5-8 volts. The use of the test light is mainly to allow the terminal "P" to be probed more easily.
  7. 5A) Some digital multi-meters can also be used to trigger the module by selecting ohms, usually in the "diode" position. In this position the meter may have a voltage across the terminals which can be used to trigger the module. The voltage in the "ohm" position can be checked by using a second meter or by checking the manufacturer's specification of the tester being used.
  8. 6) This should turn off the module and cause a spark. If no spark occurs, the fault is most likely in the ignition coil because most module problems would have been found before this point in the procedure. Use a module tester to determine which is at fault.

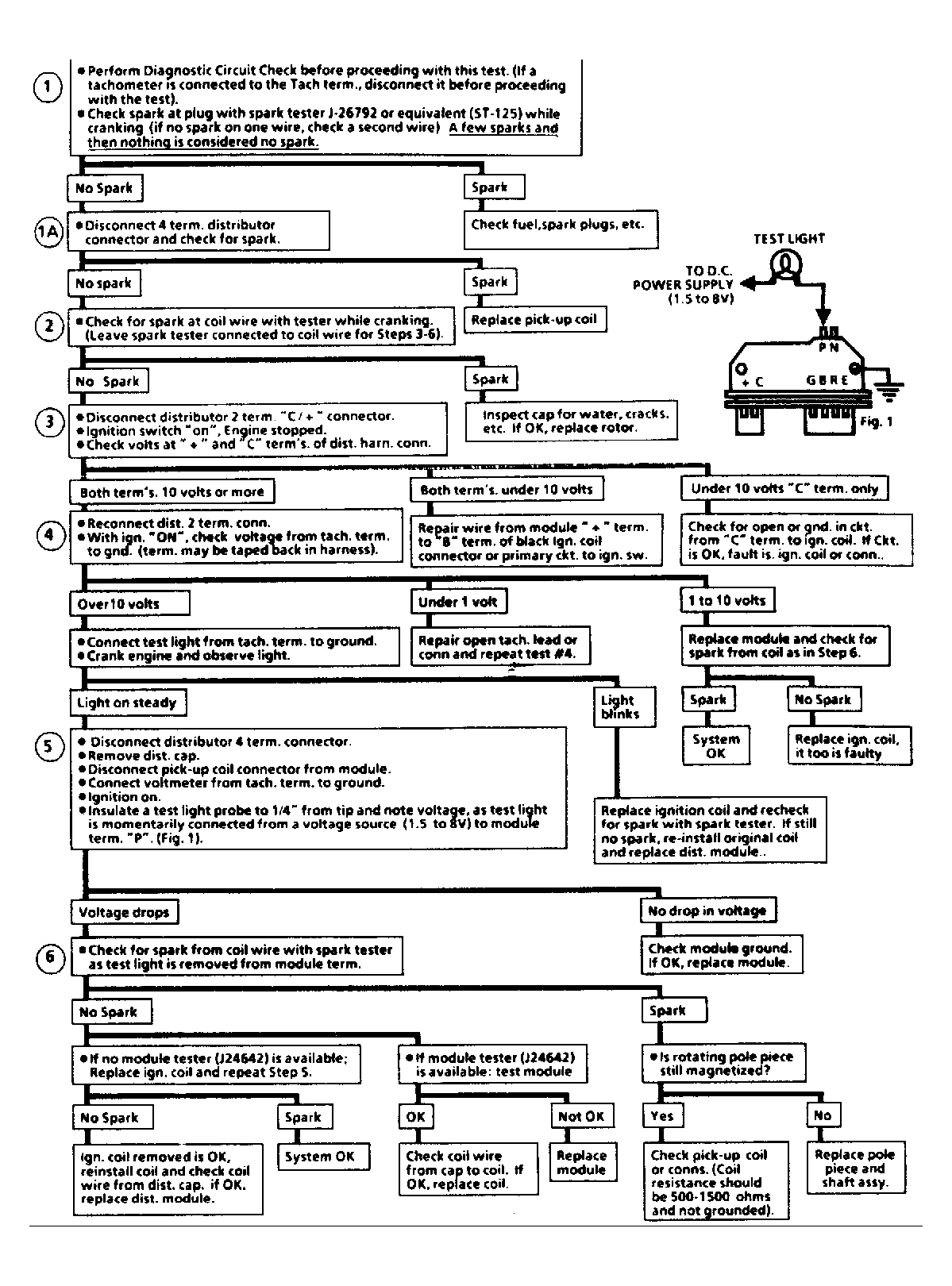

Fig 1: Flow Chart C4B, Ignition System Check (2.8L)
G7297

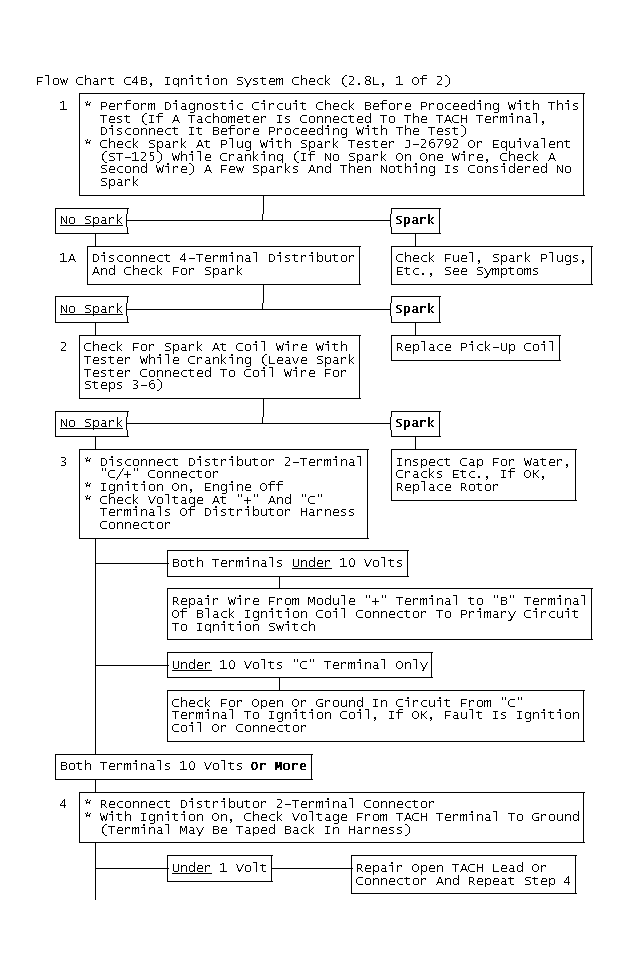

Fig 2: Flow Chart C4B, Ignition System Check (2.8L, 1 Of 2)
GB0046579

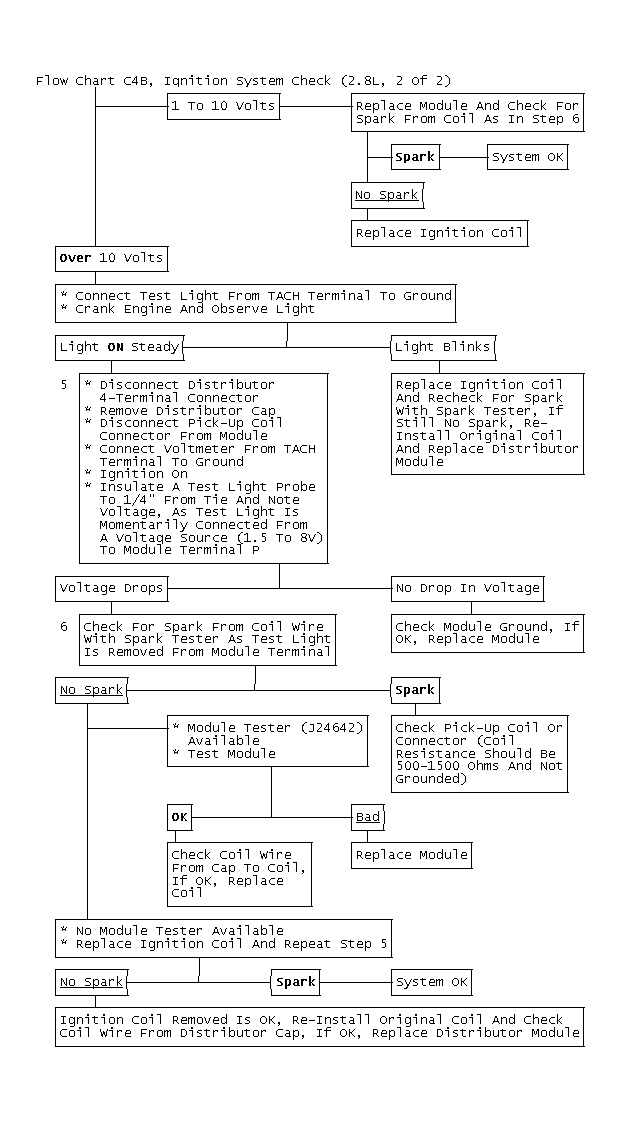

Fig 3: Flow Chart C4B, Ignition System Check (2.8L, 2 Of 2)
GB0046580
