Images

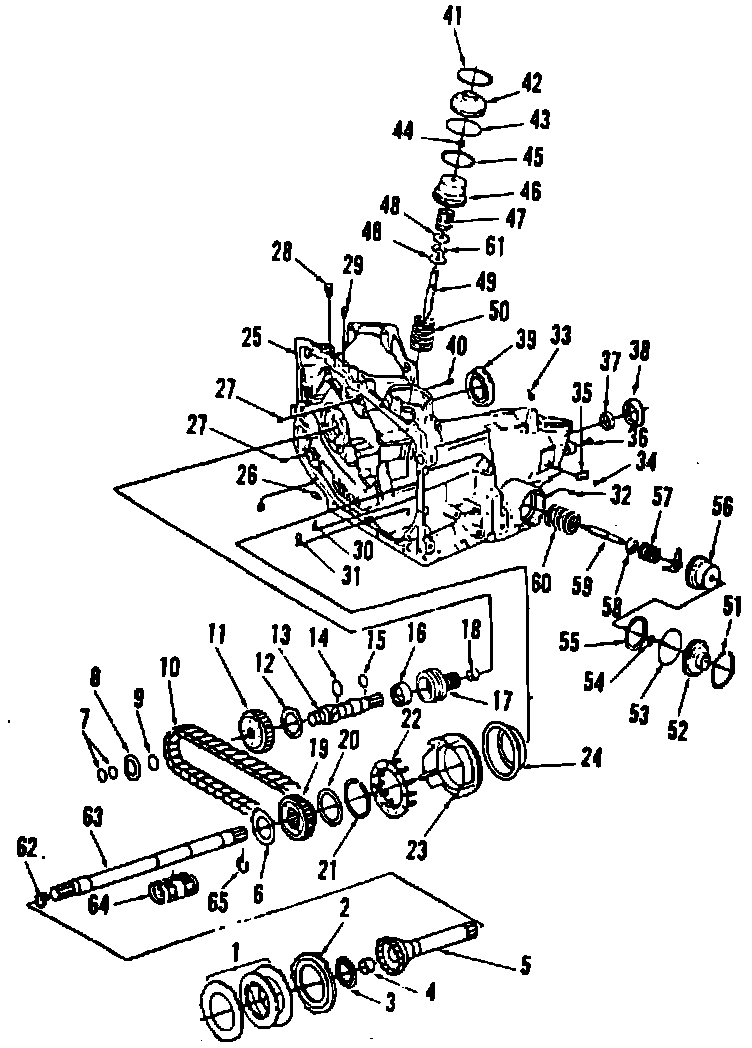

Case & Drive Link, THM440-T4 & HM4T60:

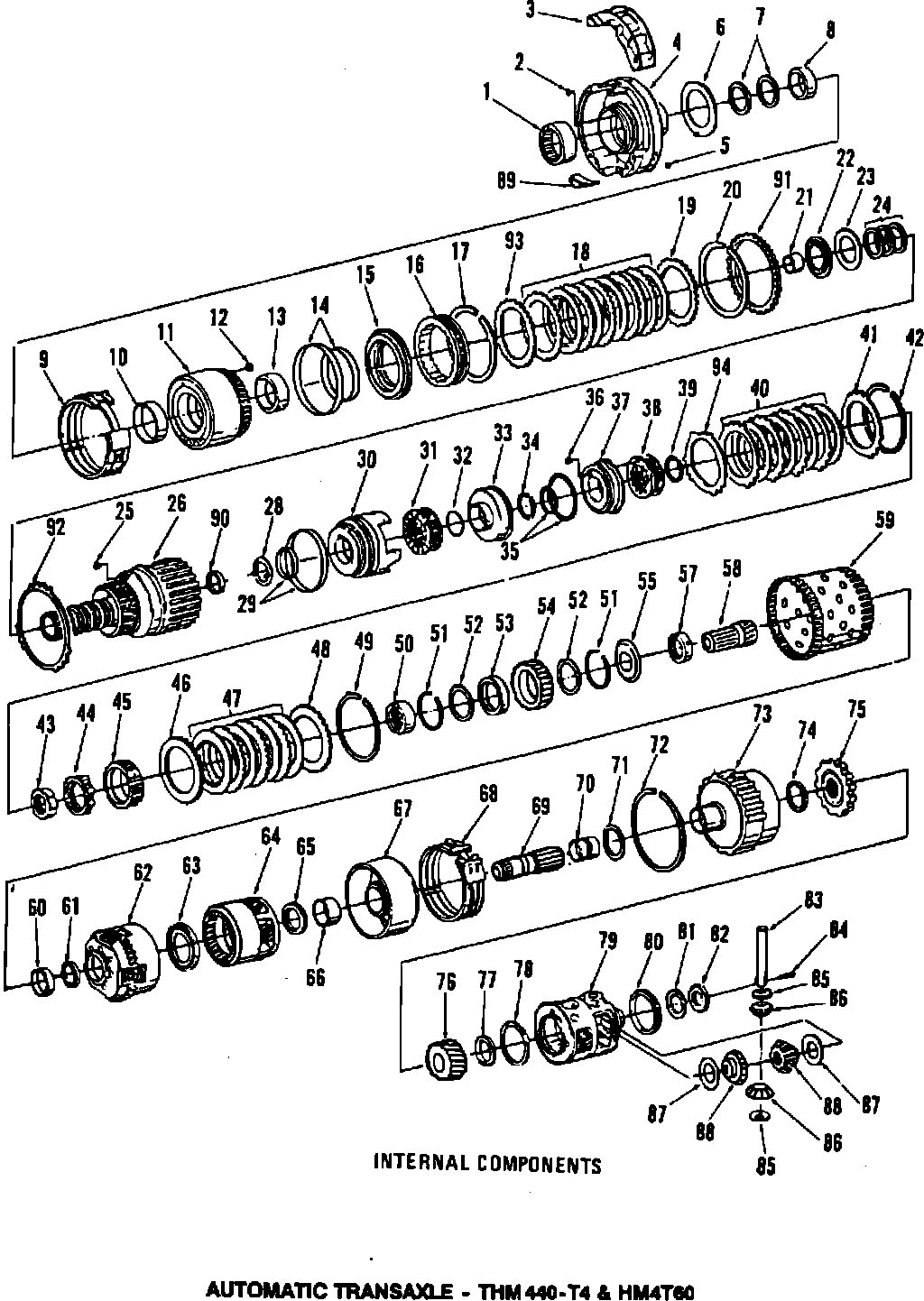

Internal Components, THM440-T4 & HM4T60:

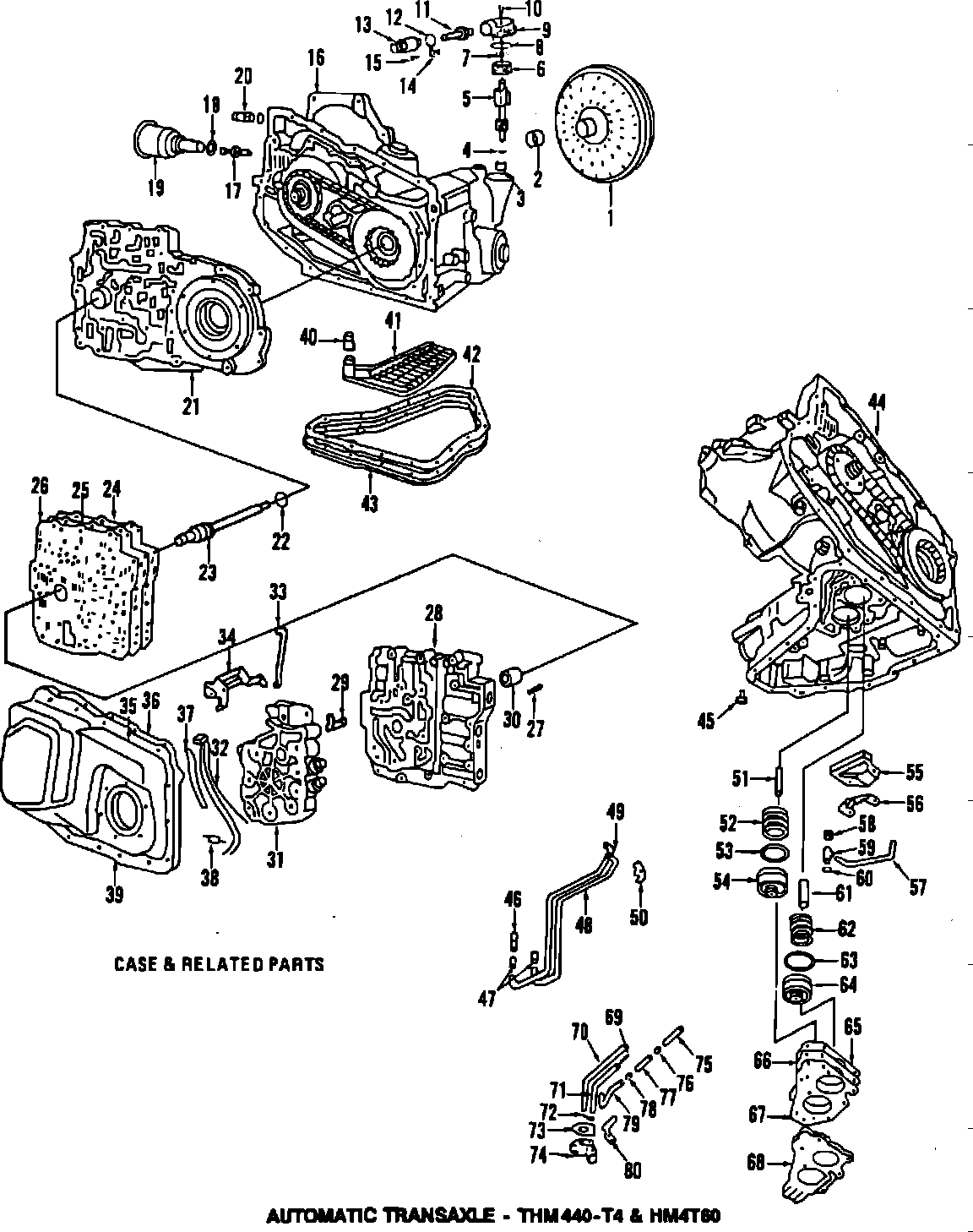

Case & Related Parts, THM440-T4 & HM4T60:

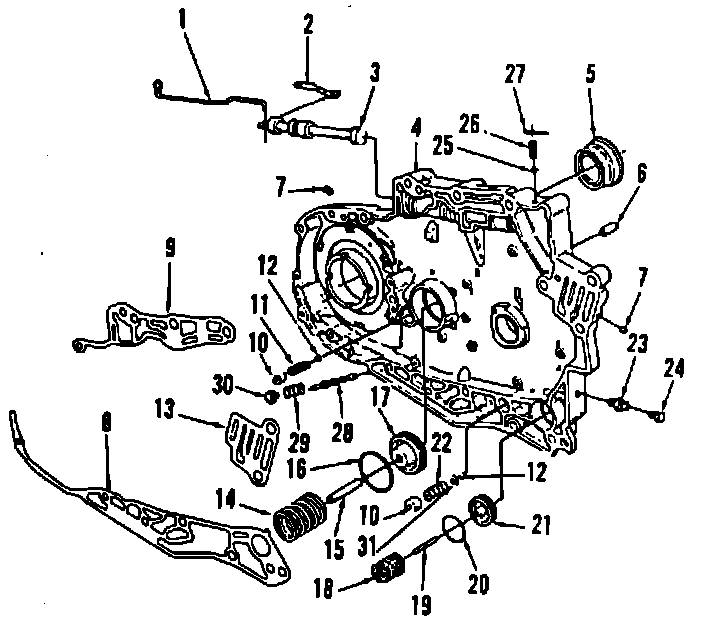

Case Channel Plate, THM440-T4 & HM4T60:



THM440-T4 & HM4T60:
