Note On INTERMITTENTS

If intermittent code "B111" is being set, manipulate related wiring while observing BCM data parameter "BD27". If failure is induced, reading will jump from its normal value to a reading outside range of -29°F to 408°F (-34°C to 209°C).

Fig 1: Schematic, Code B111 - A/C High Side Temp. Sensor Circuit

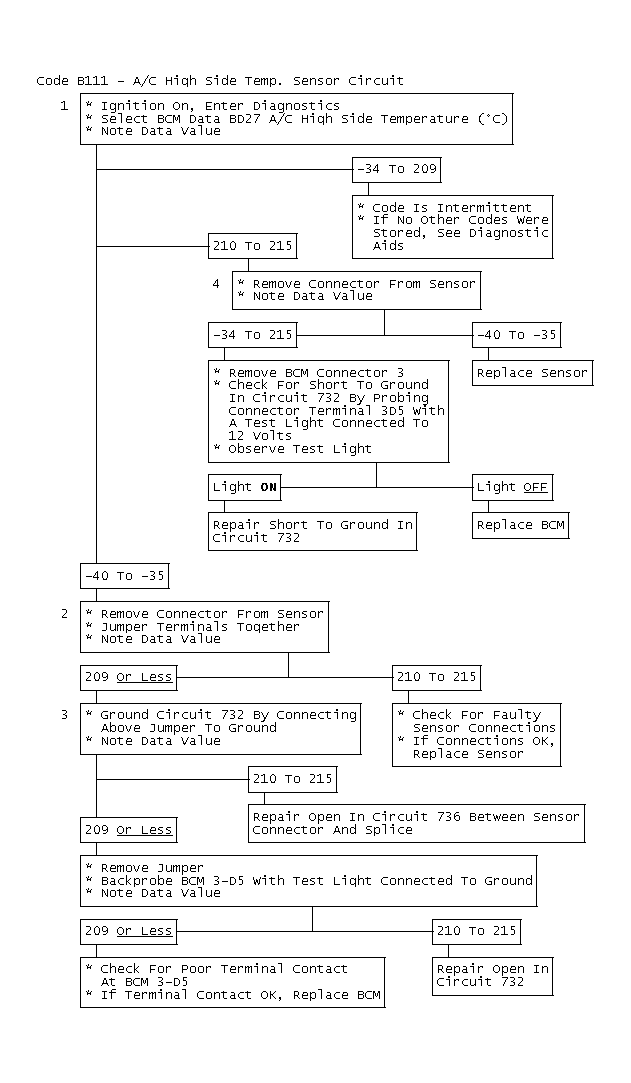

Fig 2: Flow Chart, Code B111 - A/C High Side Temp. Sensor Circuit

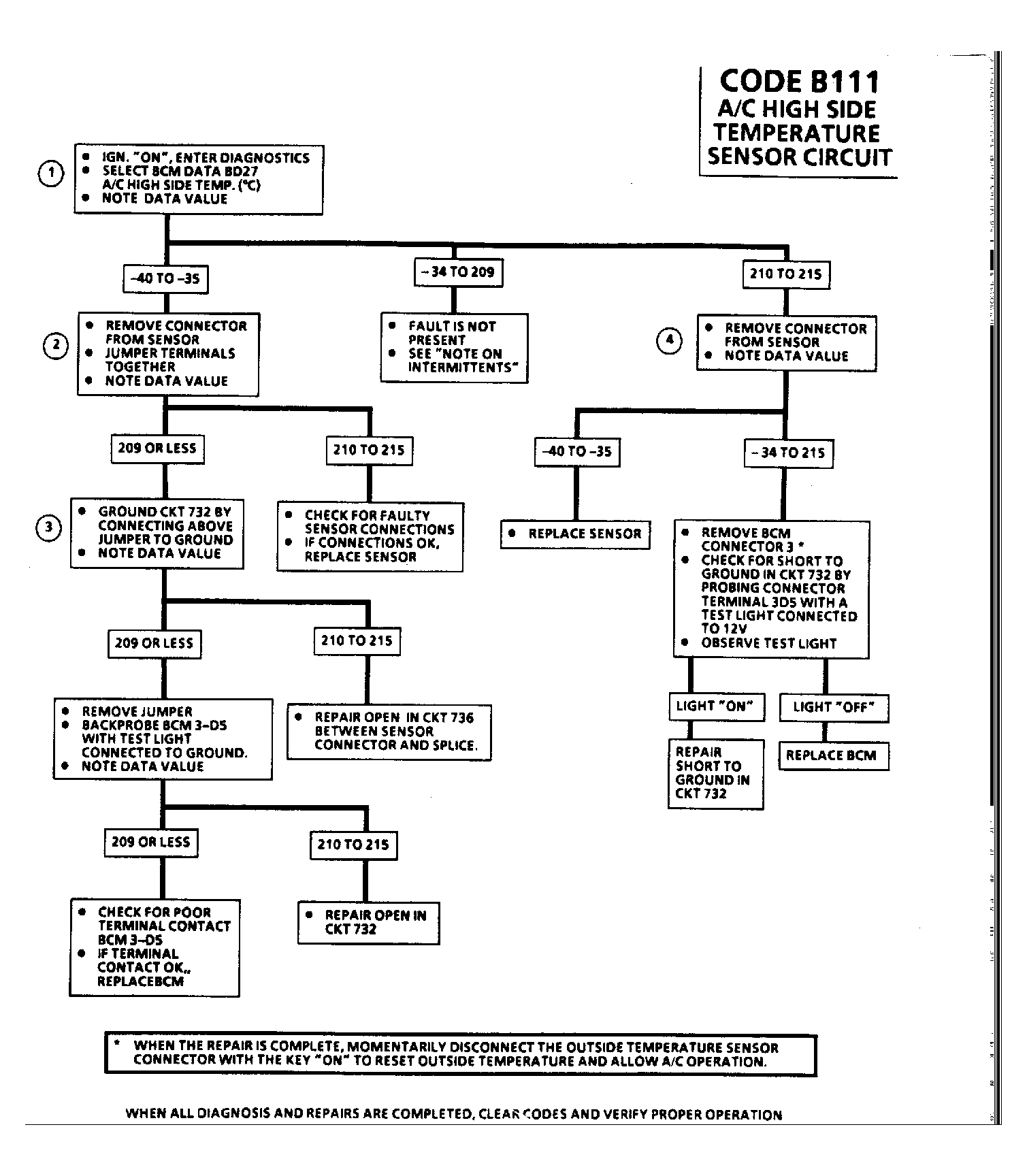

Fig 3: Flow Chart, Code B111 - A/C High Side Temp. Sensor Circuit
