Notes On INTERMITTENTS

If intermittent code is being set, check for loose or dirty connections. Also, check corroded terminal ends.

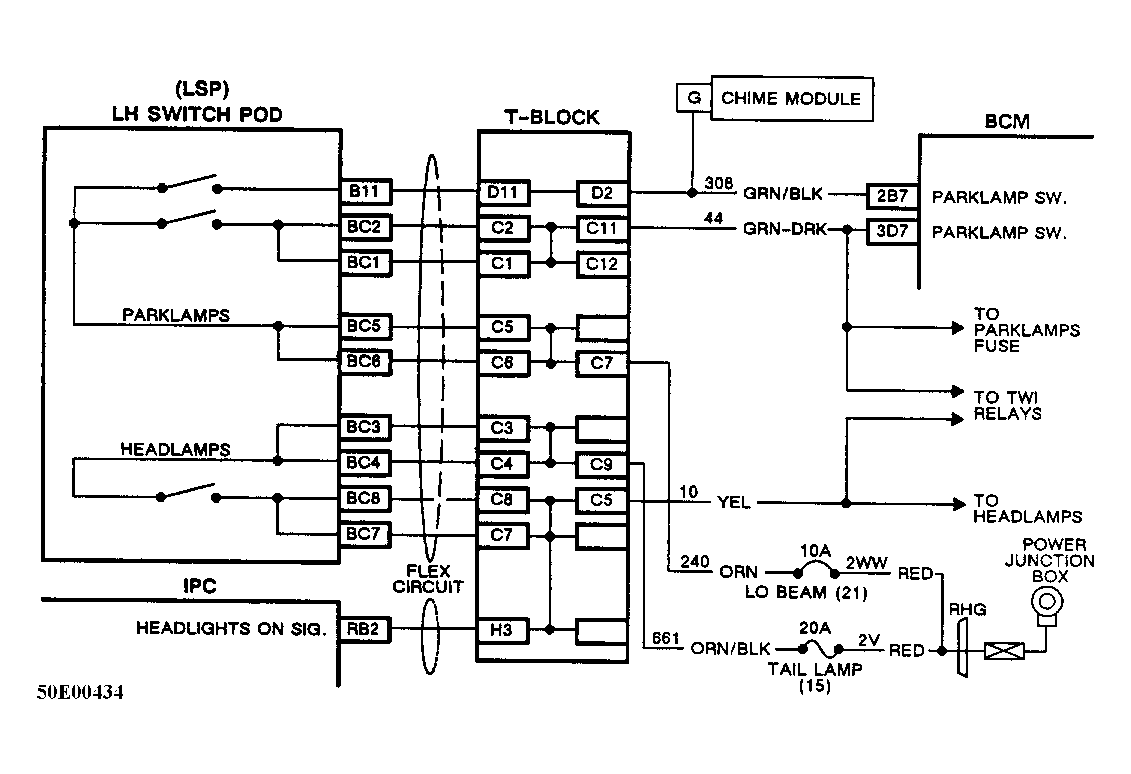

Fig 1: Schematic, Code B128 - Bulb Reference Circuit

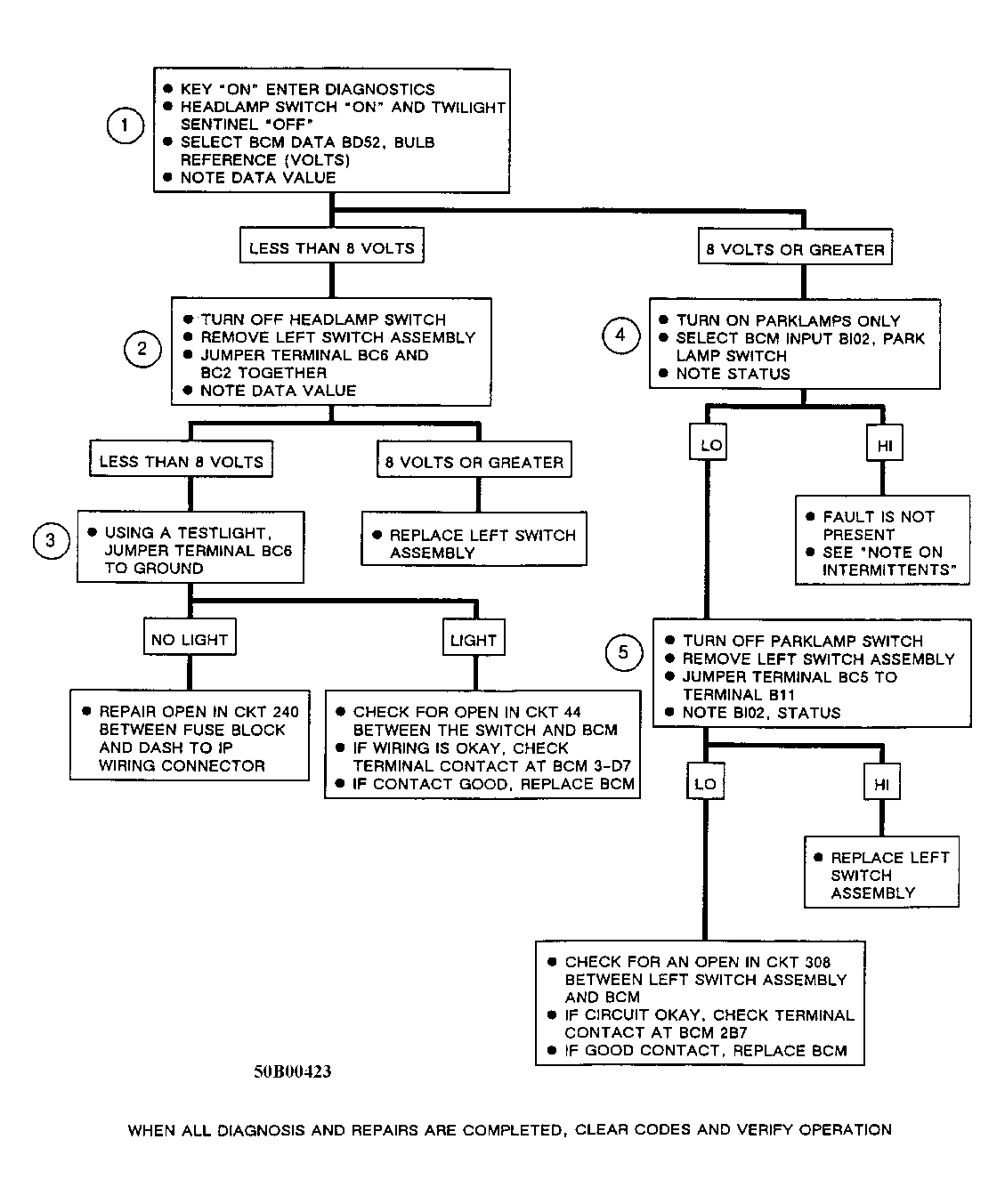

Fig 2: Flow Chart, Code B128 - Bulb Reference Circuit

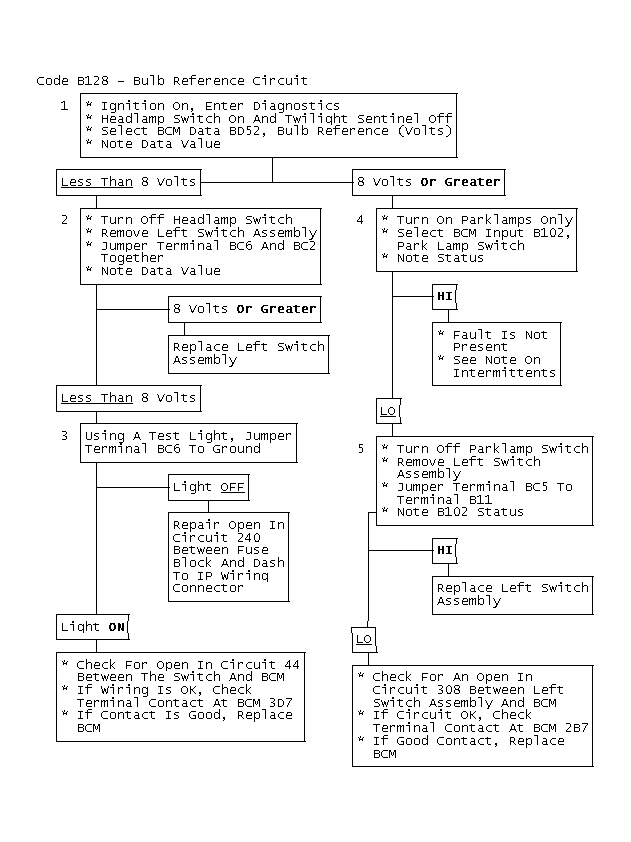

Fig 3: Flow Chart, Code B128 - Bulb Reference Circuit
