Notes On INTERMITTENTS

If intermittent code is being set, check for loose or dirty connections. Also, check corroded terminal ends.

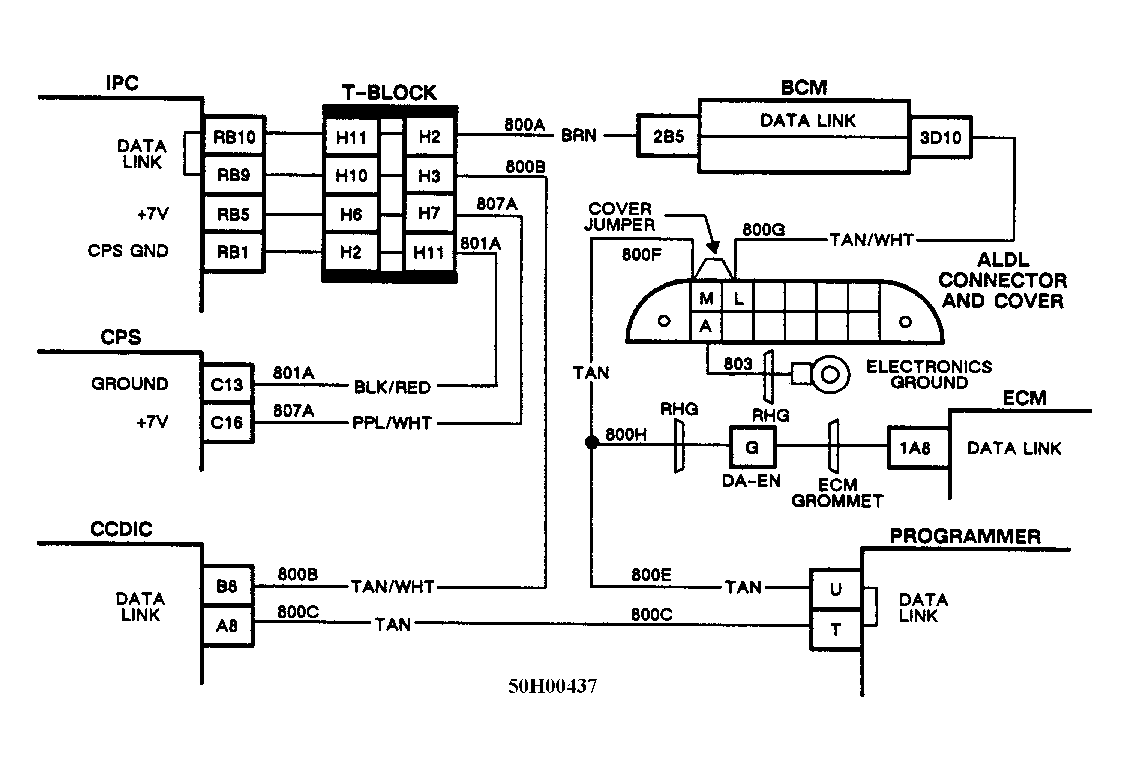

Fig 1: Schematic, Code B336 - Loss of IPC Data

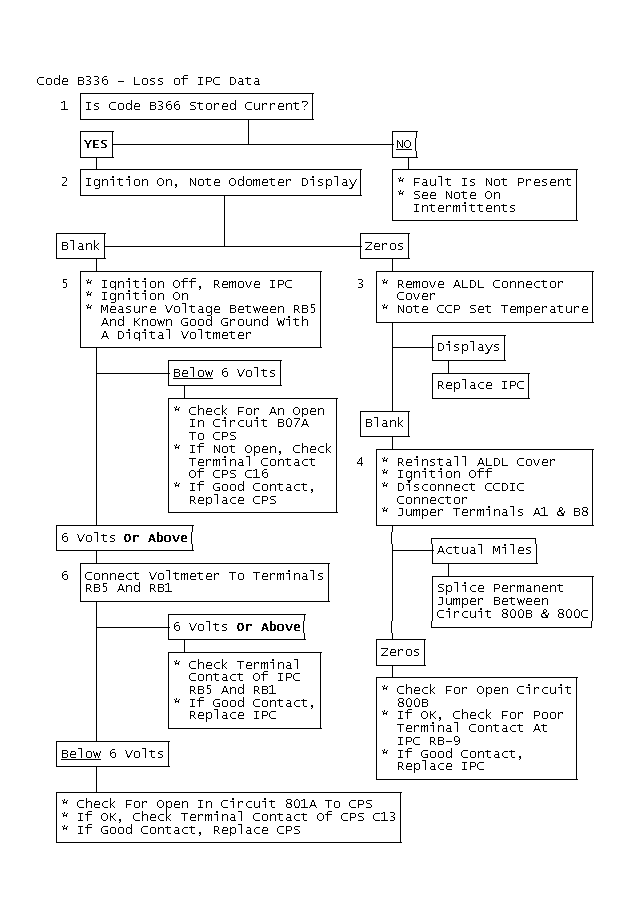

Fig 2: Flow Chart, Code B336 - Loss of IPC Data

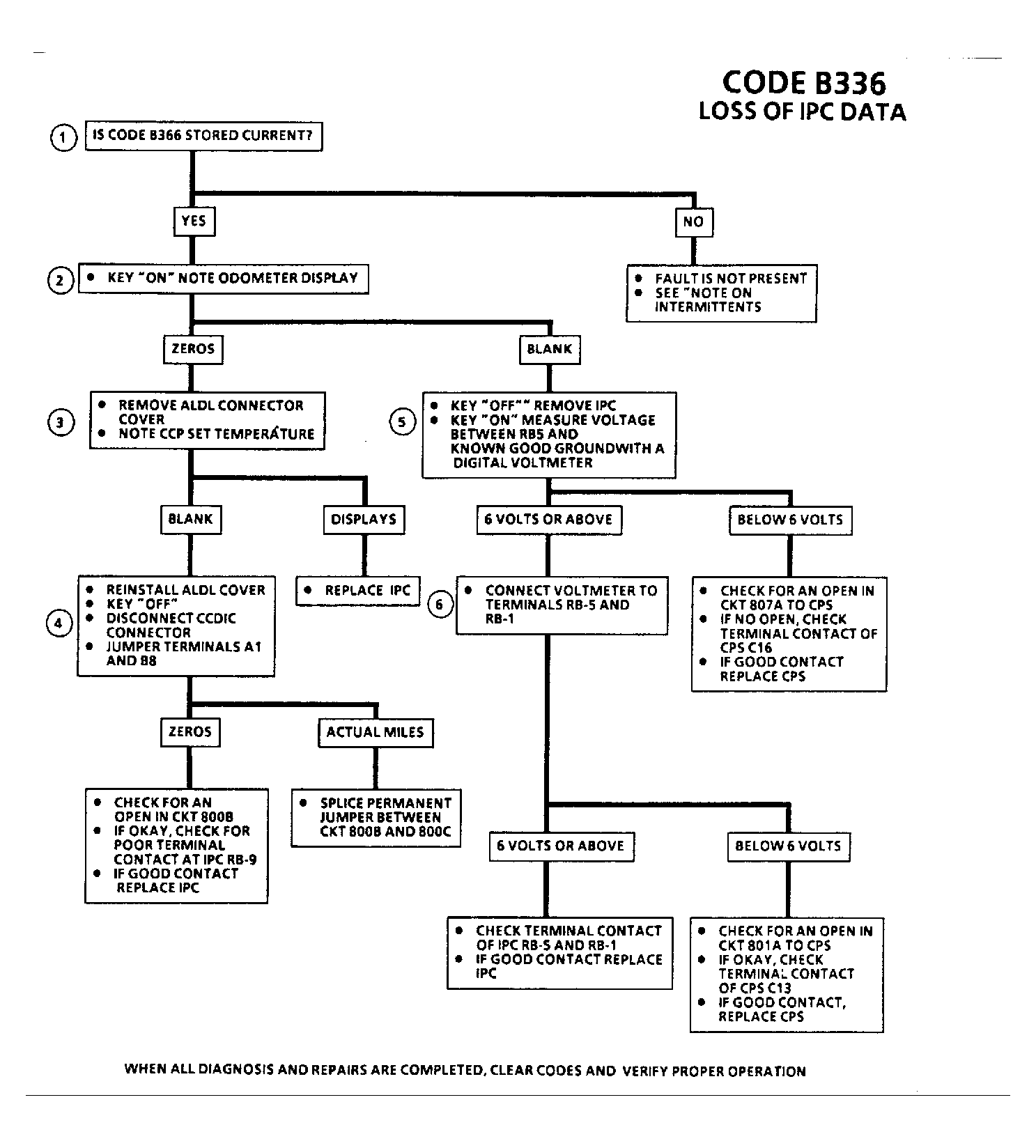

Fig 3: Flow Chart, Code B336 - Loss of IPC Data
