Notes On INTERMITTENTS

If intermittent code is being set, check for loose or dirty connections. Also, check corroded terminal ends.

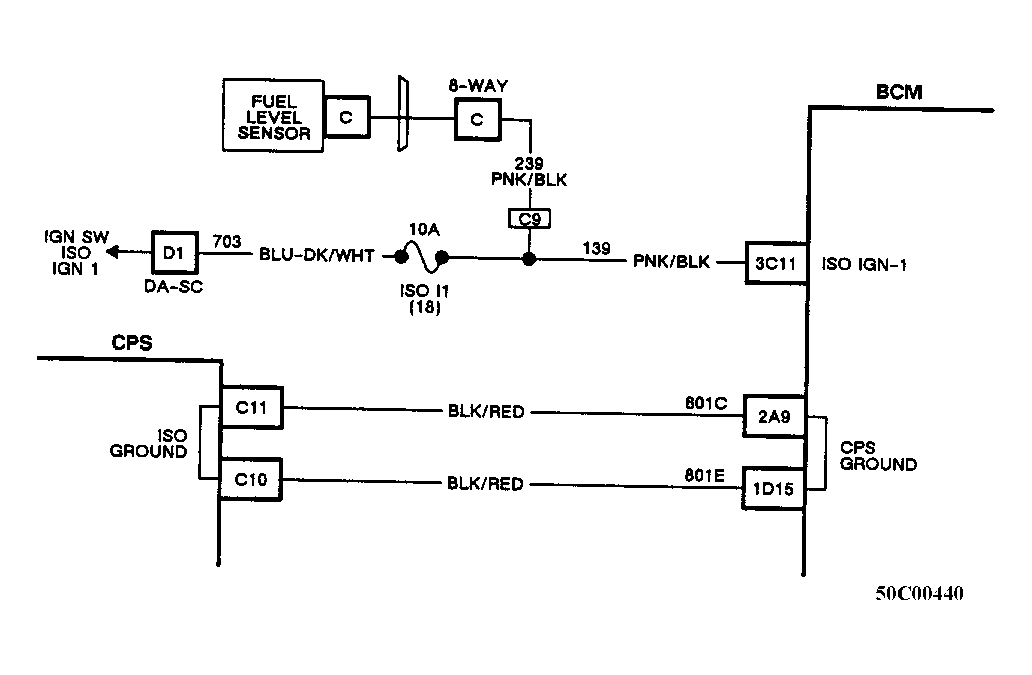

Fig 1: Schematic, Code B411 - Battery Low

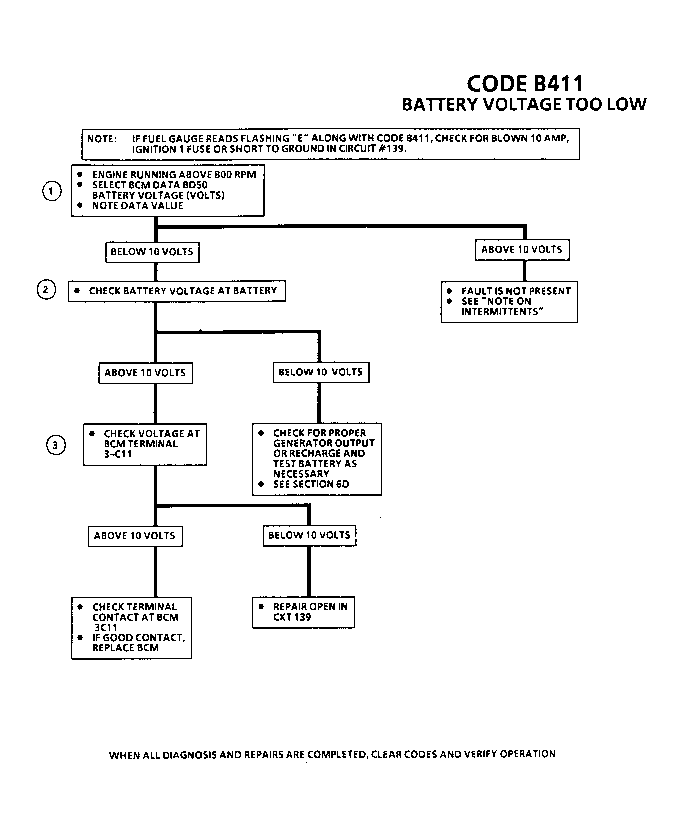

Fig 2: Flow Chart, Code B411 - Battery Low

NOTE: If fuel gauge reads flashing "E" along with code B411, check for blown 10 amp, Ignition 1 fuse or short to ground in circuit 139.

Fig 3: Flow Chart, Code B411 - Battery Low
