CHART C2 - CCDIC Problem (Cont.)

You are at this chart because CCDIC display is completely blank. Causes for this problem could be loss of CPS power, ground or loss of vacuum fluorescent power from IPC.

Disconnecting CCDIC connector and performing individual circuit checks will determine if wiring connector, terminal or component is faulty.

Fig 1: Flow Chart C2 - CCDIC Problem (Cont.)

Fig 2: Flow Chart C2 - CCDIC Problem (Cont.)

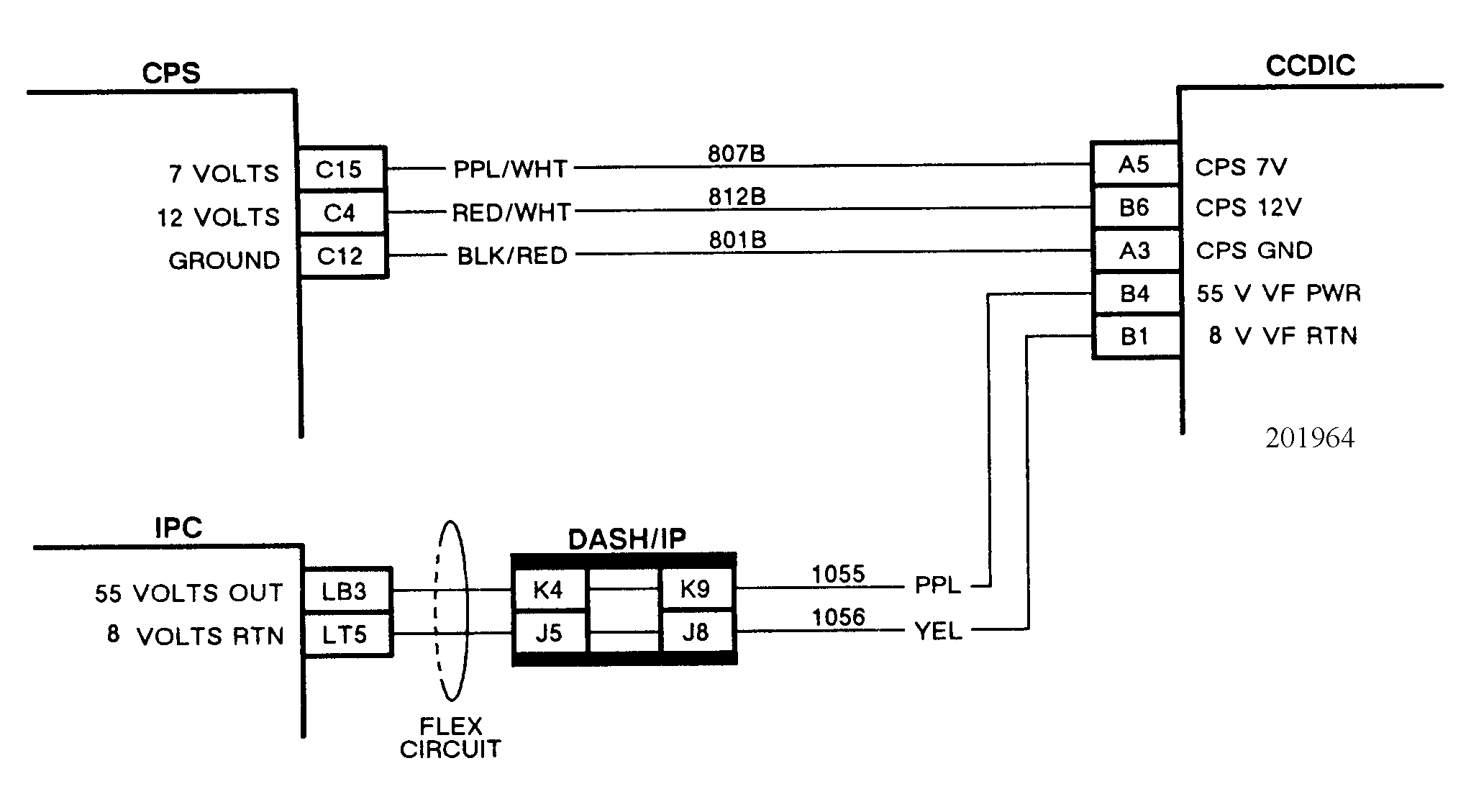

Fig 3: Schematic for Flow Chart C2 - CCDIC Problem (Cont.)
