Chart C3 - CCDIC Problem (Cont.)

You are at this chart because DIC display reads "SYSTEM PROBLEM". This symptom is of a data line problem.

1. Checks to see if data line is faulty or CCDIC is faulty.
2. This step checks to see where in data line problems exist, including CCDIC.

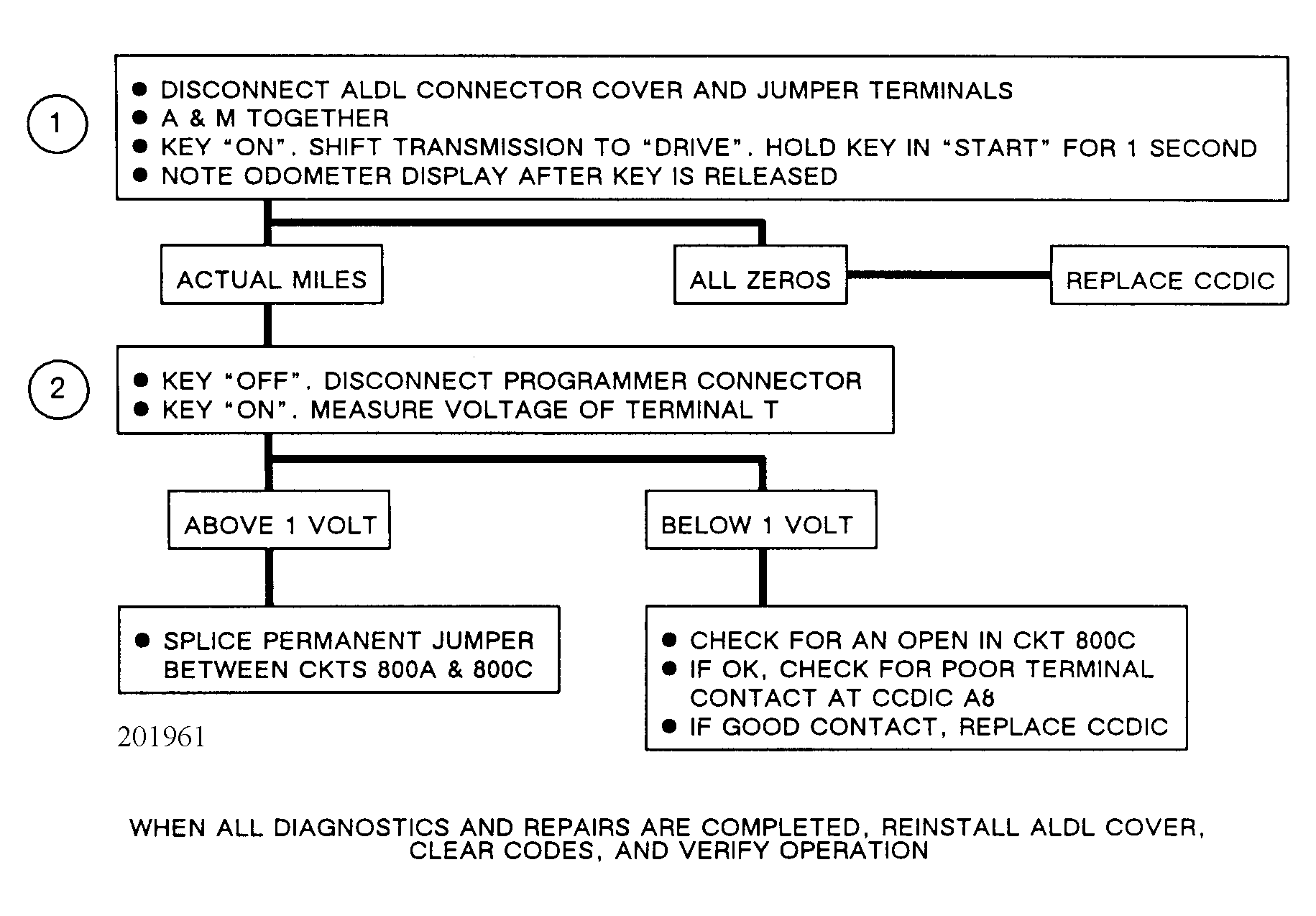

Fig 1: Flow Chart C3 - CCDIC Problem (Cont.)

Fig 2: Flow Chart C3 - CCDIC Problem (Cont.)

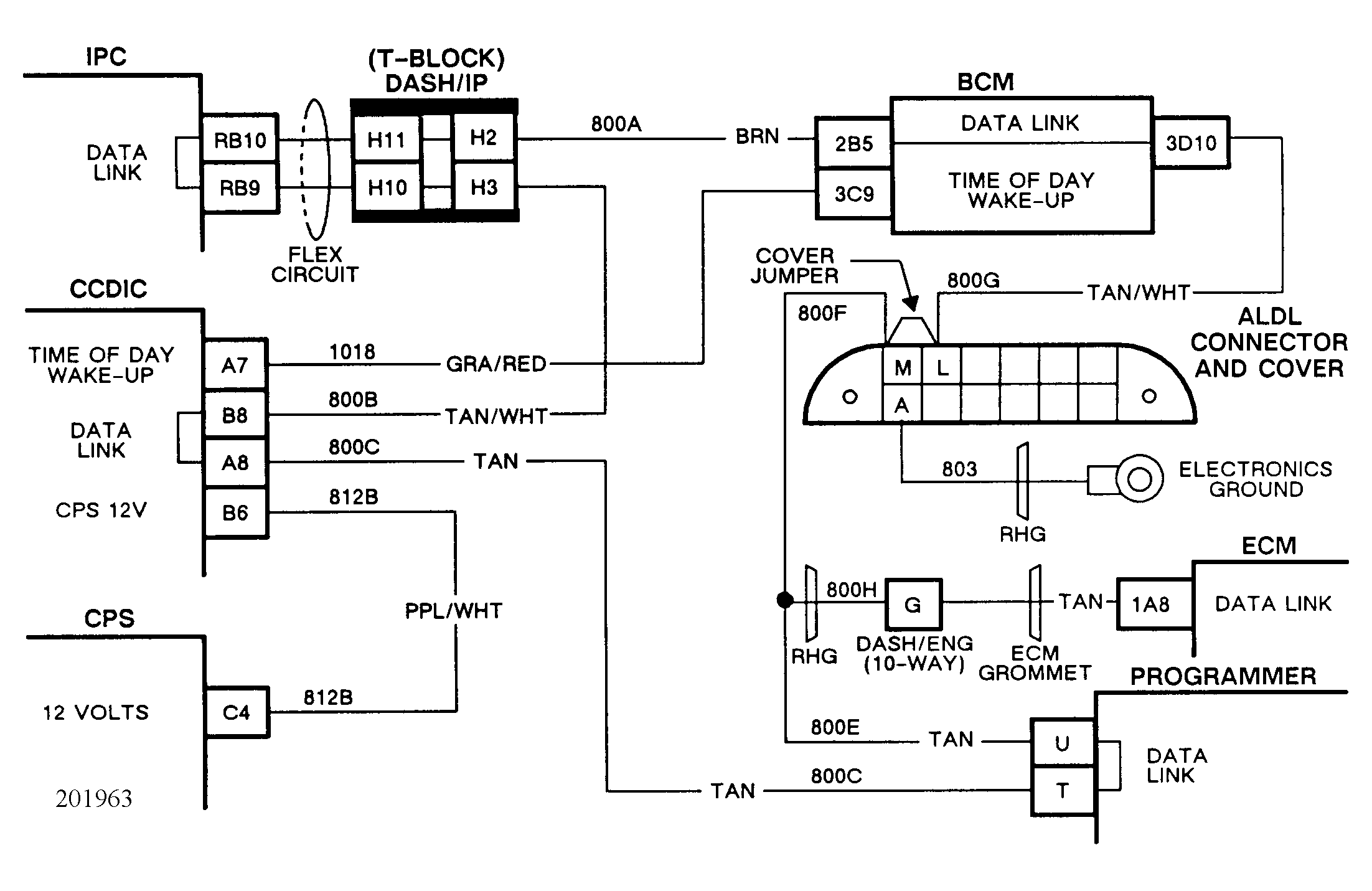

Fig 3: Schematic for Flow Chart C3 - CCDIC Problem (Cont.)
