Chart C4 - CCDIC Problem (Cont.)

You are at this chart because "Time/Temp" button does not respond on DIC panel. This chart determines if fault is due to loss of 12 volts to CCDIC from CPS (including components) or an open in circuit No. 1018 from CCDIC to BCM (including components).

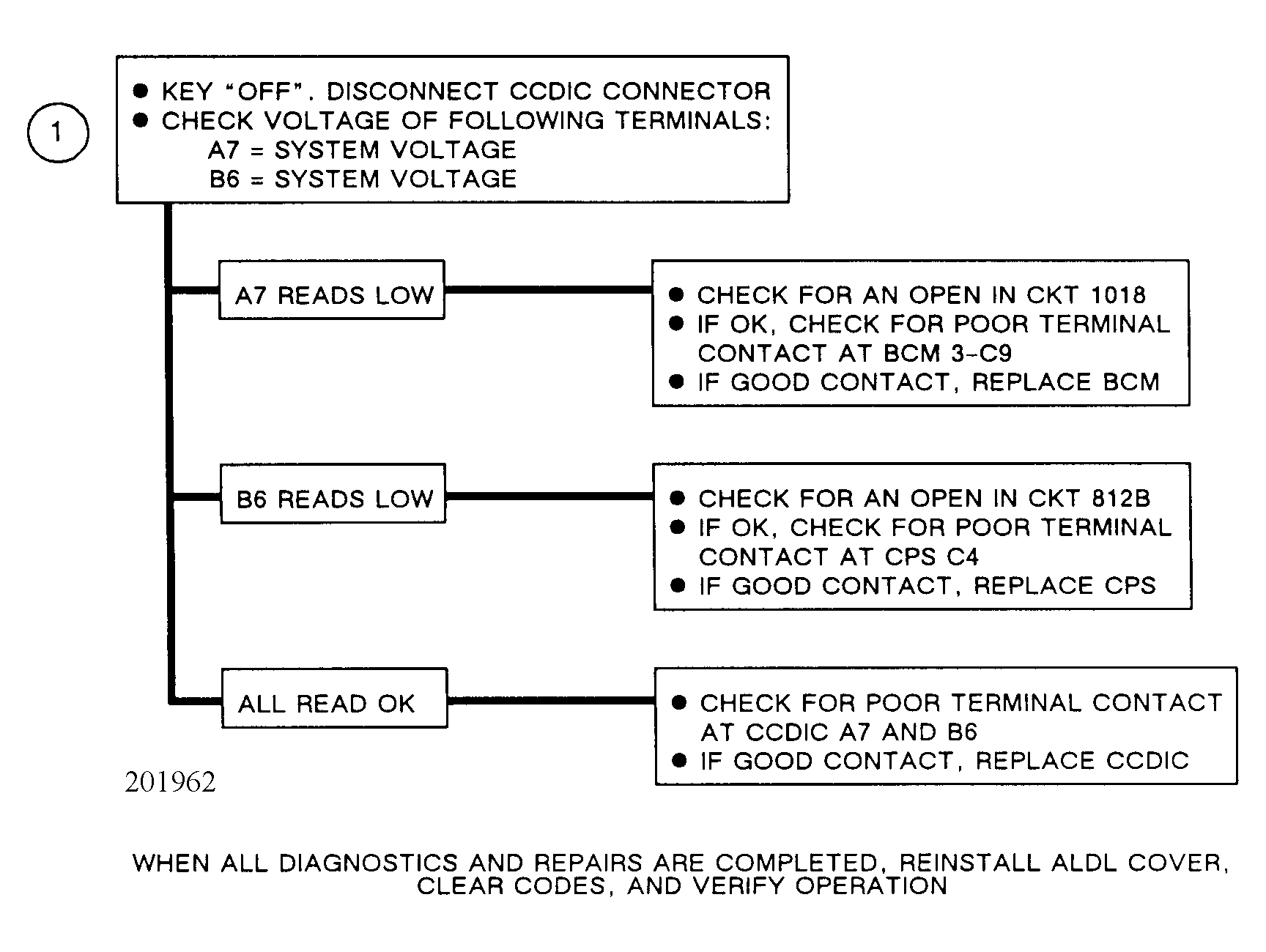

Fig 1: Flow Chart C4 - CCDIC Problem (Cont.)

Fig 2: Flow Chart C4 - CCDIC Problem (Cont.)

Fig 3: Schematic for Flow Chart C4 - CCDIC Problem (Cont.)
