Performance Chart 1 - ECM Replacement Check

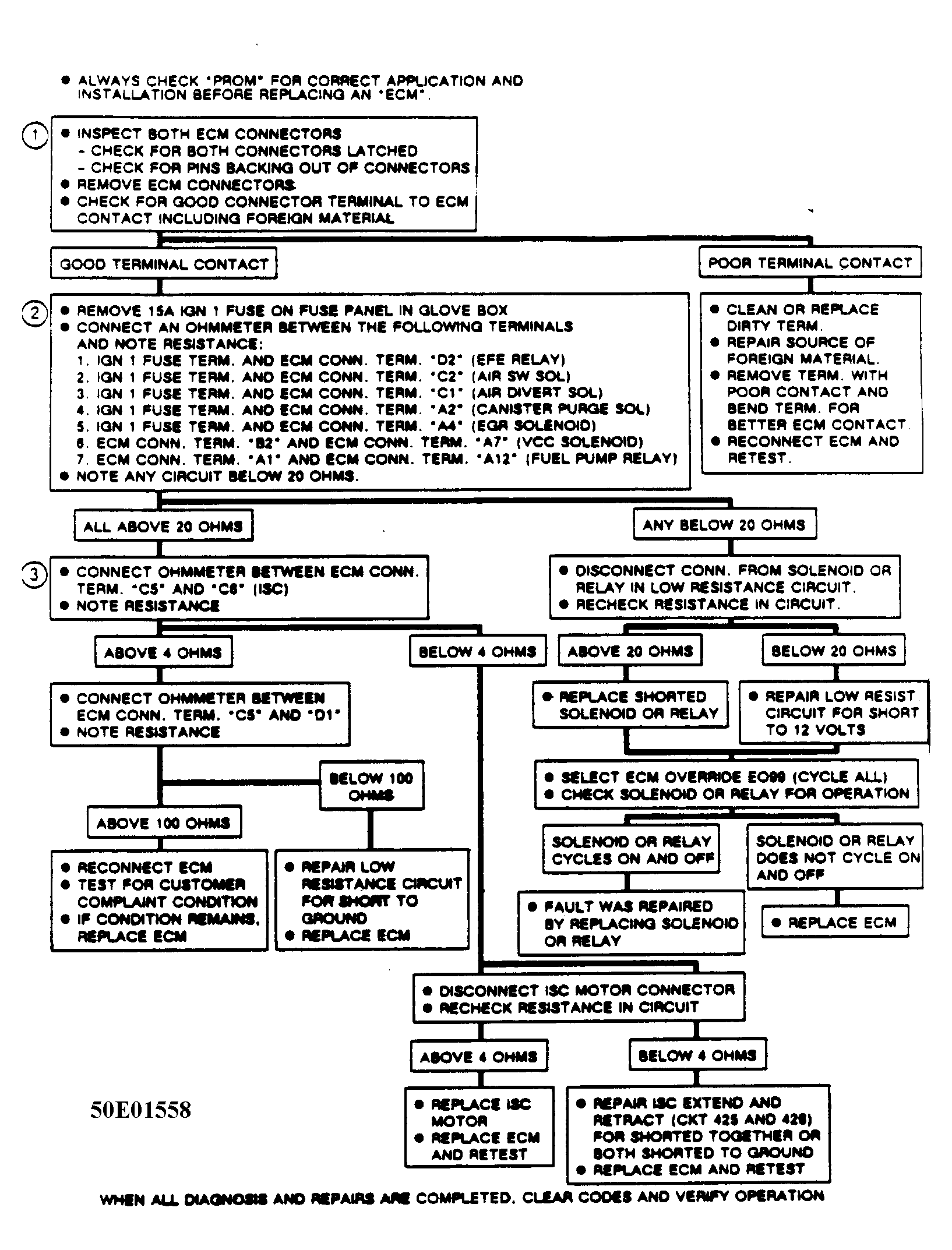

Fig 1: Performance Chart 1 - ECM Replacement Check

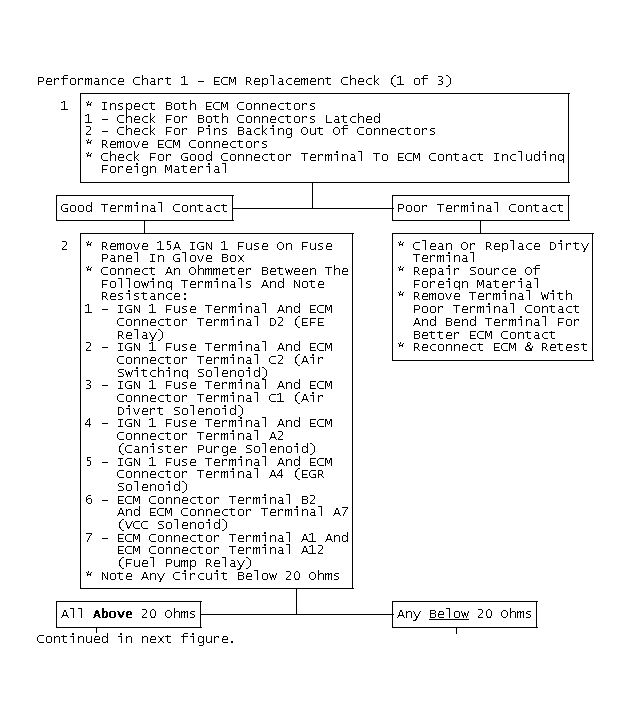

Fig 2: Performance Chart 1 - ECM Replacement Check (1 of 3)

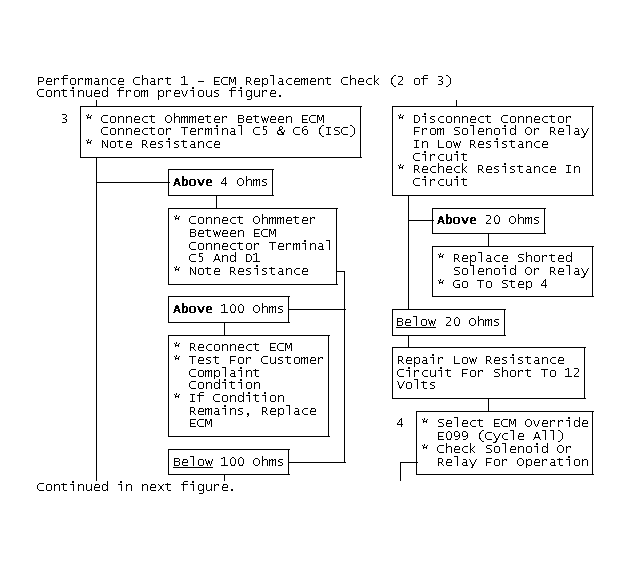

Fig 3: Performance Chart 1 - ECM Replacement Check (2 of 3)

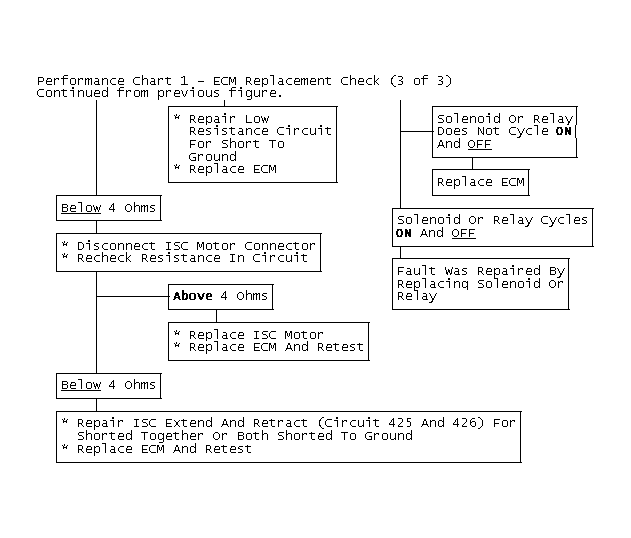

Fig 4: Performance Chart 1 - ECM Replacement Check (3 of 3)
