Performance Chart 4 - Est System Check

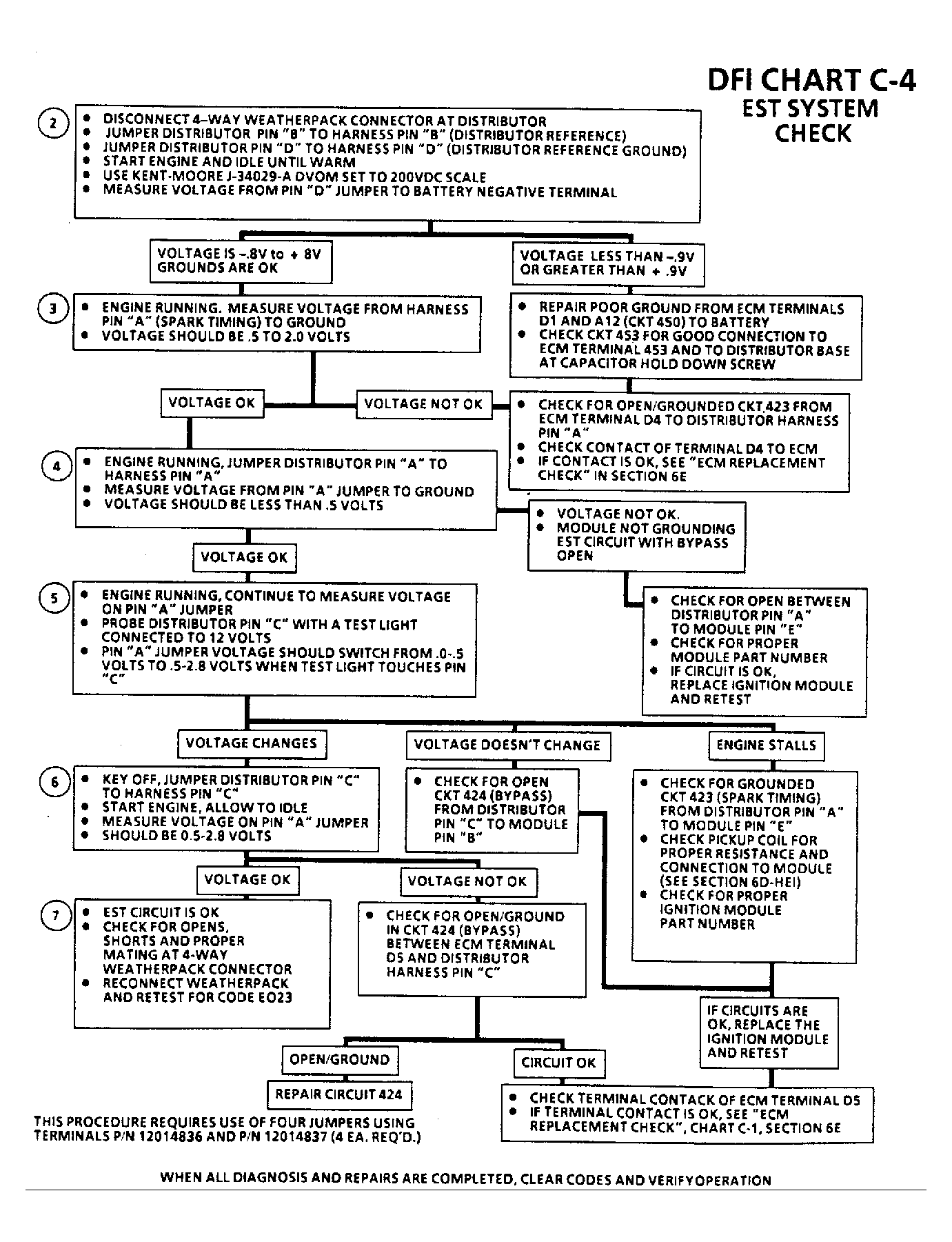

Fig 1: Performance Chart 4 - EST System Check

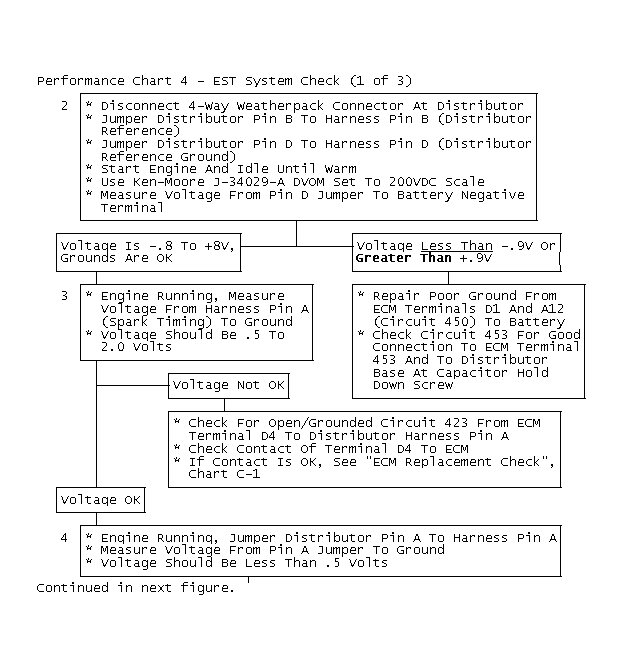

Fig 2: Performance Chart 4 - EST System Check (1 of 3)

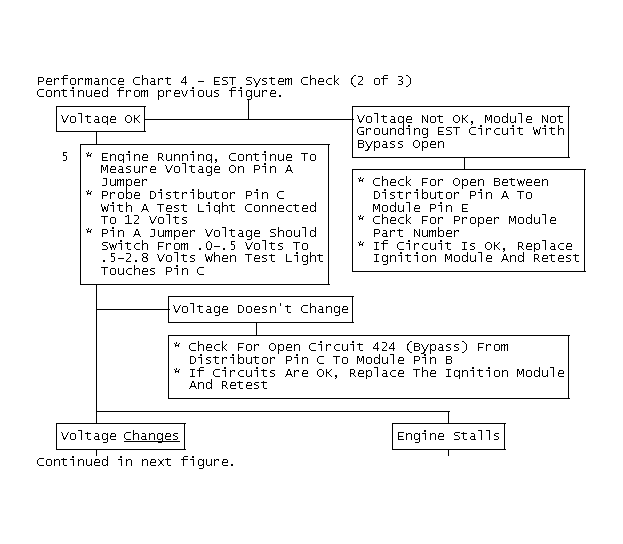

Fig 3: Performance Chart 4 - EST System Check (2 of 3)

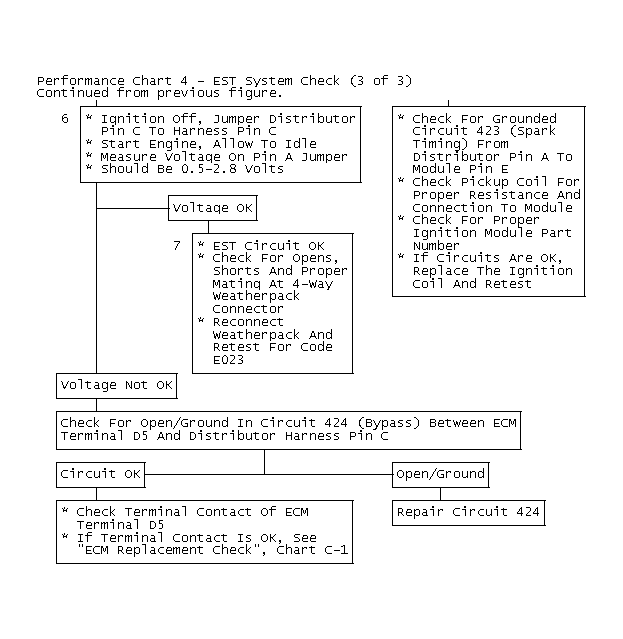

Fig 4: Performance Chart 4 - EST System Check (3 of 3)

Fig 5: Schematic for Performance Chart No. 4
