Toe-In Adjustment (Front)

Loosen tie rod end lock nut. See Fig 1. Loosen steering gear dust boot clamp(s) at tie rod end. Turn inner tie rod to obtain correct toe-in. Tighten lock nut to specification. See TORQUE SPECIFICATIONS . Ensure steering gear dust boot is straight after adjustment. Tighten dust boot clamp.

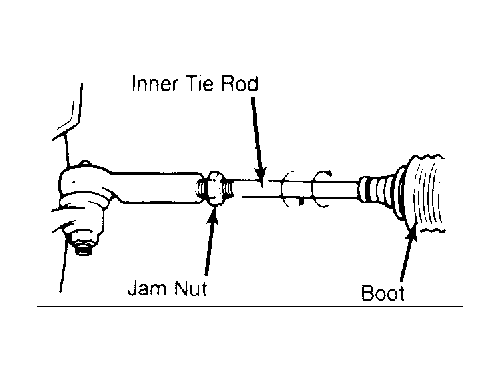

Fig 1: Adjusting Front Toe-in

Courtesy of GENERAL MOTORS CORP.
