Notes On INTERMITTENTS

If intermittent code B115 is being set, manipulate related wiring while observing BCM data code BD32. If failure is induced, reading will jump from its normal value to a reading outside range of -34°C to 96°C. If value displayed by BD32 is not reasonably close to actual thermometer reading, check for poor terminal connections or replace sensor.

Fig 1: Code B115 Schematic, Sunload Temperature Sensor

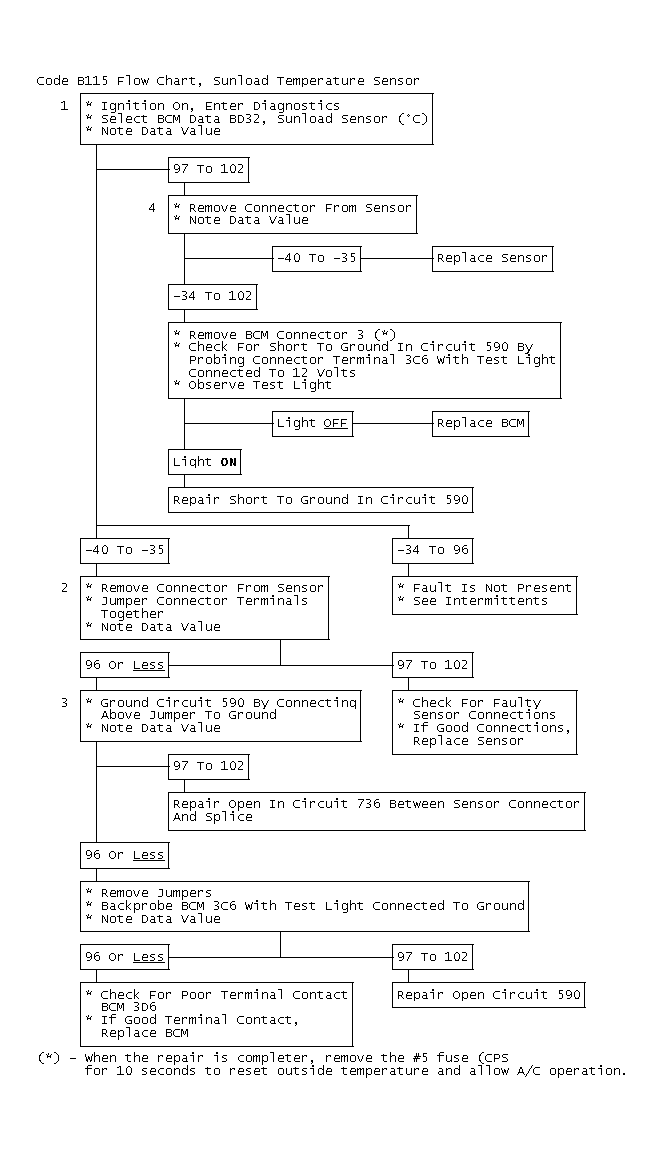

Fig 2: Code B115 Flow Chart, Sunload Temperature Sensor

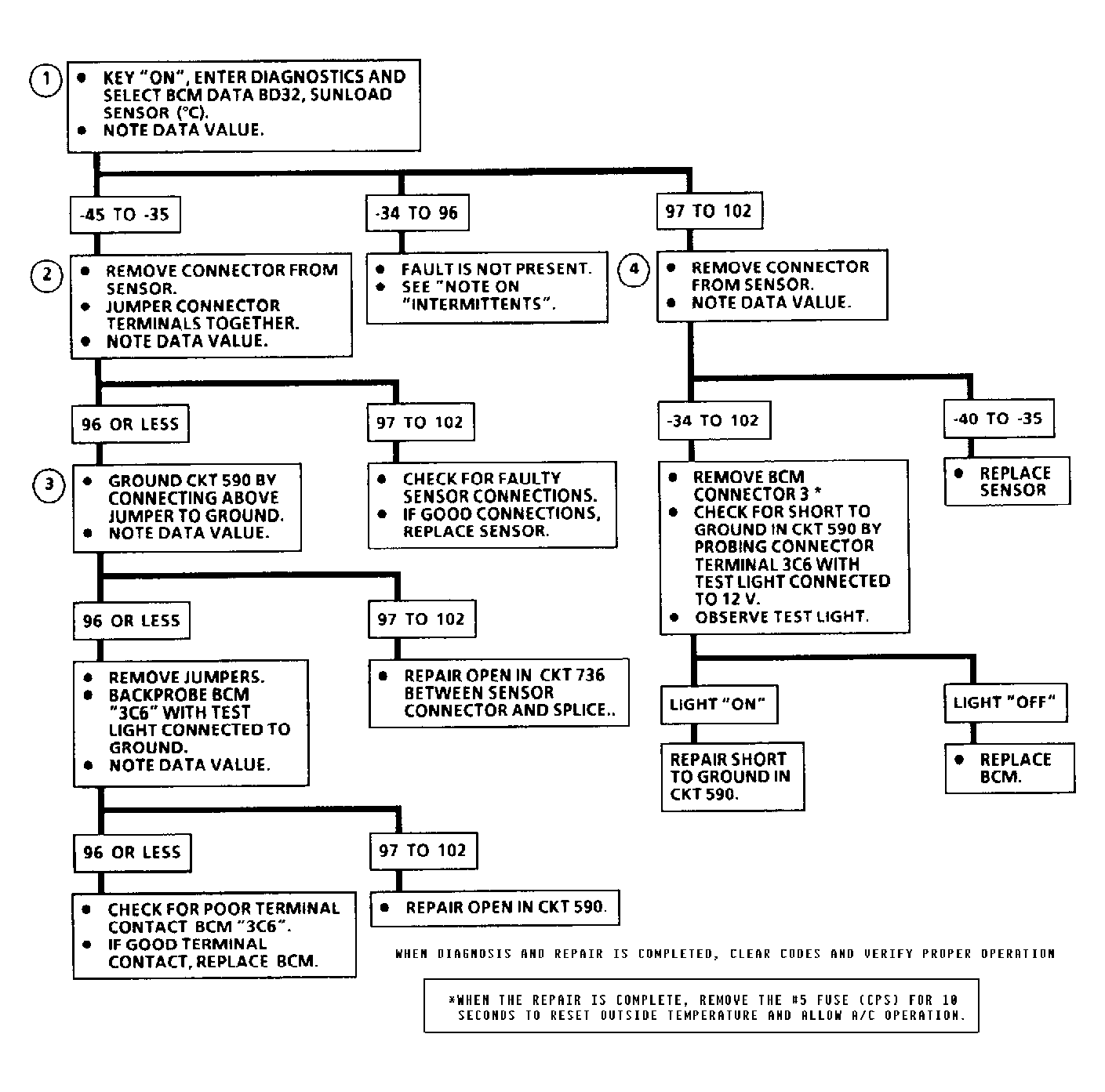

Fig 3: Code B115 Flow Chart, Sunload Temperature Sensor
