Notes On INTERMITTENTS

If an intermittent condition exists, perform battery and charging system checks to assure proper operation. Also perform a comprehensive visual check of generator wiring and connection.

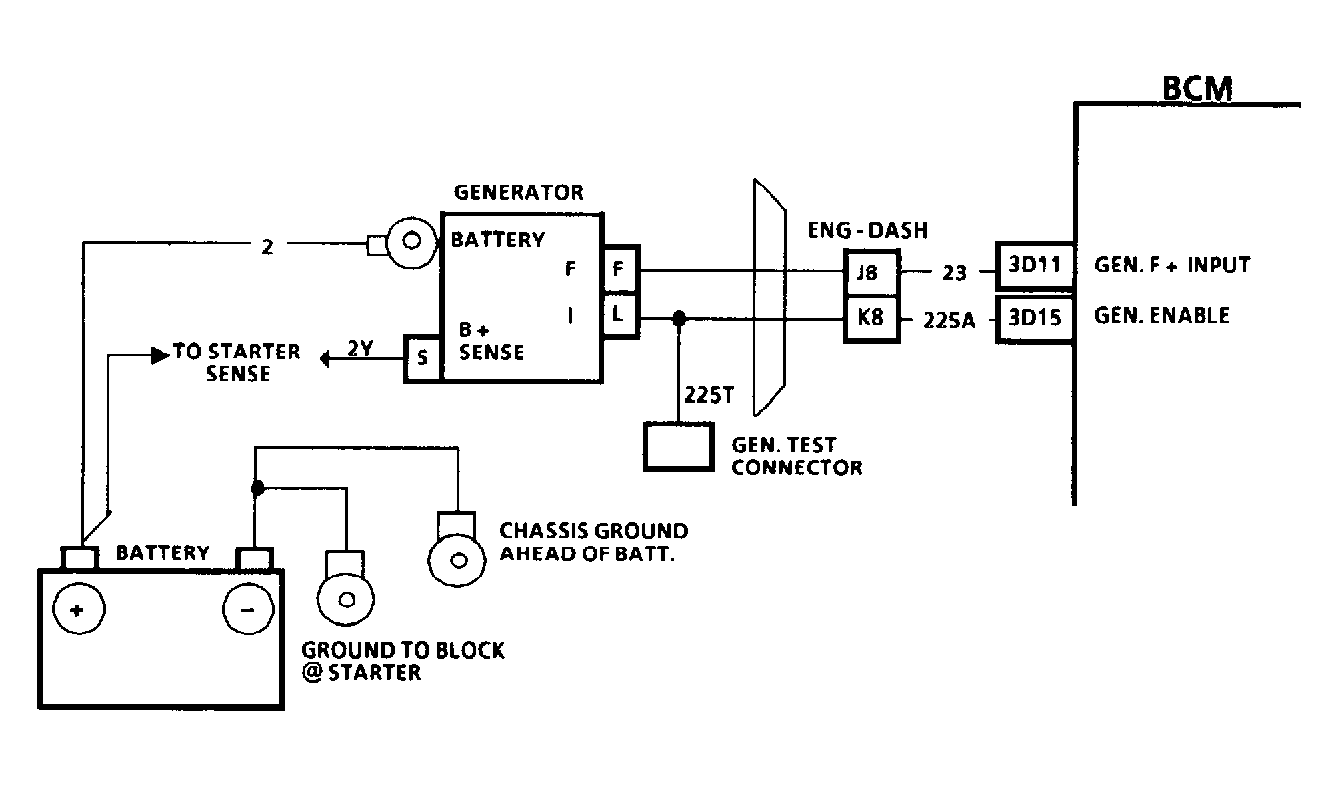

Fig 1: Code B410 Schematic, Charging System Circuit

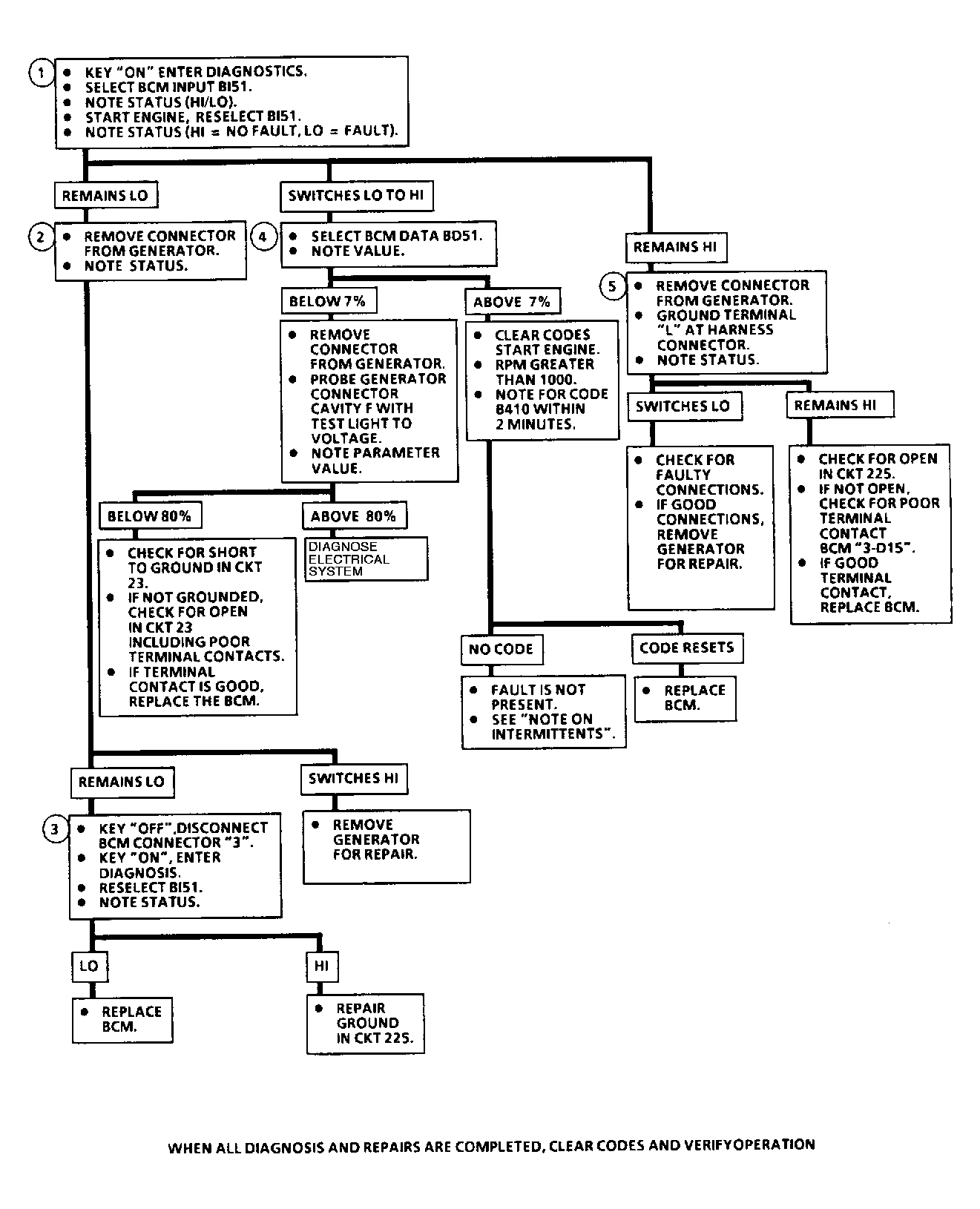

Fig 2: Code B410 Flow Chart, Charging System Circuit

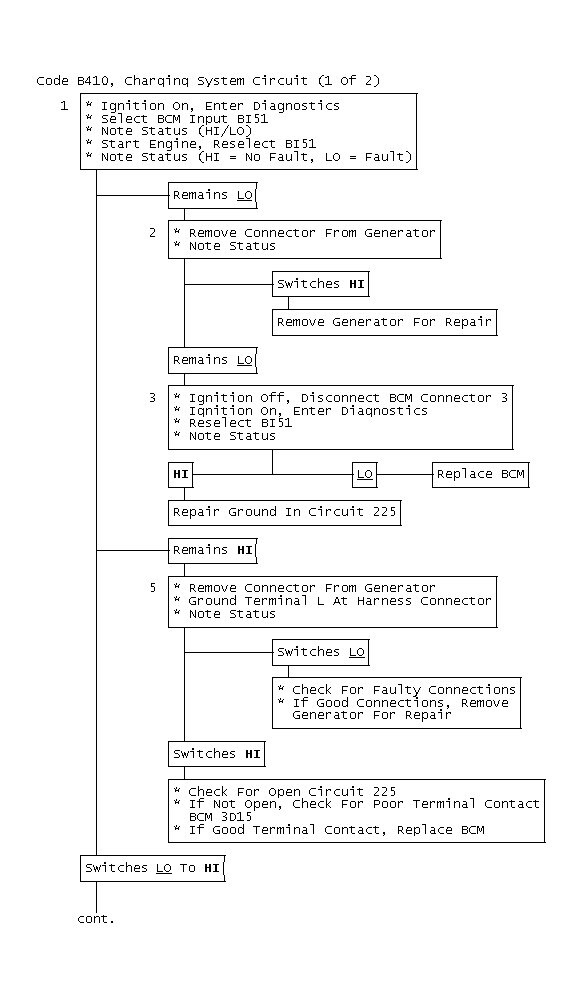

Fig 3: Code B410, Charging System Circuit (1 Of 2)

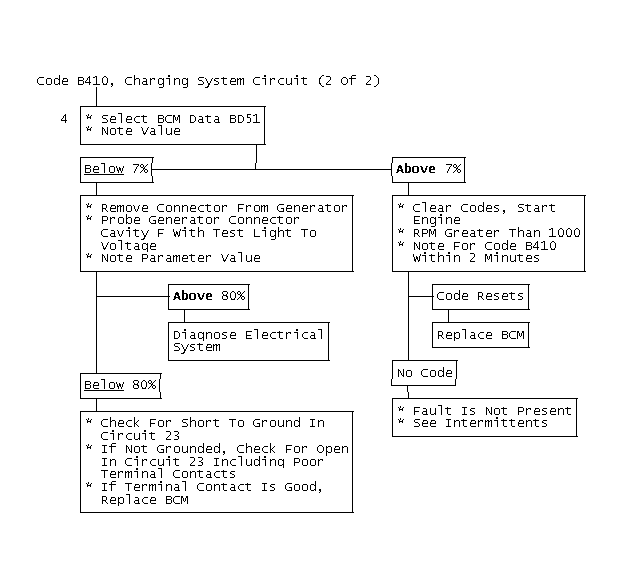

Fig 4: Code B410, Charging System Circuit (2 Of 2)
