Notes On INTERMITTENTS

If an intermittent code B420 is being set, manipulate related wiring in output function and watch for relays to cycle.

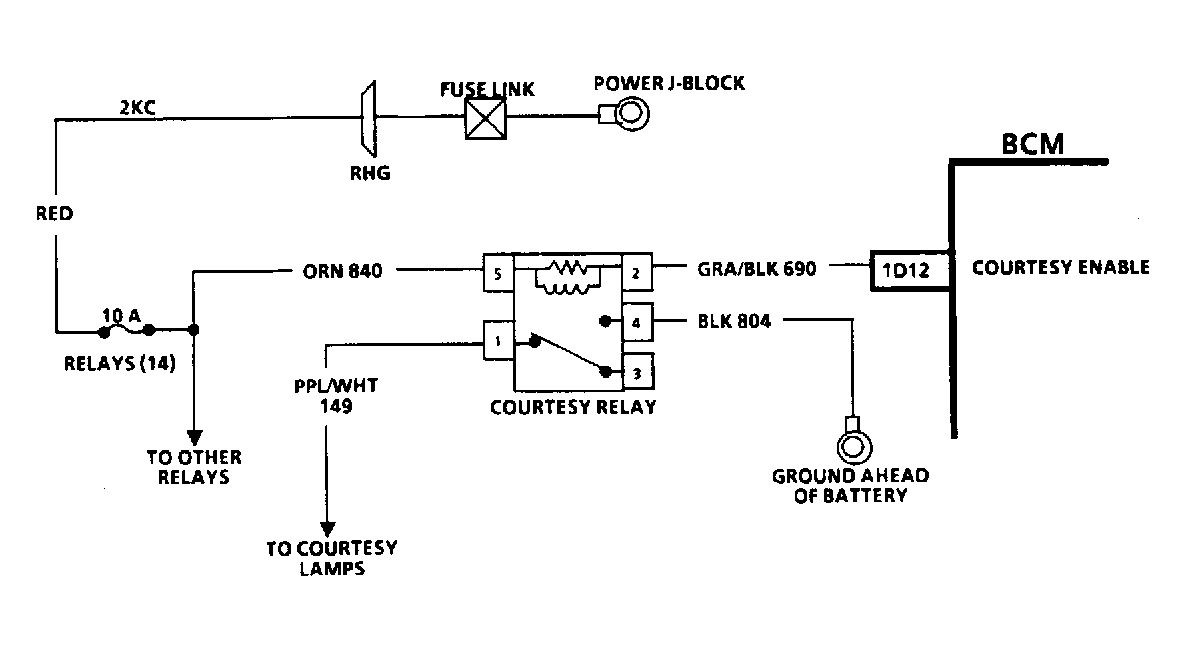

Fig 1: Code B420 Schematic, Courtesy Light Relay Circuit

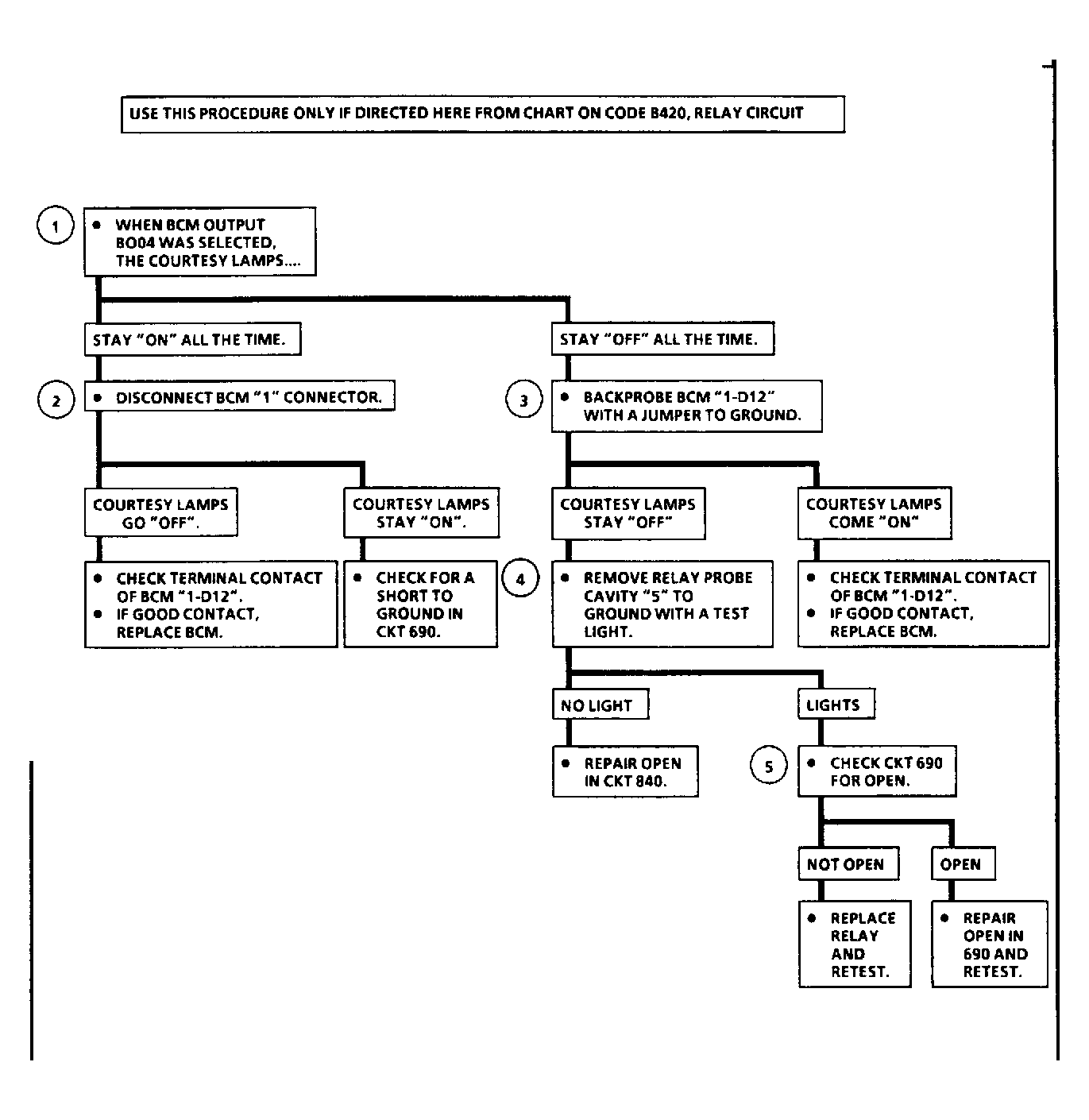

Fig 2: Code B420 Flow Chart, Courtesy Light Relay Circuit

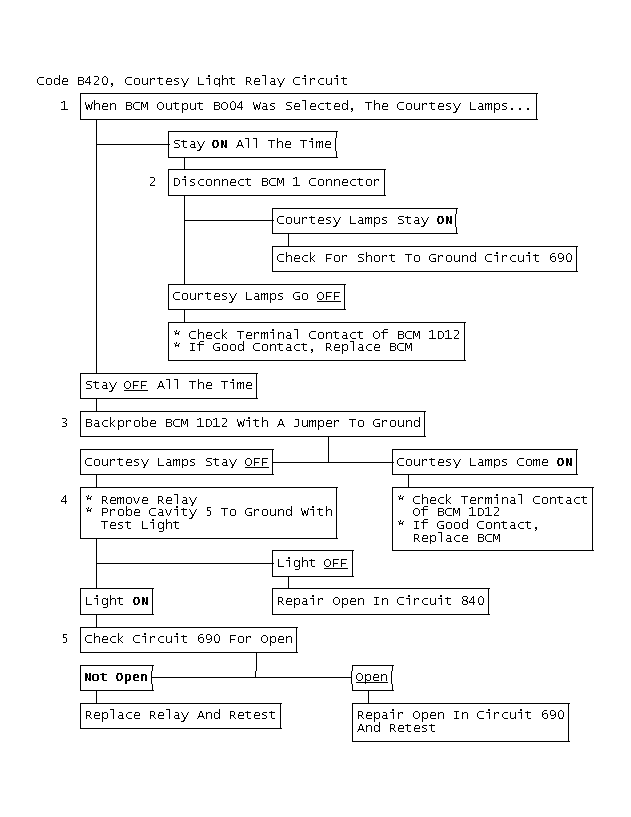

Fig 3: Code B420 Flow Chart, Courtesy Light Relay Circuit
