Chart C2 - CCDIC Completely Blank

You are at this chart because the CCDIC display is completely blank. Cause for this problem could be a loss of Central Power Supply (CPS) power or ground, or loss of vacuum fluorescent power from Instrument Panel Cluster (IPC).

NOTE: Test numbers refer to test numbers on diagnostic chart.

Unplugging the CCDIC connector and performing individual circuit checks will determine if wiring connector, terminals, or component is faulty.

Fig 1: Chart C2 Schematic, CCDIC Completely Blank

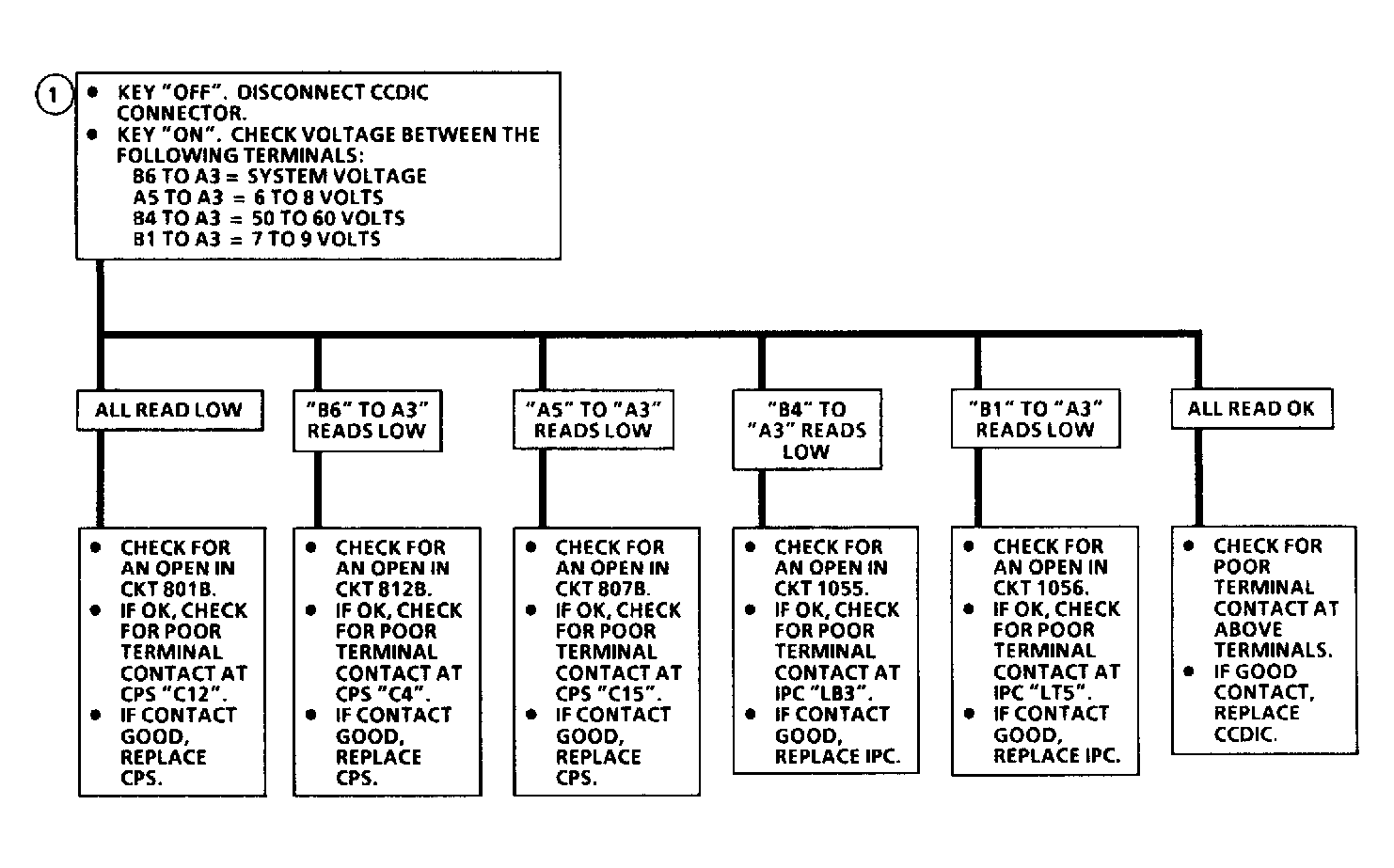

Fig 2: Flow Chart C2, CCDIC Completely Blank

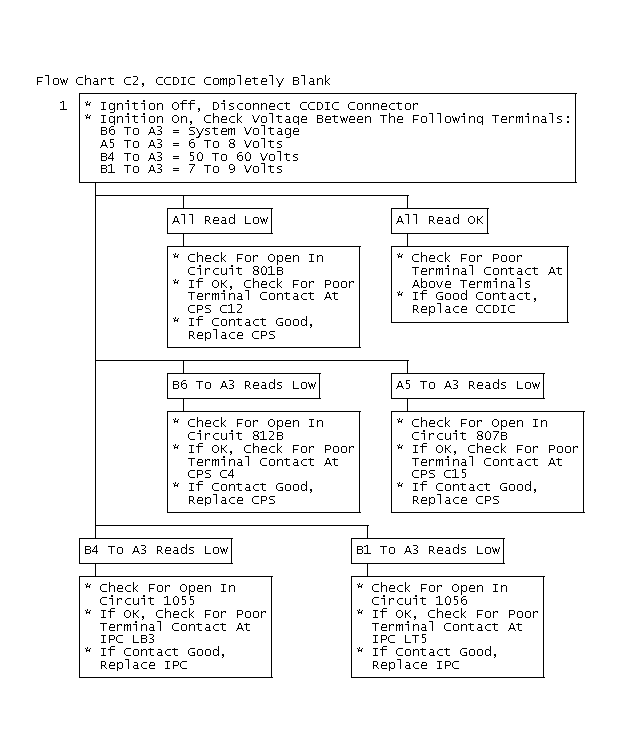

Fig 3: Flow Chart C2, CCDIC Completely Blank
