ECM "Ed99" Data Code

The ECM Programmable Read-Only Memory (PROM) identification number is displayed as a number up to 3 digits long which can be used to verify that proper PROM is installed in ECM.

Fig 1: ECM Diagnostics/Basic Operation & Status Light Displays

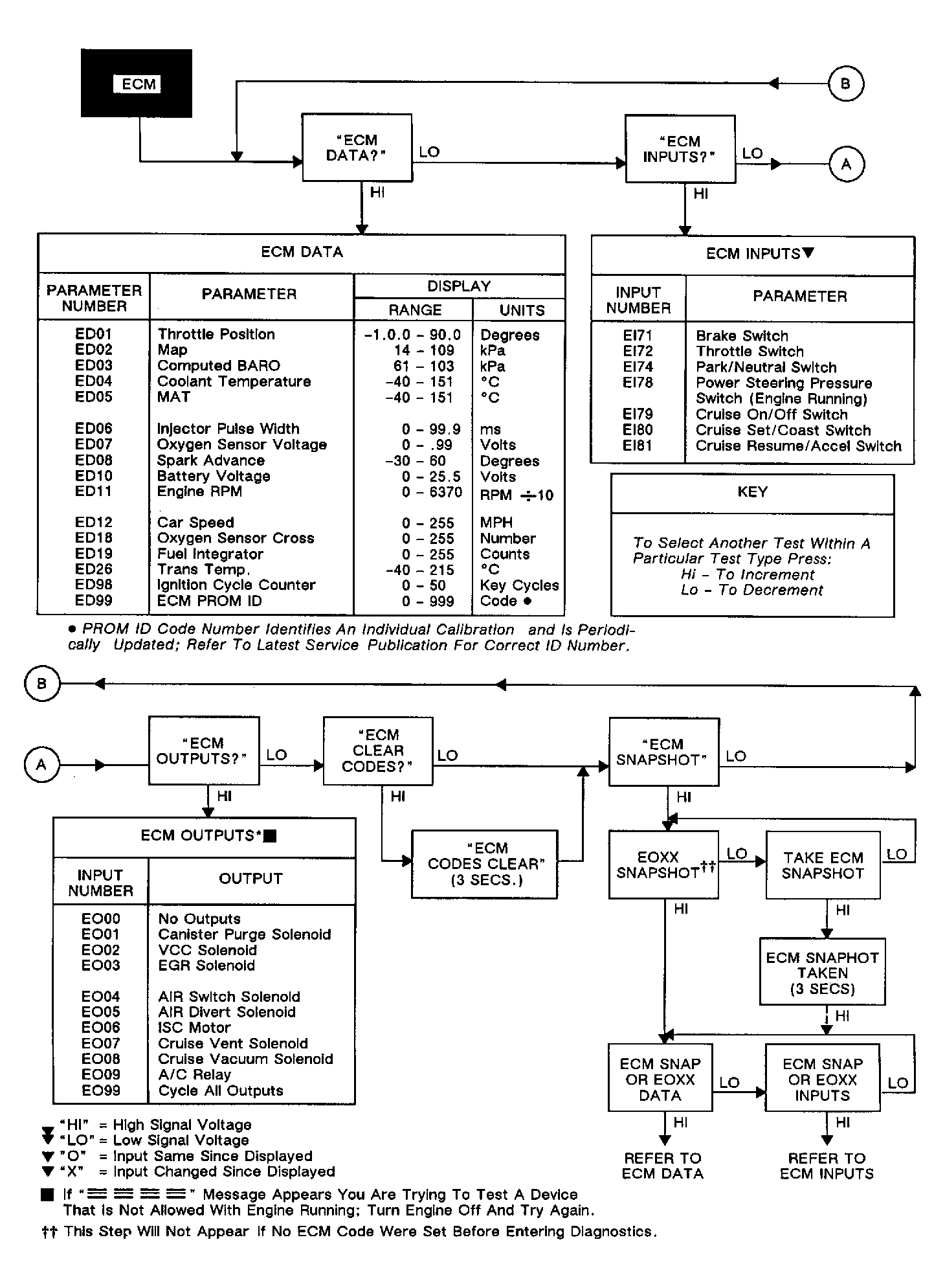

Fig 2: ECM Diagnostics/Data,Input,Output Tests/Fixed Spark Mode
