Wiring Diagrams

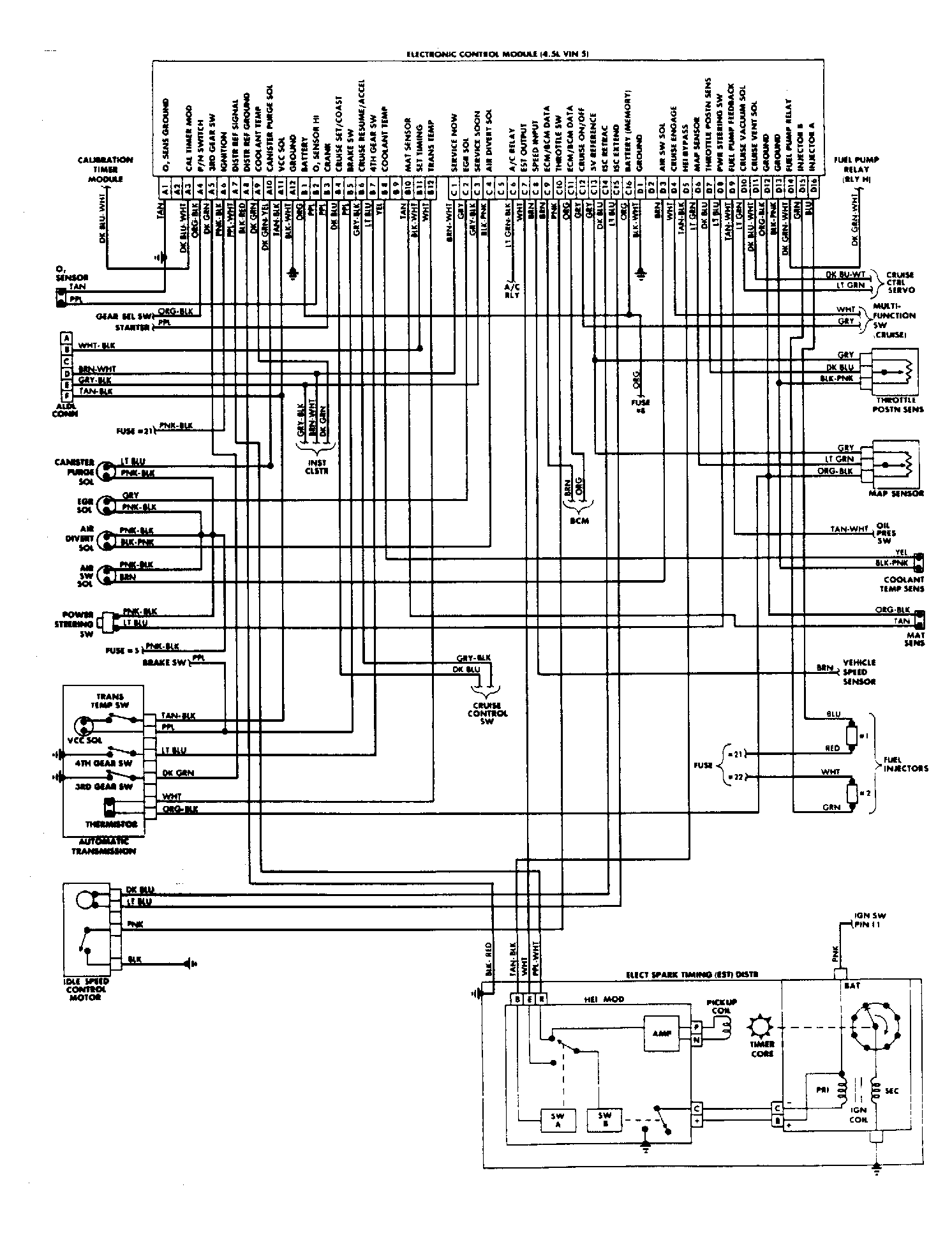

Fig 1: 1988 DeVille & Fleetwood Wiring Diagram

G54355

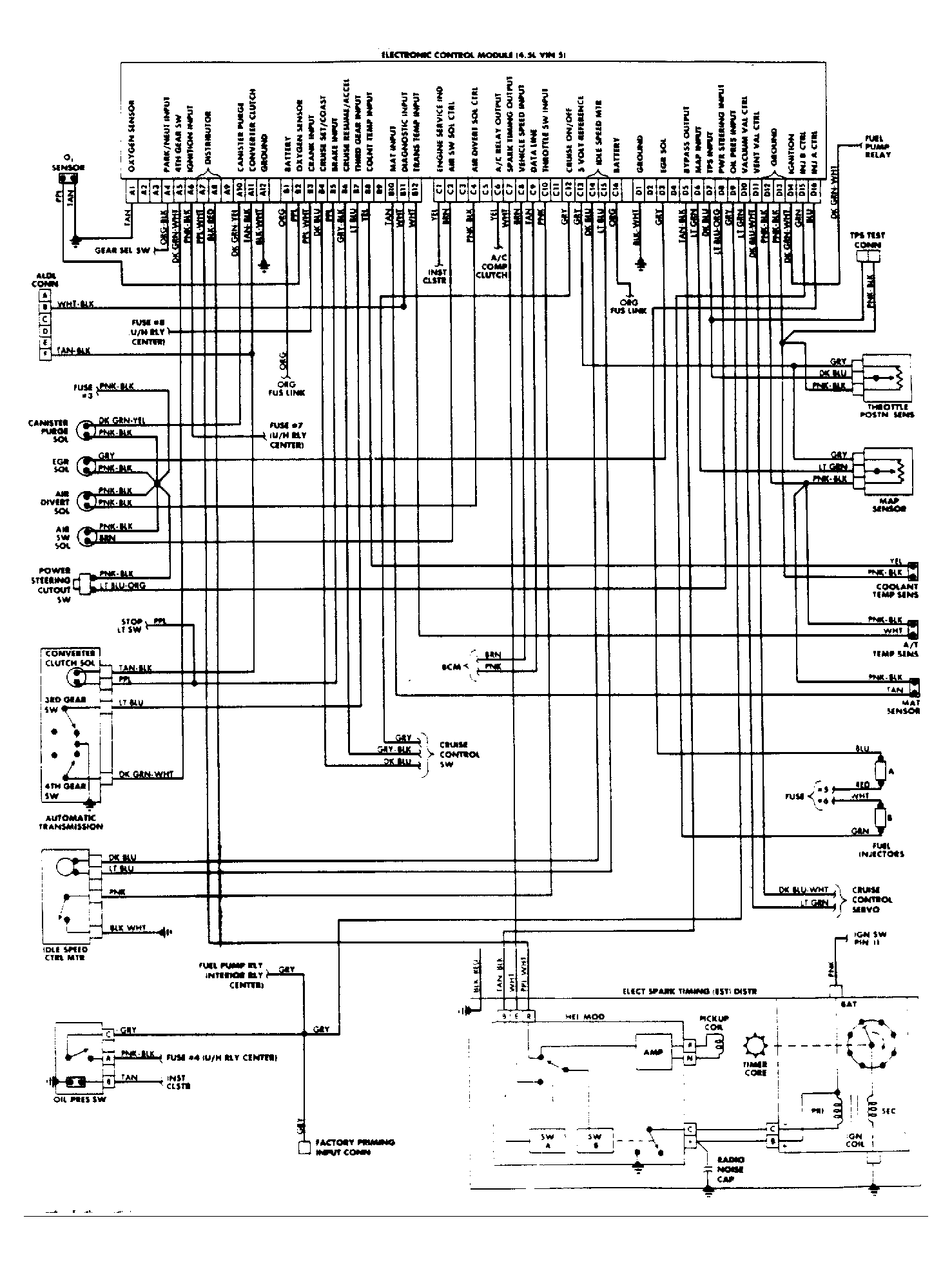

Fig 2: 1988 Eldorado & Seville Wiring Diagram

G54356
