Notes On Intermittents

If intermittent code B123 is being set, manipulate circuit No. 685. When BCM input B101 change-of-state indicator displays an "X", check circuit at that location for intermittent fault.

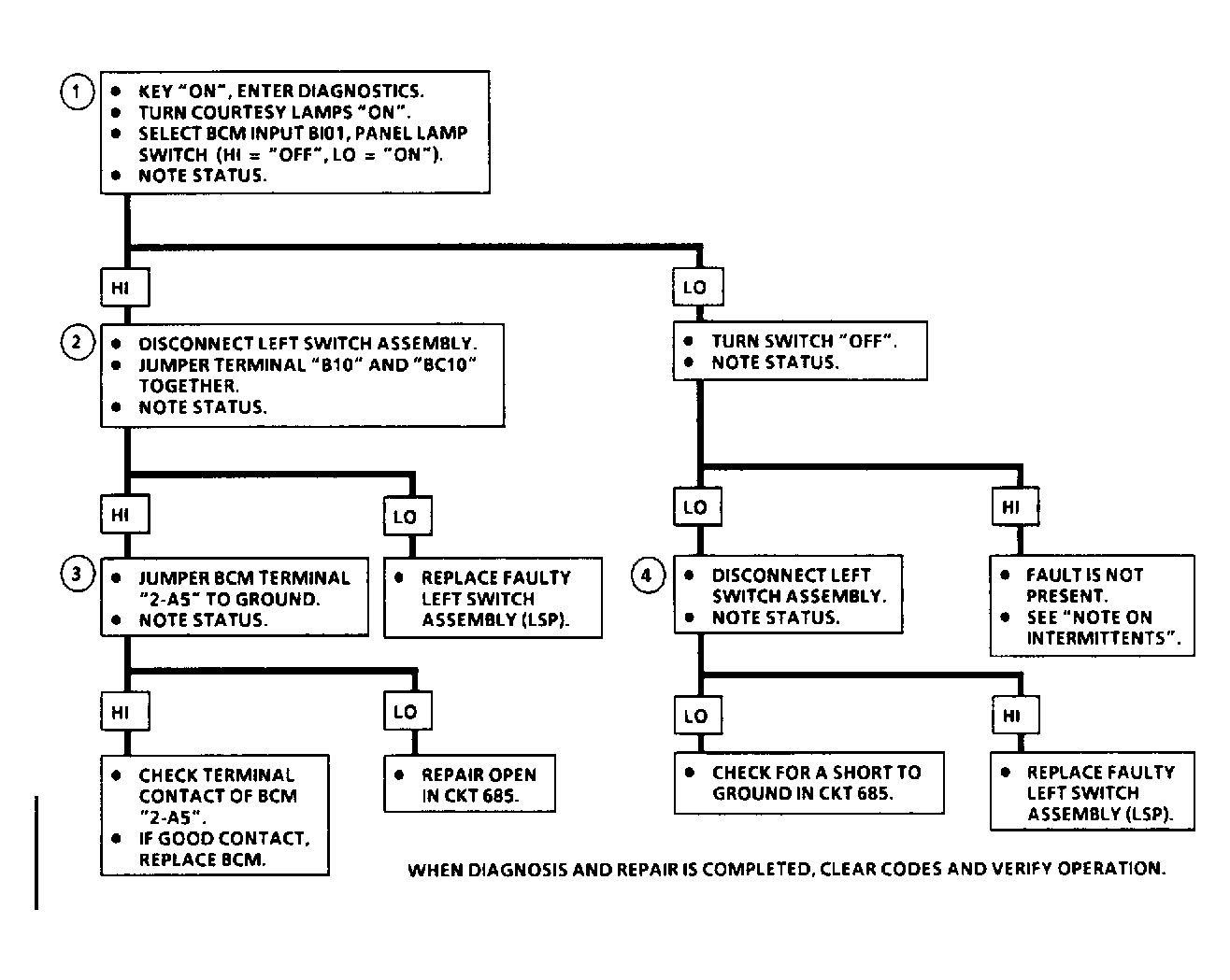

Fig 1: Flow Chart, BCM Code B123, Courtesy Light Switch
