Cadillac
>>
1989
>>
Seville Base
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
DFI ECM Tests W/Codes
>>
Testing
>>
DFI System Control Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
DFI System Control Schematic

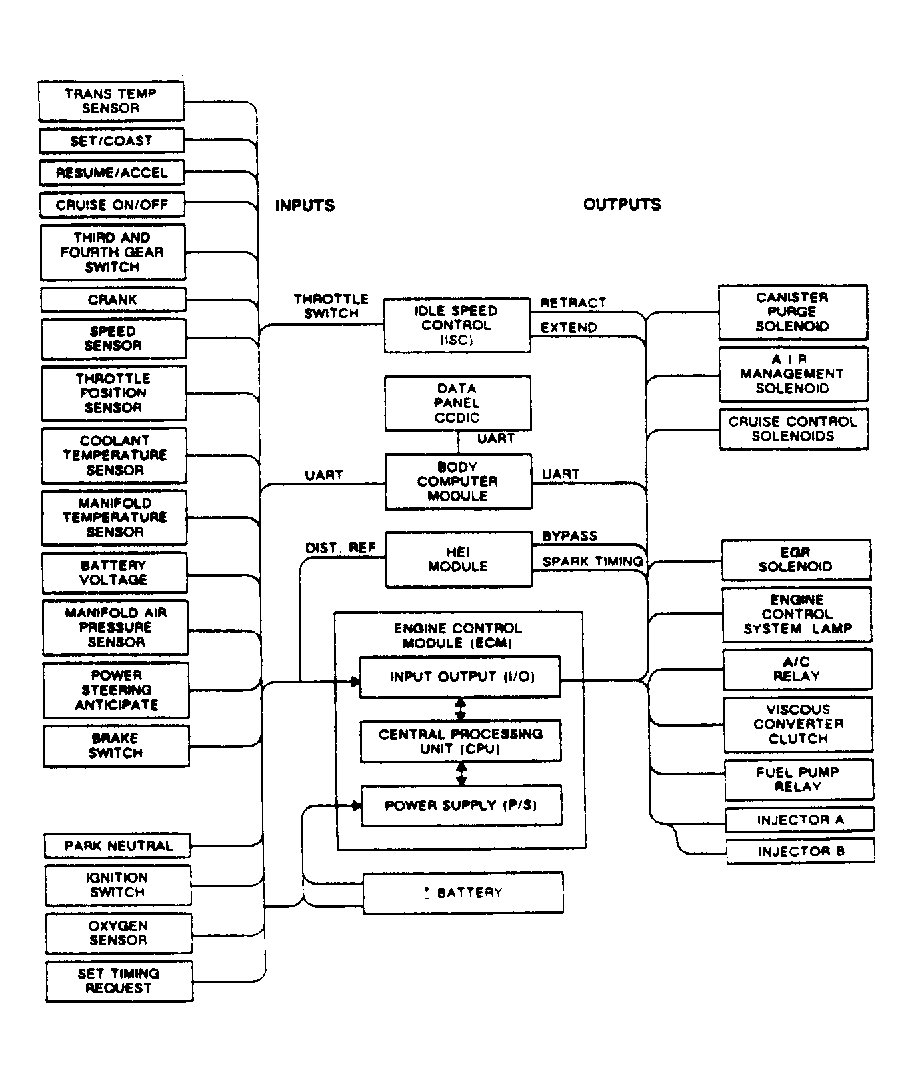

Fig 1: DFI System Control Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
