ECM Diagnostics

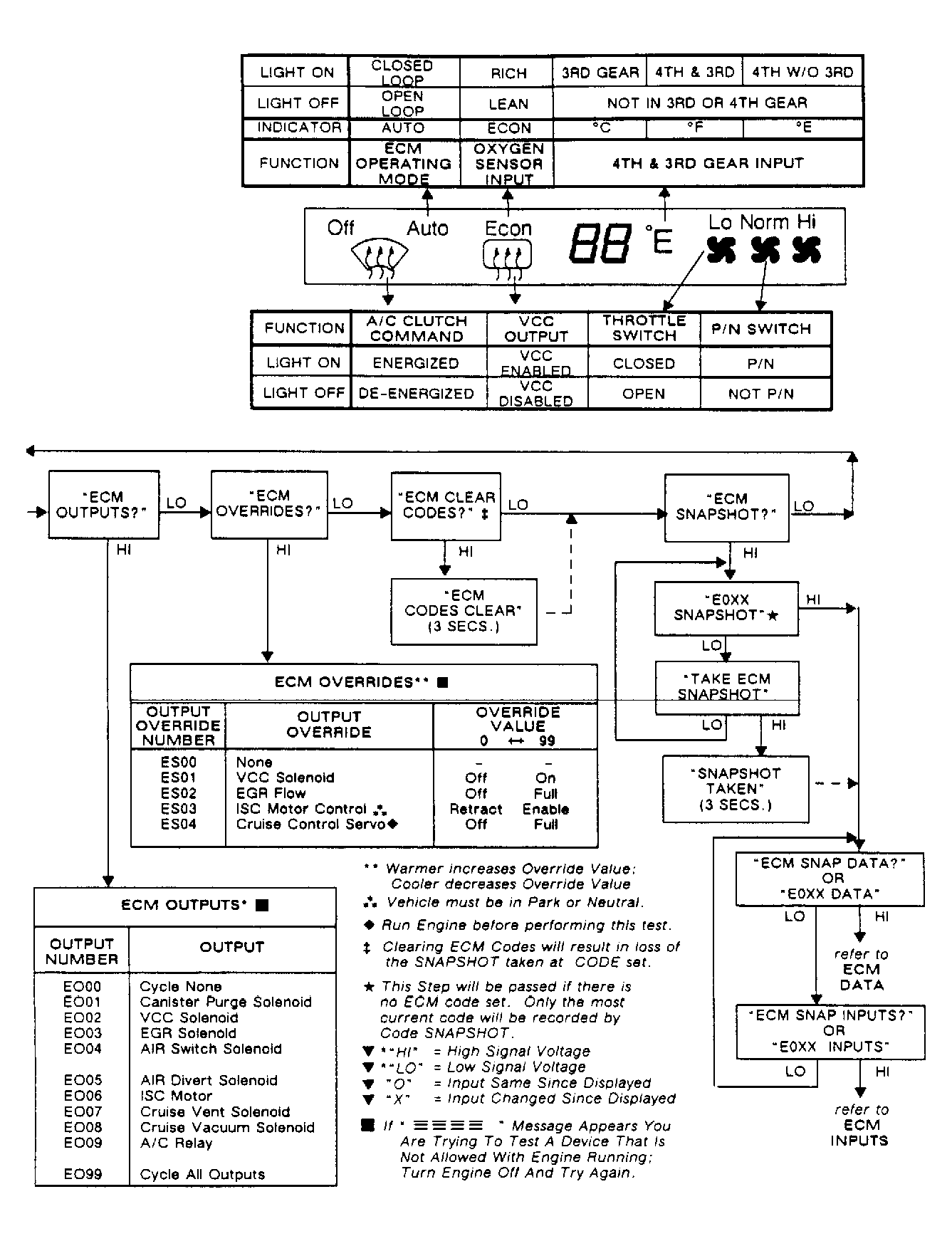

Fig 1: ECM Diagnostics - Basic Operation & Status Light Displays
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
