Chart C2 - CCDIC Completely Blank

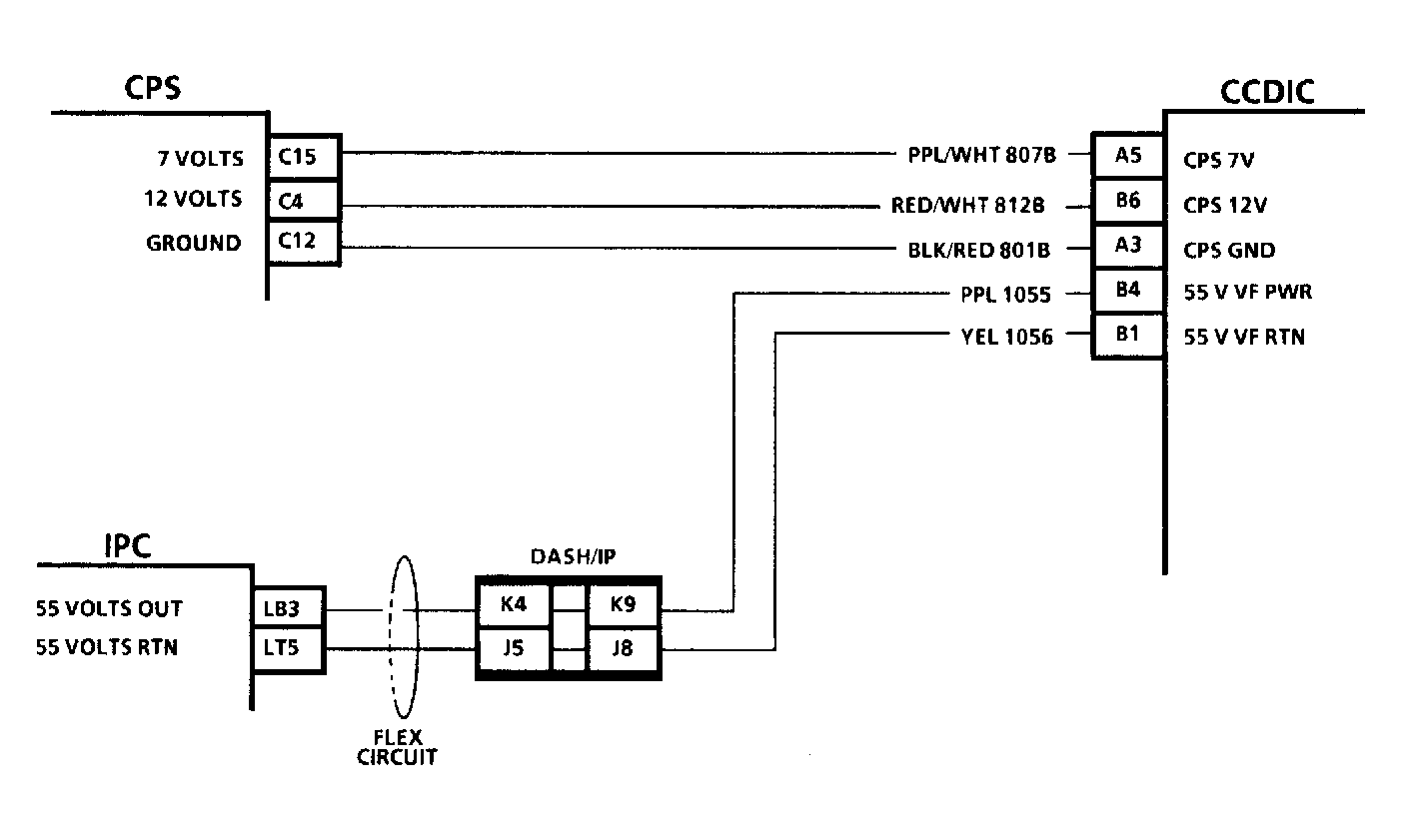

Fig 1: Chart C2, CCDIC Completely Blank Schematic

You are at this chart because the CCDIC display is completely blank. Cause for this problem could be a loss of Central Power Supply (CPS) power or ground, or loss of vacuum fluorescent power from the Instrument Panel Cluster (IPC).

1. Unplugging the CCDIC connector and performing individual circuit checks will determine if wiring connector, terminals, or component is faulty.

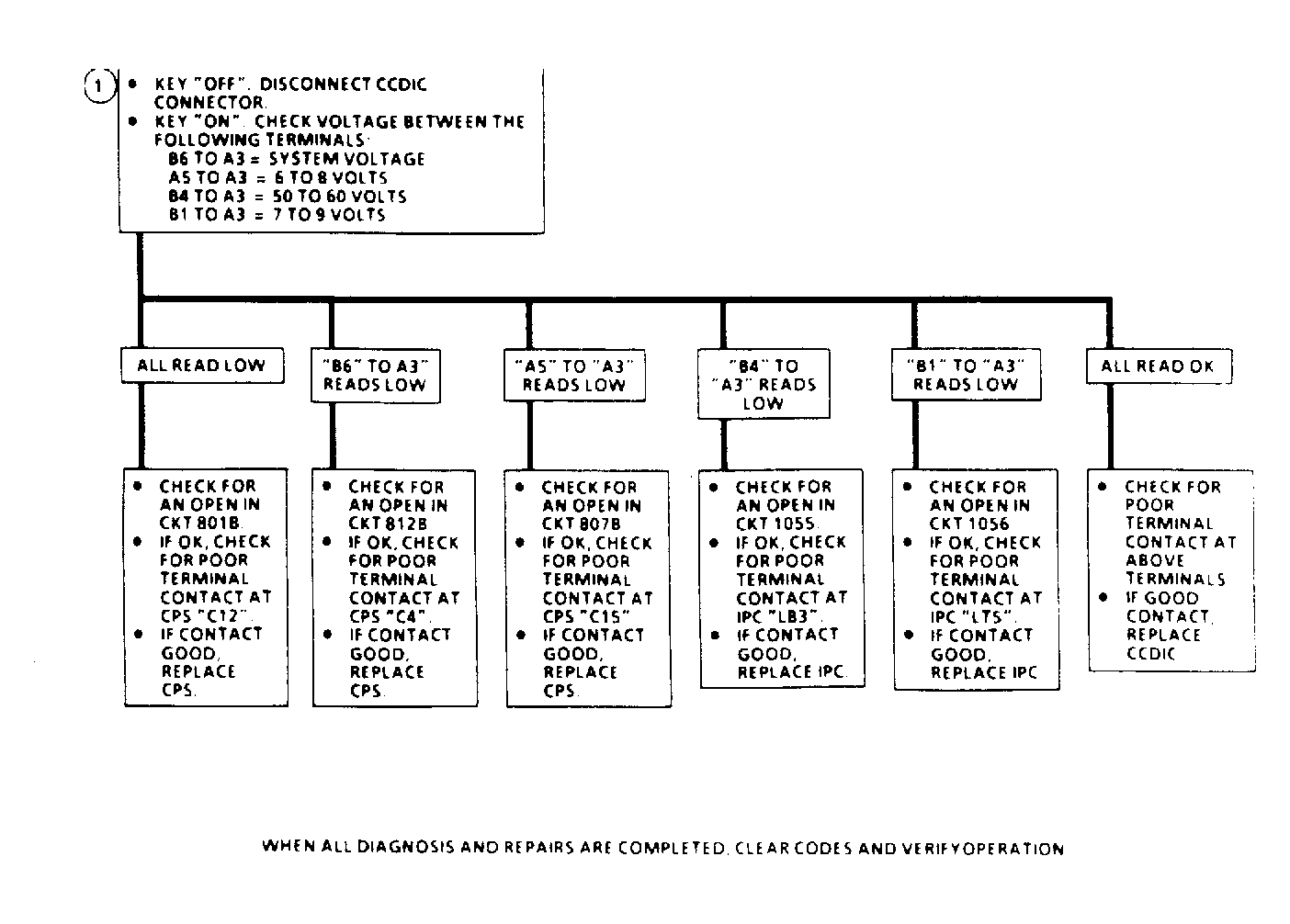

Fig 2: Flow Chart C2, CCDIC Completely Blank (1 of 2)

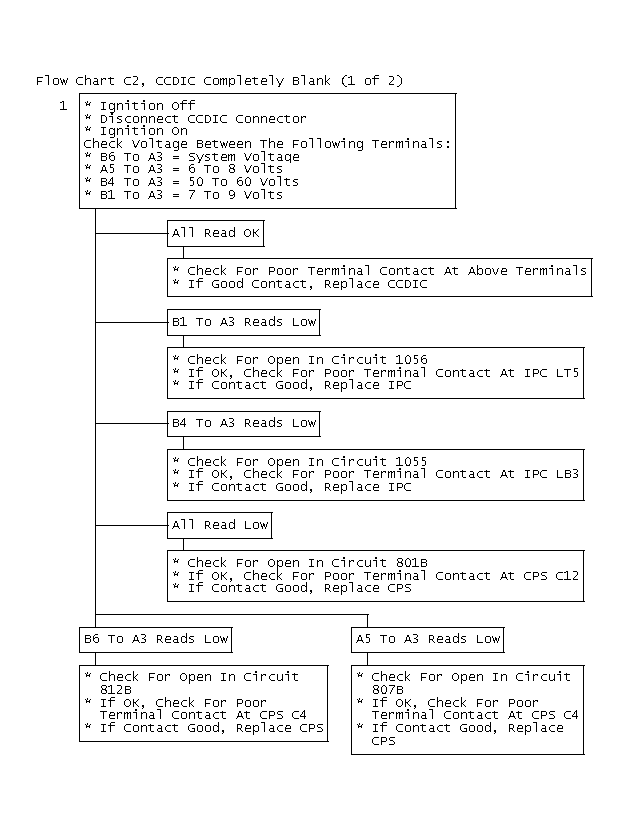

Fig 3: Flow Chart C2, CCDIC Completely Blank (1 of 2)

Fig 4: Flow Chart C2, CCDIC Completely Blank (2 of 2)
