Component Locations

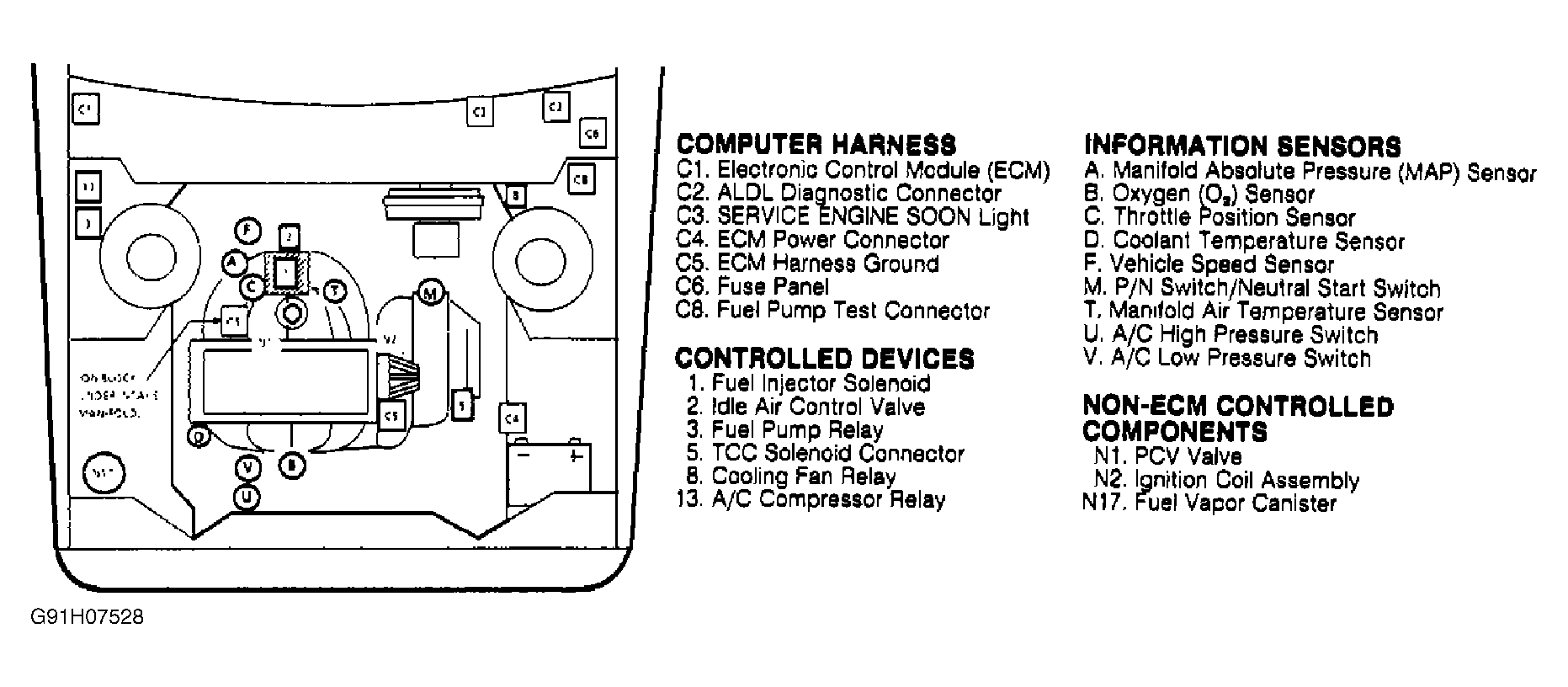

Fig 1: 2.0L (VIN K) Component Locations ("J" Body, Sunbird)

G91H07528

Courtesy of GENERAL MOTORS CORP.

Fig 2: 2.2L (VIN G) Component Locations ("J" Body, Cavalier)

G200525

Courtesy of GENERAL MOTORS CORP.

Fig 3: 2.2L (VIN G) Component Locations ("L" Body, Beretta & Corsica)

G90D09040

Courtesy of GENERAL MOTORS CORP.

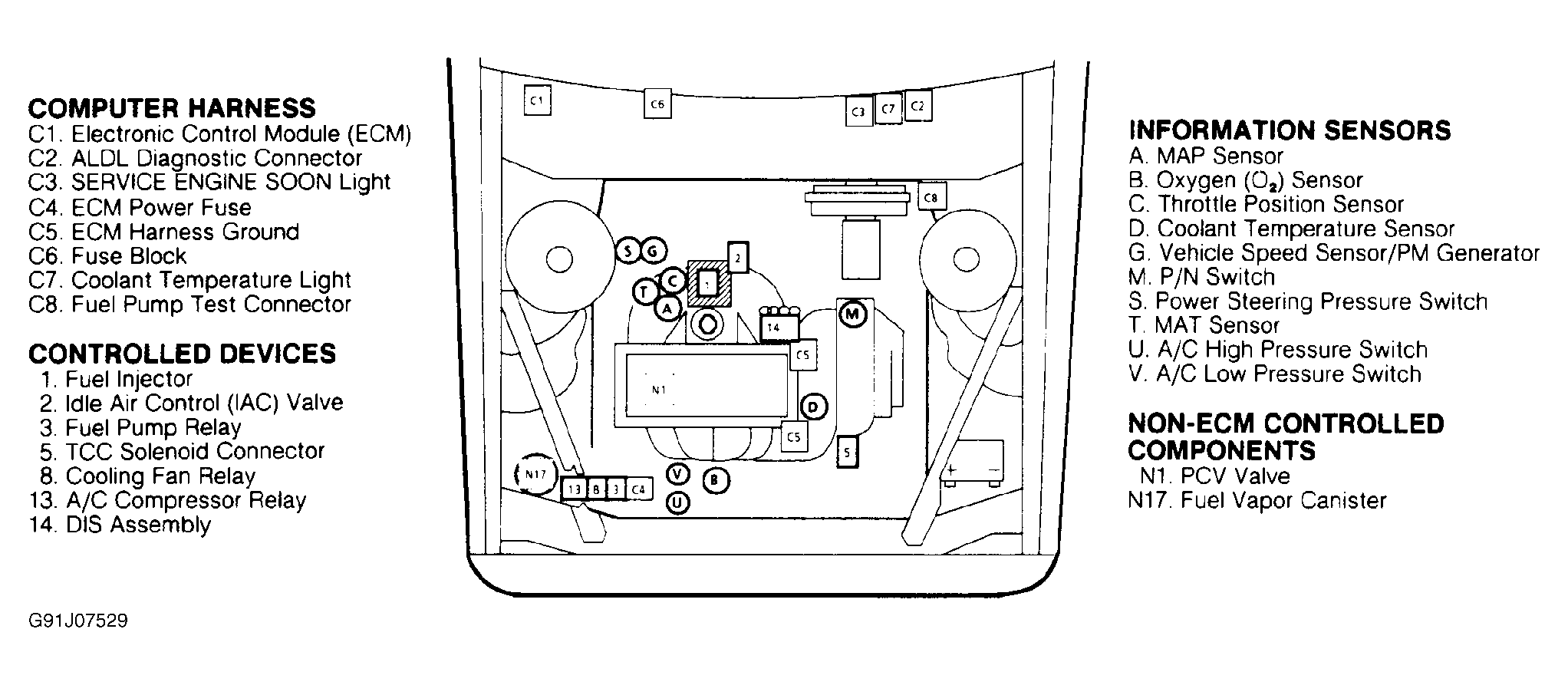

Fig 4: 2.5L (VIN R) Component Locations ("A" Body, Century, Cutlass Ciera, Cutlass Cruiser & 6000)

G91J07529

Courtesy of GENERAL MOTORS CORP.

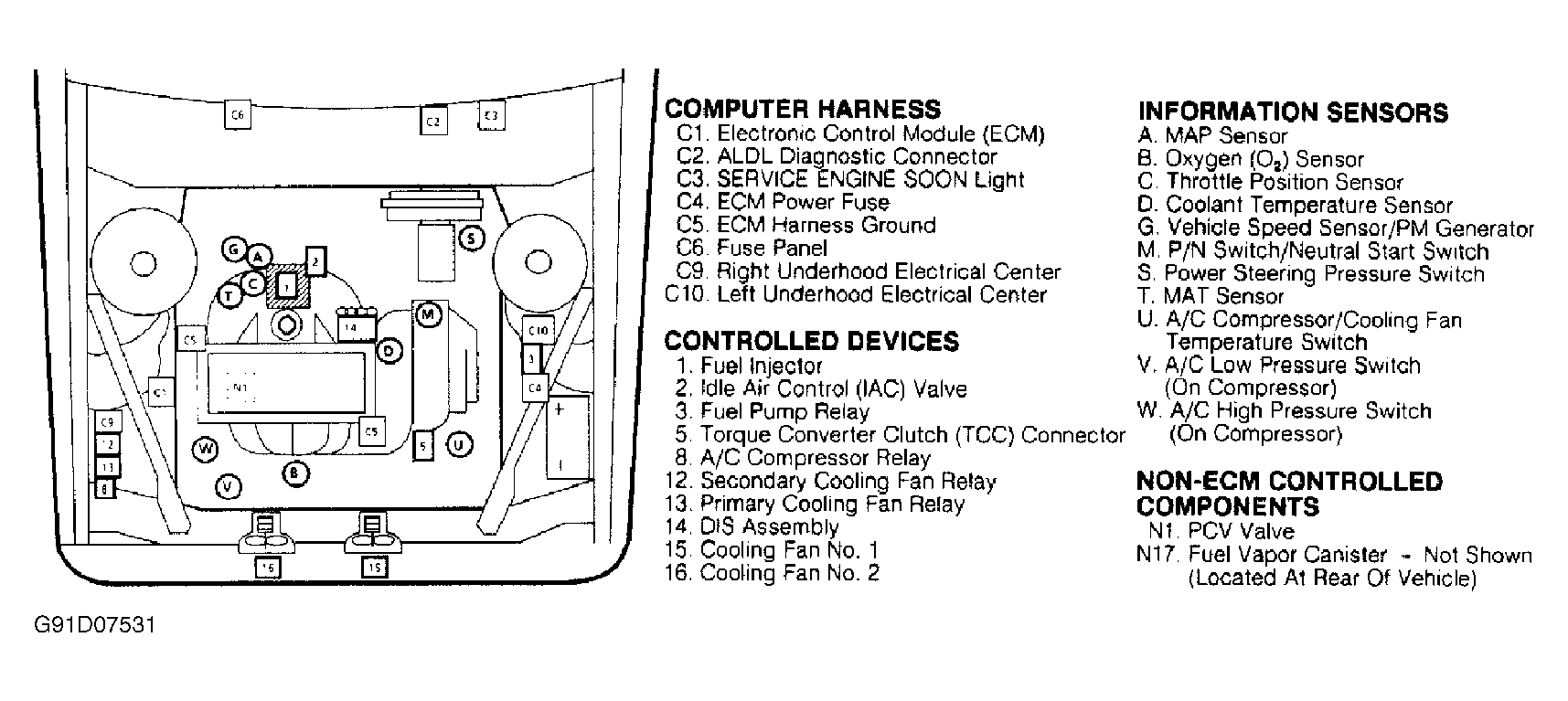

Fig 5: 2.5L (VIN R) Component Locations ("W" Body, Lumina)

G91D07531

Courtesy of GENERAL MOTORS CORP.

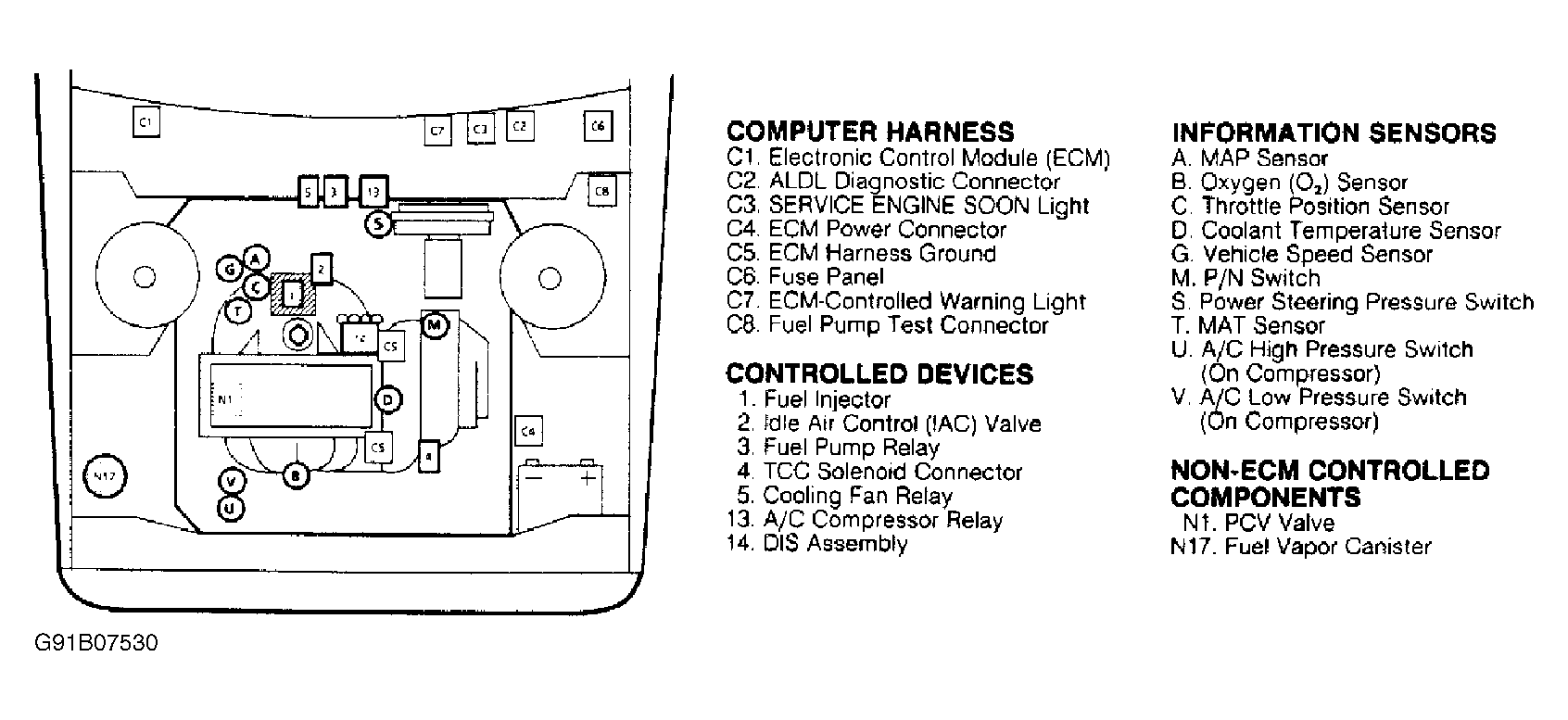

Fig 6: 2.5L (VIN U) Component Locations ("N" Body, Cutlass Calais, Grand Am & Skylark)

G91B07530

Courtesy of GENERAL MOTORS CORP.

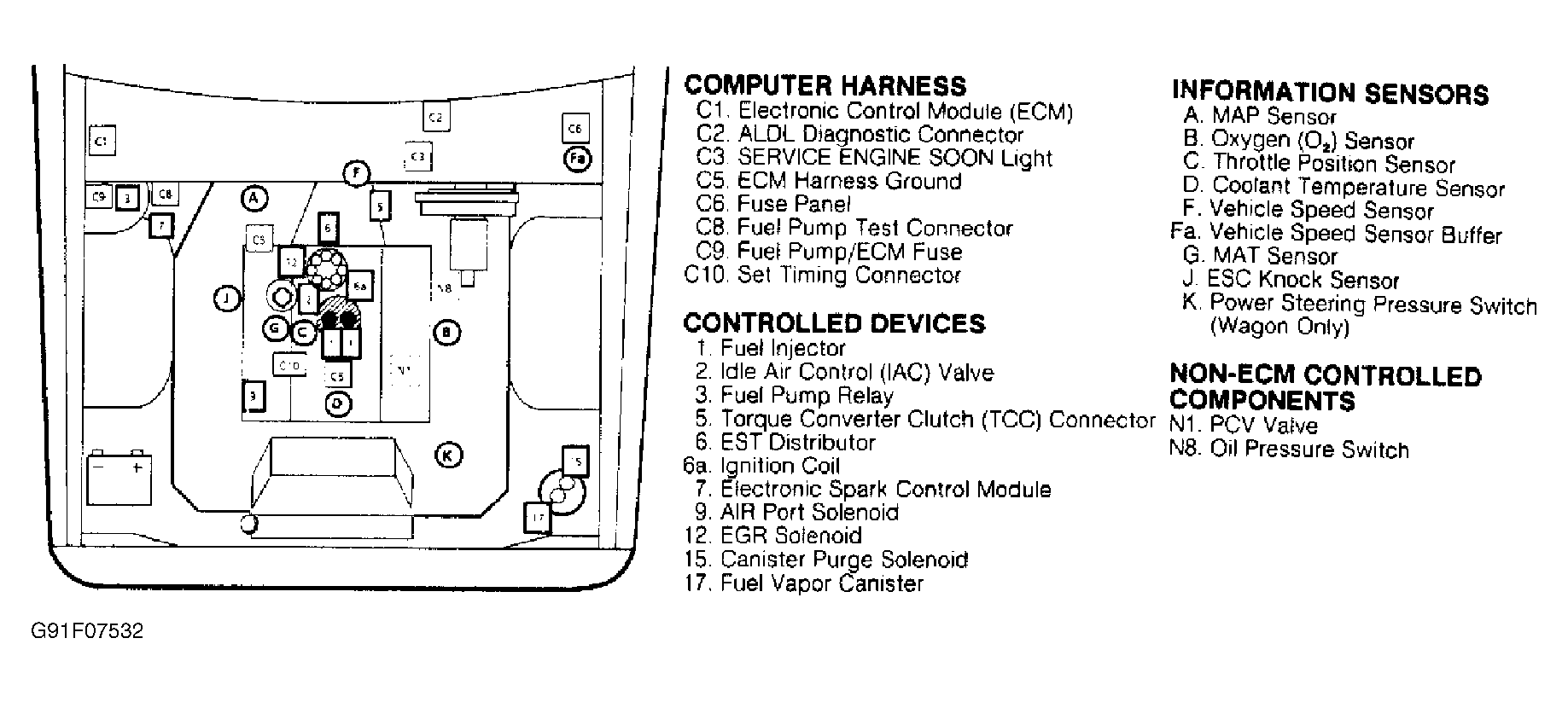

Fig 7: 5.0L (VIN E) & 5.7L (VIN 7) Component Locations ("B" Body, Caprice, Custom Cruiser & Roadmaster) Roadmaster is available with the 5.0L VIN E only.

G91F07532

Courtesy of GENERAL MOTORS CORP.

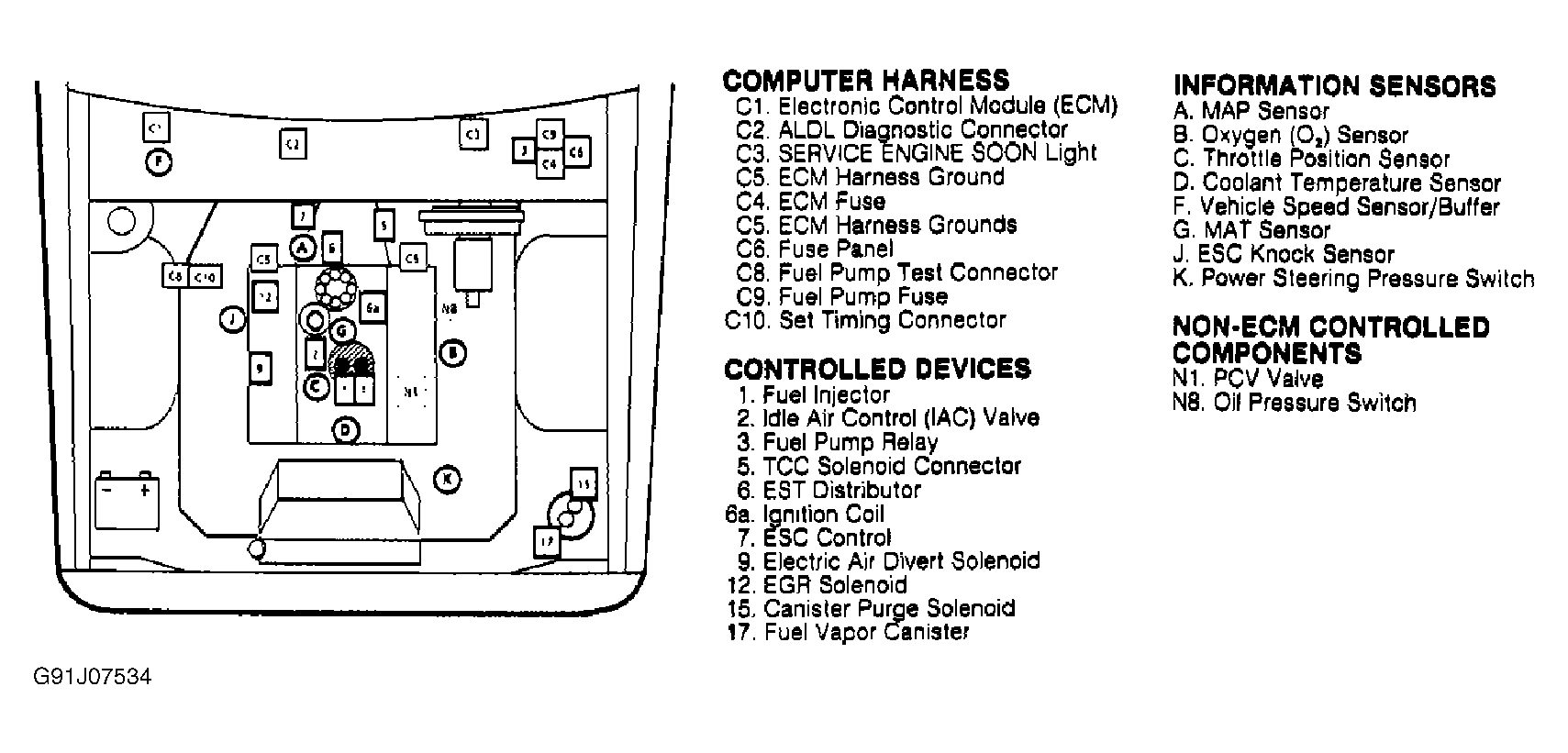

Fig 8: 5.0L (VIN E) Component Locations ("F" Body, Camaro/Firebird)

G91J07534

Courtesy of GENERAL MOTORS CORP.

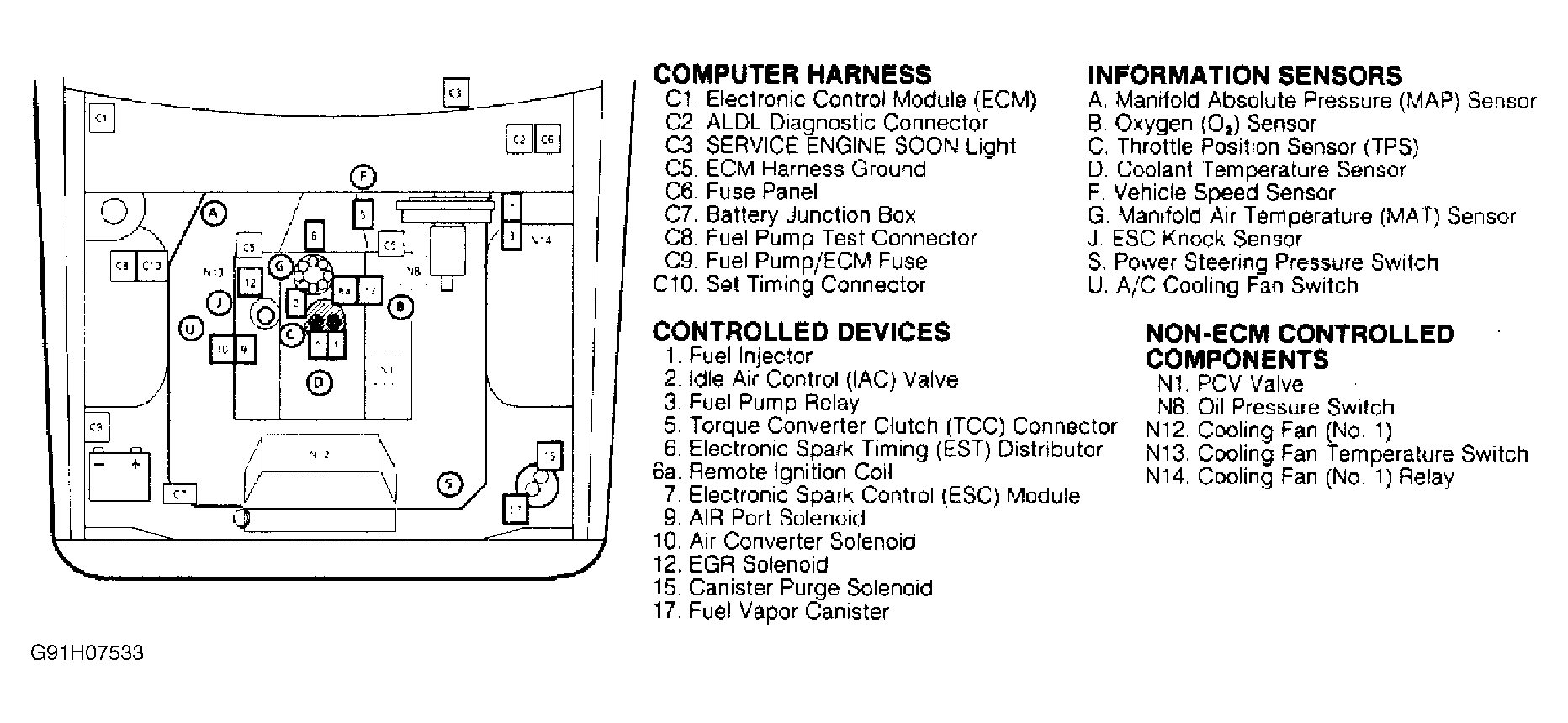

Fig 9: 5.0L (VIN E) & 5.7L (VIN 7) Component Locations ("D" Body, Brougham)

G91H07533

Courtesy of GENERAL MOTORS CORP.

Fig 10: 2.3L (VIN A & D) Component Locations ("N" Body, Cutlass Calais, Grand Am & Skylark) Skylark available with Vin D only.

G90A09048

Courtesy of GENERAL MOTORS CORP.

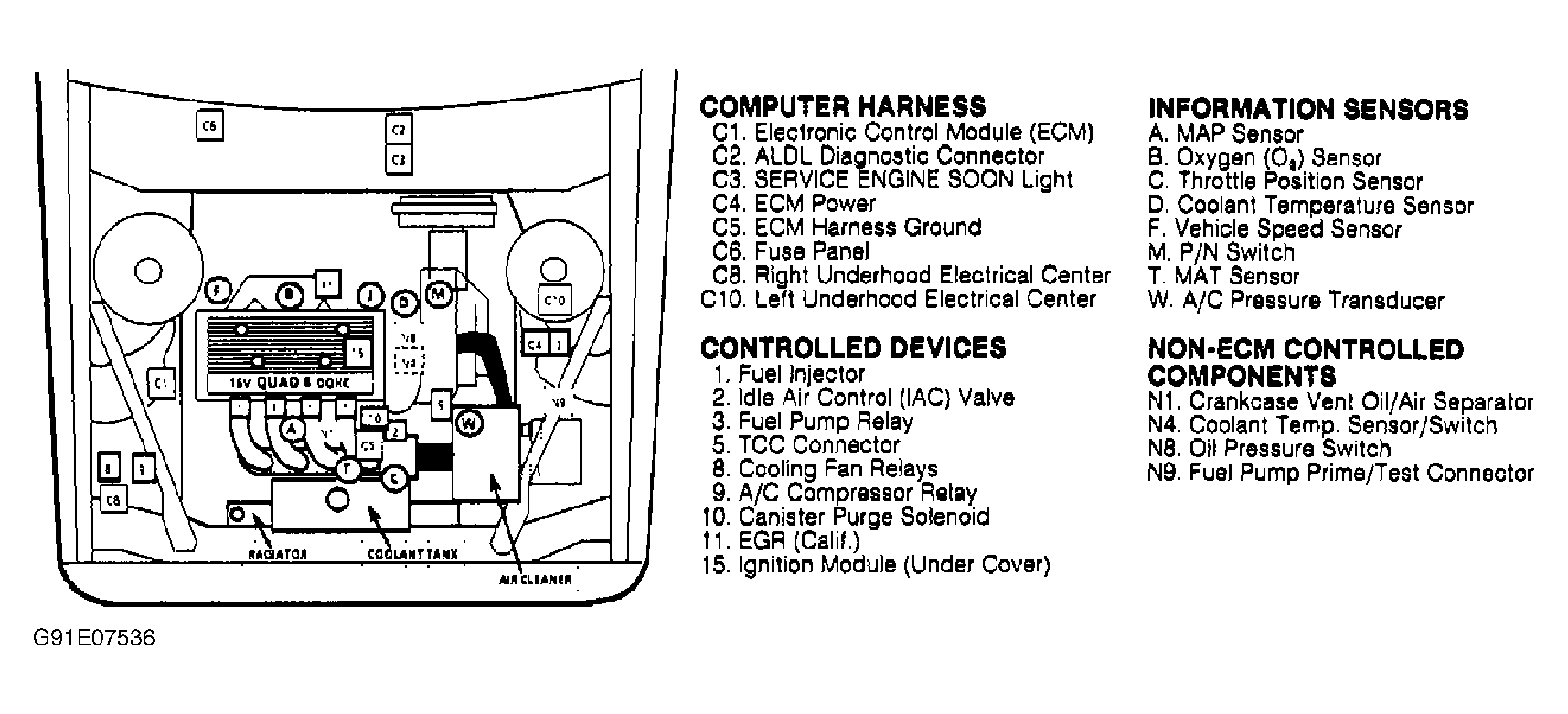

Fig 11: 2.3L (VIN A & D) Component Locations ("W" Body, Cutlass Supreme & Grand Prix)

G91E07536

Courtesy of GENERAL MOTORS CORP.

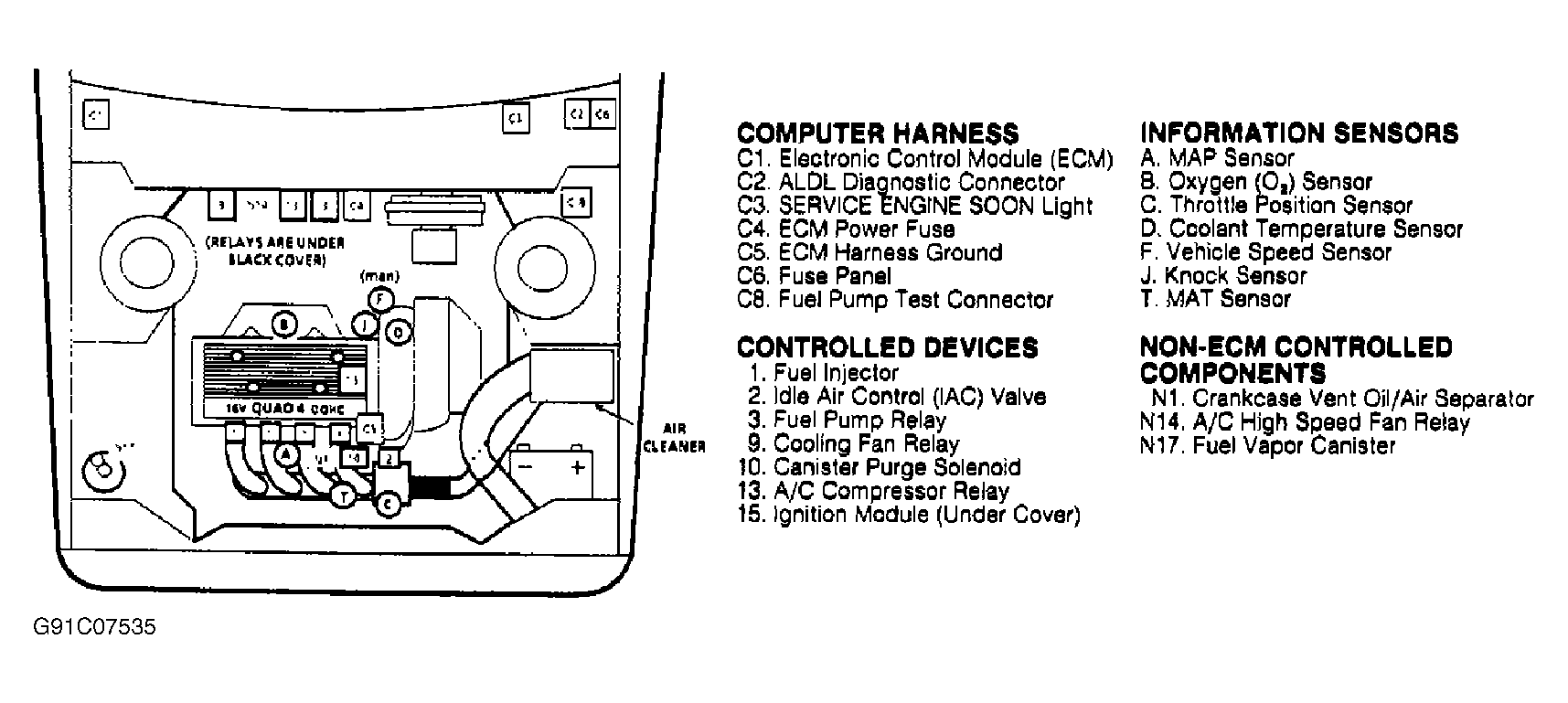

Fig 12: 2.3L (VIN A) Component Locations ("L" Body, Beretta)

G91C07535

Courtesy of GENERAL MOTORS CORP.

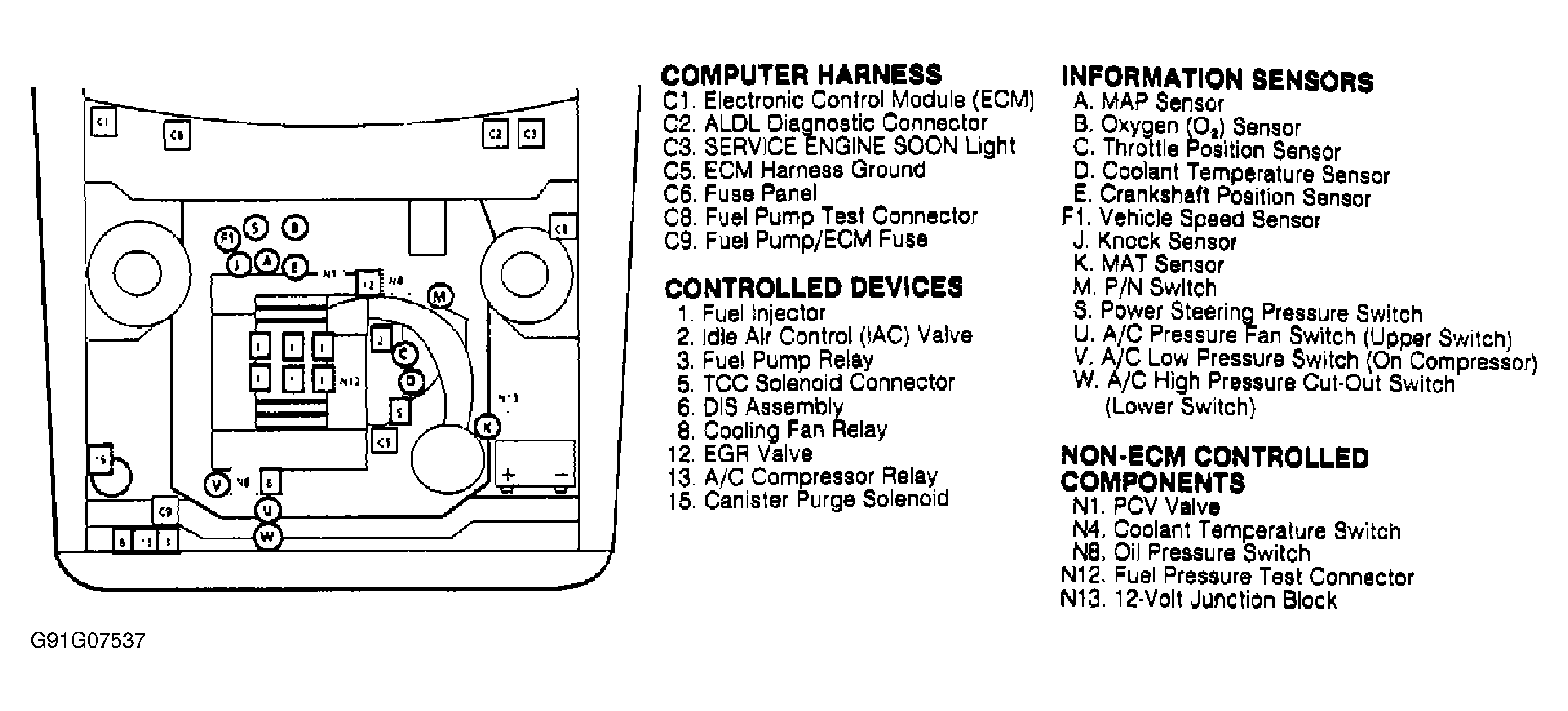

Fig 13: 3.1L (VIN T) Component Locations ("A" Body, 6000)

G91G07537

Courtesy of GENERAL MOTORS CORP.

Fig 14: 3.1L (VIN T) Component Locations ("F" Body, Camaro & Firebird)

G90A09053

Courtesy of GENERAL MOTORS CORP.

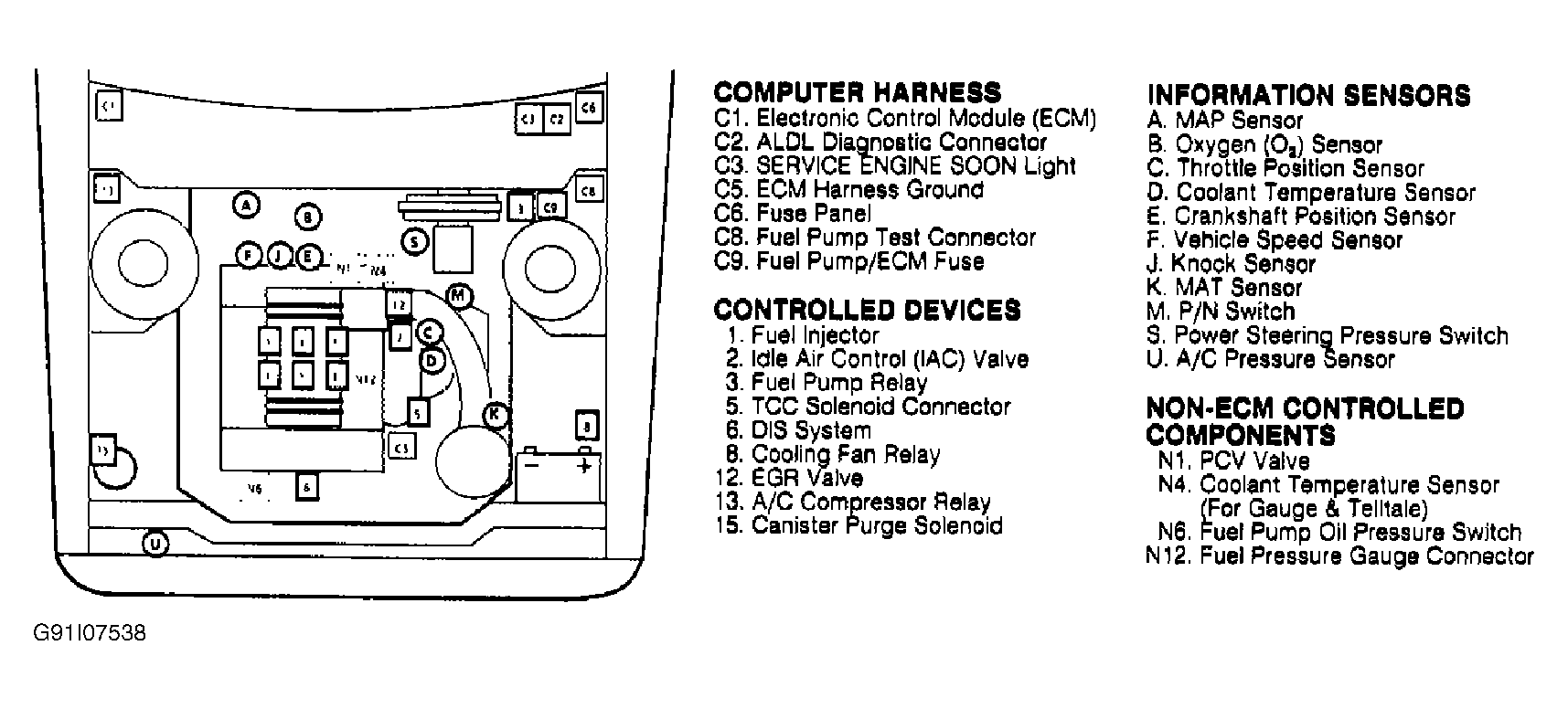

Fig 15: 3.1L (VIN T) Component Locations ("J" Body, Cavalier & Sunbird)

G91I07538

Courtesy of GENERAL MOTORS CORP.

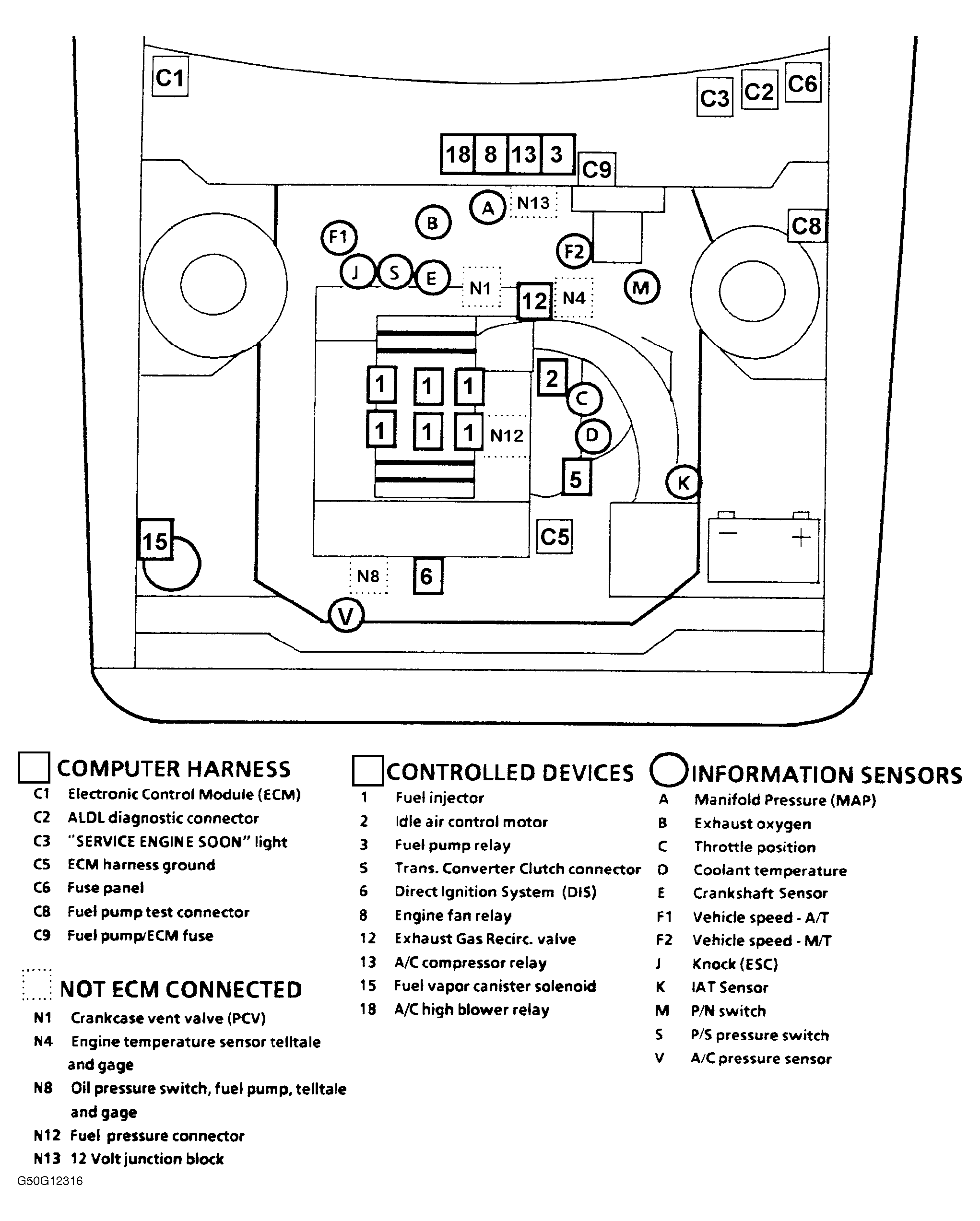

Fig 16: 3.1L (VIN T) Component Locations ("L" Body, Beretta & Corsica)

G50G12316

Courtesy of GENERAL MOTORS CORP.

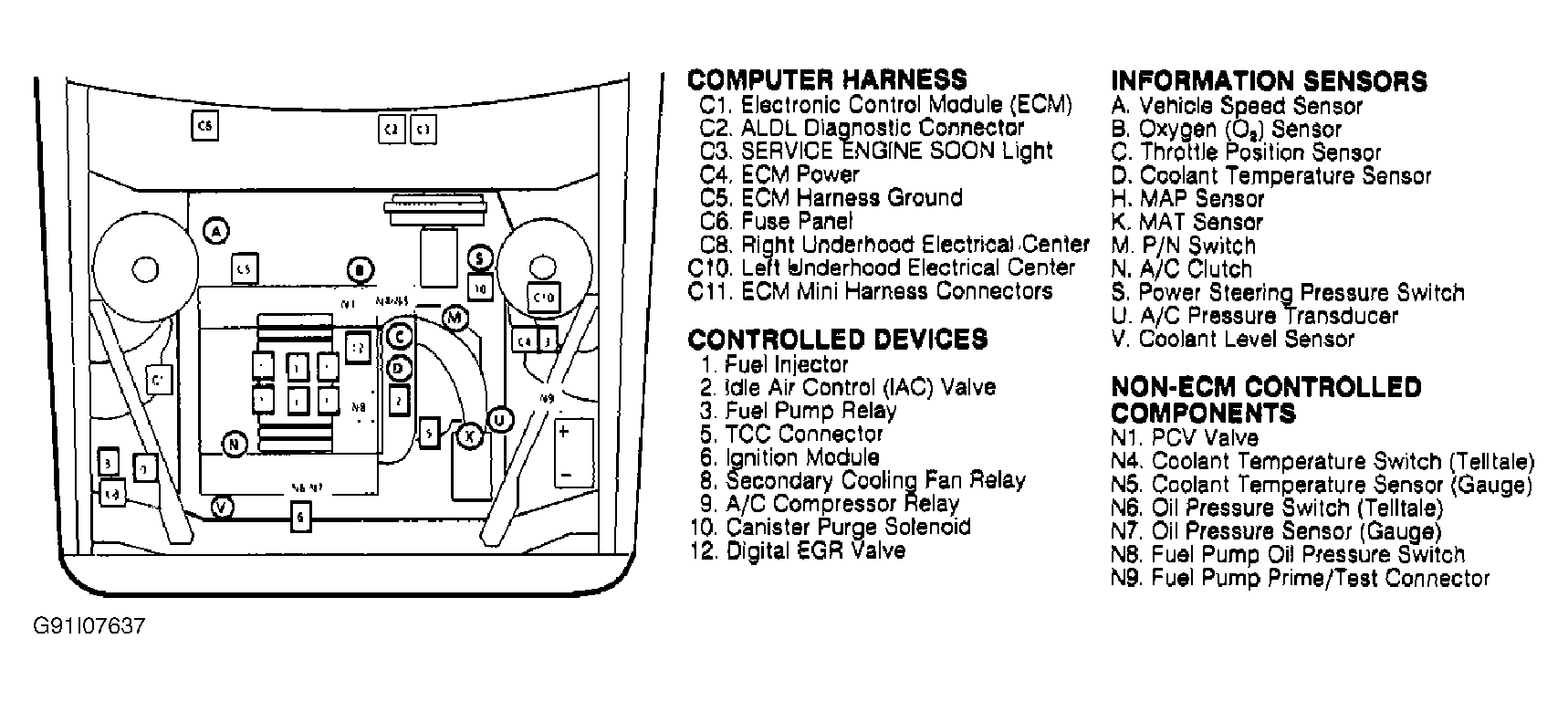

Fig 17: 3.1L (VIN T) Component Locations ("W" Body, Cutlass Supreme, Grand Prix, Lumina & Regal)

G91I07637

Courtesy of GENERAL MOTORS CORP.

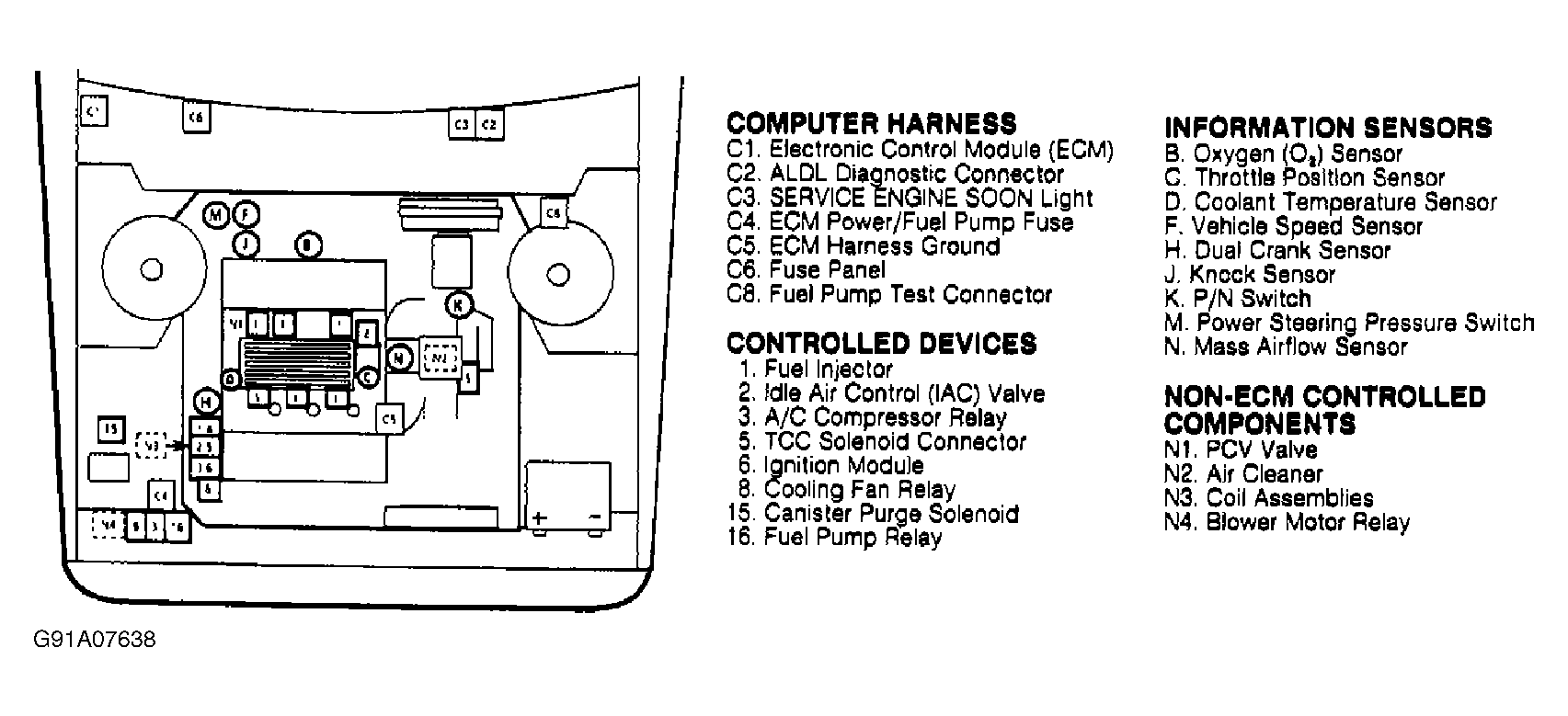

Fig 18: 3.3L (VIN N) Component Locations ("A" Body, Century, Cutlass Ciera & Cutlass Cruiser)

G91A07638

Courtesy of GENERAL MOTORS CORP.

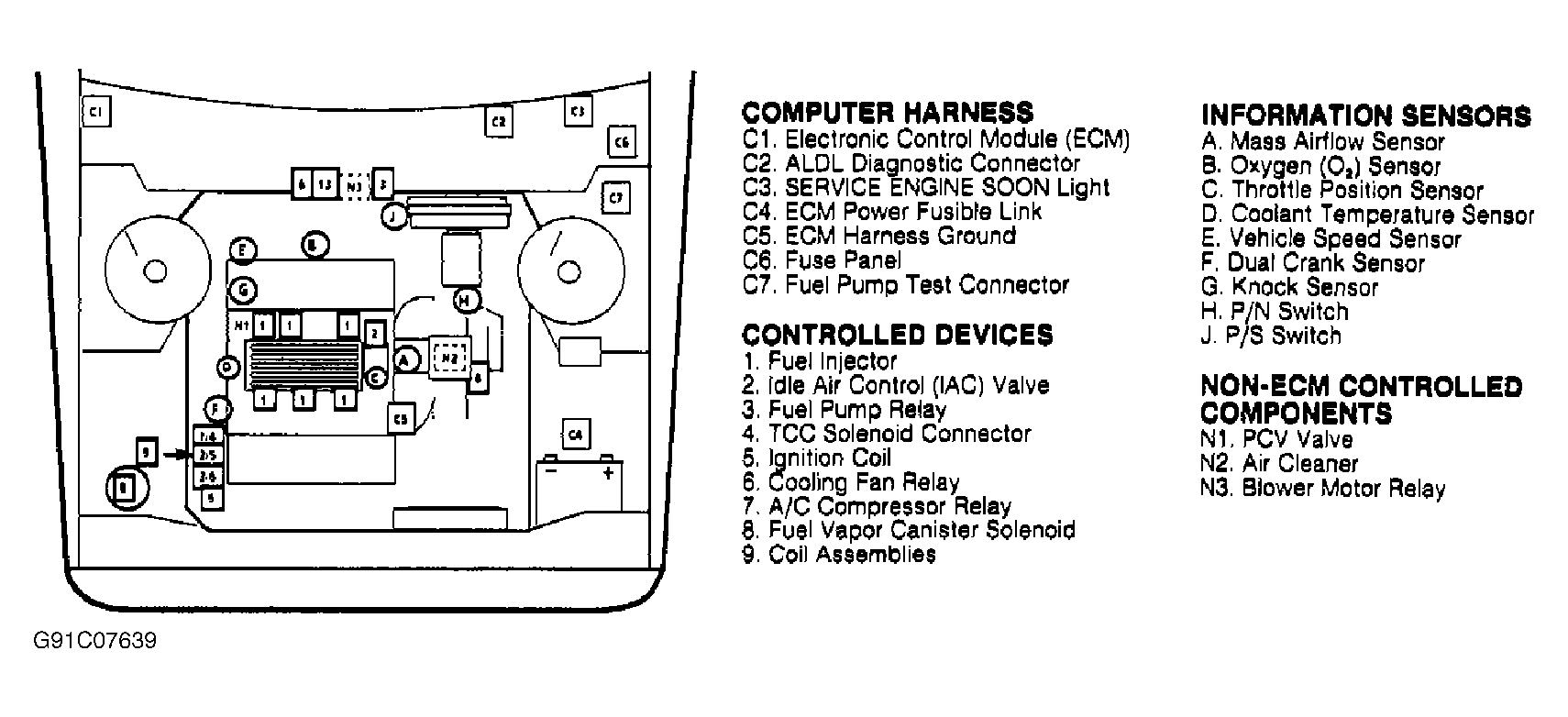

Fig 19: 3.3L (VIN N) Component Locations ("N" Body, Cutlass Calais & Skylark)

G91C07639

Courtesy of GENERAL MOTORS CORP.

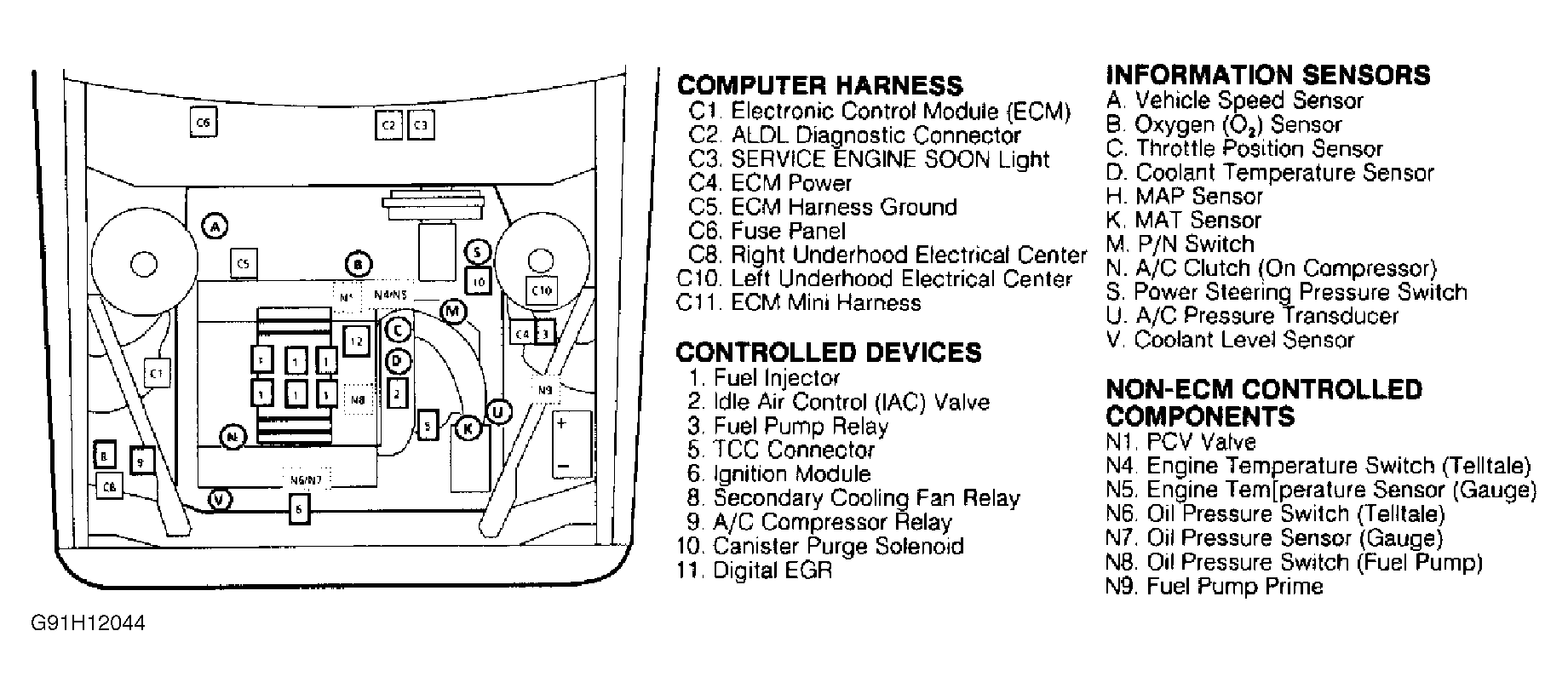

Fig 20: 3.4L (VIN X) Component Locations ("W" Body, Cutlass Supreme, Grand Prix & Lumina)

G91H12044

Courtesy of GENERAL MOTORS CORP.

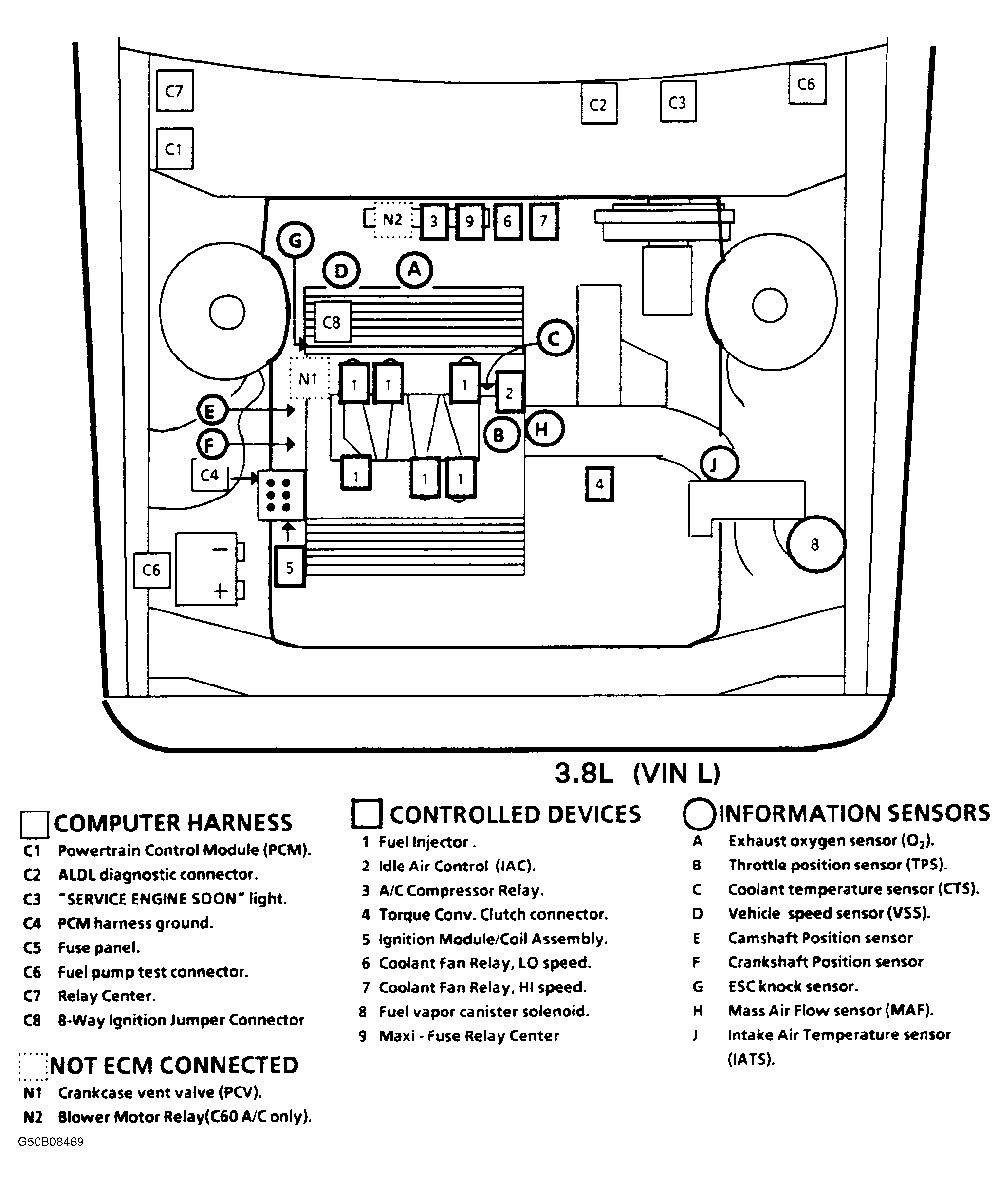

Fig 21: 3.8L (VIN L) Component Locations ("C" Body, Park Avenue & Touring Sedan)

G50B08469

Courtesy of GENERAL MOTORS CORP.

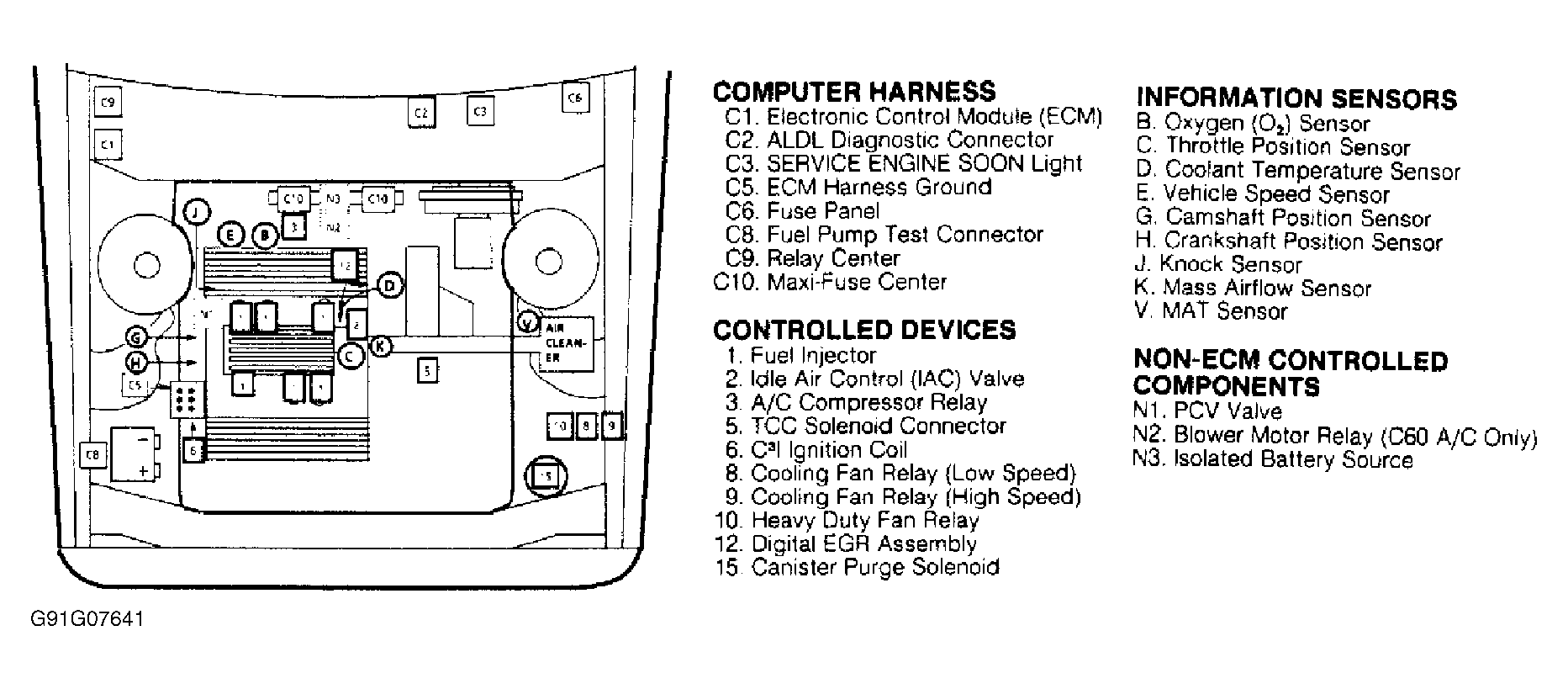

Fig 22: 3.8L (VIN C) Component Locations ("H" Body, Bonneville, Eighty-Eight & LeSabre)

G91G07641

Courtesy of GENERAL MOTORS CORP.

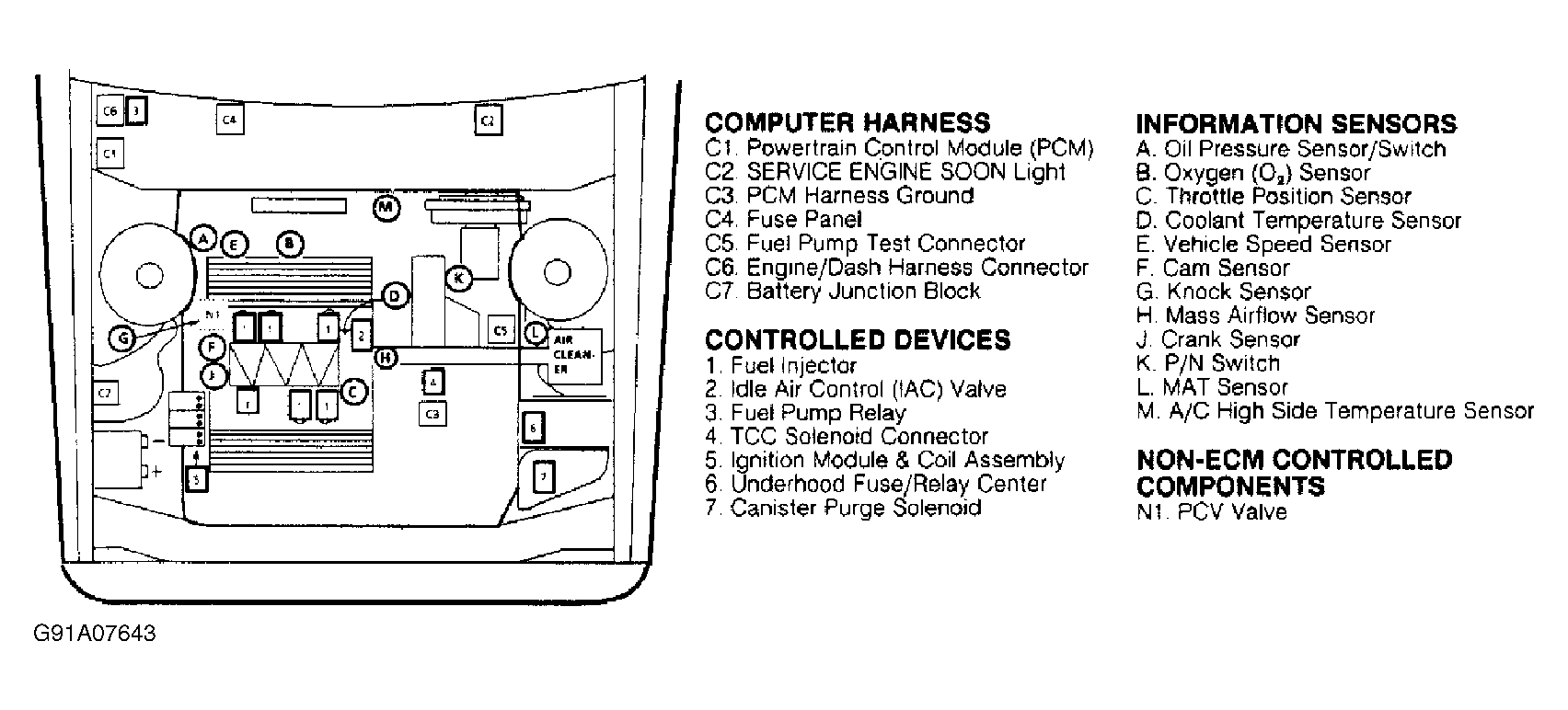

Fig 23: 3.8L (VIN L) Component Locations ("E" Body, Reatta & Riviera)

G91A07643

Courtesy of GENERAL MOTORS CORP.

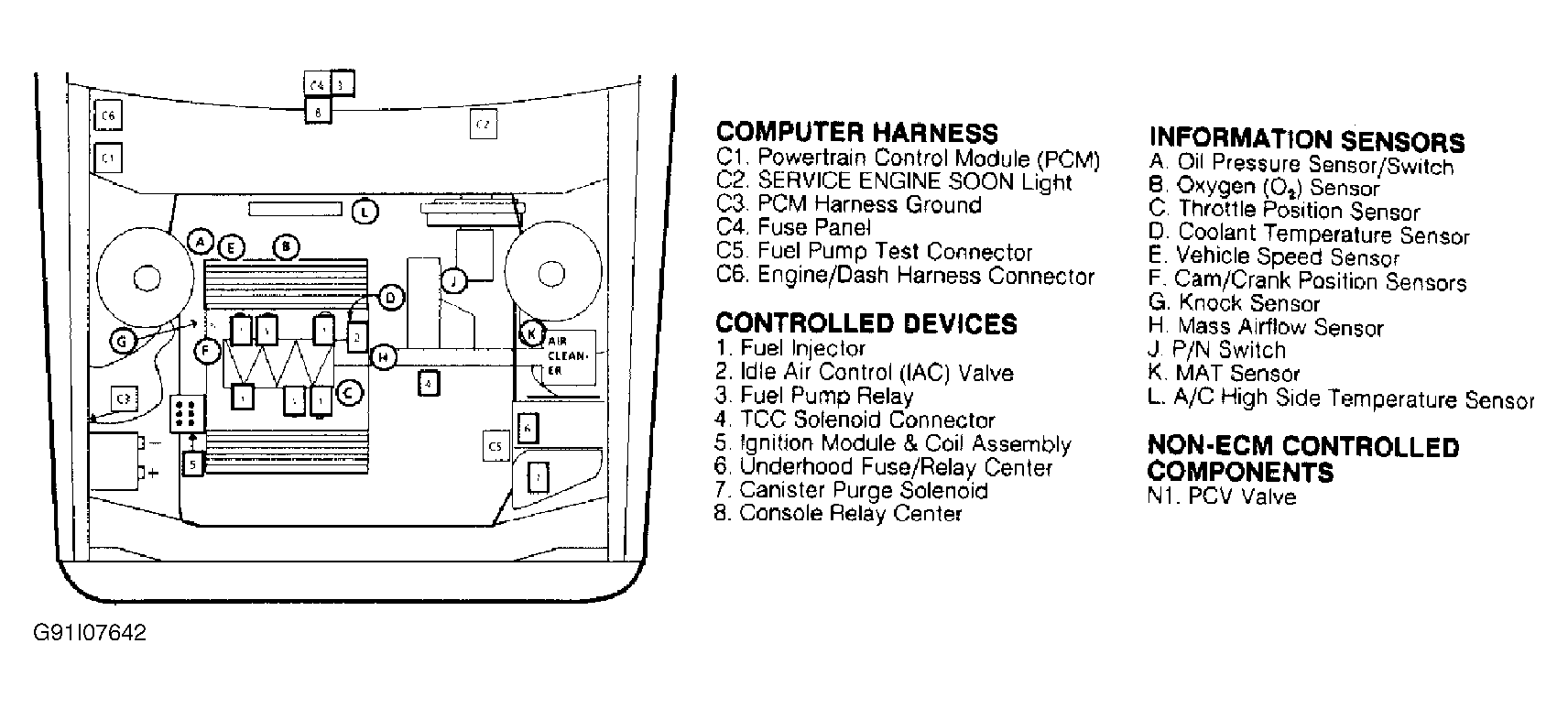

Fig 24: 3.8L (VIN L) Component Locations ("E" Body, Toronado & Trofeo)

G91I07642

Courtesy of GENERAL MOTORS CORP.

Fig 25: 3.8L (VIN L) Component Locations ("W" Body, Regal)

G91I12045

Courtesy of GENERAL MOTORS CORP.

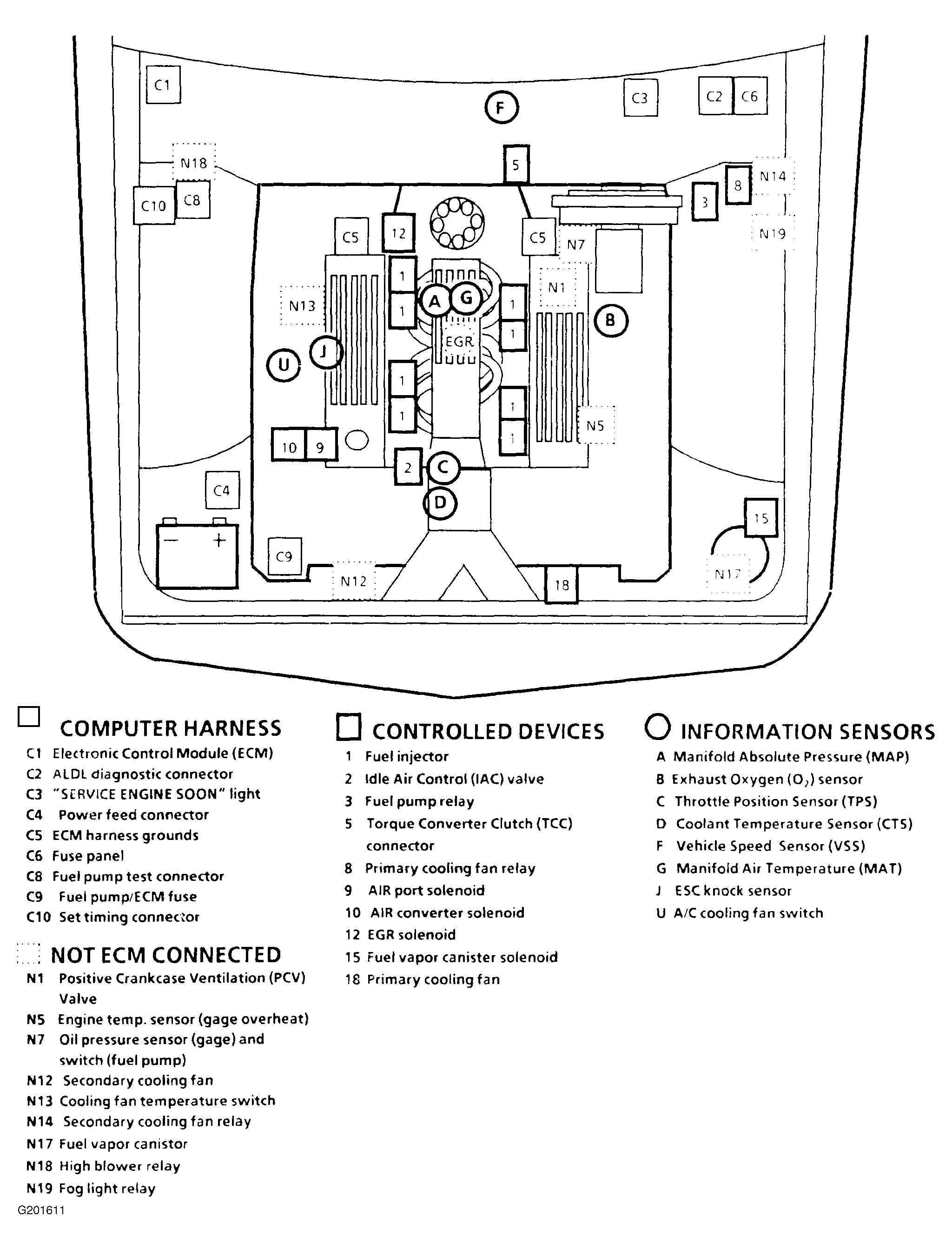

Fig 26: 5.0L (VIN F) & 5.7L (VIN 8) Component Locations ("F" Body, Camaro & Firebird)

G201611

Courtesy of GENERAL MOTORS CORP.

Fig 27: 5.7L (VIN 8) Component Locations ("Y" Body, Corvette)

G91F07645

Courtesy of GENERAL MOTORS CORP.

Fig 28: 4.9L (VIN B) Component Locations ("C" Body, DeVille & Fleetwood)

G91H07646

Courtesy of GENERAL MOTORS CORP.

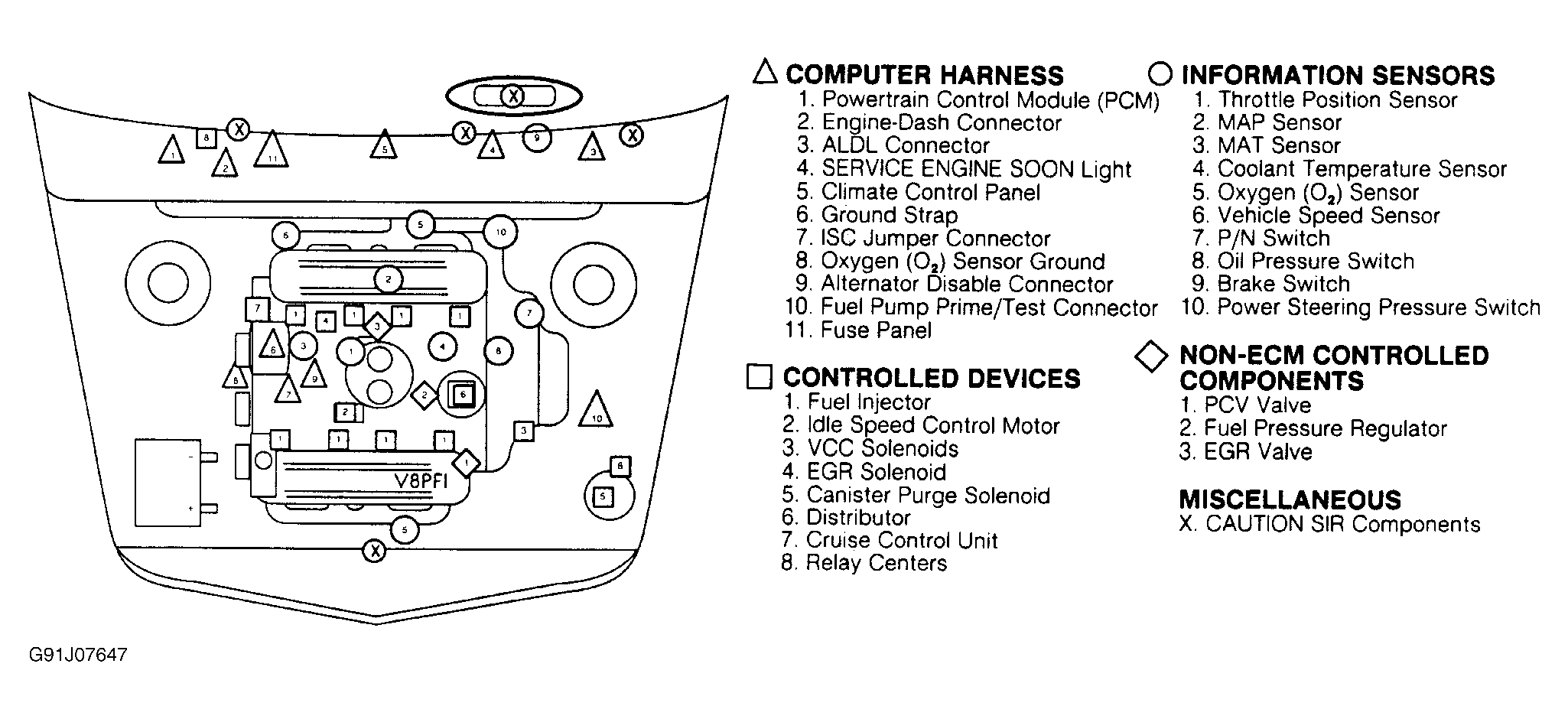

Fig 29: 4.9L (VIN B) Component Locations ("E" Body, Eldorado & "K" Body, Seville)

G91J07647

Courtesy of GENERAL MOTORS CORP.
