Chart C-2, CCDIC Completely Blank

You are at this chart because the CCDIC display is completely blank. Cause this problem could be a loss of Central Power Supply (CPS) power or ground, or loss of vacuum fluorescent power from Instrument Panel Cluster (IPC).

NOTE: Test numbers refer to test numbers on diagnostic chart.

Unplugging the CCDIC connector and performing individual circuit checks will determine if wiring connector, terminals or component is faulty.

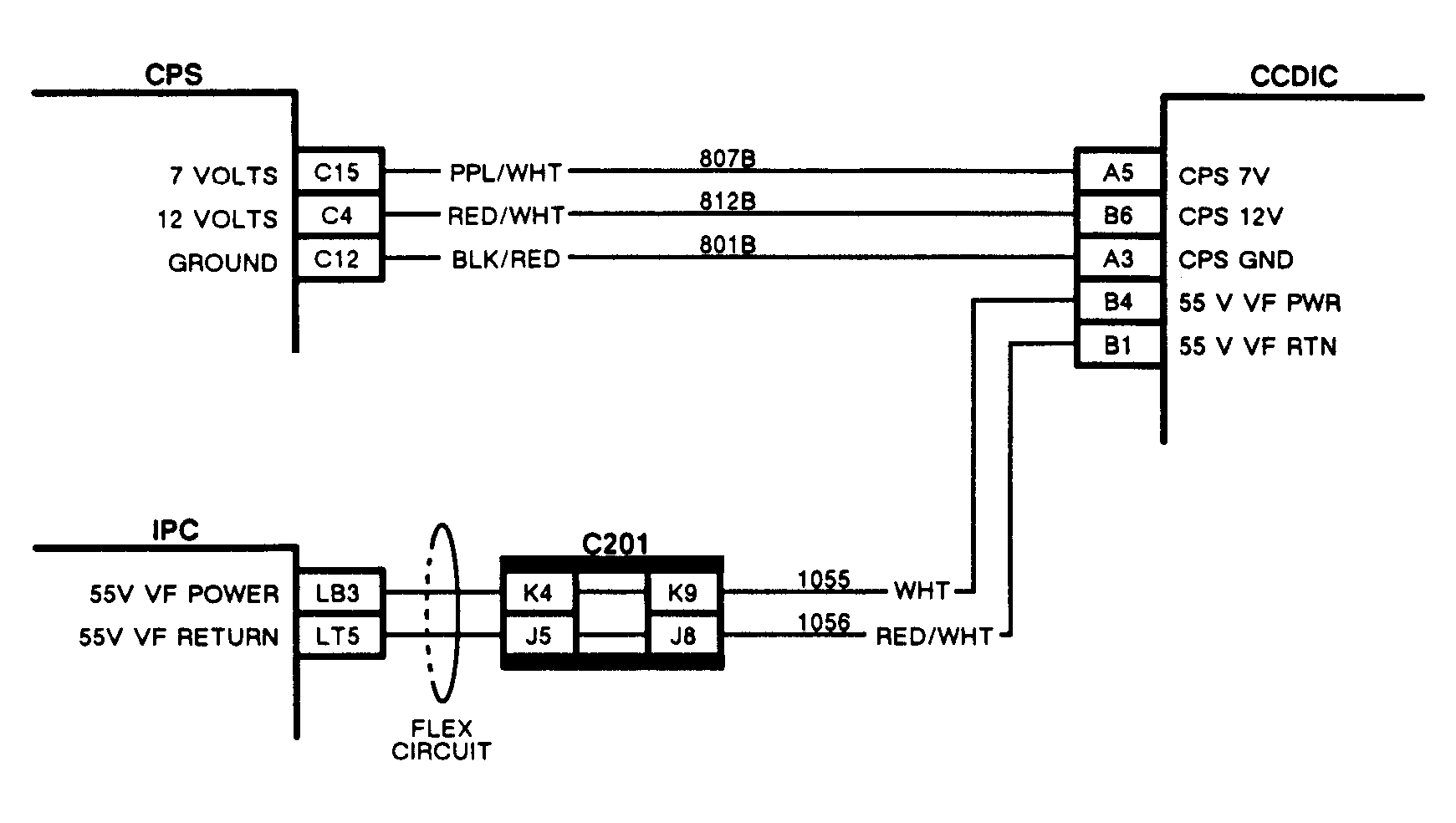

Fig 1: Chart C-2, Schematic, CCDIC Completely Blank

Fig 2: Flow Chart C-2, CCDIC Completely Blank
