Selecting Snapshots: Notes
For selection of snapshot data, See
Fig 1
.

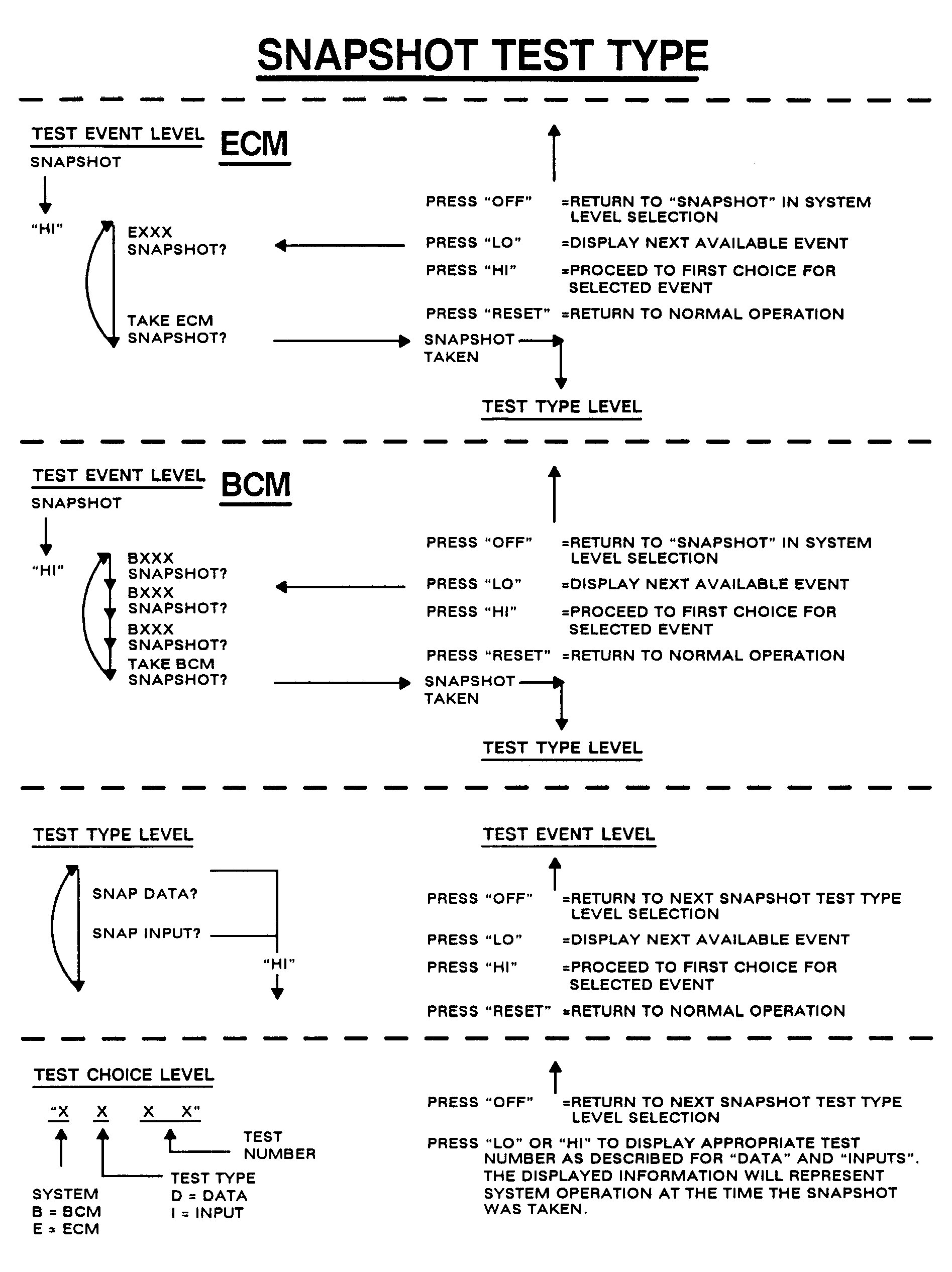

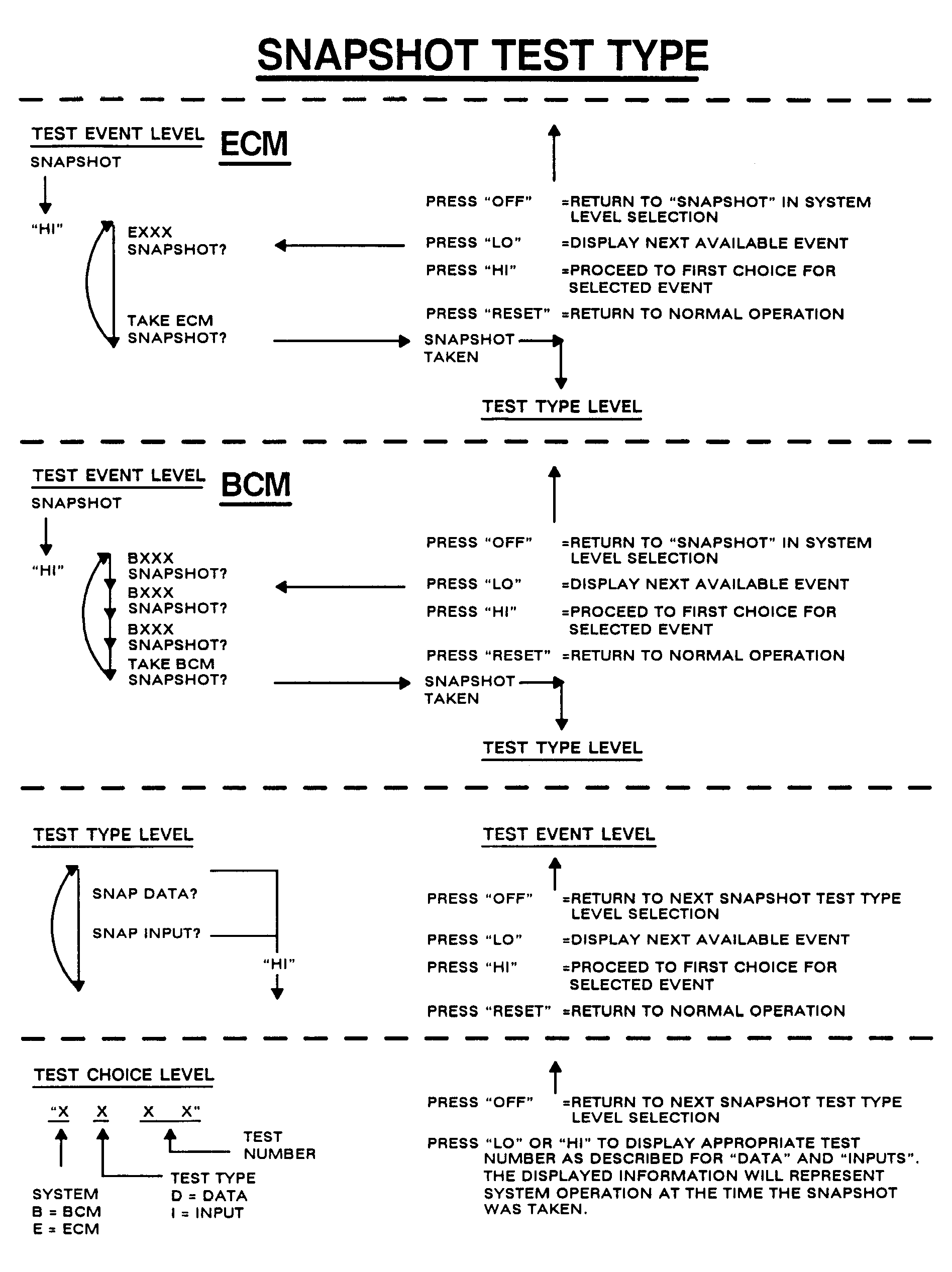

Fig 1: Selecting Snapshot Test
Courtesy of GENERAL MOTORS CORP.
