Component Locations

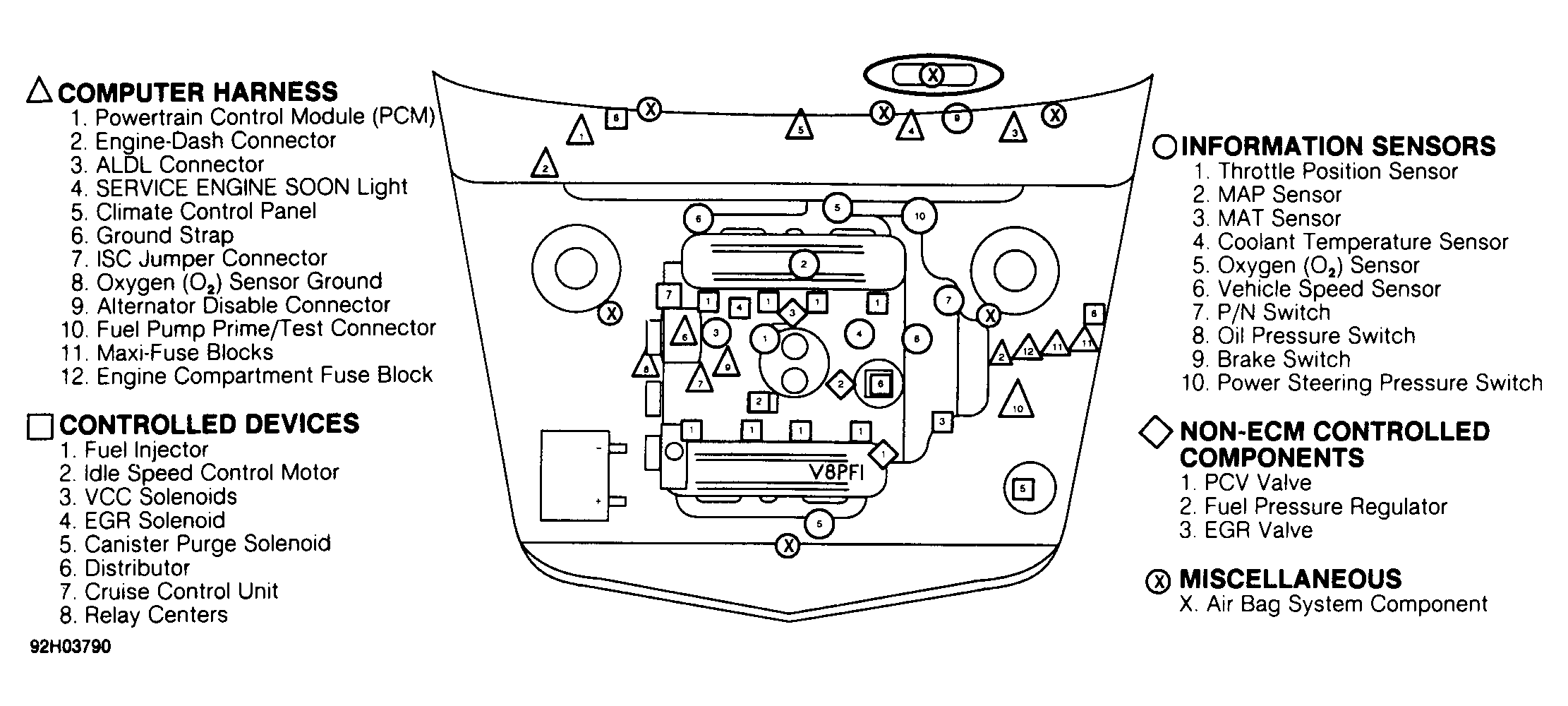

Fig 1: Component Locations (4.9L VIN B Seville)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
