Pcm Specific Output Codes: Notes

NOTE: All PCM specific output tests are to be performed with key on, engine off.

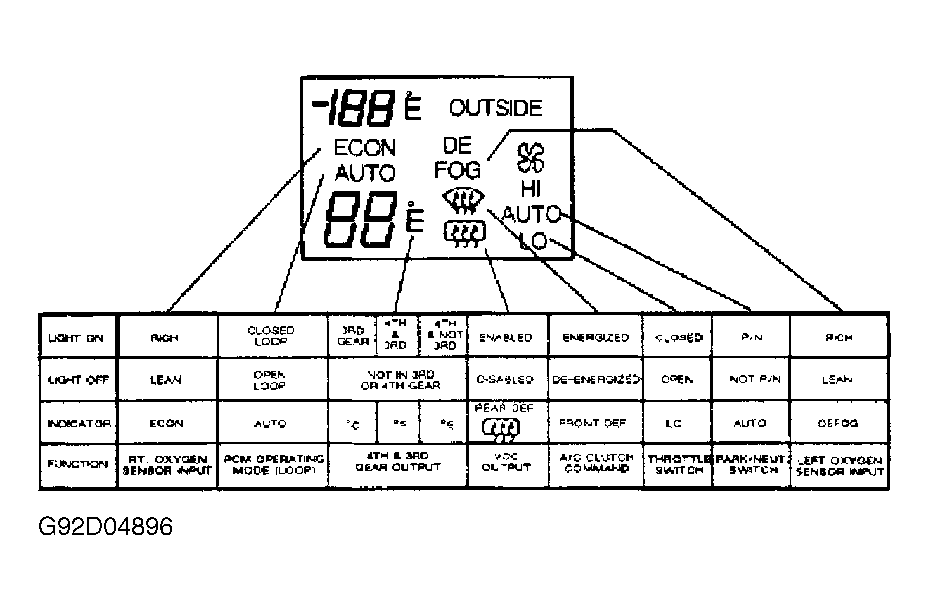

PCM OUTPUTS option provides ability to cycle PCM-controlled outputs. DIC display identifies solenoid or relay and state PCM is commanding that device. HI indicates solenoid or relay is de-energized and LO indicates solenoid or relay is energized. See Figure .
