Pcm Code E065, Cruise Control Servo Position Sensor Failure: Action

Disengage cruise control. Code set. No service message is given.

NOTE: Test numbers refer to numbers on diagnostic chart.

PCM data value ED70 displays servo position. Range is approximately 4-94 percent. If servo will not go to full stroke, vacuum supply, servo or vacuum brake release circuit leaks.
Check dash to engine connector as possible source of intermittent in signal line.

Fig 1: PCM Code E065, Schematic, Cruise Control Servo Position Sensor Failure

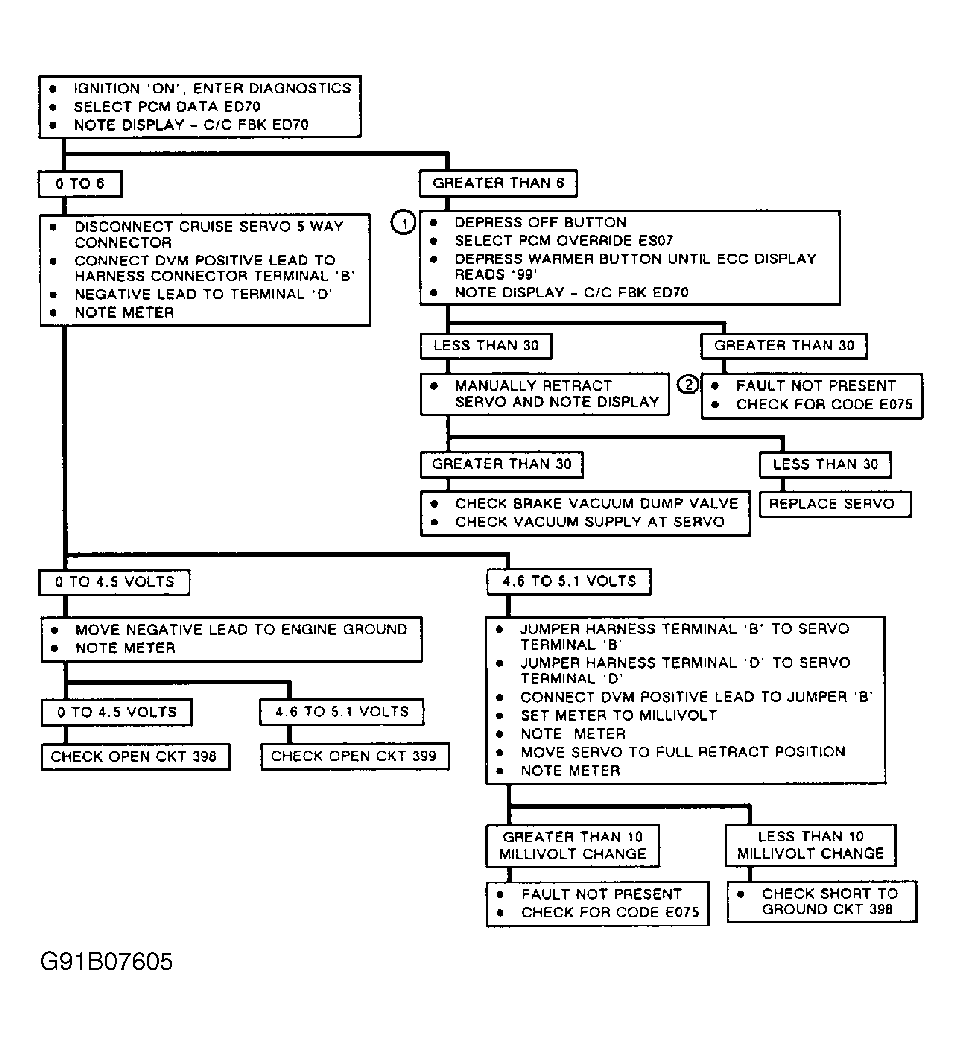

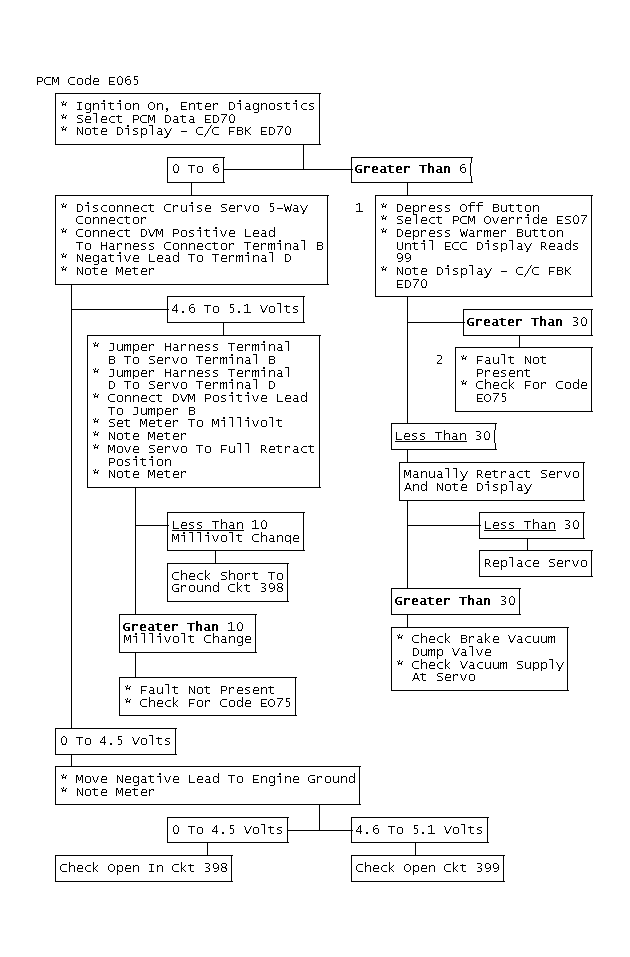

Fig 2: PCM Code E065, Flow Chart, Cruise Control Servo Position Sensor Failure

Fig 3: PCM Code E065
