Pcm Code E096,Torque Converter Overstress: Action
PCM will set PCM Code E096. No service light or message is given.

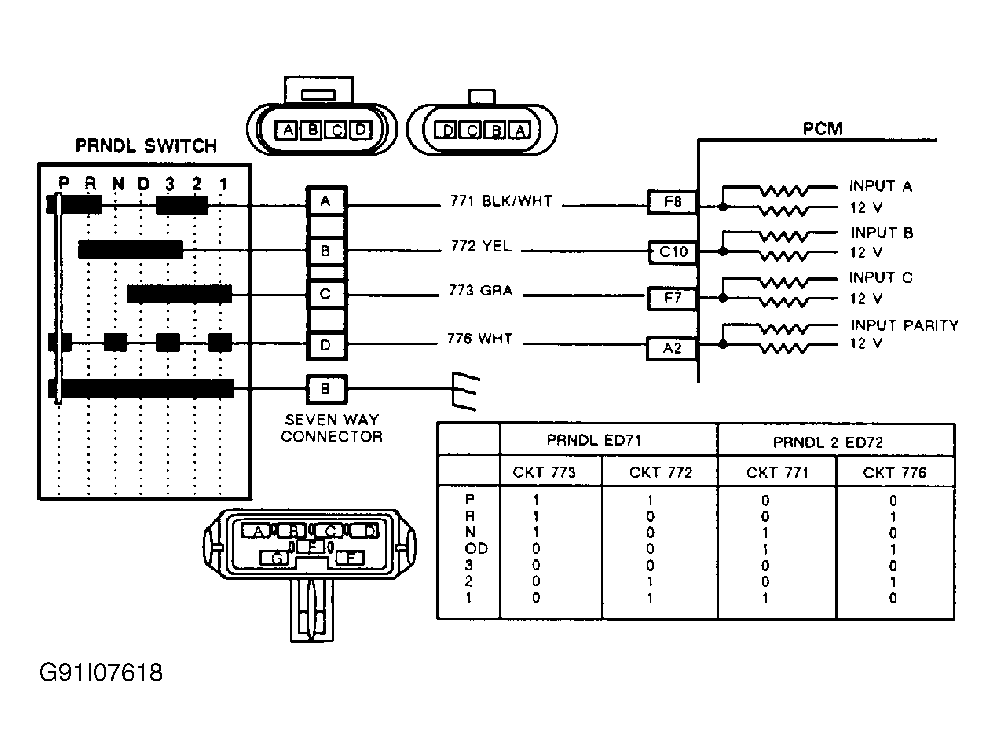

PCM CODE E096 DATA
| Gear Position |
PRNDL ED71
CKT 773 |
PRNDL ED71
CKT 772 |
PRNDL 2 ED72
CKT 771 |
PRNDL 2 ED72
CKT 776 |
| P |
1 |
1 |
0 |
0 |
| R |
1 |
0 |
0 |
1 |
| N |
1 |
0 |
1 |
0 |
| OD |
0 |
0 |
1 |
1 |
| 3 |
0 |
0 |
0 |
0 |
| 2 |
0 |
1 |
0 |
1 |
| 1 |
0 |
1 |
1 |
0 |
Courtesy of GENERAL MOTORS CORP.
