Component Locations

NOTE: For more information on component locations, including grounds, see 1993 ALLANTE COMPONENT LOCATIONS article.
COMPONENT LOCATIONS

Component Location
A/C High Side Temperature Sensor Rear Of Engine Compartment
A/C Low Side Temperature Sensor Rear Of Engine Compartment
Battery Compartment Micro Relay Center Behind Passenger Seat, On Quarter Panel. See Fig 1 .
Body Computer Module (BCM) Front Of Console. See Fig 2 .
Data Link Connector (DLC) At Left Kick Panel. See Fig 3 .
Diagnostic/Energy Reserve Module (DERM) Above Brake Pedal. See Fig 4 .
In-Car Temperature Sensor Center Of Instrument Panel
Heater & A/C Programmer Behind Right Side Of Instrument Panel. See Fig 5 .
Powertrain Control Module (PCM) Behind Right Side Of Instrument Panel. See Fig 6 .
RAP Ignition 3 Relay Center Of Console. See Fig 7 .
Sunload Sensor Top Center Of Instrument Panel
Theft Deterrent Module Behind Left Side Of Instrument Panel. See Fig 8 .
Twilight Photocell Top Center Of Instrument Panel
Vehicle Speed Sensor Lower Rear Of Engine. See Fig 9 .
Wheel Speed Sensor Right Front Wheel House (Left Side Similar)

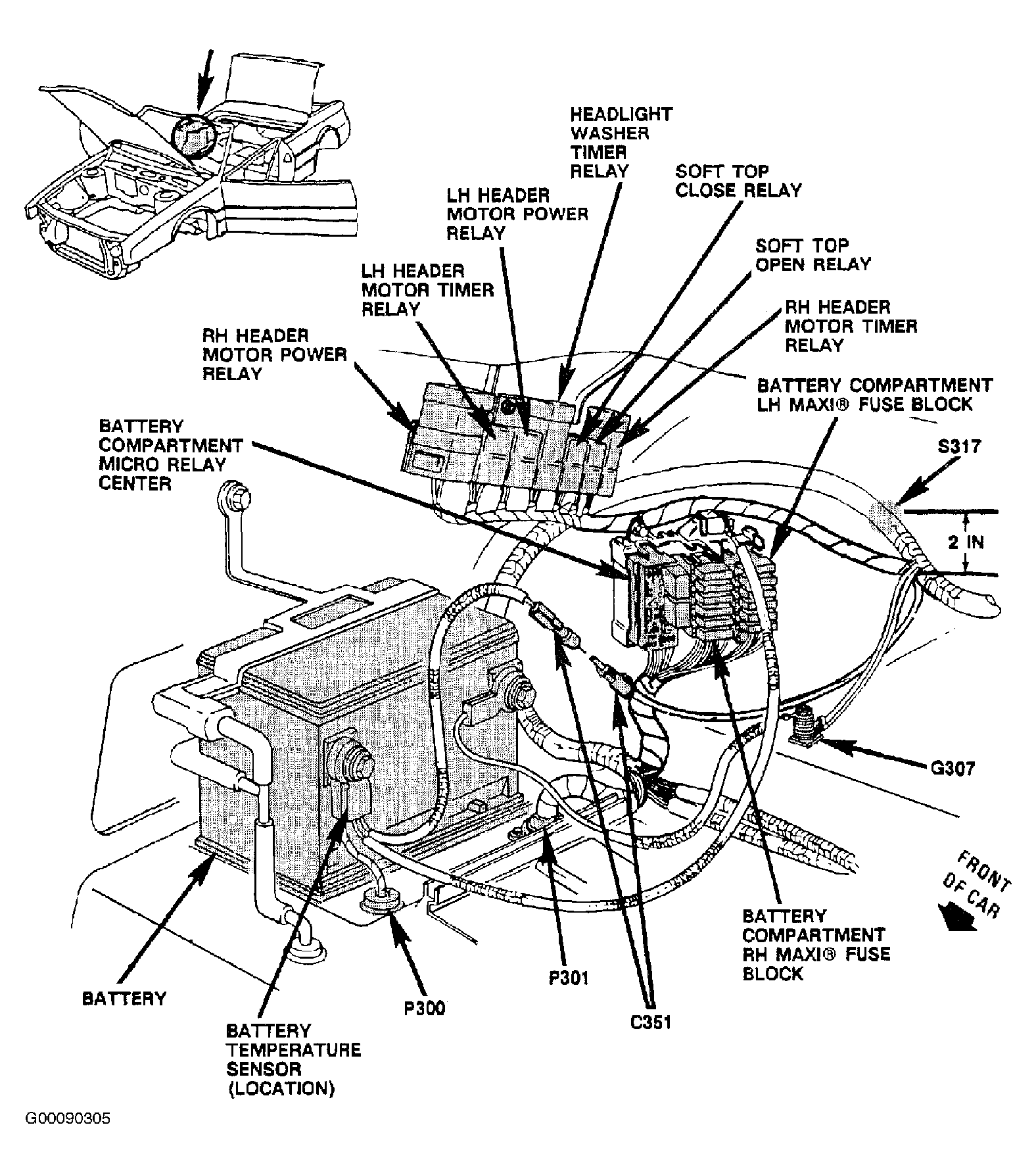

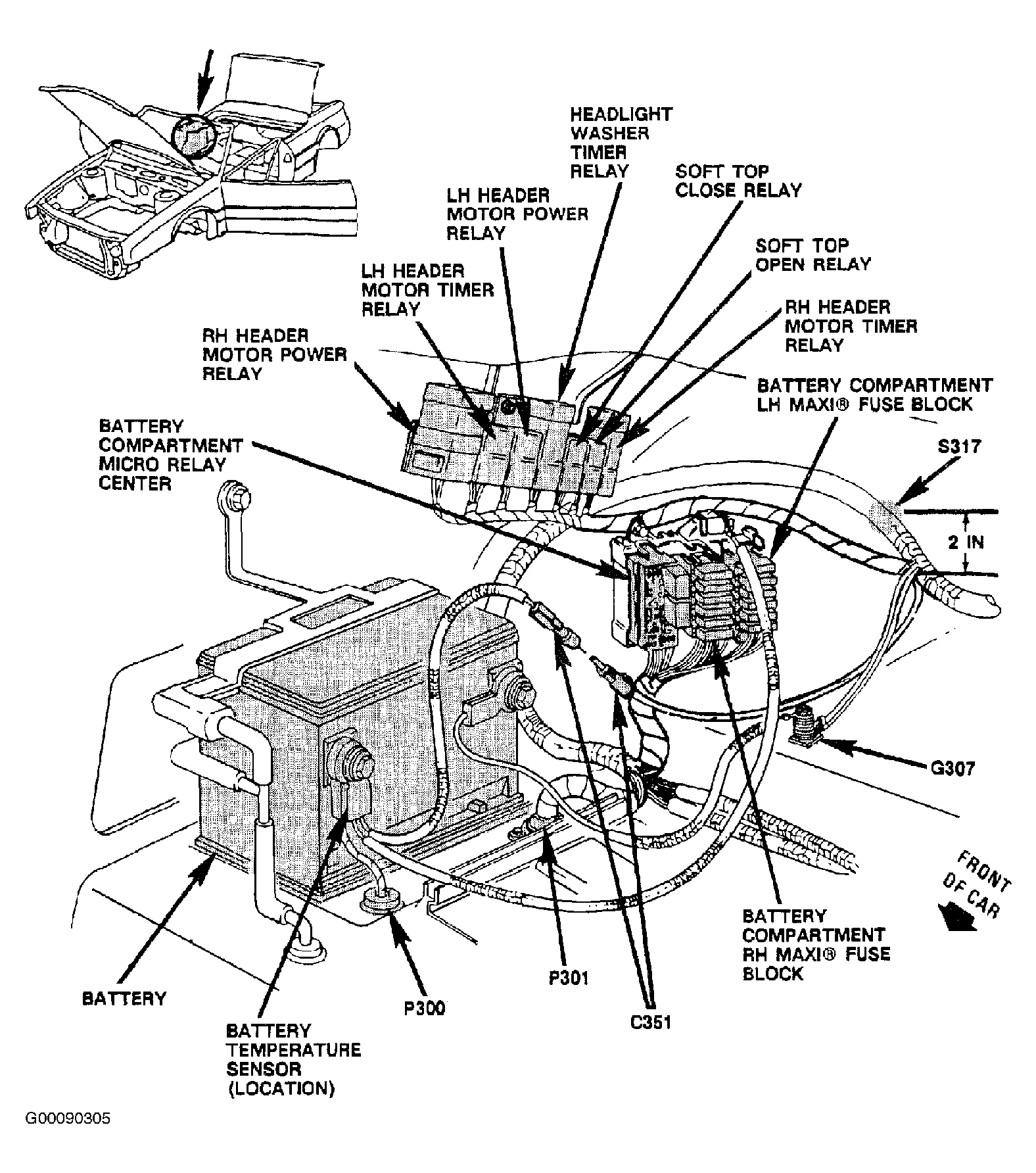

Fig 1: Locating Battery Compartment Micro Relay Center (Behind Passengers Seat)
G00090305Courtesy of GENERAL MOTORS CORP.

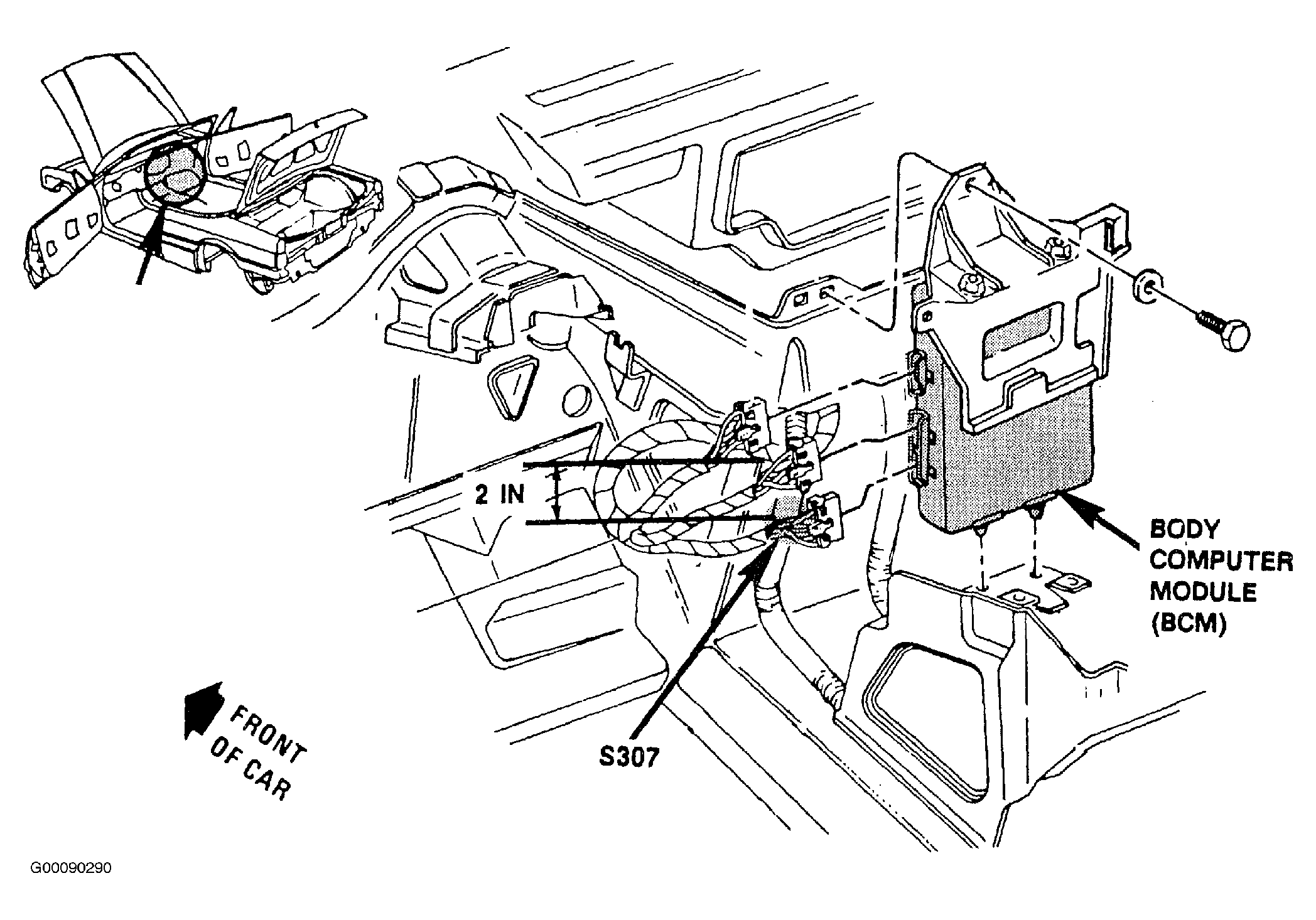

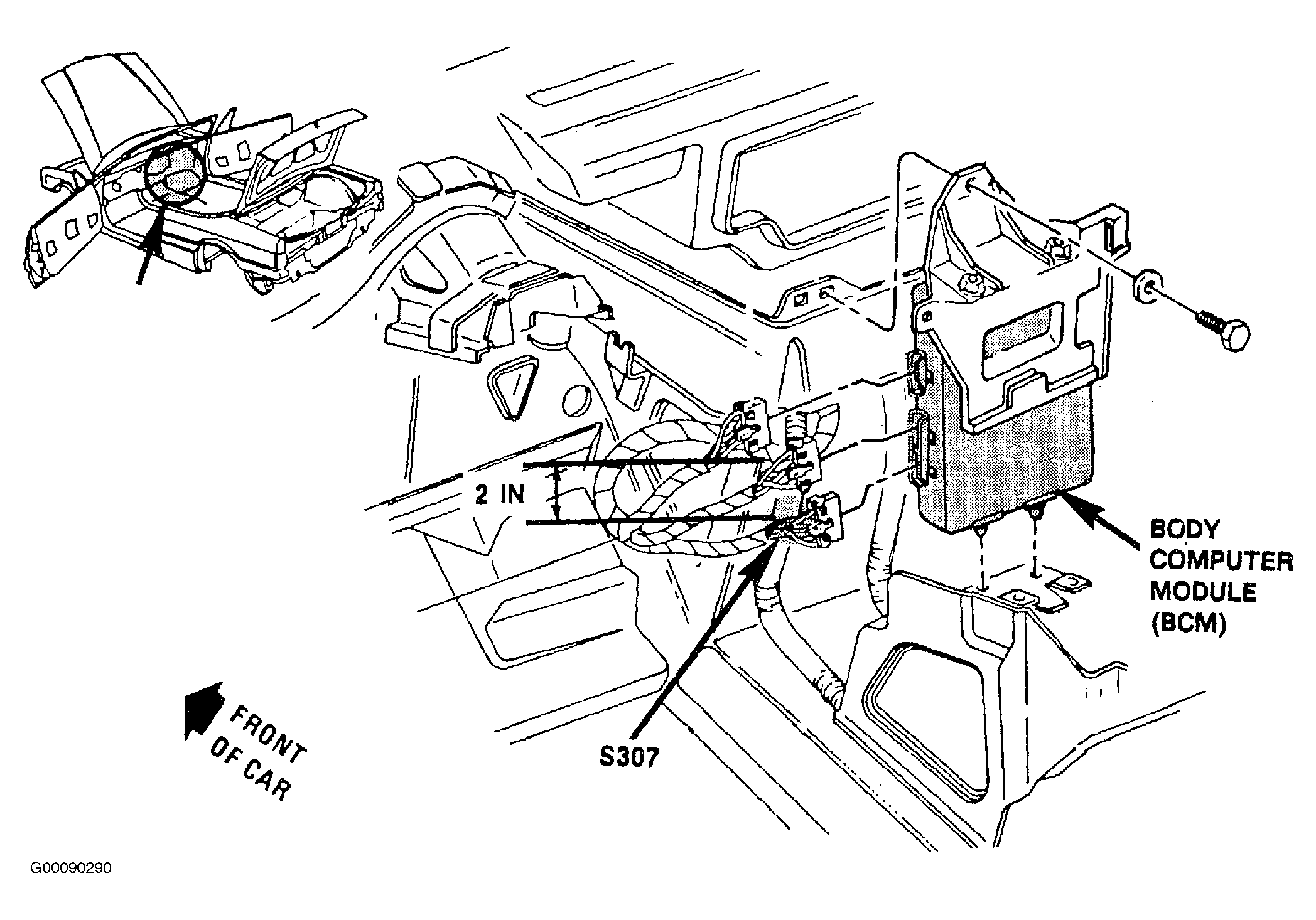

Fig 2: Locating BCM (Front Of Console)
G00090290Courtesy of GENERAL MOTORS CORP.

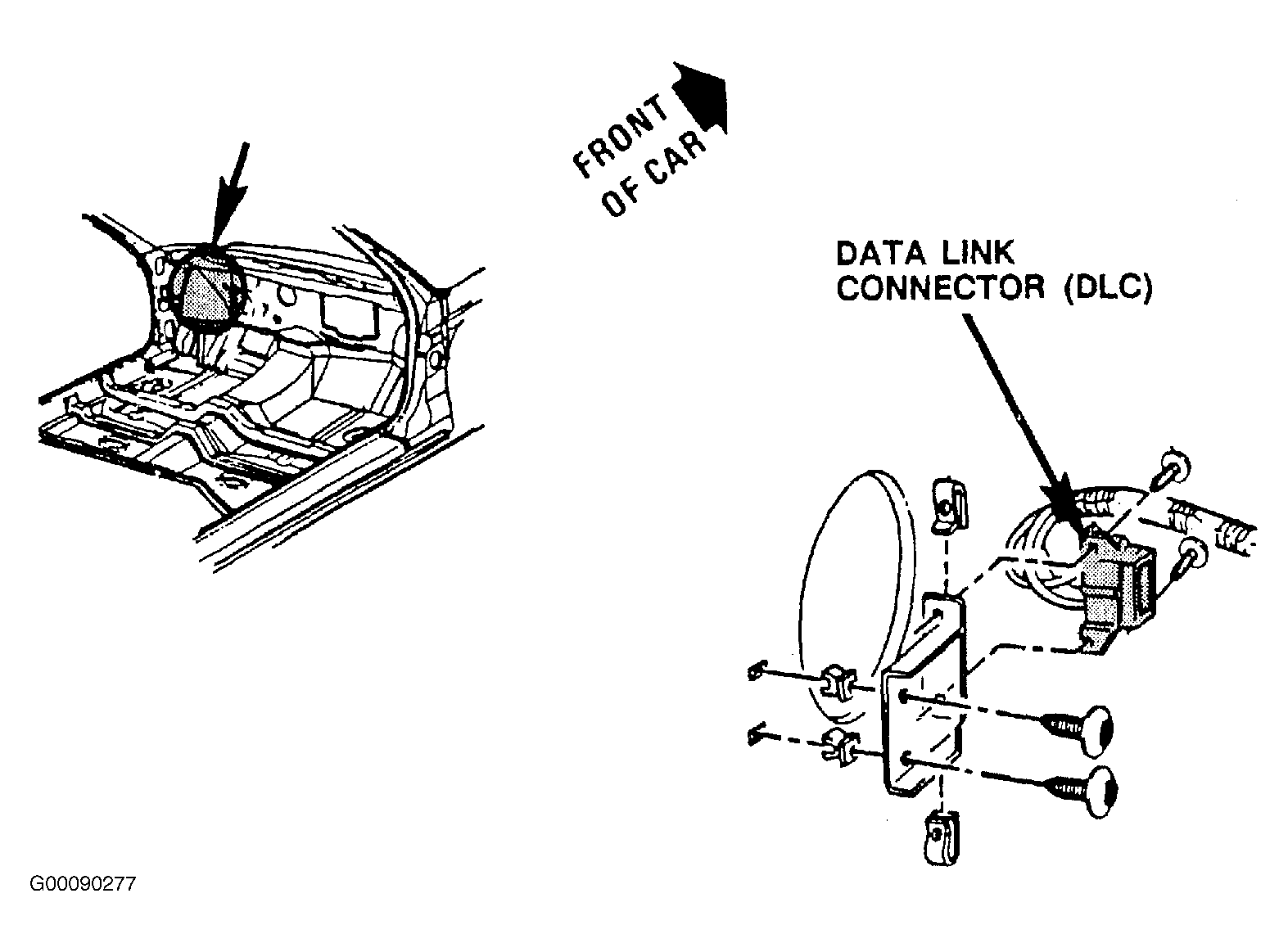

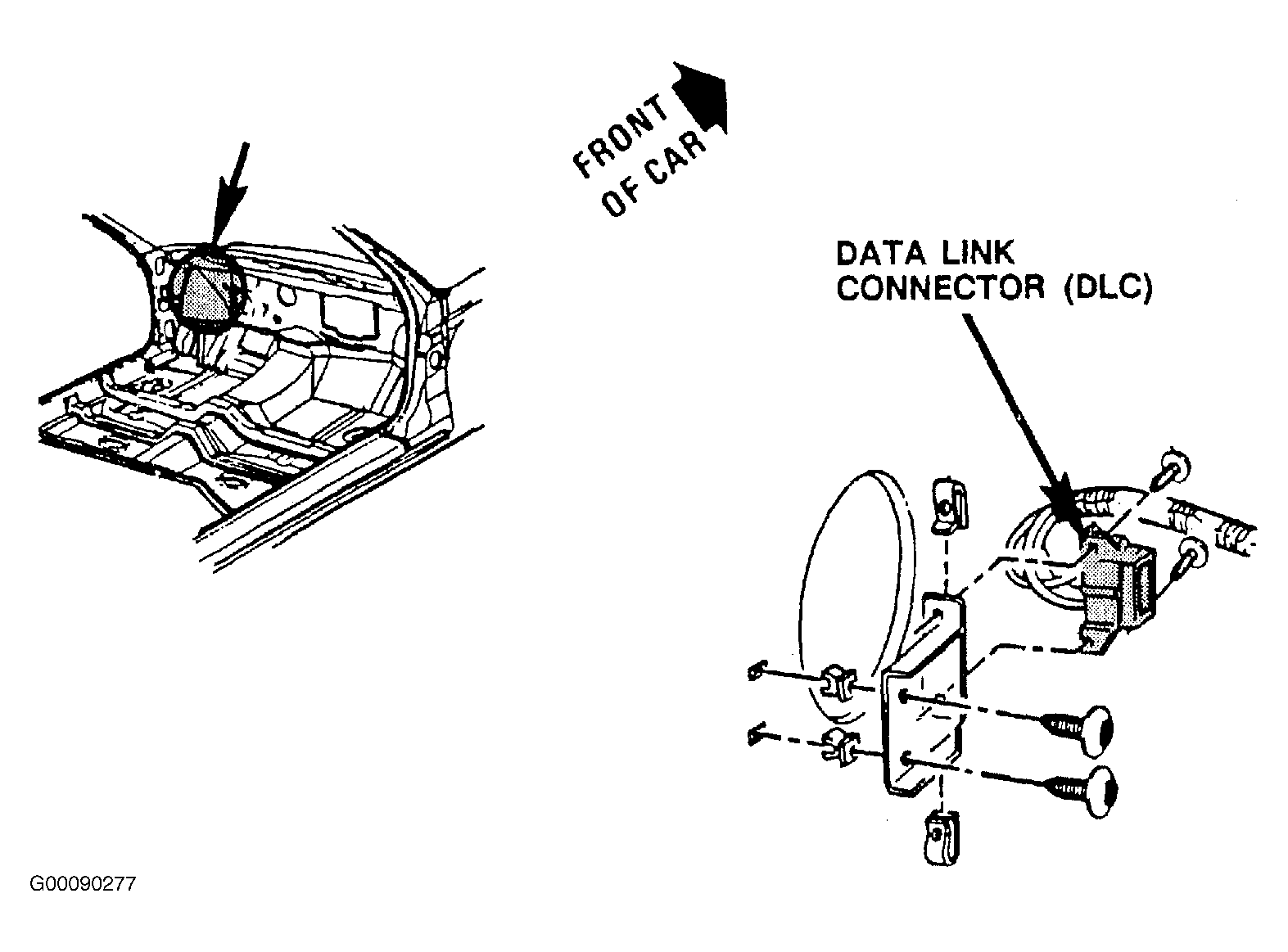

Fig 3: Locating Data Link Connector (DLC) Left Kick Panel
G00090277Courtesy of GENERAL MOTORS CORP.

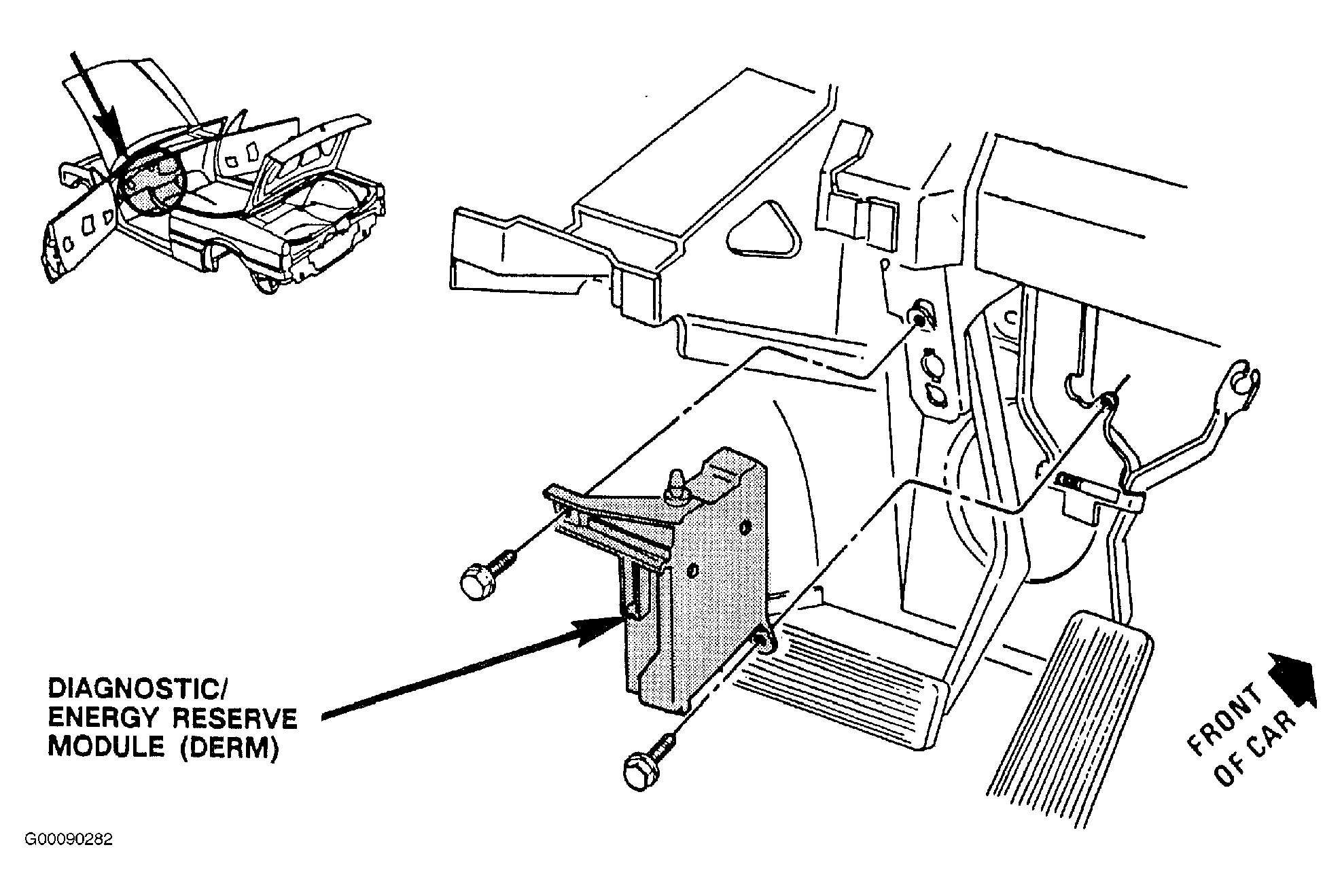

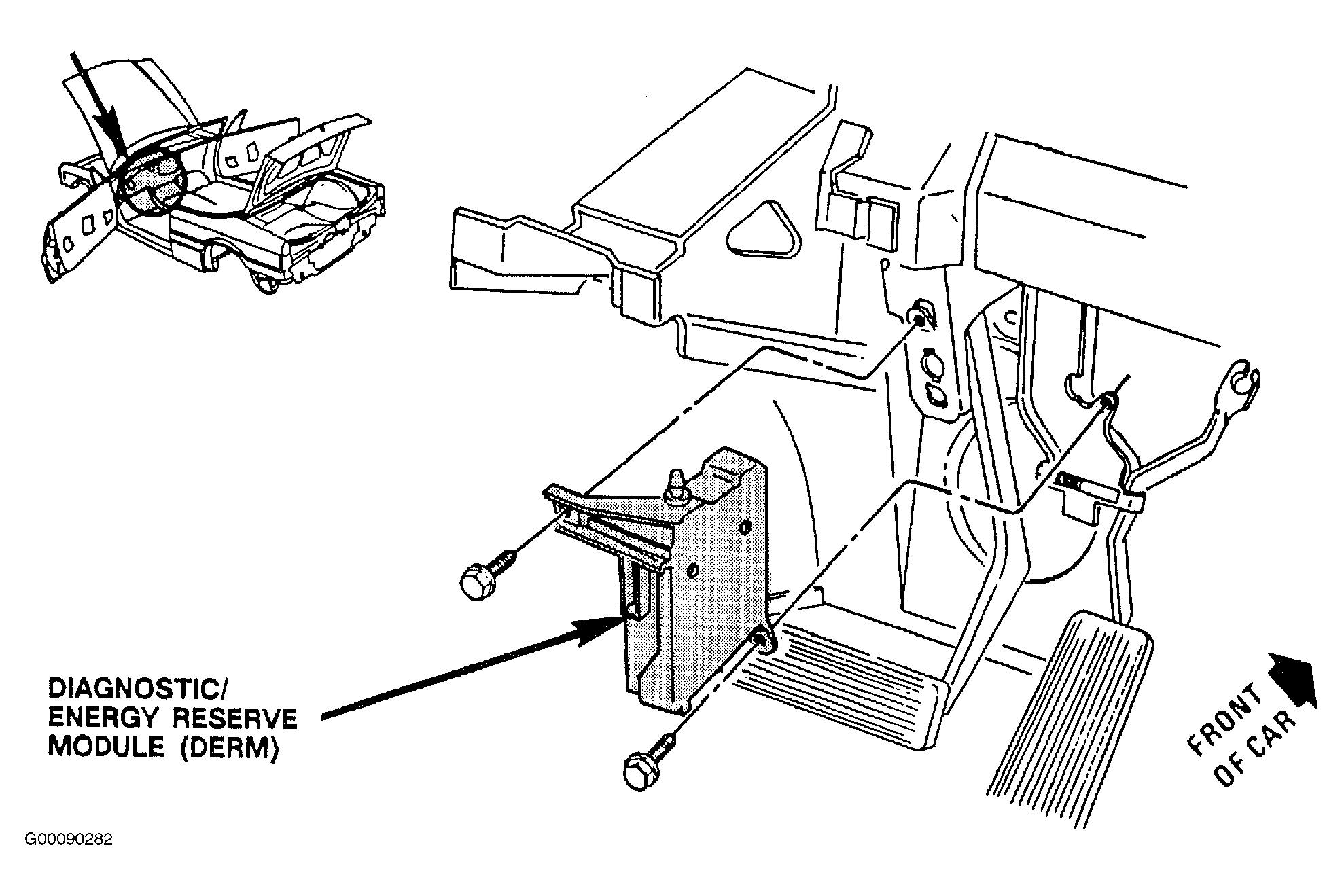

Fig 4: Locating DERM (Above Brake Pedal)
G00090282Courtesy of GENERAL MOTORS CORP.

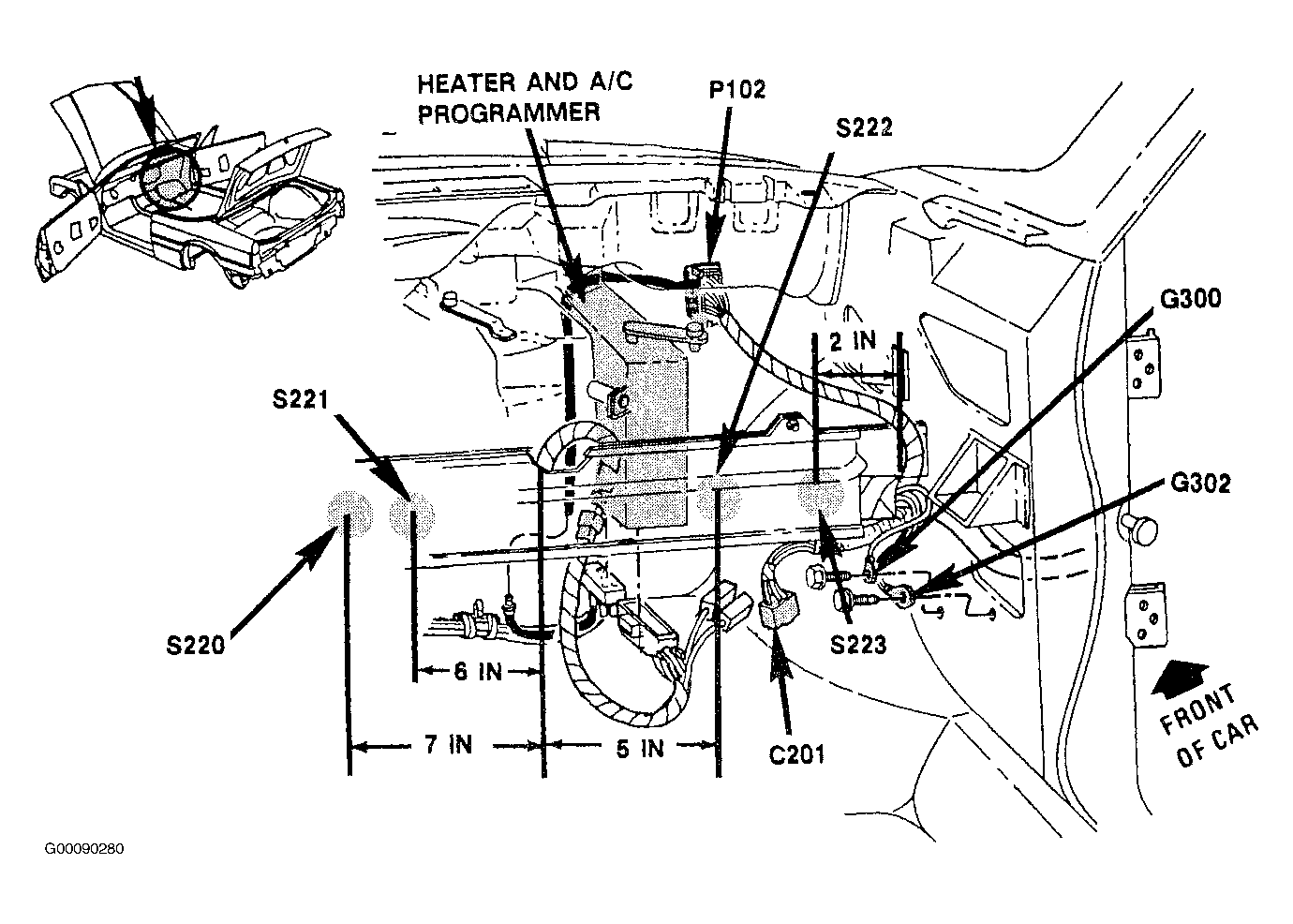

Fig 5: Locating Heater & A/C Programmer
G00090280Courtesy of GENERAL MOTORS CORP.

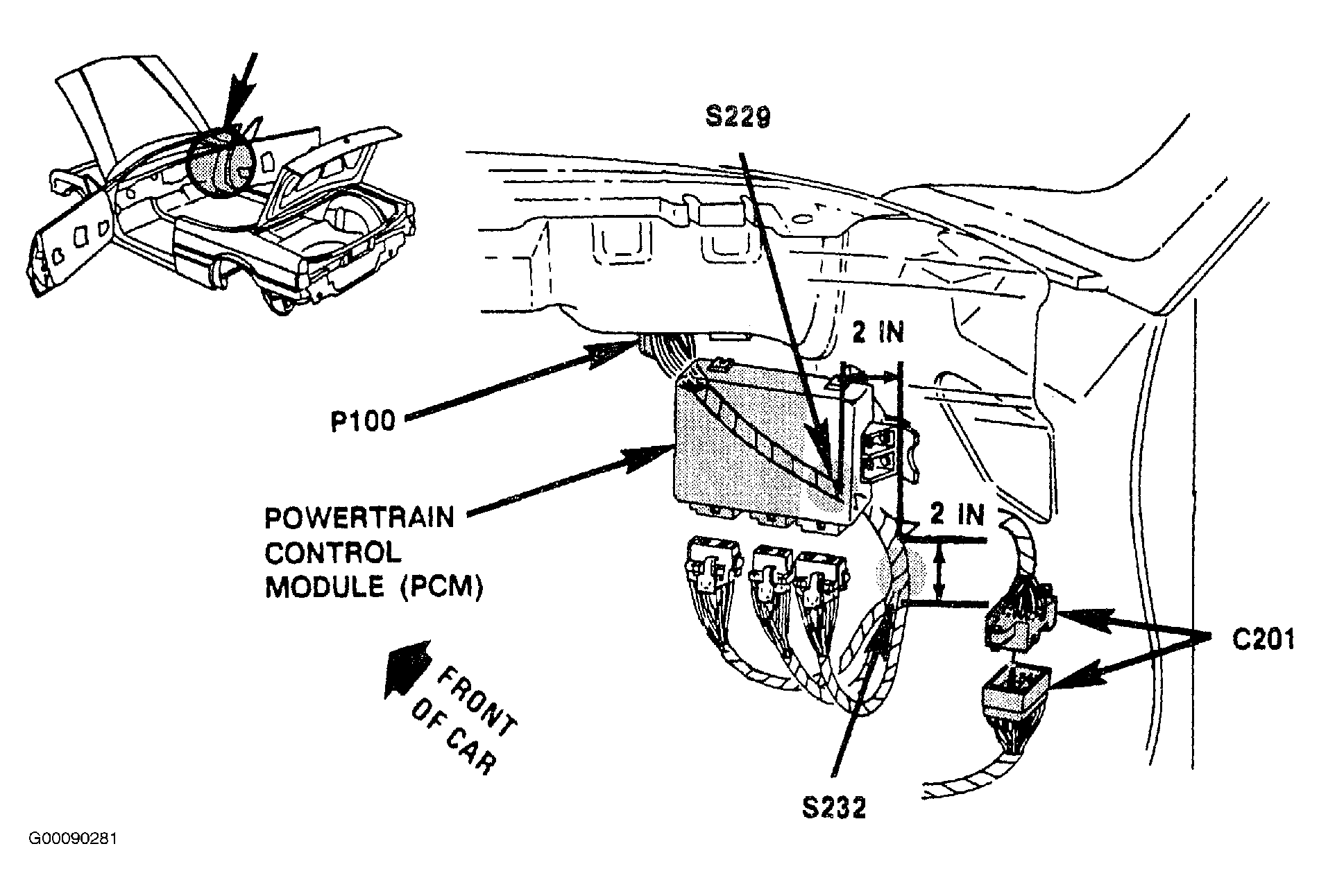

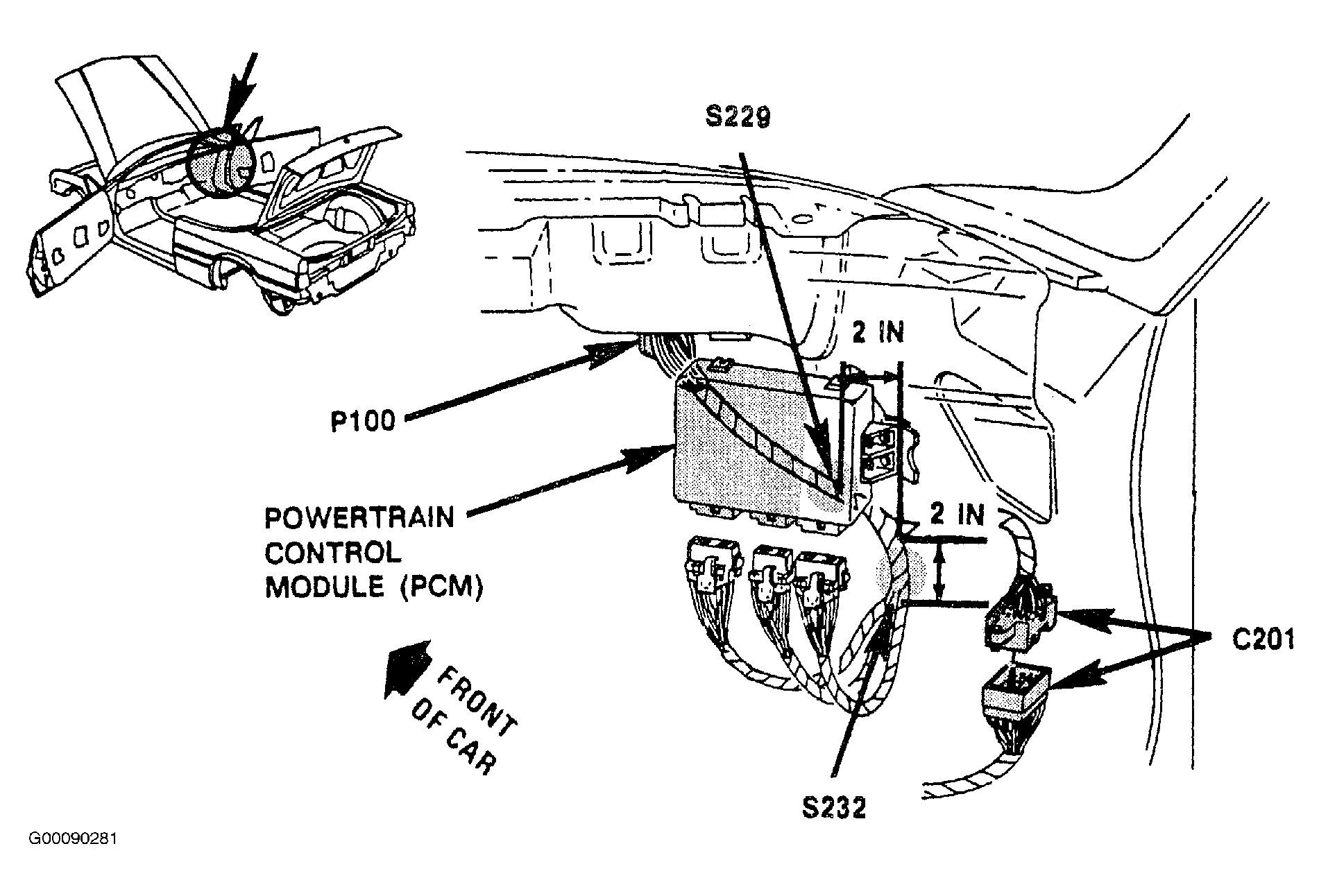

Fig 6: Locating Powertrain Control Module (PCM)
G00090281Courtesy of GENERAL MOTORS CORP.

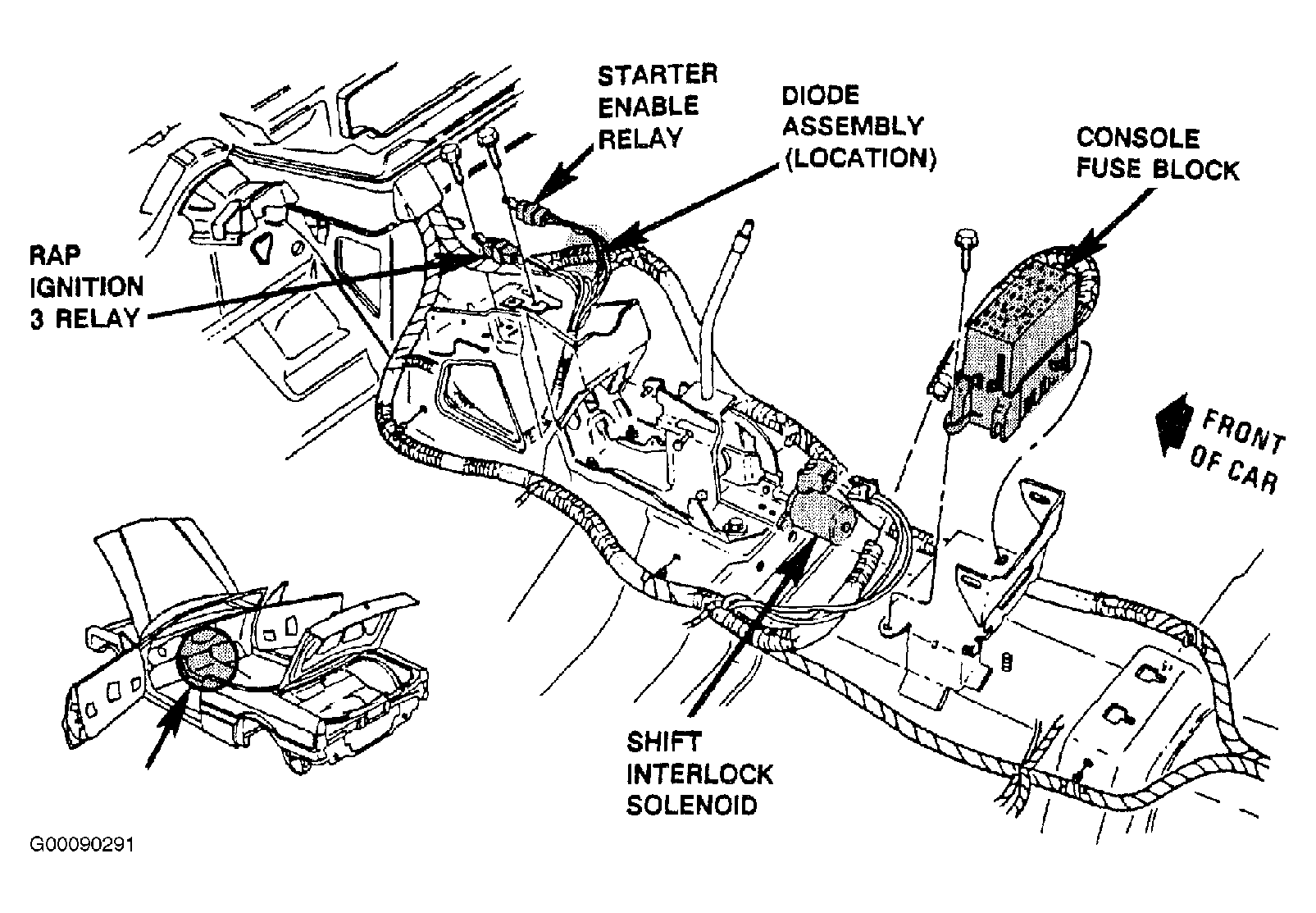

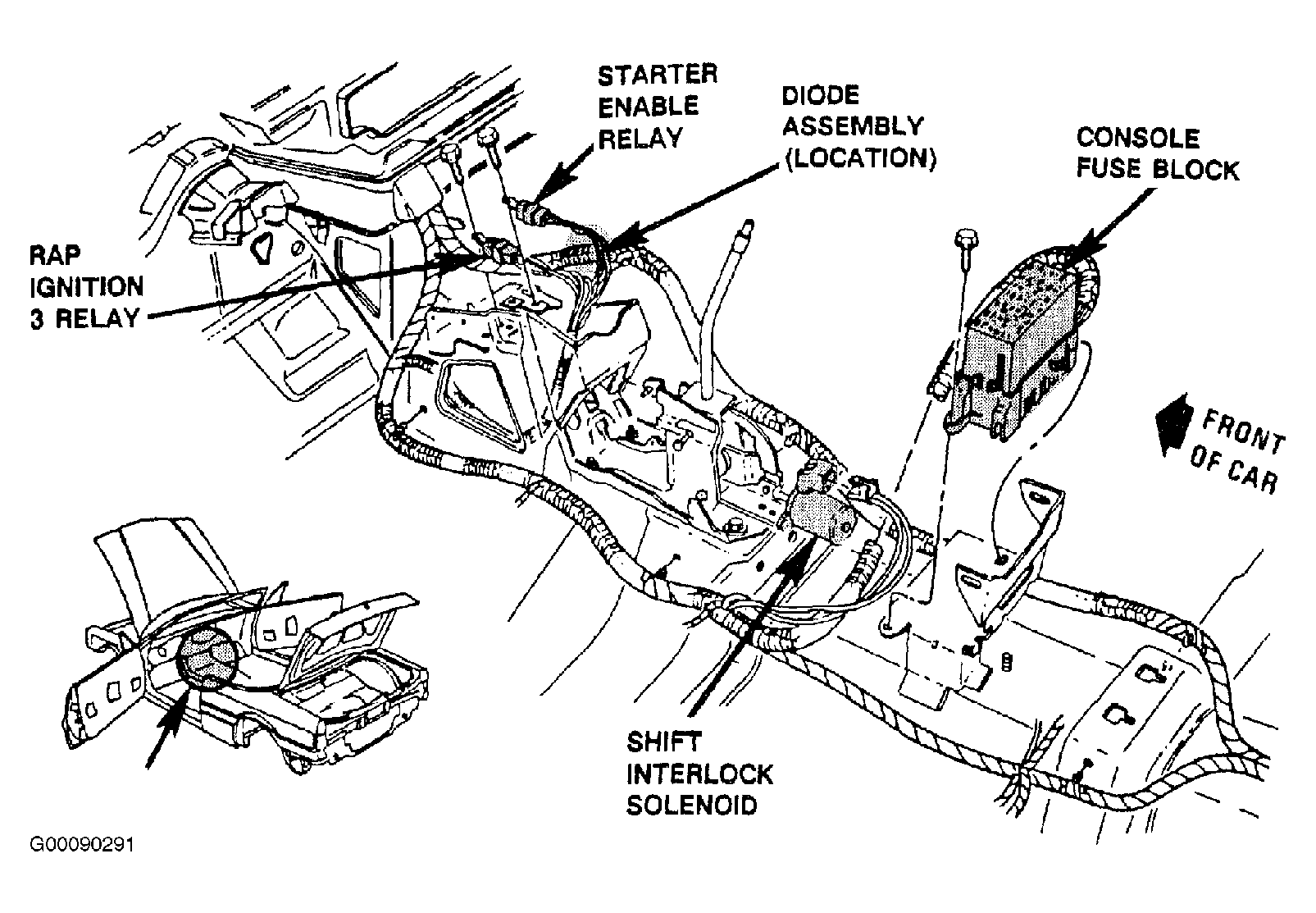

Fig 7: Locating RAP Ignition 3 Relay (Center Of Console)
G00090291Courtesy of GENERAL MOTORS CORP.

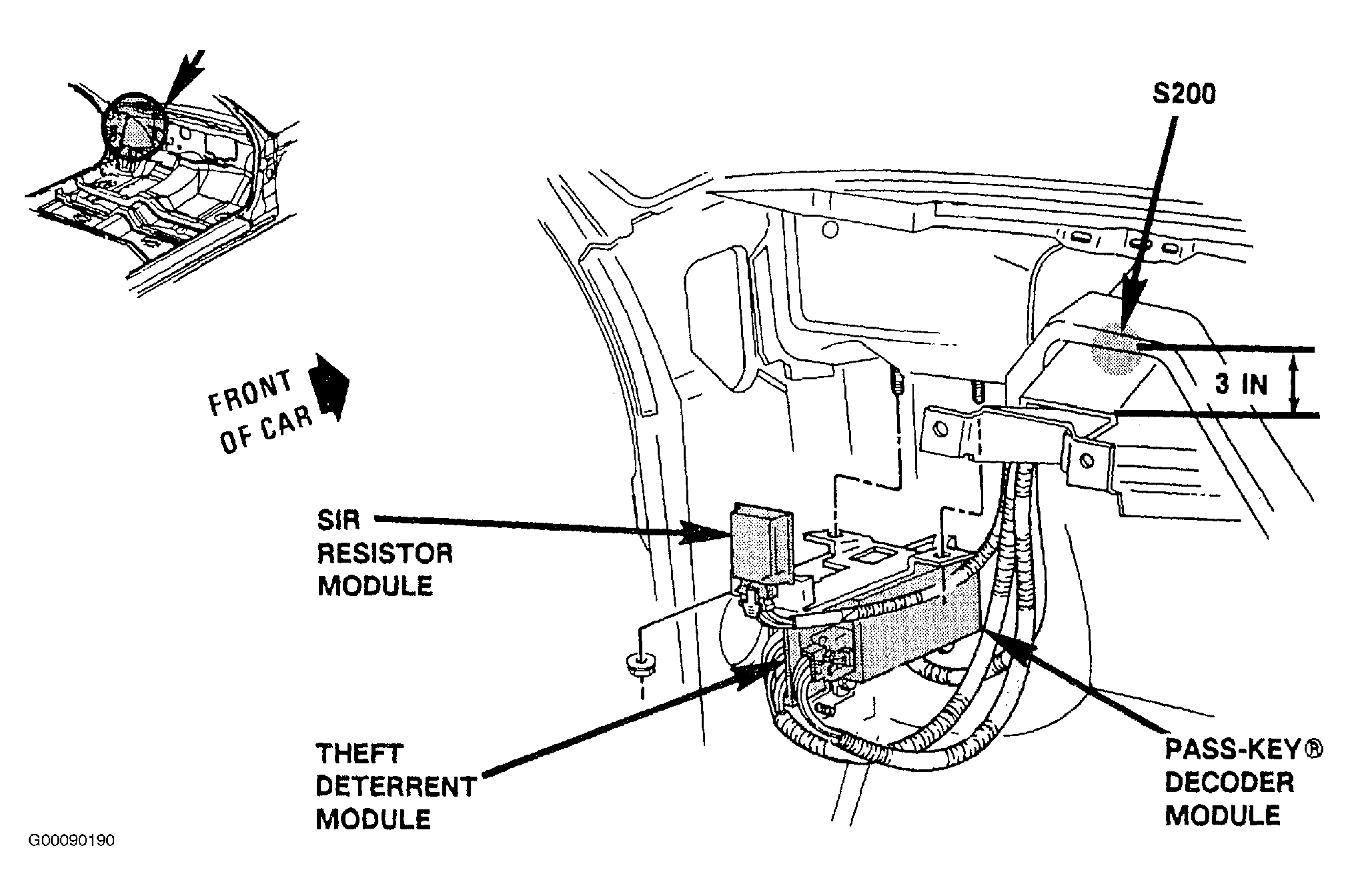

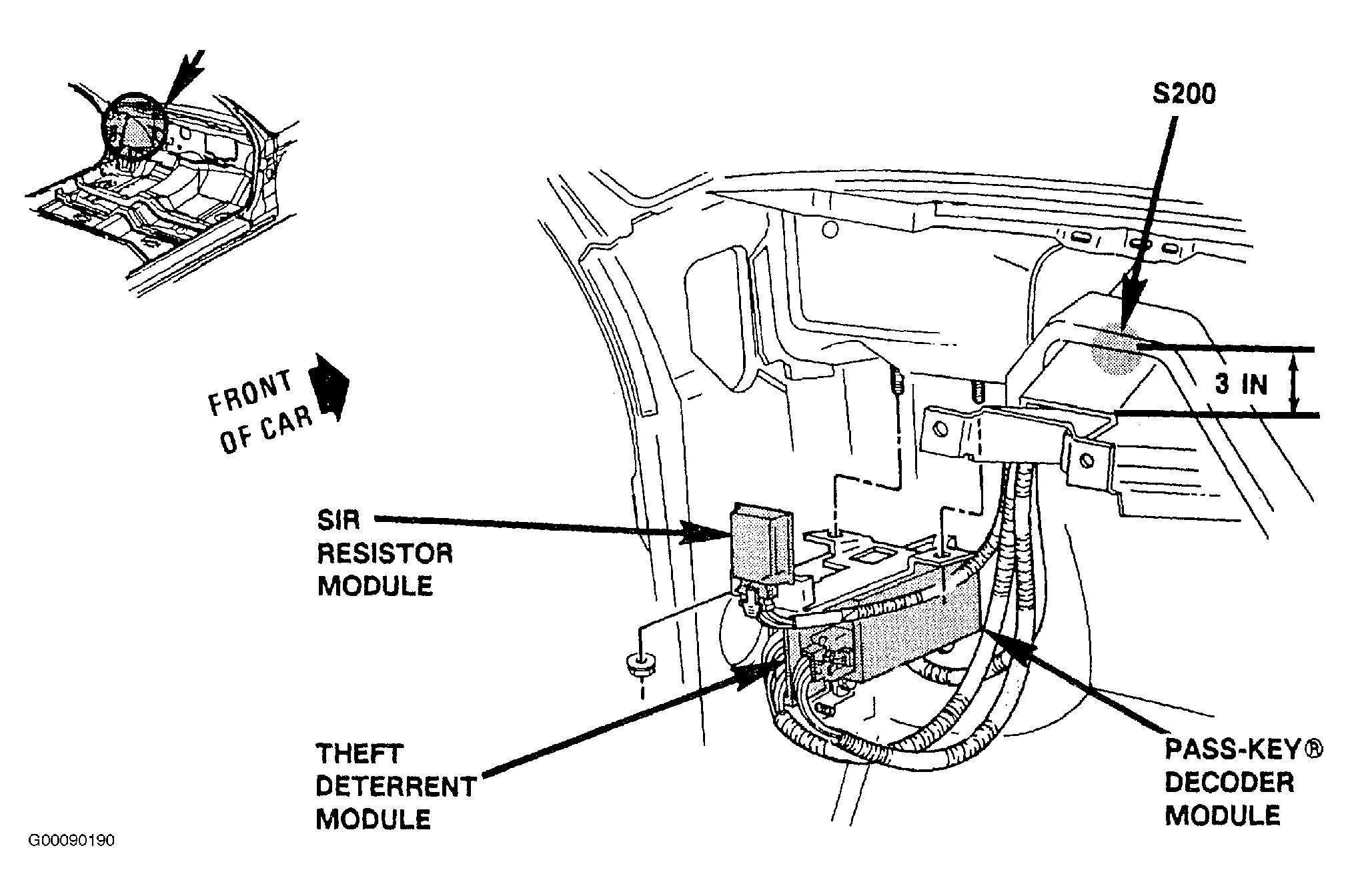

Fig 8: Locating Theft Deterrent Module
G00090190Courtesy of GENERAL MOTORS CORP.

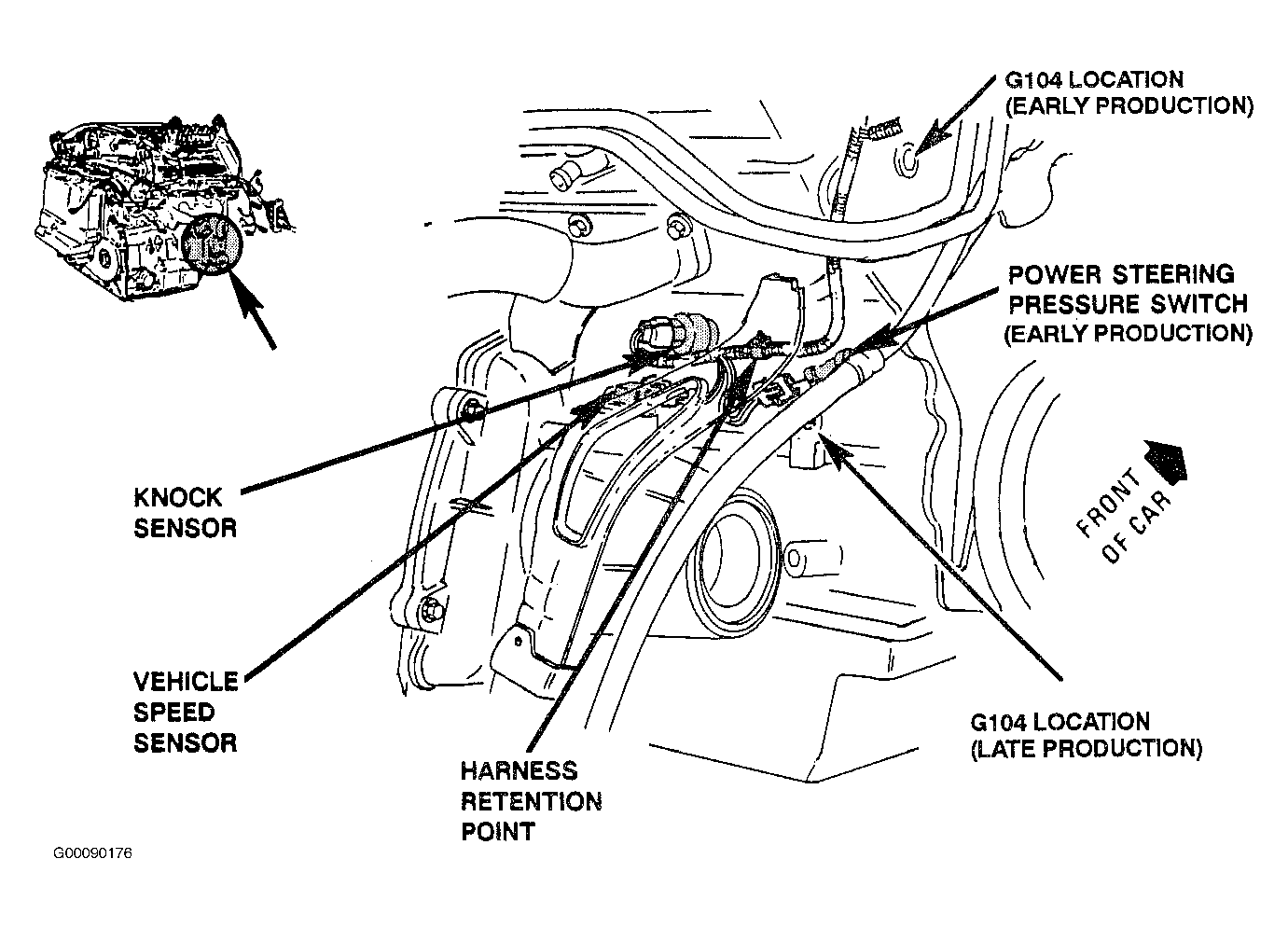

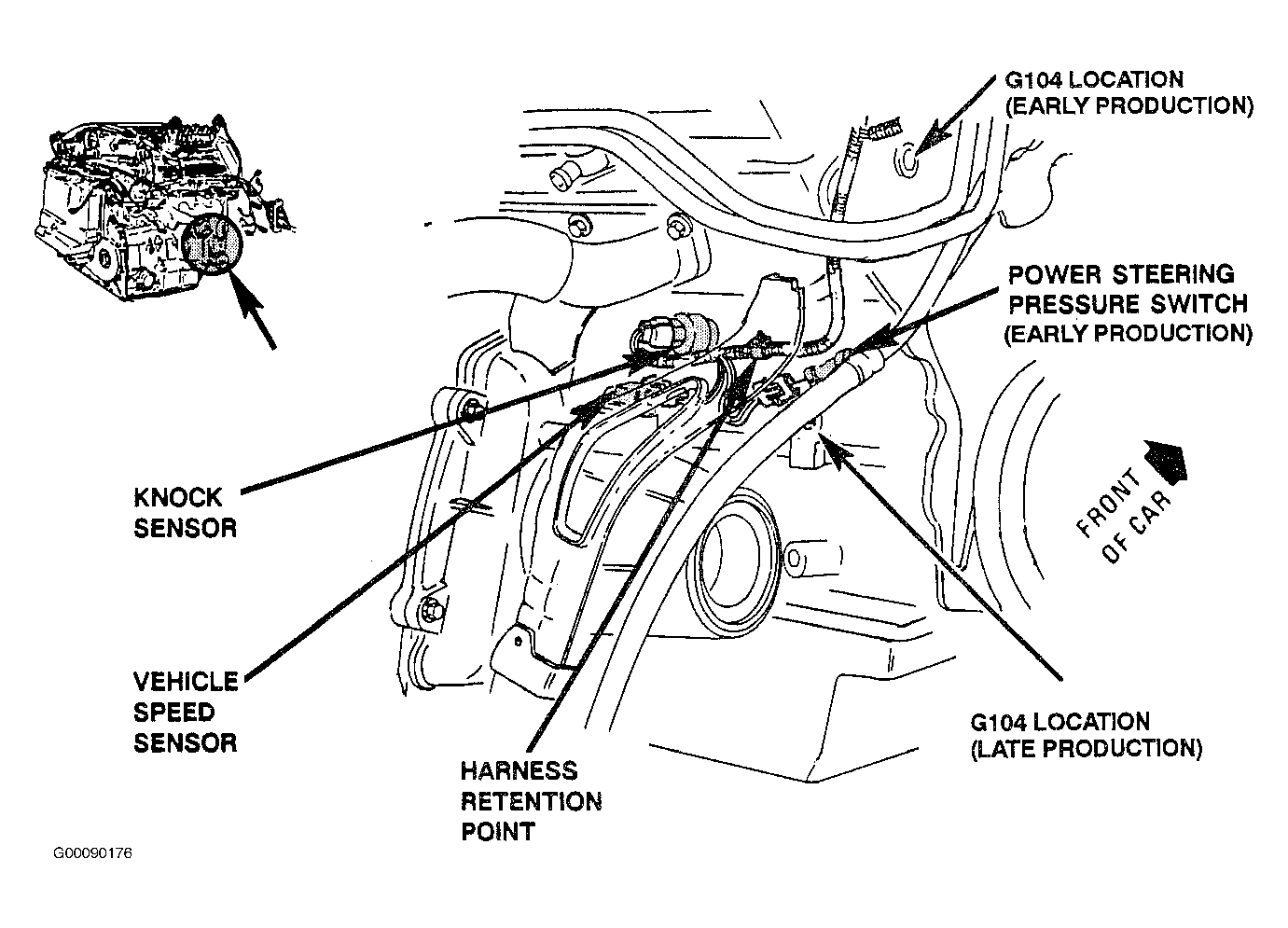

Fig 9: Locating Vehicle Speed Sensor (VSS)
G00090176Courtesy of GENERAL MOTORS CORP.
