Connector Identification

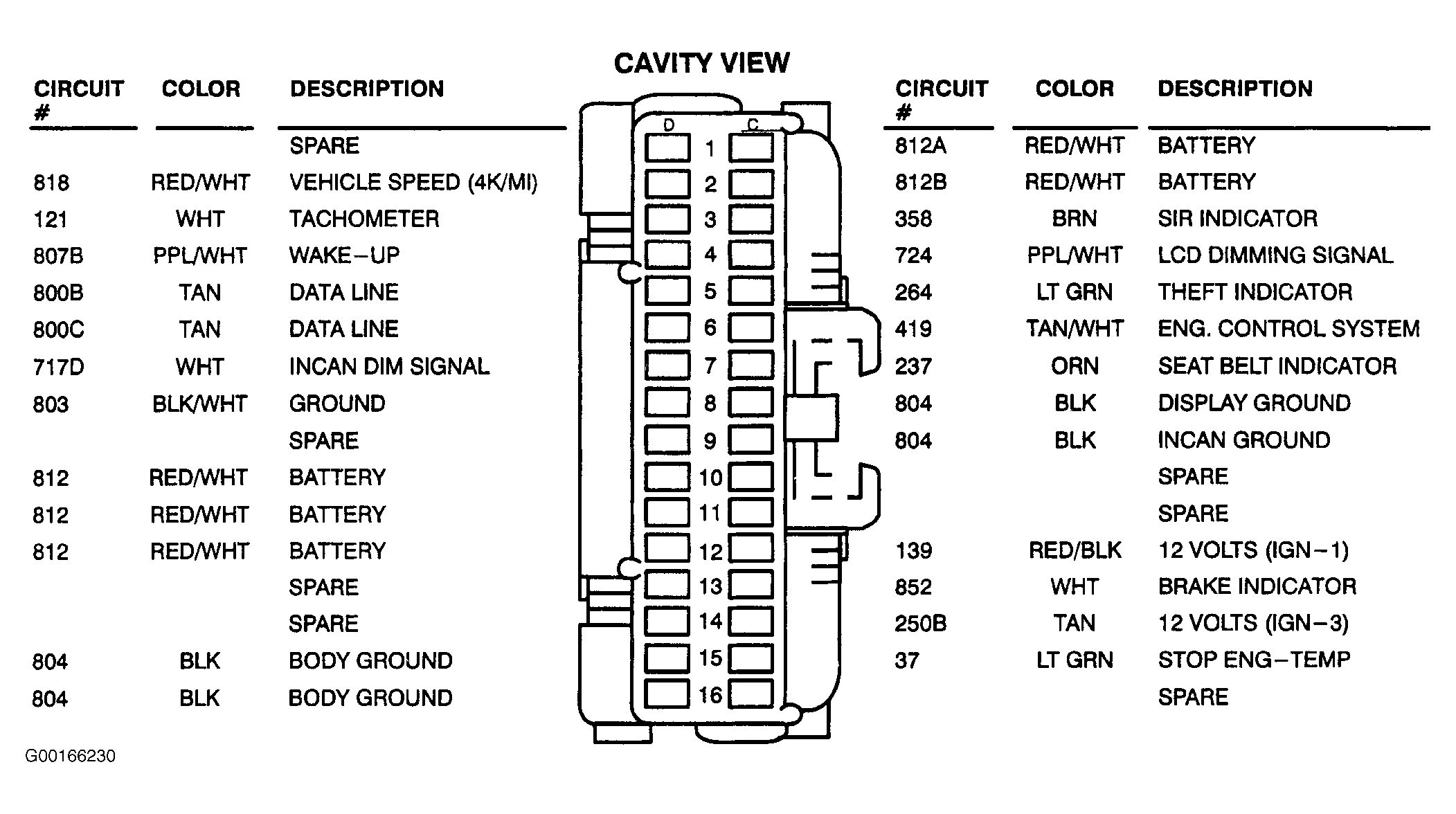

Fig 1: BCM Connector Identification

Courtesy of GENERAL MOTORS CORP.

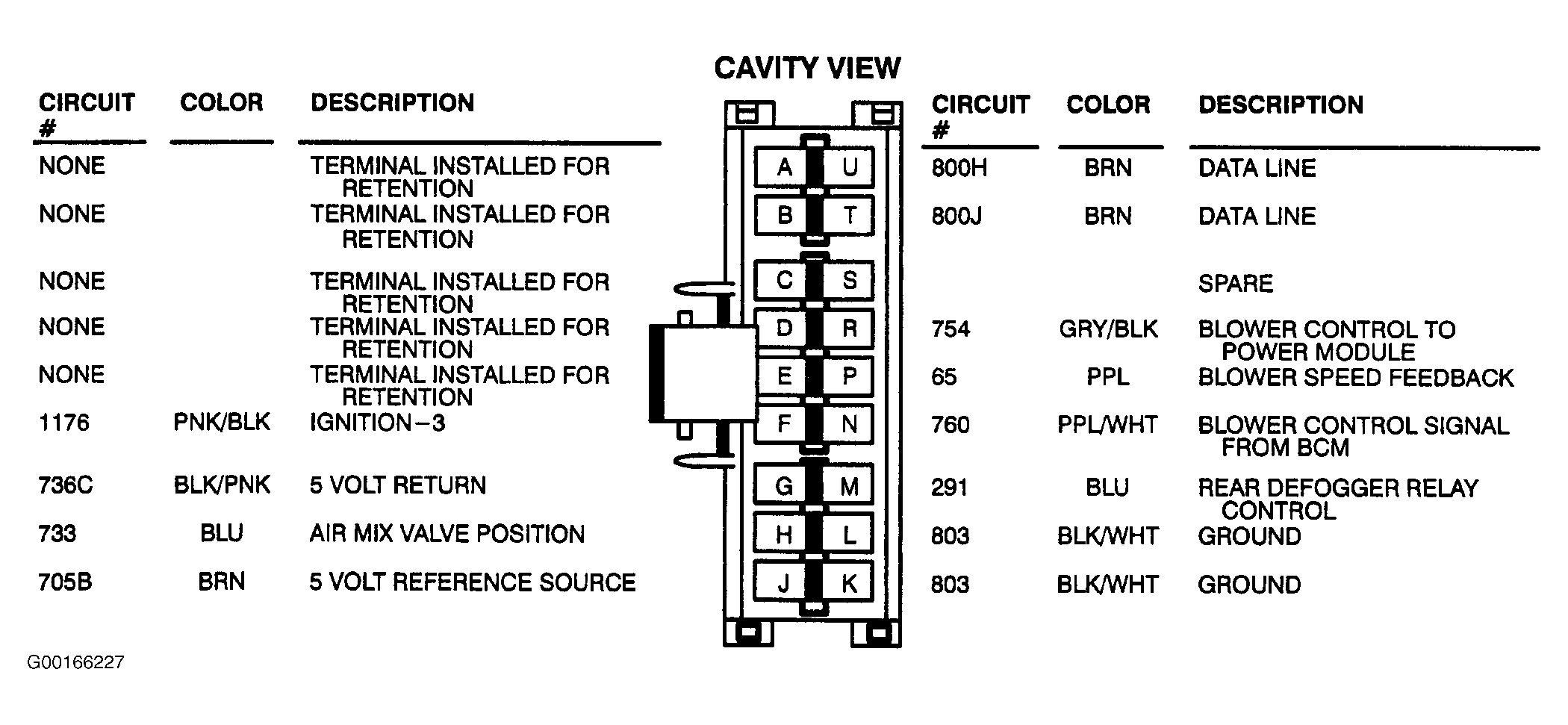

Fig 2: Climate Control/Driver Information System Connector

Courtesy of GENERAL MOTORS CORP.

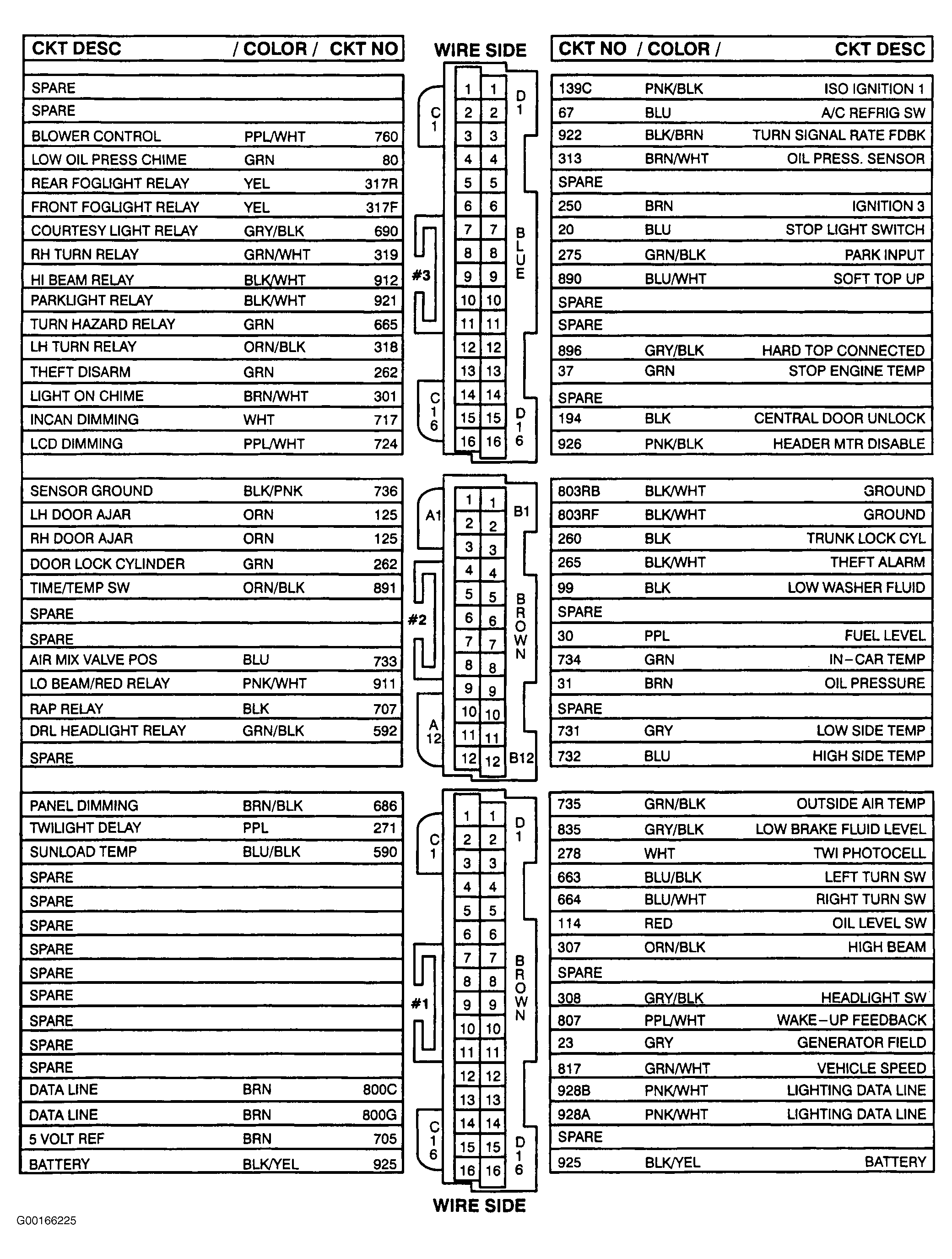

Fig 3: Instrument Panel Connector (Black)

Courtesy of GENERAL MOTORS CORP.

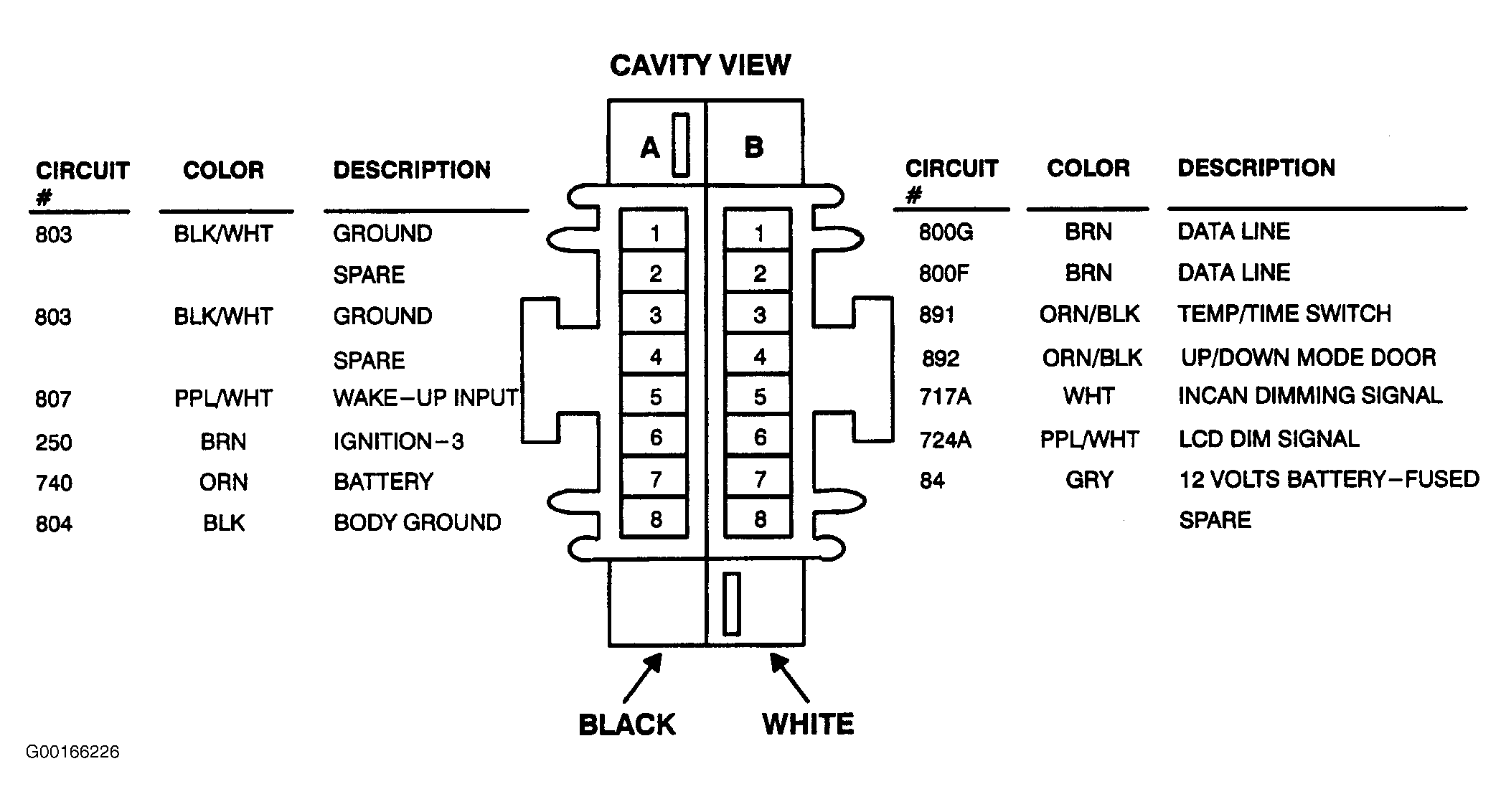

Fig 4: HVAC Programmer Connector

Courtesy of GENERAL MOTORS CORP.
