Wiring Diagrams

NOTE: For more information on system wiring diagrams., see 1993 CADILLAC -- ALLANTE .

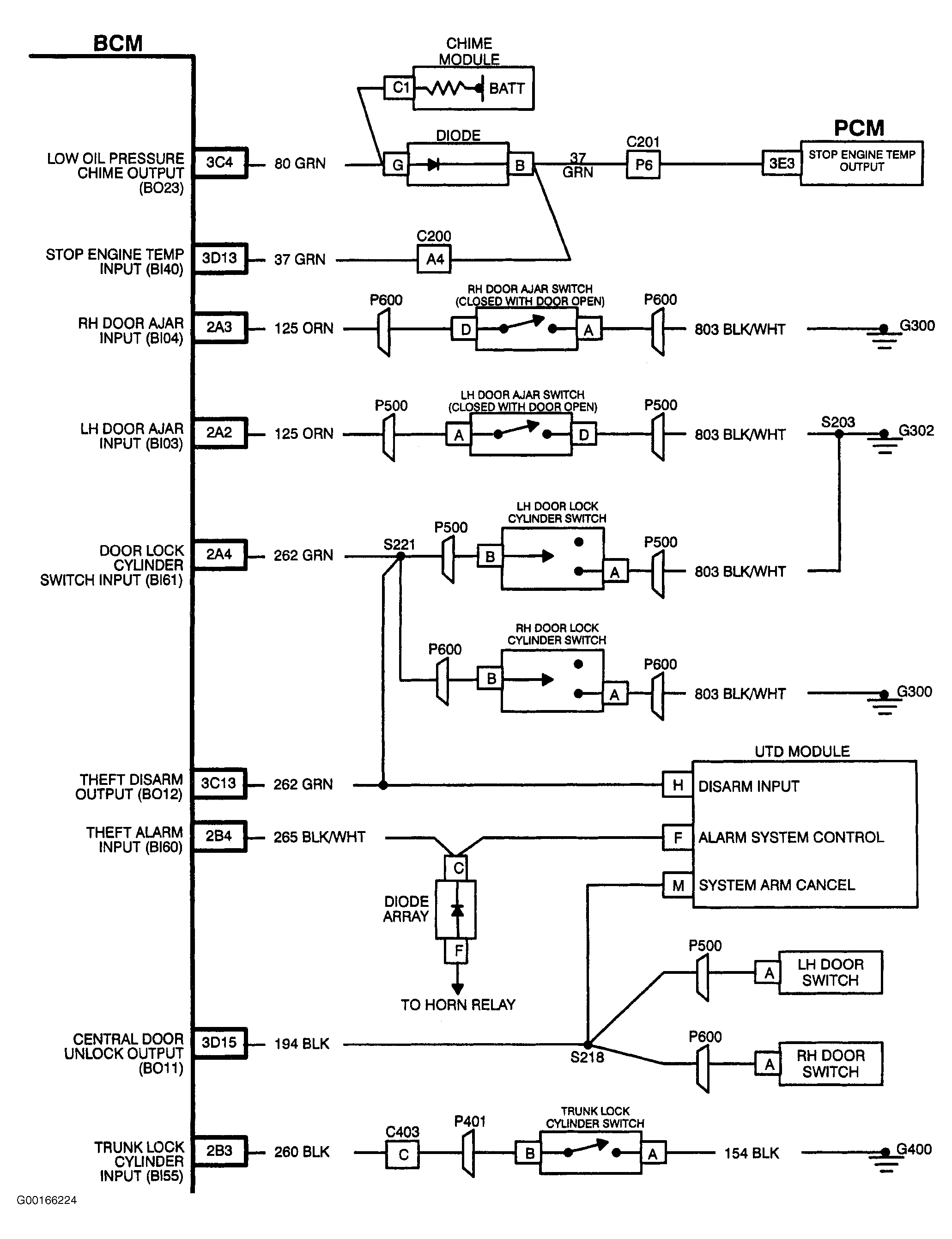

Fig 1: BCM Wiring Diagram (1 Of 6)

Courtesy of GENERAL MOTORS CORP.

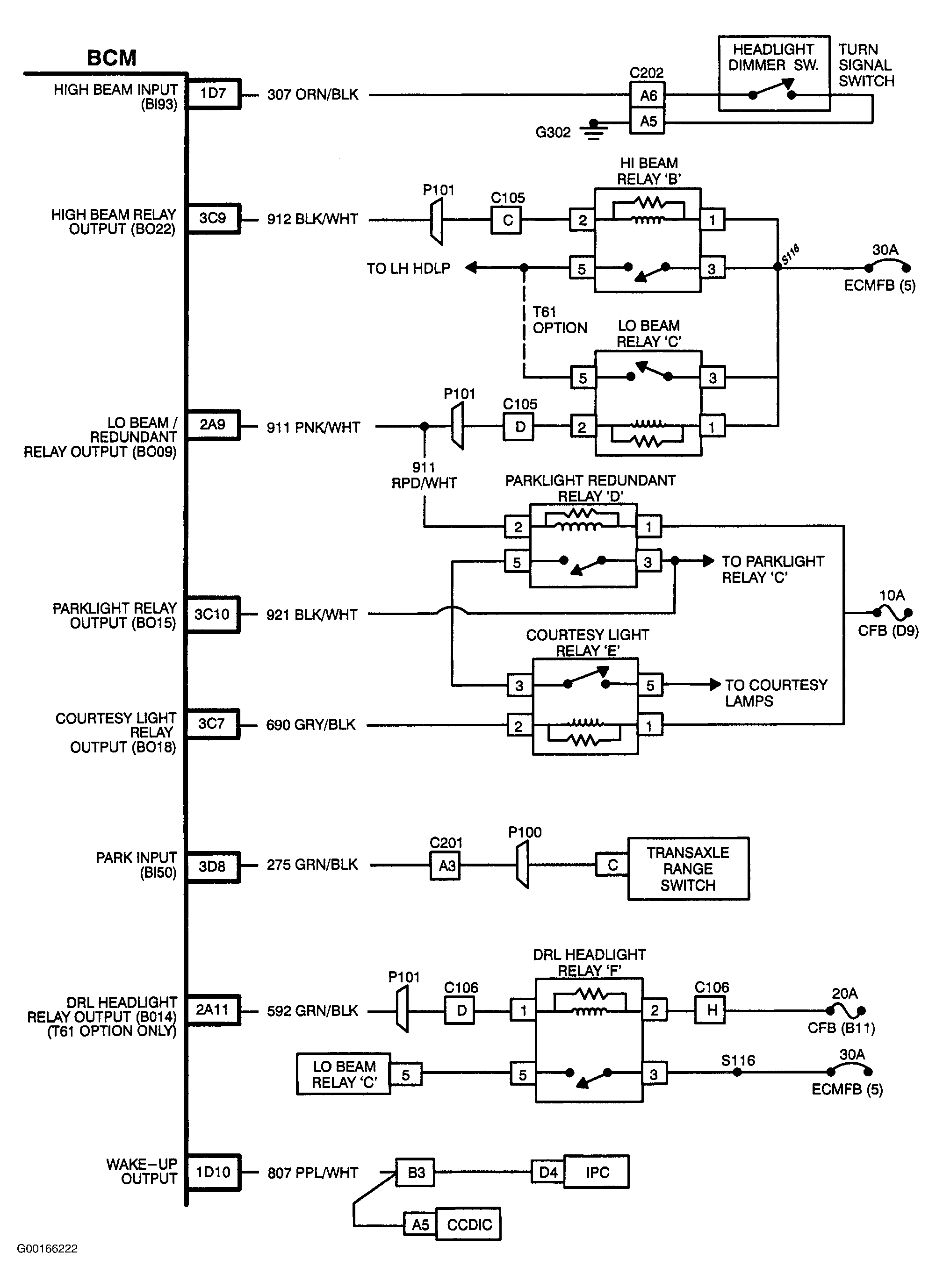

Fig 2: BCM Wiring Diagram (2 Of 6)

Courtesy of GENERAL MOTORS CORP.

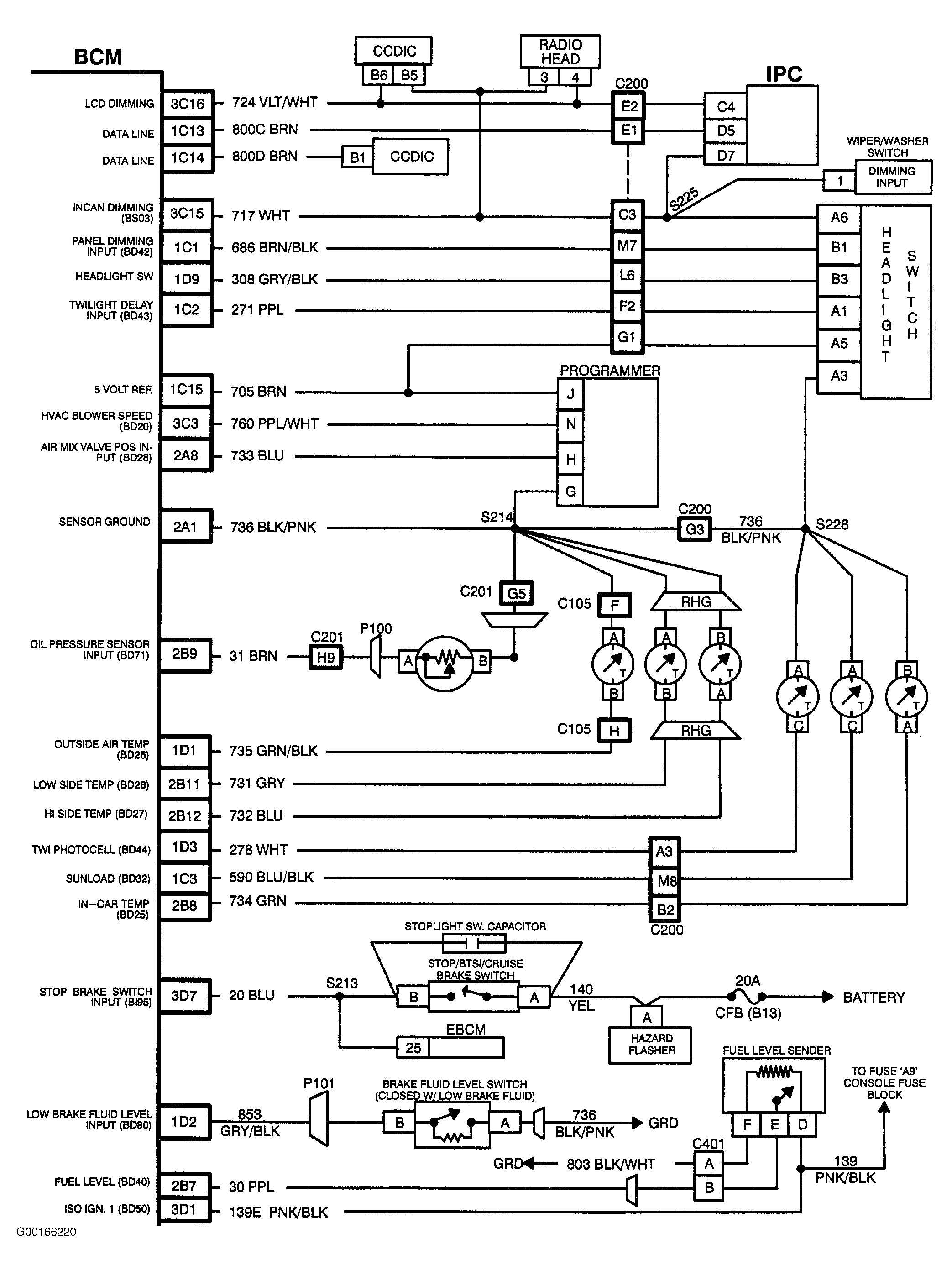

Fig 3: BCM Wiring Diagram (3 Of 6)

Courtesy of GENERAL MOTORS CORP.

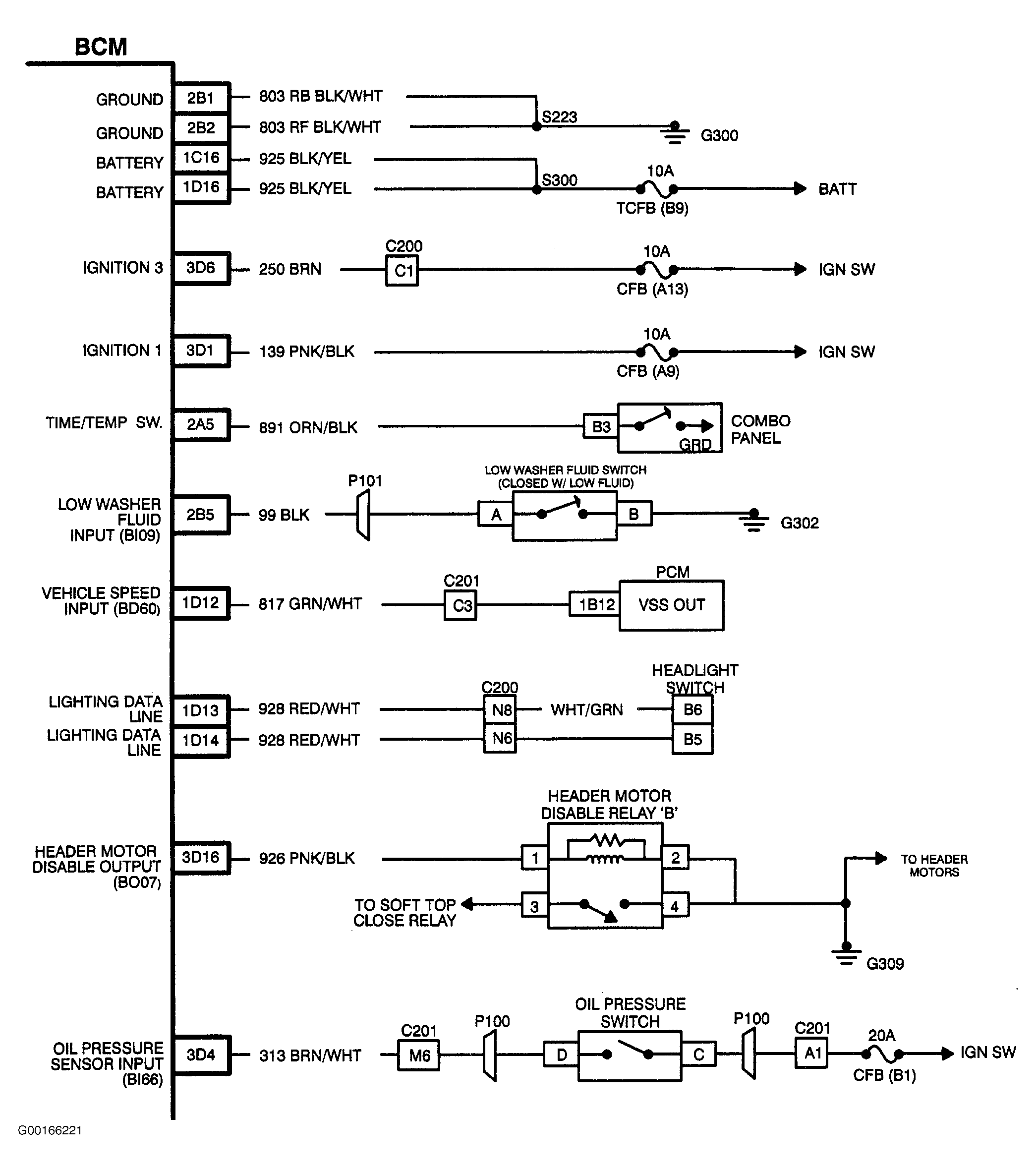

Fig 4: BCM Wiring Diagram (4 Of 6)

Courtesy of GENERAL MOTORS CORP.

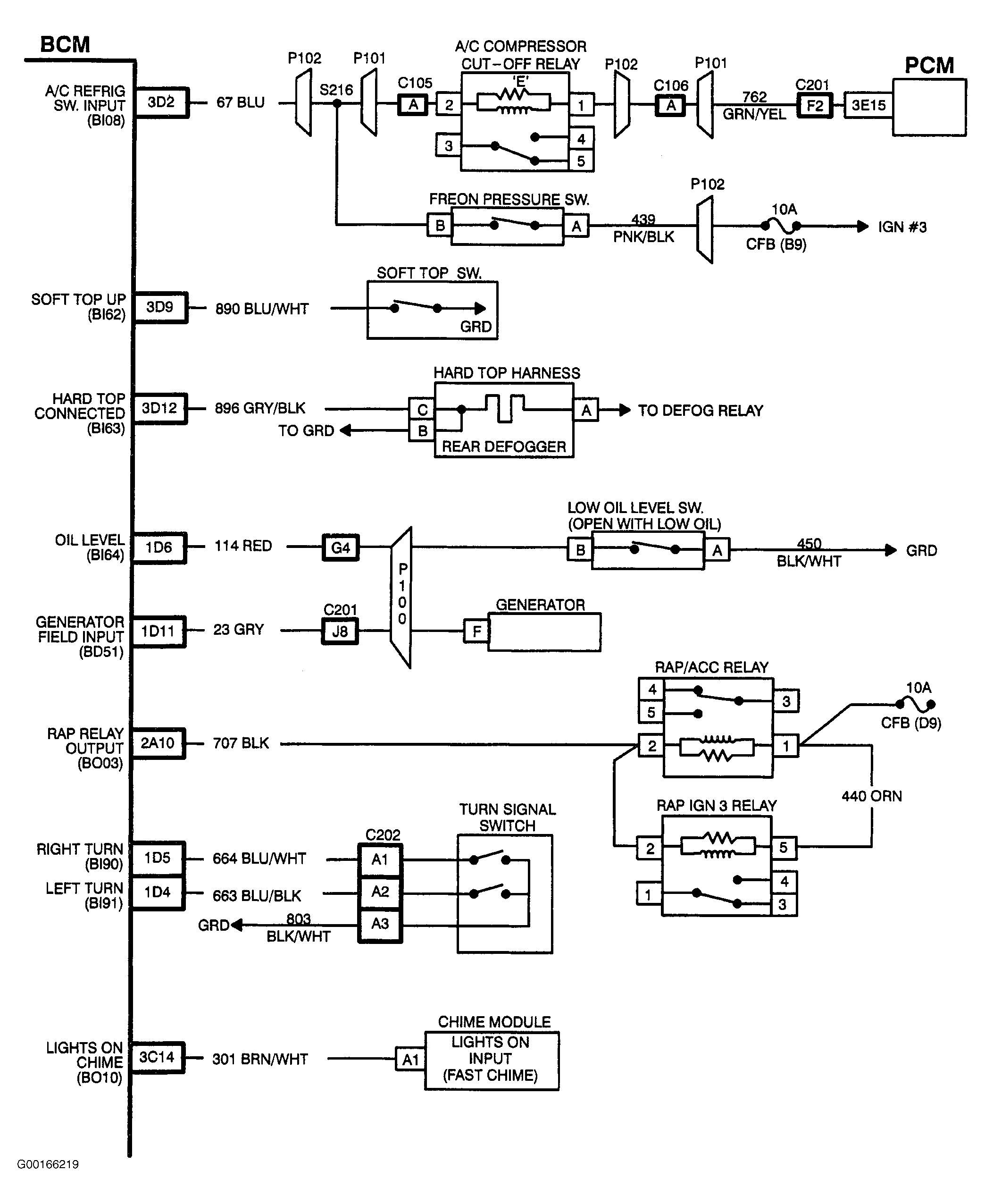

Fig 5: BCM Wiring Diagram (5 Of 6)

Courtesy of GENERAL MOTORS CORP.

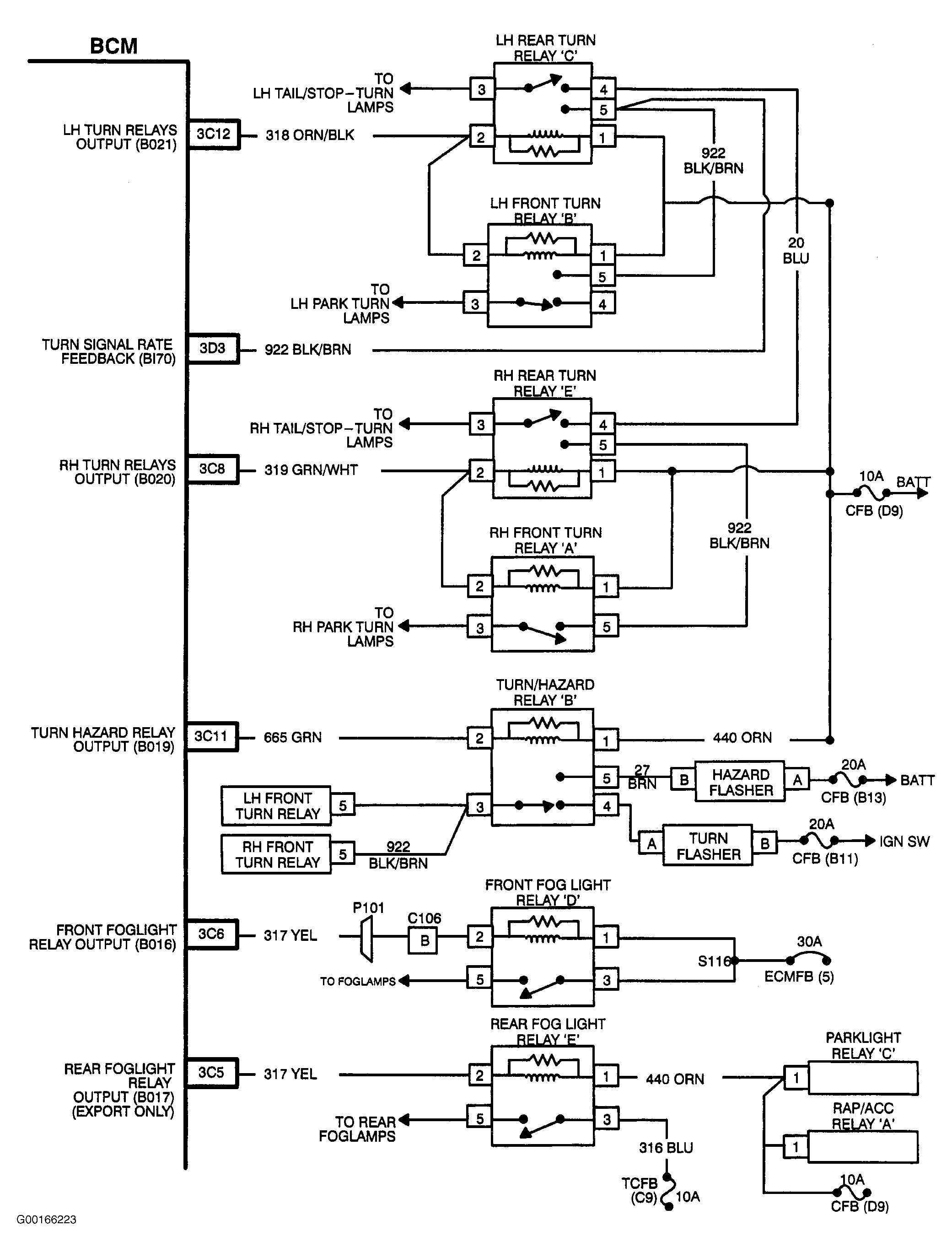

Fig 6: BCM Wiring Diagram (6 Of 6)

Courtesy of GENERAL MOTORS CORP.

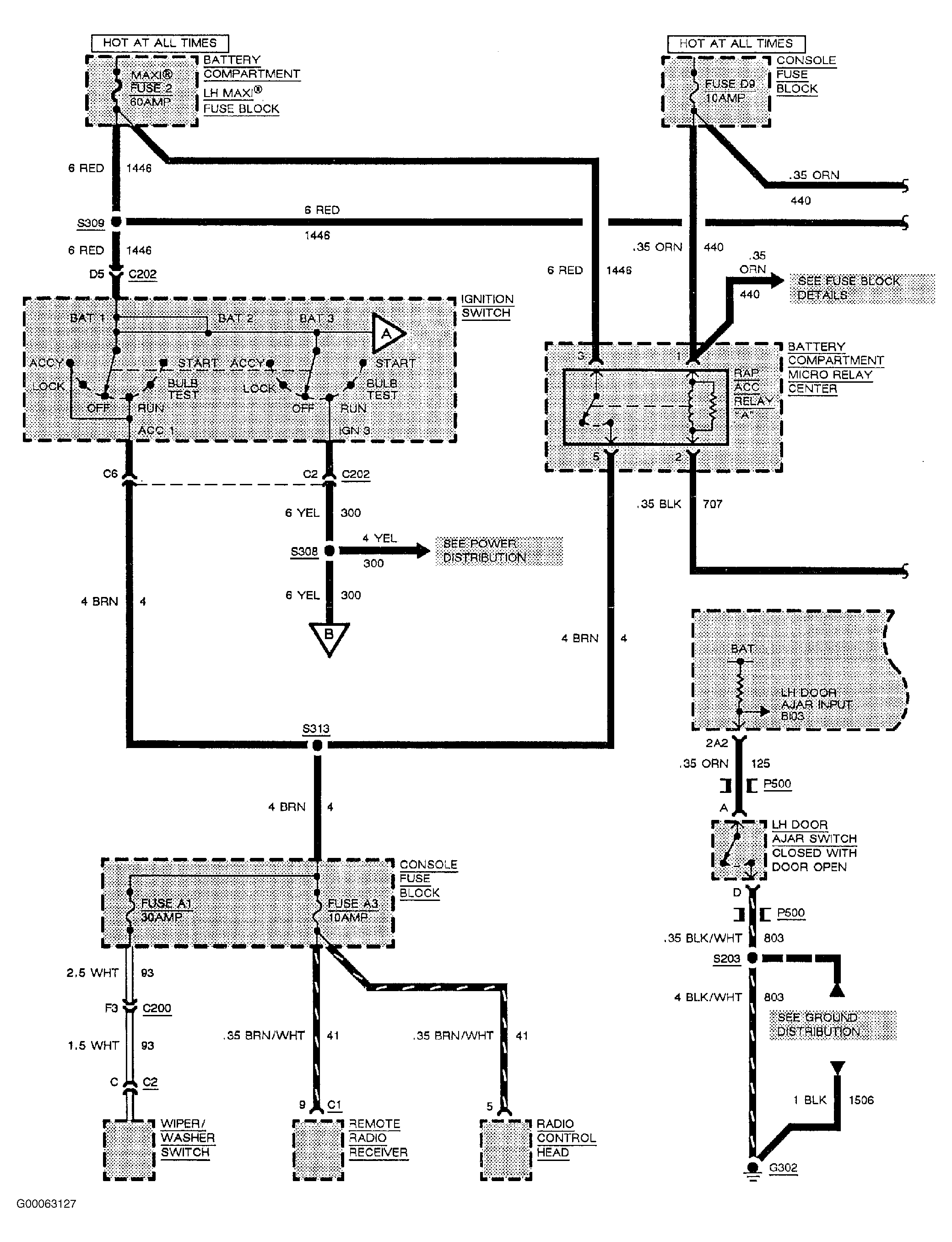

Fig 7: Retained Accessory Power Circuit (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

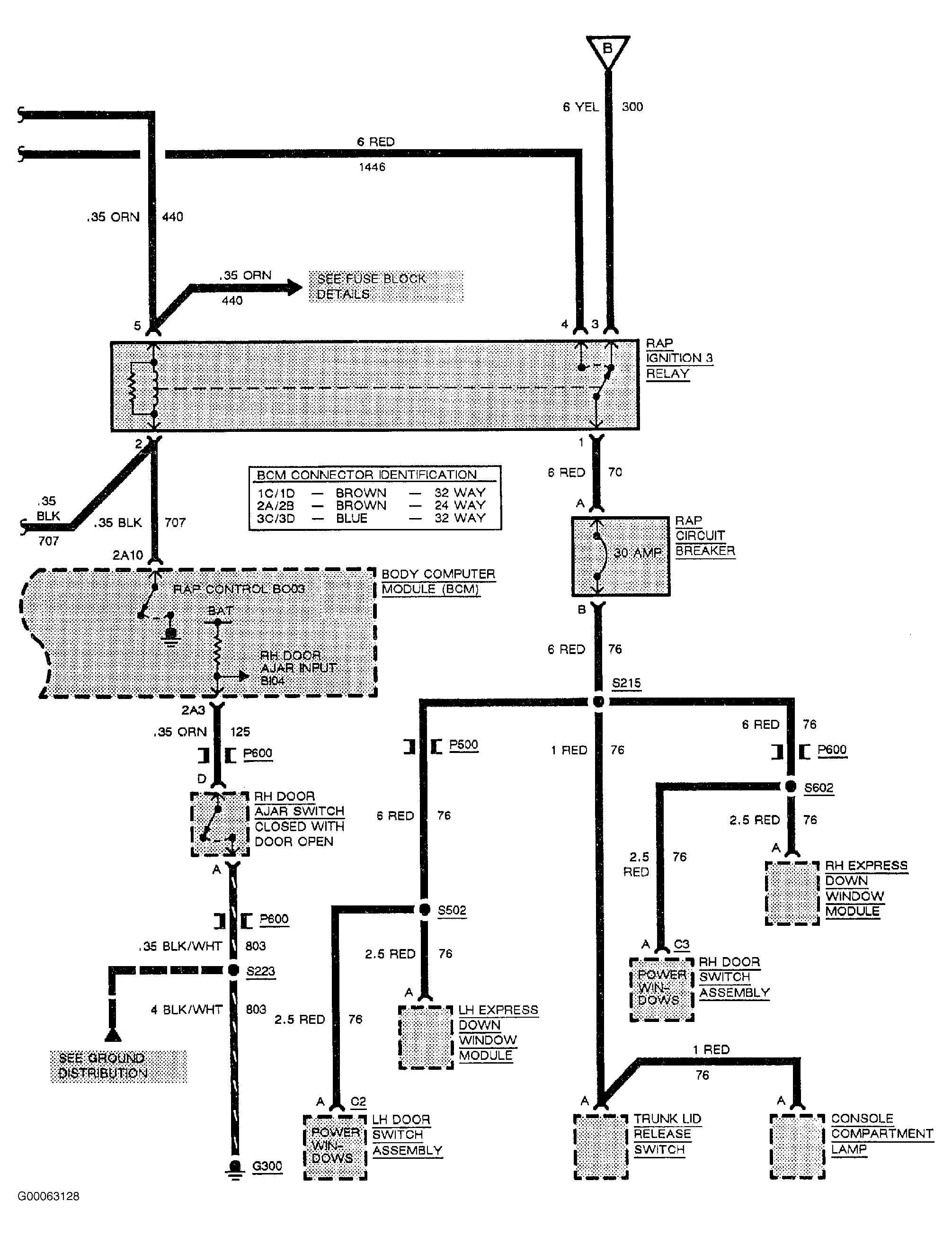

Fig 8: Retained Accessory Power Circuit (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
