How To Operate Diagnostics: Notes

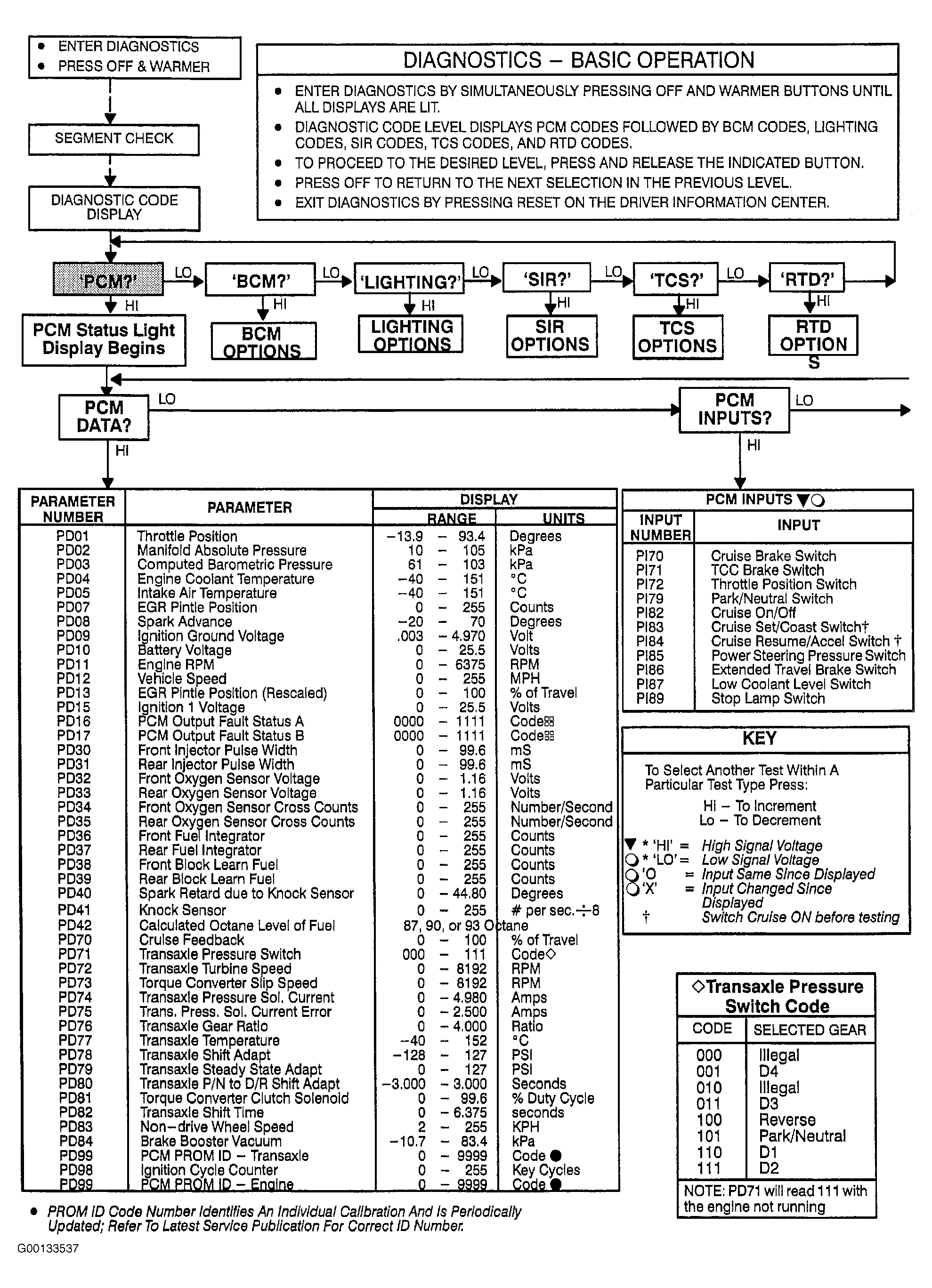

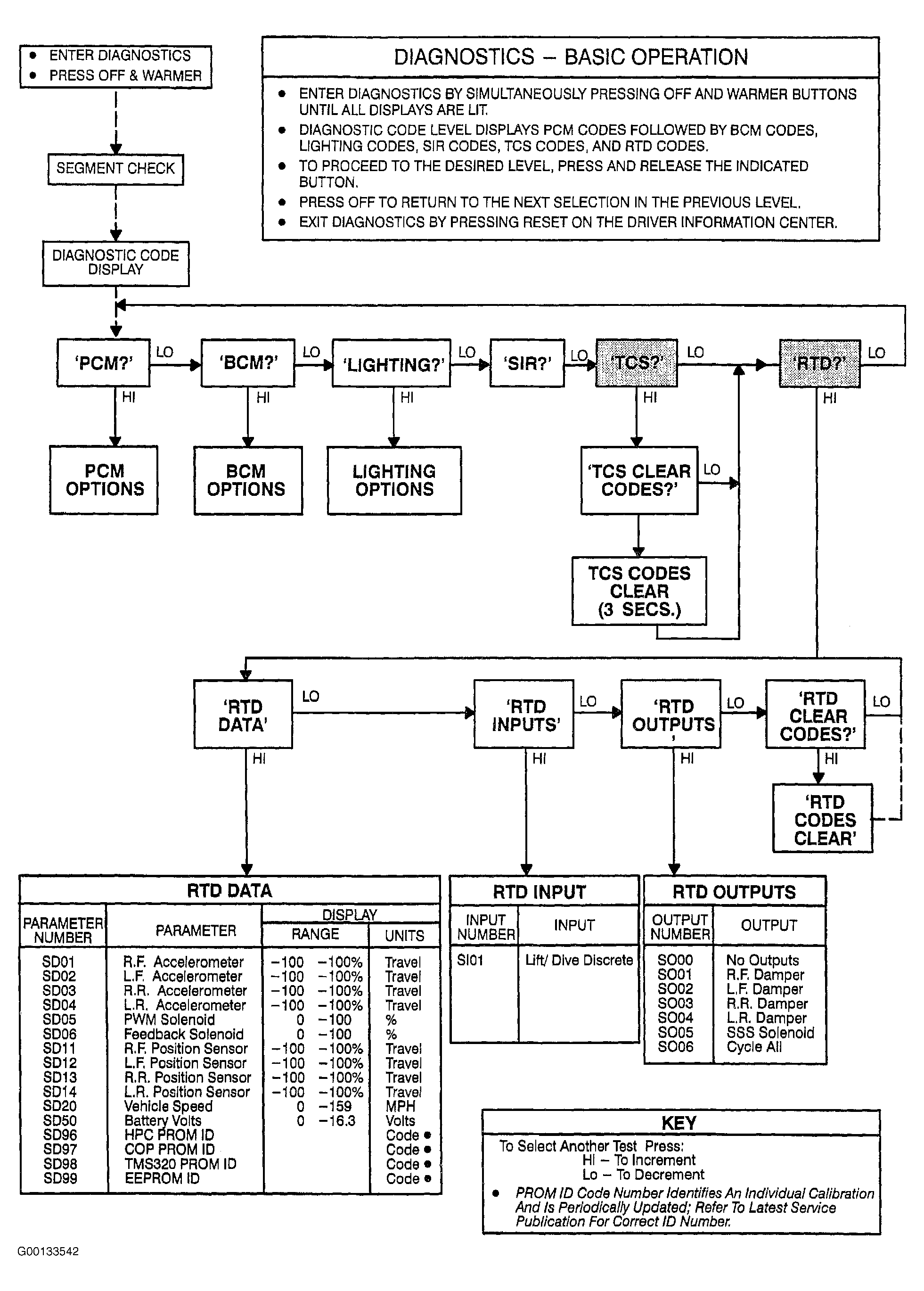

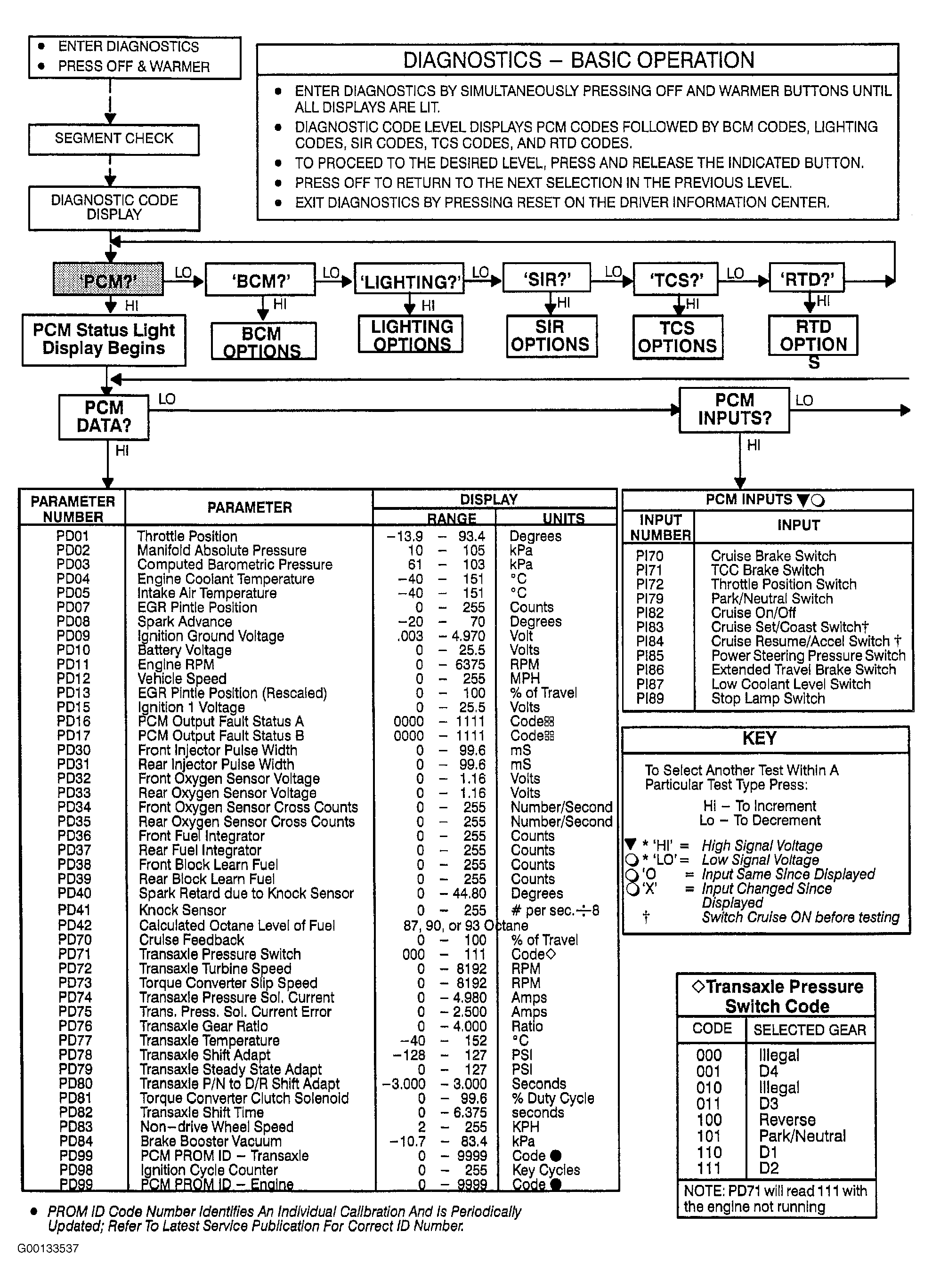

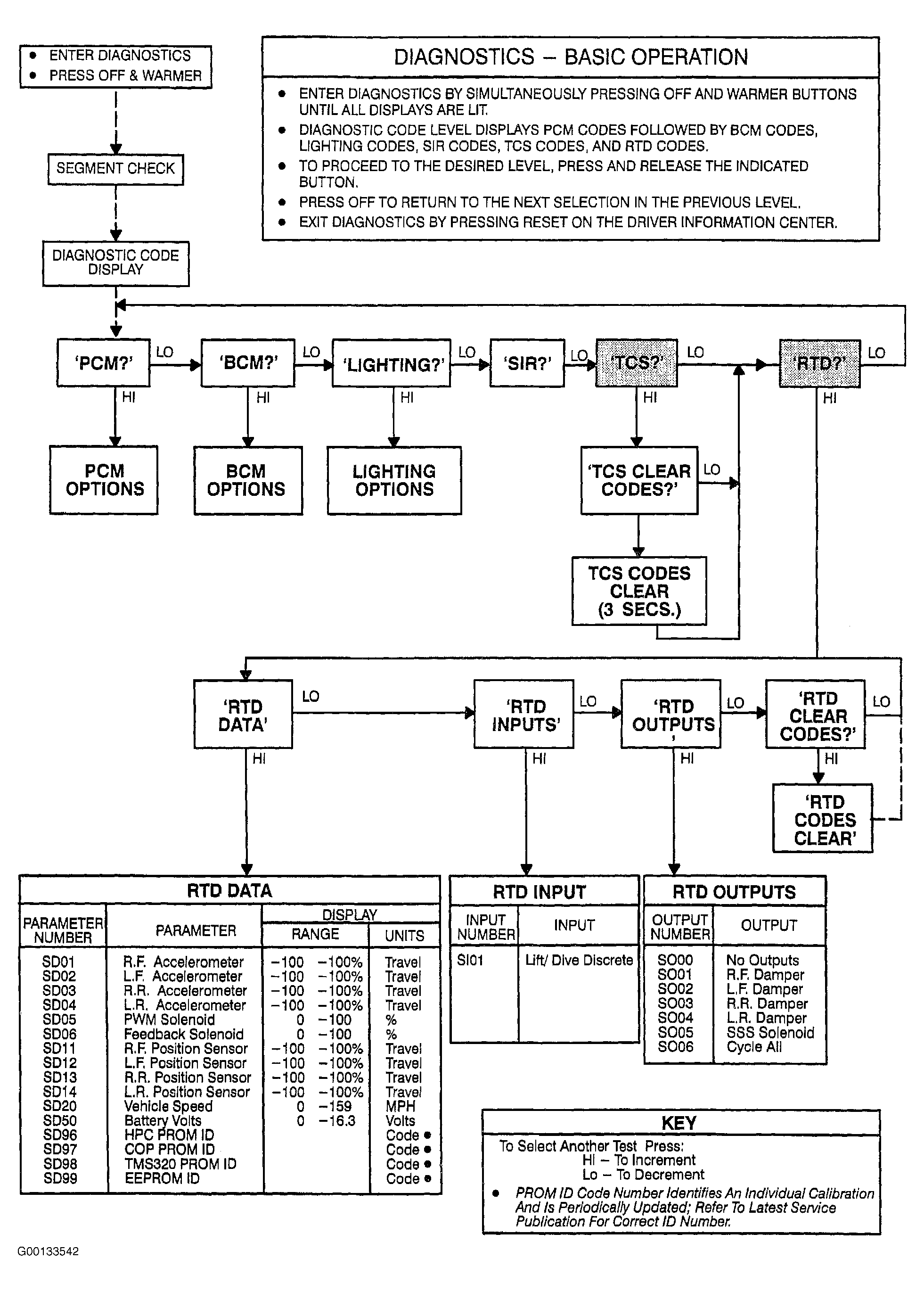

After trouble codes have been displayed, diagnostics can be used to perform several tests on different systems one at a time. Upon completion of code display, a specific system may be selected for testing. Refer to Identifying Entering Diagnostics Mode Flow Charts, Figure- Figure .
