Note On Intermittents

Code P031 could be set during an engine backfire, which cause a rapid increase in MAP value. Check Code P031 snapshot.

Fig 1: Code P031 Schematic, Shorted MAP Sensor Circuit

Courtesy of GENERAL MOTORS CORP

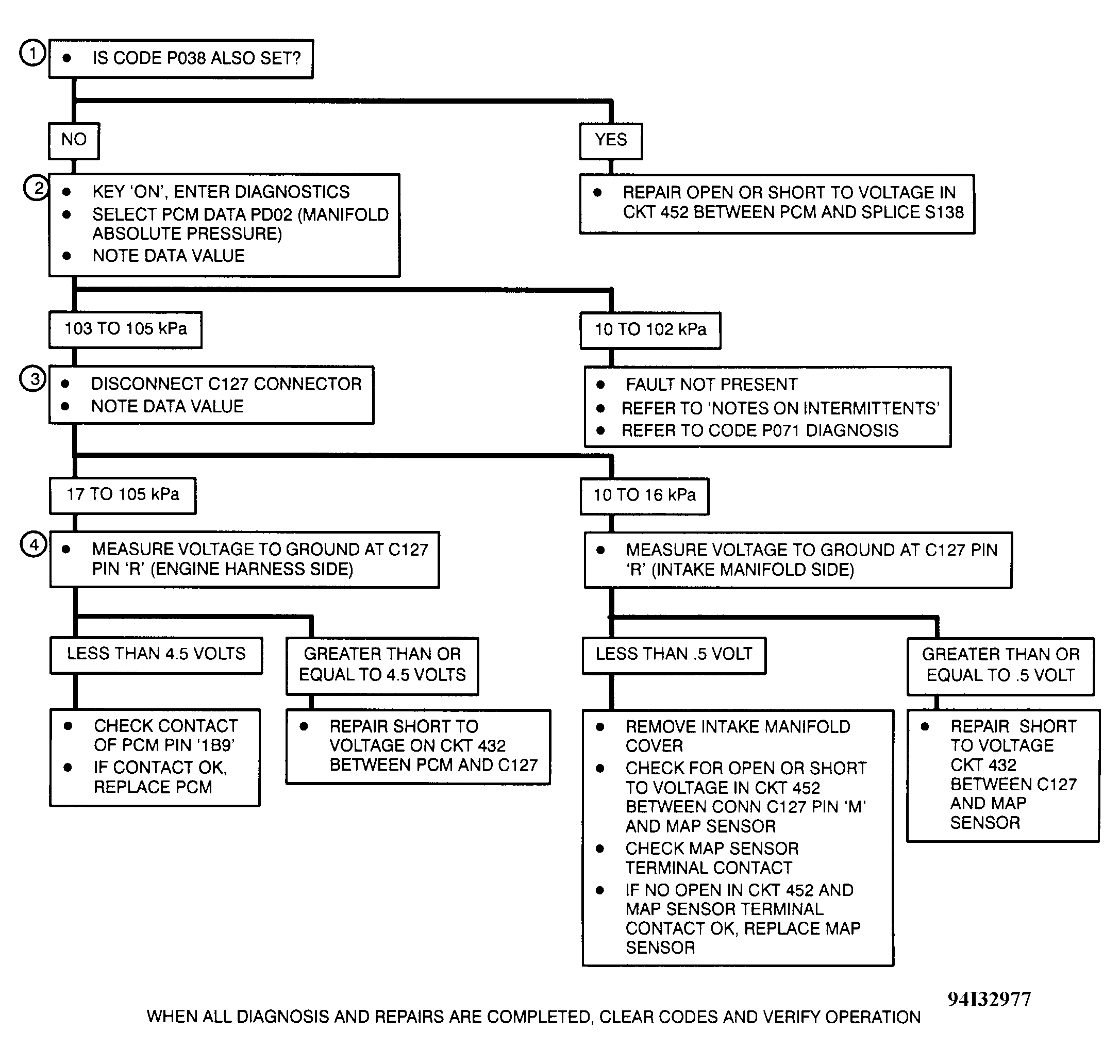

Fig 2: Code P031 Diagnostic Flow Chart, Shorted MAP Sensor Circuit

Courtesy of GENERAL MOTORS CORP
