Code P060, Cruise Control With Transaxle Not In Drive: Action

PCM disengages cruise control.

1. Checks if Code P028 or P091 are set because they can cause Code P060 to set.
2. Checks if P/N input to PCM from transaxle range switch agrees with transaxle pressure switch. If they do, code was driver induced by shifting into Park or Neutral while cruise control was engaged. If not, check for intermittent fault.

Fig 1: Code P060 Schematic, Cruise Control With Transaxle Not In Drive

Courtesy of GENERAL MOTORS CORP.

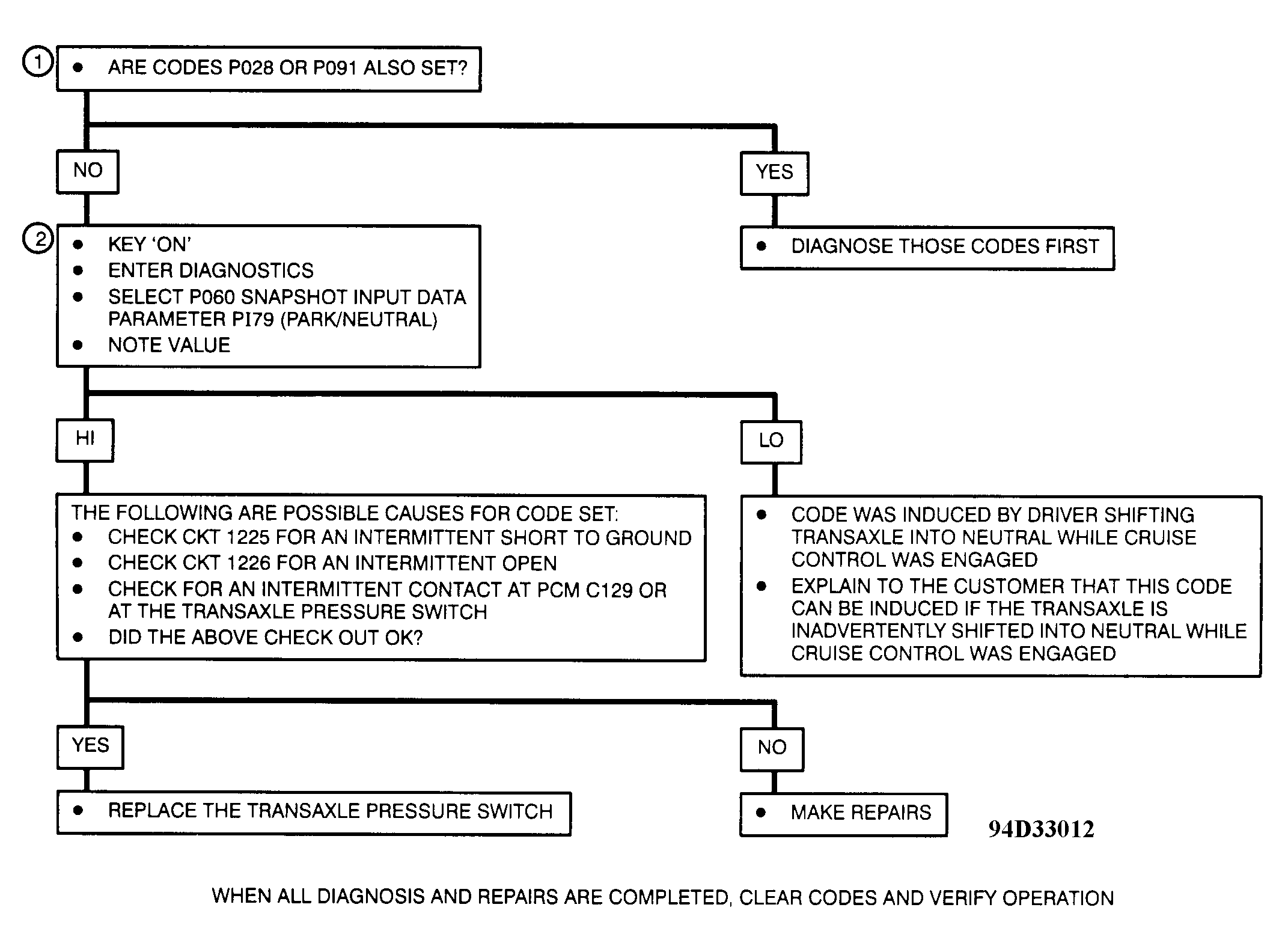

Fig 2: Code P060 Diagnostic Flow Chart, Cruise Control With Transaxle Not In Drive

Courtesy of GENERAL MOTORS CORP.
